Sony BZ53L Overview

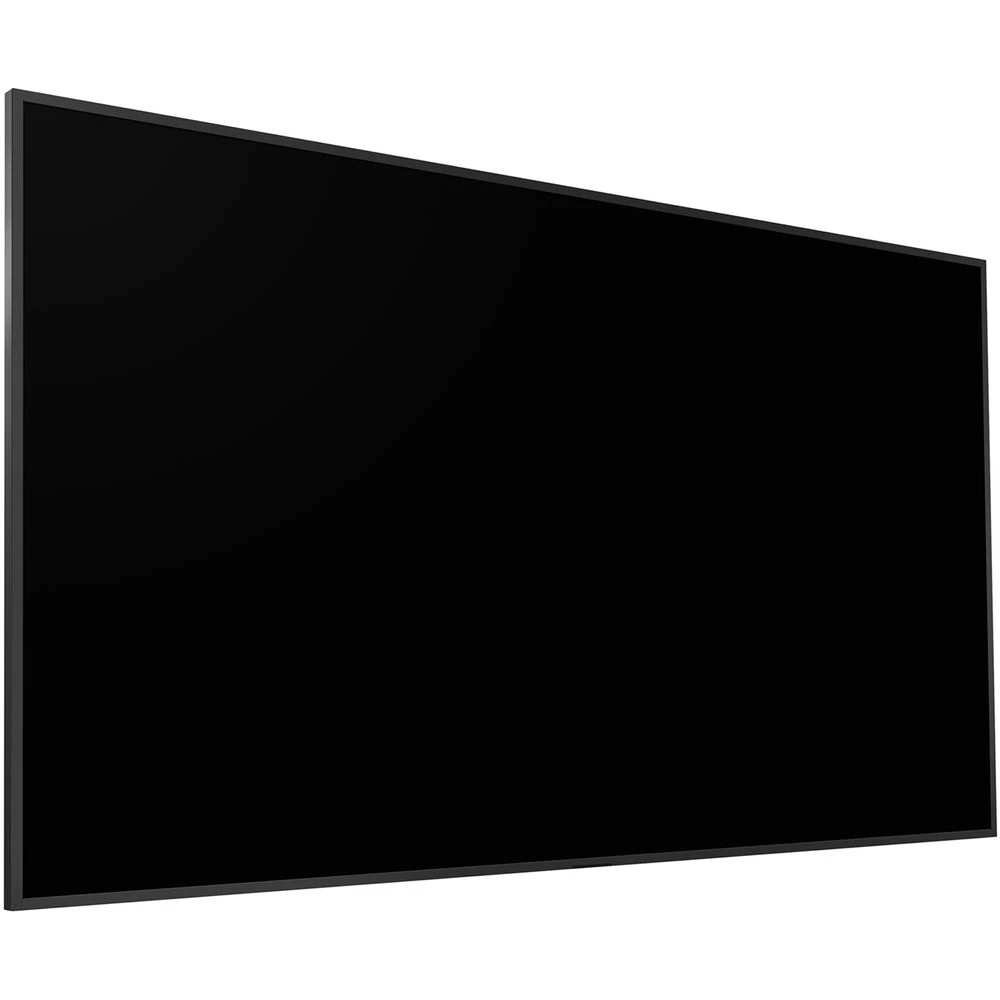

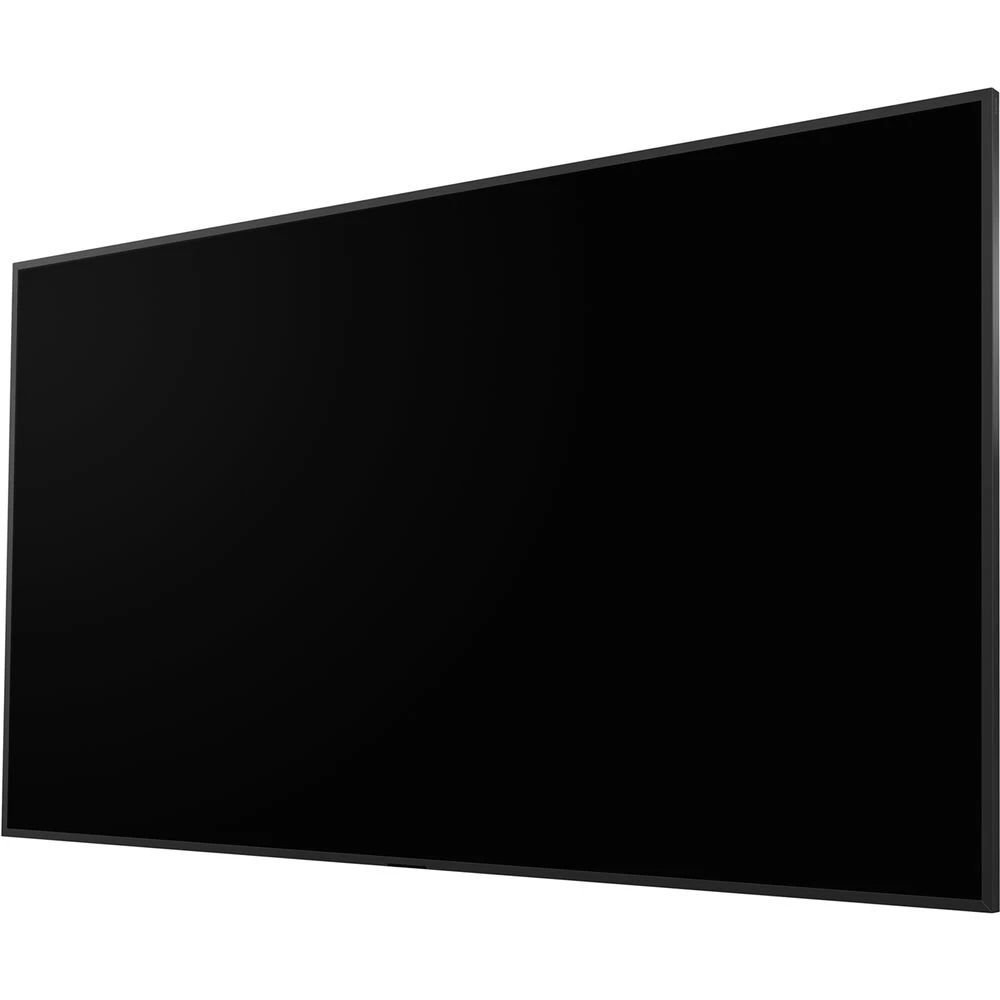

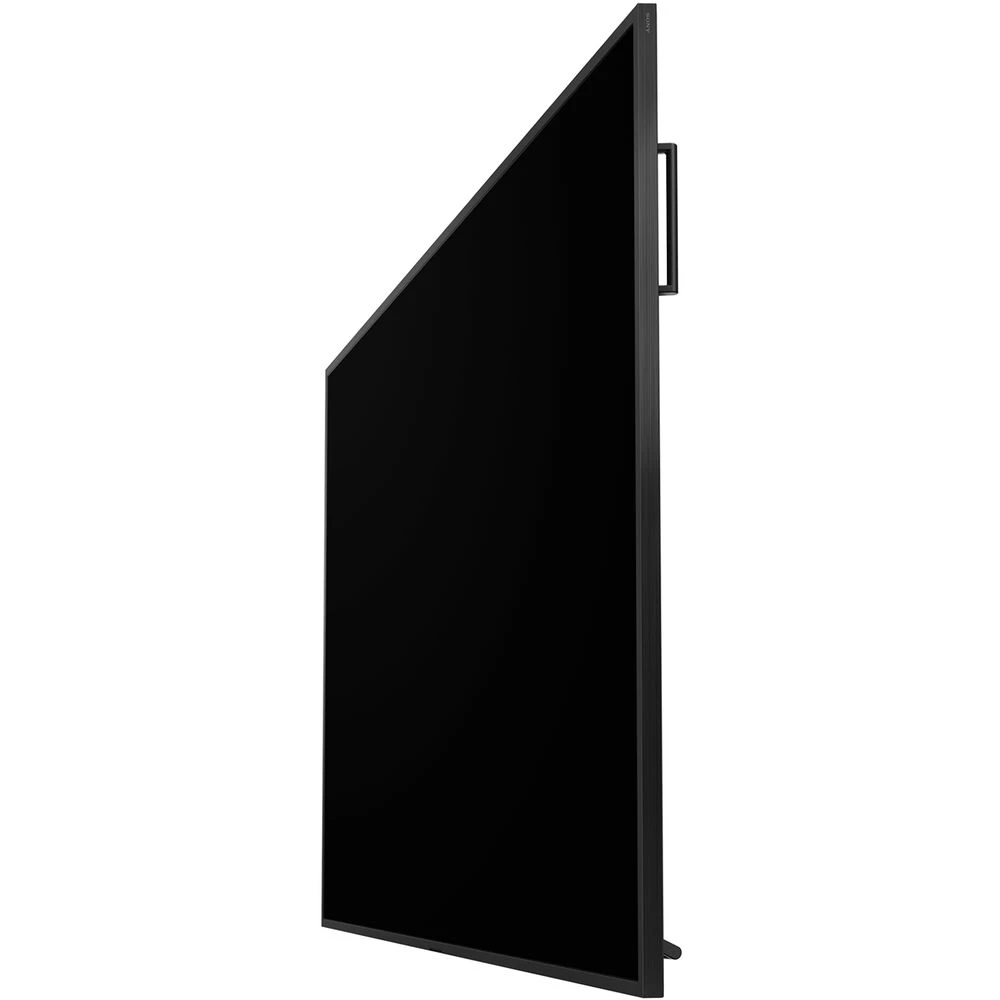

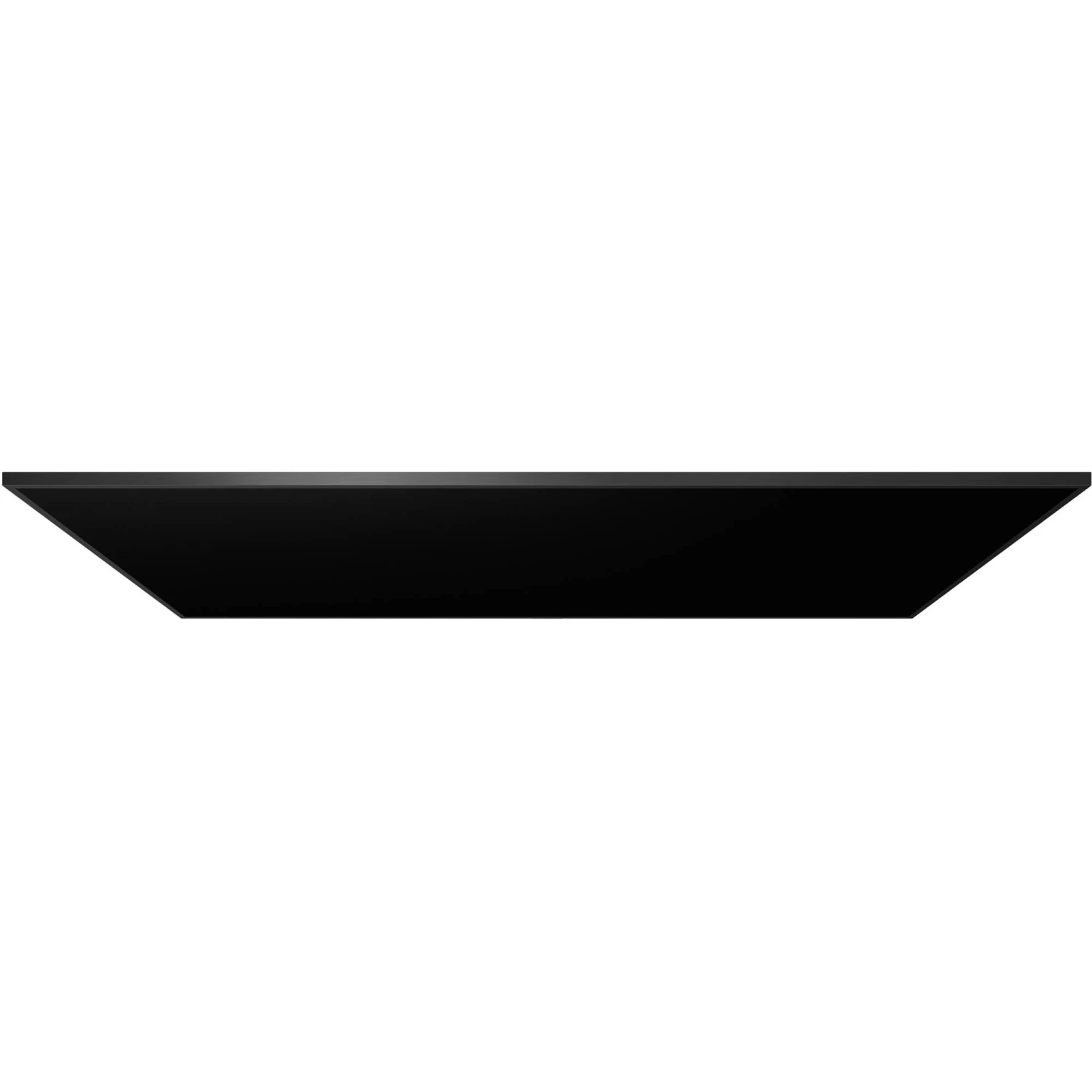

The Sony BRAVIA FW-98BZ53L 98″ UHD 4K HDR Commercial Monitor is a 780 nits bright, Android OS based professional display. Featuring 24/7 continuous operation, flexible installation, a full suite of professional apps and settings, and Sony’s Deep Black Non-Glare Coating, the FW-98BZ53L is ideal for large and bright spaces, like retail showrooms and corporate lobbies.
With four HDMI inputs, you can connect a wide variety of devices with up to 4K 120 Hz video capability and HDCP 2.3. The FW-98BZ53L features an integrated USB media player and Android OS, allowing it to be deployed as a stand-alone display solution, or with RS-232 and IP control capability it can be easily integrated into a larger A/V network. Additionally, the FW-98BZ53L has an S-Center speaker input to allow it to be used as the center channel speaker when connecting to a Sony audio system with S-CENTER OUT.
Items Included
- Sony BRAVIA FW-98BZ53L 98″ UHD 4K HDR Commercial Monitor
- Power Cord
- Remote Control with Batteries
- Cable Tie
- Limited 5-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Sony BZ53L Specs
| Display Size |
98″ |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
780 nits / cd/m2 |
| Inputs |
4x HDMI 1x 1/8″ / 3.5 mm (Composite) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Headphone) |
| Wireless |
Wi-Fi / Bluetooth |
| USB I/O |
1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0 |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x 1/8″ / 3.5 mm Serial (RS-232C) Control |
| Built-In Speakers |
Yes, 4x 10 W |
| Media Card Reader |
No |
| Display Size |
98″ |
| Panel Type |
VA LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape, Portrait |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
780 nits / cd/m2 |
| Lighting System |
Backlit LED |
| HDR Support |
Yes, HDR10/Dolby Vision/Hybrid Log Gamma |
| Contrast Ratio |
5000:1 |
| Dynamic Contrast Ratio |
700,000:1 |
| Response Time |
6.5 ms |
| Refresh Rate |
120 Hz |
| Color Gamut |
95% DCI-P3 |
| Viewing Angle (H x V) |
178 x 178° |
| Pixels Per Inch (ppi) |
45 ppi |
| Haze Level |
47% |
| TV Tuner |
No |
| Inputs |
4x HDMI 1x 1/8″ / 3.5 mm (Composite) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Headphone) |
| HDCP Support |
Yes, Version 2.3 |
| Wireless |
Wi-Fi / Bluetooth |
| Connection Protocols |
AirPlay 2, Chromecast built-in |
| USB I/O |
1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0 |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x 1/8″ / 3.5 mm Serial (RS-232C) Control |
| Ambient Light Sensor |
Yes |
| Built-In Speakers |
Yes, 4x 10 W |
| Speaker Configuration |
2-Channel |
| Smart TV |
Android TV |
| Storage |
32 GB |
| OS Compatibility |
Android/iOS |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Video File Types |
3GPP, ASF, AVI, MJPEG, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, VC-1, VP8, WEBM, WMV, Xvid |
| Supported Audio File Types |
AAC, FLAC, LPCM, MP1, MP2, WAV, WMA |
| Supported Photo File Types |
JPEG |
| Power Consumption |
Typical: 505.0 W Standby: 0.5 W |
| Input Power |
110 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
Internal |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Mounting-Hole Pattern |
600 x 400 mm |
| Lock Slot |
No |
| Bezel Thickness |
20 mm |
| Duty Cycle |
24 Hours / 7 Days |
| Dimensions |
86.6 x 49.4 x 3.3″ / 2199 x 1255 x 85 mm |
| Weight |
148.1 lb / 67.2 kg |
| Package Weight |
200 lb |
| Box Dimensions (LxWxH) |
91 x 55 x 11″ |
