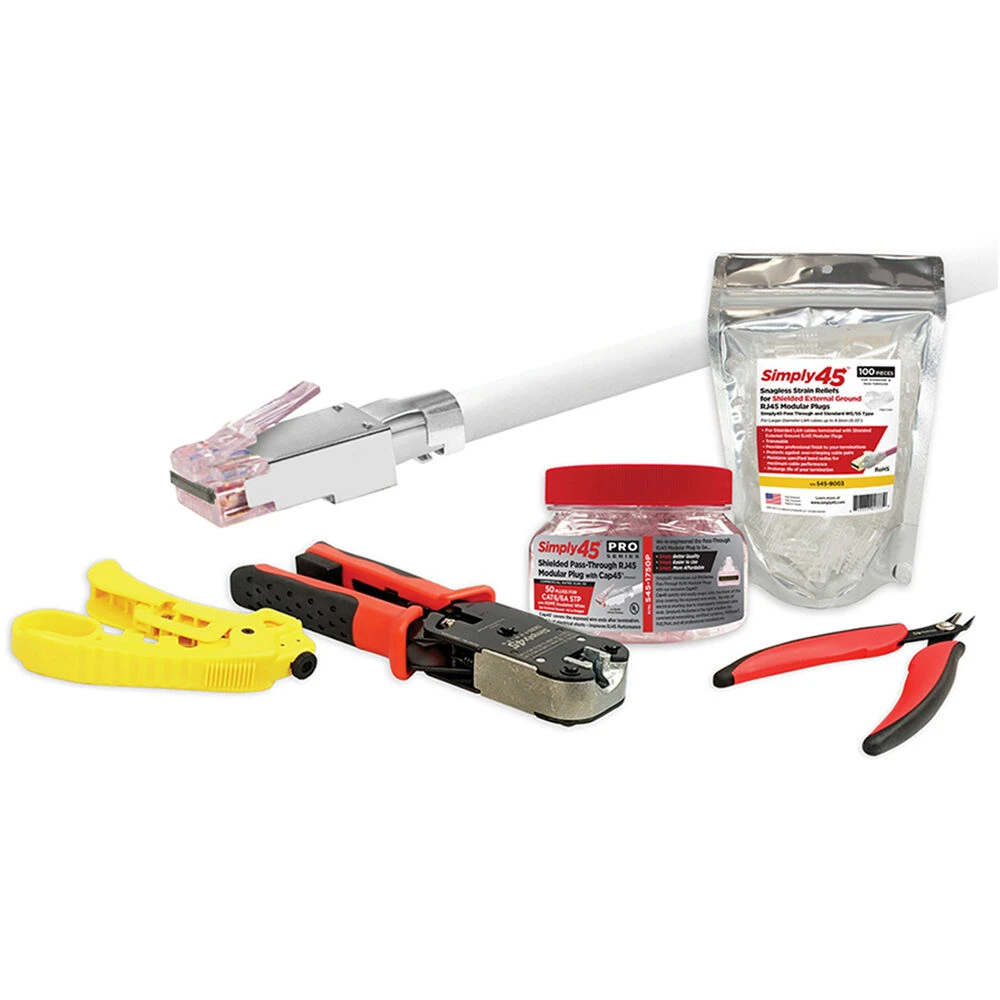

Simply45 S45-PSK6S ProSeries Pass-Through Cat 6/6a STP Starter Kit(Simply45 S45 Psk6s Proseries Pass Through Cat 6 6a Stp Starter Kit)

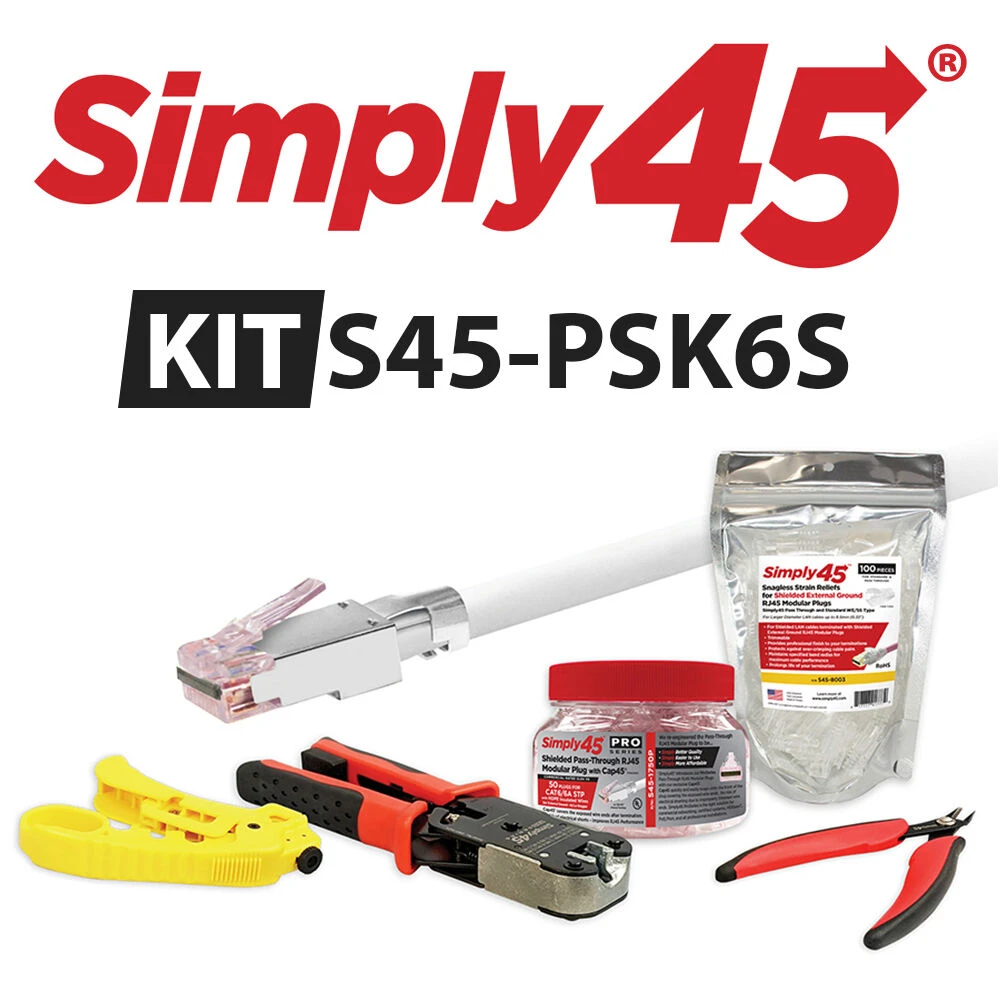

Simply45 S45-PSK6S ProSeries Pass-Through Cat 6/6a STP Starter Kit(Simply45 S45 Psk6s Proseries Pass Through Cat 6 6a Stp Starter Kit) - Image 2

Simply45 S45-PSK6S ProSeries Pass-Through Cat 6/6a STP Starter Kit(Simply45 S45 Psk6s Proseries Pass Through Cat 6 6a Stp Starter Kit)

Original price was: $374.82.Current price is: $98.99.

SKU: DGFUB 6897833050197 Category: TV & Mobile Tags: General Accessories, Installation & Maintenance Tools, Lighting & Studio, Simply45 S45-PSK6S

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Simply45 S45-PSK6S Overview

1Description
2Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug (50-Piece Jar)
3Simply45 ProSeries All-In-One RJ45 Crimp Tool
4Simply45 5″ Premium Flush Cutter Tool
5Simply45 Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e (Yellow)
6Simply45 Shielded External Ground Snagless Strain Reliefs (100-Pack)

This S45-PSK6S ProSeries Pass-Through Cat 6/6a STP Starter Kit from Simply45 gives you everything you need to strengthen and enhance your shielded Cat 6/6a cable connections. The kit includes a jar of 50 Cat 6 STP shielded external ground pass-through modular plugs and a 100-pack of snagless strain reliefs, as well as an all-in-one RJ45 crimp tool, a flush cutter tool, and a LAN cable stripper.

Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug (50-Piece Jar)

Designed to work with shielded twisted pair (STP) LAN cables, the Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug connects onto 23 AWG solid twisted pair LAN cables up to 0.32″ in diameter. Fifty two-piece pass-through modular RJ45 plugs with external ground come packed inside of a convenient wide-mouth plastic jar, which work with most Cat 6 cables in a staggered high/low wire arrangement. Its patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends. The Simply45 Bar45 load bar simplify the termination process while reducing crosstalk for enhanced performance. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a red tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

3-Prong Pin Design

Simply45’s 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection.

Cap45

The patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends.

Bar45 Load Bar

The Simply45 Bar45 load bars are designed with high quality materials to improve termination performance while simplifying the termination process. It offers better signal isolation for reduced crosstalk and maximized performance by reducing the length of untwisted wires inside the plug, which helps maintain signal integrity for larger diameter shielded cables with PE insulated wires. The Bar45 also uses a Hi/Lo stagger design that slides down to the LAN cable jacket to significantly reduce the amount of untwisted wires inside the RJ45 plug.

UPC: 817777018837

Simply45 ProSeries All-In-One RJ45 Crimp Tool

Designed with many installer-recommended features, the Simply45 ProSeries All-In-One RJ45 Crimp Tool is used for terminating all shielded and unshielded pass-through and standard WE/SS (8P8C) RJ45 modular plugs. It features a tool lock, click-lock socket, external ground crimping socket, blade storage in the handle, and several other key features that make for a reliable and efficient tool.

The all-in-one tool is built to provide consistent flush-to-the-plug wire trimming over time. Even force is delivered to the trimming blades by the synchronized crimp tool handles. The tool uses a diamond-polished hardened steel trimming blade, and a fixed blade position alignment ensures no adjustments are required. These and many other features ensure more flush and consistent wire trimming over many termination cycles. This tool works with Simply45 and 3rd-party plugs, but it is not compatible with 3rd-party external ground shielded plugs nor with Platinum Tools ezEX plugs.

Note:

Not compatible with 3rd-party external ground shielded plugs and with Platinum Tools ezEX plugs.

Locking Crimp Socket

A locking socket securely holds the RJ45 modular plug in the correct position for crimping. When you insert the shield with the external ground plug, you will hear a click sound. This lets you know that the plug is in the proper position for termination.

Sliding Tool Lock

A convenient sliding tool lock holds the crimp tool in its closed position when not in use. This prevents the crimp tool from inadvertent opening and is useful for storage in an installers kit.

Blade Storage in the Handle

A storage box is built into the crimp tool handle and holds new trimming blades and cutting blades.

Crimping Socket for External Ground Arm

Shielded RJ45 modular plugs with external ground have an arm that extends from the back of the plug. This arm is then crimped to the cable jacket to help secure the terminated plug permanently to the LAN cable. Most RJ45 crimp tools require you to use a separate crimp tool to secure the external ground arm to the LAN cable. But this ProSeries crimp tool has a built-in crimping socket for the external ground arm.

Ratcheted for Full Compression Cycle

A ratcheted crimp tool requires the installer to complete the full crimping cycle. While some RJ45 brands are eliminating this feature with their crimp tools, this ProSeries crimp tool includes it to prevent incomplete plug termination. A ratcheted crimp tool is critical to ensuring that the RJ45 pins are properly seated onto the wire conductors and the pass-through wires are properly trimmed.

Synchronized Handles

Synchronized handles compress together during the crimping cycle, allowing consistent and even force to be delivered directly to the plug socket and the wire trimming. The result is a smoother, faster, and easier crimping process. The tool handles open up to 4.25″, ensuring more force with less hand effort during the crimping cycle. In contrast to Cat 5e cables, Cat 6 or Cat 6a cables usually require both hands to squeeze strongly to complete the crimp cycle. For this, a standard crimp tool that uses only one handle to generate the crimping force just may not work well. But this ProSeries tool uses both handles in tandem to deliver the crimping force with much less effort. You’ll be able to easily crimp Cat 6 cables with one hand, and this enables you to complete many terminations in a day with less fatigue.

Steel Reinforced for Greater Stability

The ProSeries crimp tool is wrapped with reinforced steel to ensure tool stability during the crimping cycle. When crimp tools use various inserts, a lot of instability is introduced during the crimping cycle. Over time, this instability causes poorer wire trims and incomplete RJ45 pin setting onto the wire conductors. Crimp tool stability results in a smoother crimping cycle, better pin sets, more consistent wire trimming, and greater durability over time.

Improved Trimming Blade Design

Even force is delivered to the trimming blades by the synchronized crimp tool handles.

Wire Alignment Pattern

Simply45 laser engraves the wire alignment patterns Type A/B right under the crimping socket. The pattern is also listed to match how the RJ45 modular plug is inserted into the tool. This makes it easy to provide one last check to be sure the wires are properly aligned inside the plug before crimping, eliminating the error of putting the wire alignment upside down into the plug.

Easy Blade Changing

Dull and worn-out blades are among the primary causes for improper wire trimming on pass-through RJ45 modular plugs. Simply45 found that one of the biggest complaints of professional installers is the complexity and time-consuming process of changing the trimming blades on some pass-through crimp tools. This ProSeries crimp tool makes blade changing quick and easy. You can change the trimming blade in only about 30 seconds, with just one screw and no adjustments needed. This makes it easier to change the trimming blades more often.

Set Strain Reliefs/Boots During Crimping Cycle

With this Simply45 ProSeries crimp tool, integrated strain reliefs/boots are crimped to the RJ45 modular plug during the crimping cycle. The process is fast and secure. Using strain reliefs (boots) is very important to protect the RJ45 modular plug termination. The Simply45 integrated strain reliefs are narrow, the same width as the RJ45 modular plug. This is ideal for multi-port patch panels, as you can easily insert and remove the plug from the jacks.

Multifunction

The S45-C101 ProSeries crimp tool also includes a built-in wire cutter and wire stripper.

Ergonomic Grip

The ergonomic grip is designed to reduce hand fatigue and slippage.

UPC: 817777017793

Simply45 5″ Premium Flush Cutter Tool

Simply45 has designed the 5″ Premium Flush Cutter Tool of premium quality for durability in professional applications. It’s made for trimming LAN cable wire conductors, precision trimming of load bars and jacks, and other installer uses. It’s capable of shearing soft copper wire up to 18 AWG (1mm). It can also be used for electronics products, jewelry, and various other purposes.

The design features a heat-treated high-carbon steel blade, an angled jar for precision flush cuts, and cushioned handles with a non-slip grip that’s effective even in humid weather conditions.

UPC: 810070018603

Simply45 Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e (Yellow)

The Simply45 Adjustable LAN Cable Stripper, in yellow, allows you to professionally strip shielded (STP) and unshielded (UTP) copper LAN cables, including Cat7a, Cat7, Cat6a, Cat6, Cat5e, and Cat3 cables. This cable stripper is a multi-function tool that also lets you strip speaker and audio cables, straighten LAN cable wire conductors, and more. For precision performance, a turning knob is adjustable to raise or lower the trimming blade for ideal depth.

Note:

This cable stripper is not for coax cables.

Turning Knob for Precision Stripping Depth

The stripping depth is easily adjustable at the turn of a knob. Clockwise rotation lowers the trimming blade to the cable jacket, and counterclockwise rotation raises the blade. The knob is designed to be a little stiff so that the tool holds its position in the same place to let you complete multiple cable strips without having to readjust each time.

Works with Most LAN Cable Jacket Types

The adjustable LAN Cable Stripper will professionally strip most jacket types from CMP Plenum, CMR, CM, PVC, LSZH, PE, PUR, and Direct Burial. (It is not for coax cables.)

Professionally Strip Speaker Cables

The Adjustable LAN Cable Stripper is also capable of stripping speaker and audio cables with the jacket types listed above.

Built-In Wire Straightener Comb

A built-in wire straightener comb allows you to straighten LAN cable wire conductors. This feature works efficiently and effectively.

Built-In Wire Cutter

The stripper includes a built-in LAN cable cutter, which can also be used to cut copper speaker and audio cables. (Do not use it to cut steel core cables or coax cables.)

Built-In Flat Cable Stripper

Quickly and easily strip flat LAN and copper speaker/audio cables.

UPC: 817777017342

Simply45 Shielded External Ground Snagless Strain Reliefs (100-Pack)

Protect your Simply45 RJ45 STP modular plug with Shielded External Ground Snagless Strain Reliefs. This pack includes 100 snagless strain reliefs, which are designed to work with Simply45 Shielded External Ground RJ45 modular plugs. They help prolong the life of a plug by reducing the strain on it, which could otherwise loosen contact pins and negatively impact performance. It is recommended for large shielded LAN cables measuring up to 0.33″ in diameter and can be trimmed to fit into tight installations.

Large, Snagless Design

This strain relief can be permanently attached to a Simply45 Shielded External Ground modular plug during the crimping cycle. This strain relief is recommended for large shielded LAN cables that are up to 0.33″ in diameter, and it can be trimmed to fit into narrow installations. Additionally, the snagless design helps to prevent latch tabs from breaking.

Compatibility

These snagless strain reliefs are designed to work with all Simply45 Shielded External Ground pass-through and standard RJ45 modular plugs.

UPC: 817777017779

In the Box

Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug (50-Piece Jar)
- Limited Lifetime Warranty
Simply45 ProSeries All-In-One RJ45 Crimp Tool
Simply45 5″ Premium Flush Cutter Tool
Simply45 Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e (Yellow)
Simply45 Shielded External Ground Snagless Strain Reliefs (100-Pack)
- Limited Lifetime Warranty

Table of Contents

Description
Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug (50-Piece Jar)
Simply45 ProSeries All-In-One RJ45 Crimp Tool
Simply45 5″ Premium Flush Cutter Tool
Simply45 Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e (Yellow)
Simply45 Shielded External Ground Snagless Strain Reliefs (100-Pack)

Simply45 ProSeries Cat 6 STP Shielded External Ground Pass-Through Modular Plug (50-Piece Jar) Specs

General

Type	RJ45 Male
Quantity	50
Contact Plating	50 µ Gold 100 µ Nickel
Contact Material	Bronze
Shielded	Yes
Conductor Diameter	0″ / 1.2 mm
Contact Resistance	20 milliohms

Compatibility

Supported Cable Diameter	0.3″ / 8 mm
Wire Gauge Supported	23 to 23 AWG
Cable Types Supported	Solid, Stranded
Networking Type	Cat 6

Physical

Plug Material	Polycarbonate
Compliance	cUL, RoHS, FCC
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Packaging Info

Package Weight	0.47 lb
Box Dimensions (LxWxH)	3.95 x 3.65 x 3.3″
