Simply45 S45-1600P Overview

Achieve reliable performance from your unshielded twisted pair (UTP) LAN cables by finishing them with the Simply45 Cat 6 Unshielded RJ45 Modular Plug. One-hundred single-piece pass-through modular RJ45 plugs come packed inside of a convenient plastic jar, which are designed to fit 23 AWG solid or stranded Cat 6 cables up to 7mm in diameter in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light green tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.

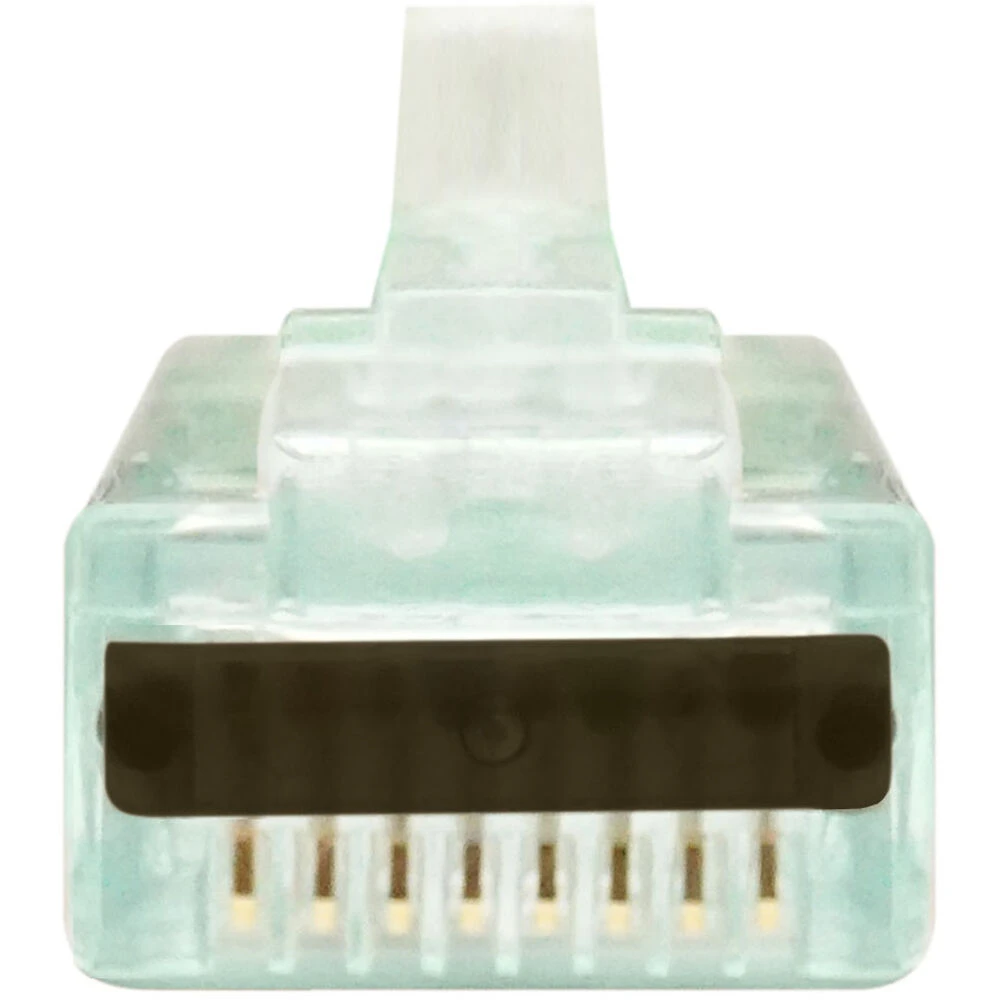

3-Prong Pin Design

Simply45’s 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection.

Cap45

The patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends.

UPC: 810093721726

In the Box

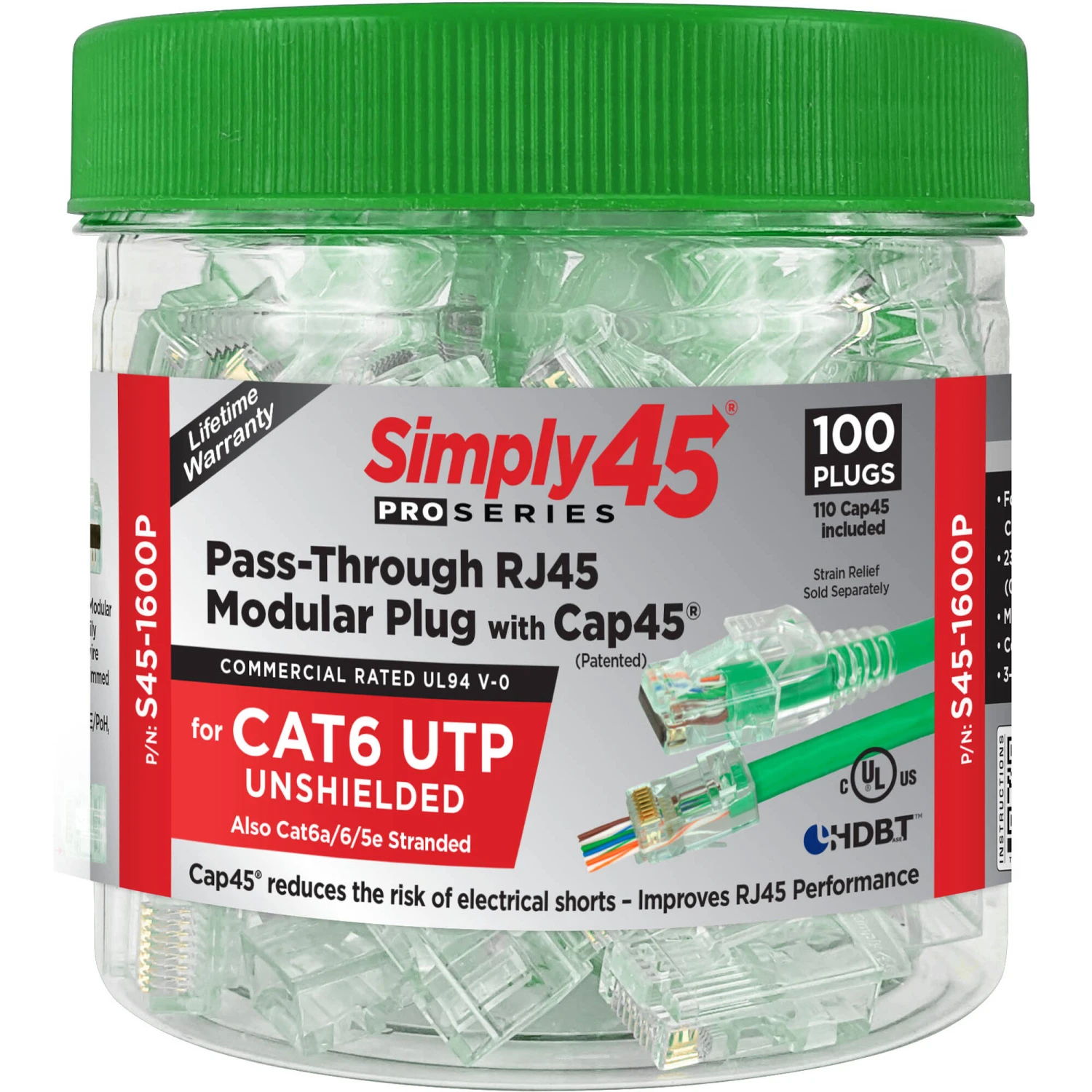

Simply45 Cat 6 Unshielded RJ45 Pass-Through Modular Plug (100-Piece Jar)
Limited Lifetime Warranty

Simply45 S45-1600P Specs

Key Specs

Type	RJ45
Shielded	No
Networking Type	Cat 6

General

Type	RJ45
Quantity	100
Contact Plating	50 µ Gold Nickel
Contact Material	Bronze
Shielded	No
Conductor Diameter	0.04″ / 1.05 mm
Contact Resistance	20 milliohms

Compatibility

Supported Cable Diameter	0.3″ / 7 mm
Wire Gauge Supported	23 to 23 AWG
Cable Types Supported	Solid, Stranded
Networking Type	Cat 6

Physical

Plug Material	Polycarbonate
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Packaging Info

Package Weight	0.455 lb
Box Dimensions (LxWxH)	3.6 x 3.6 x 3.6″
