Sharp XP-P721Q Overview

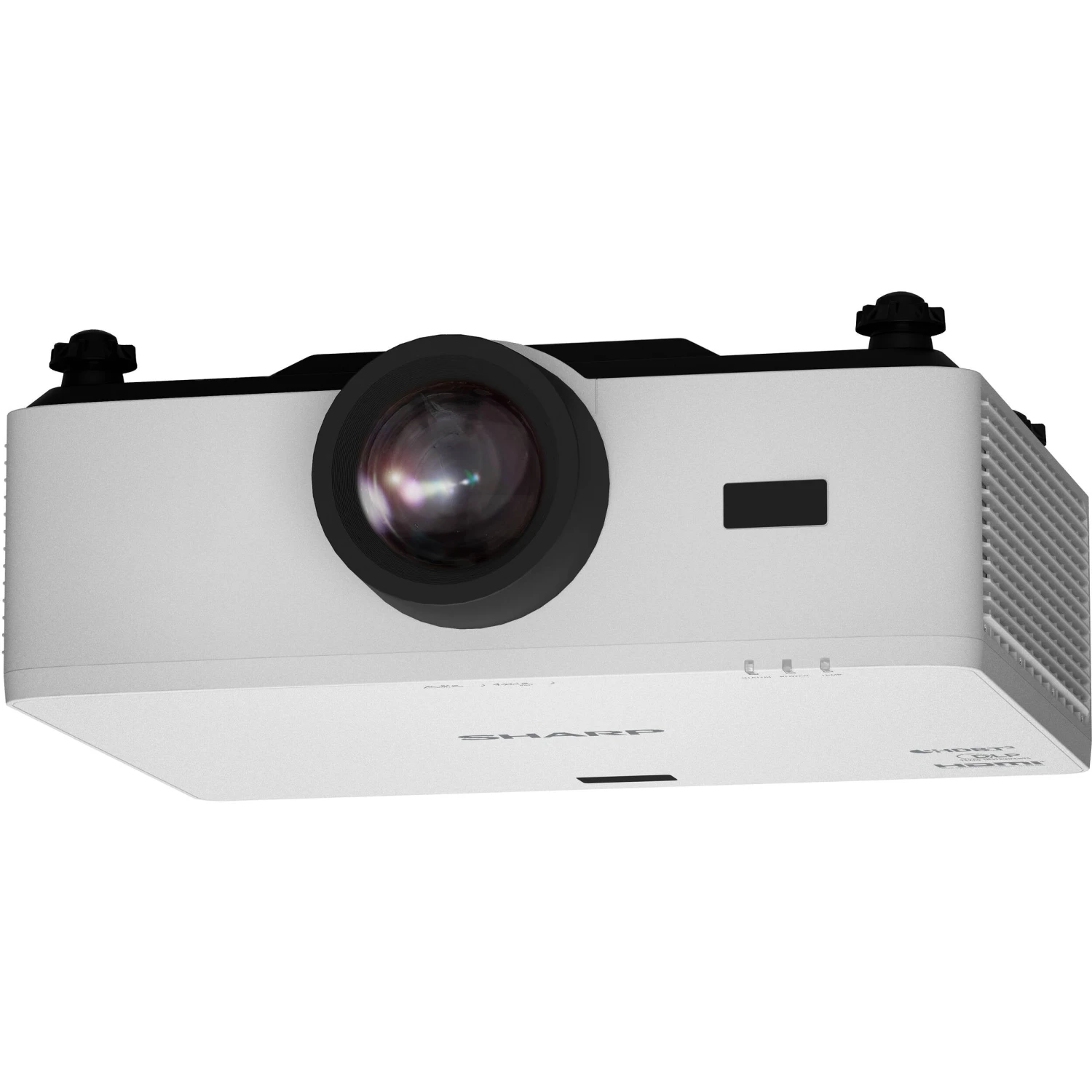

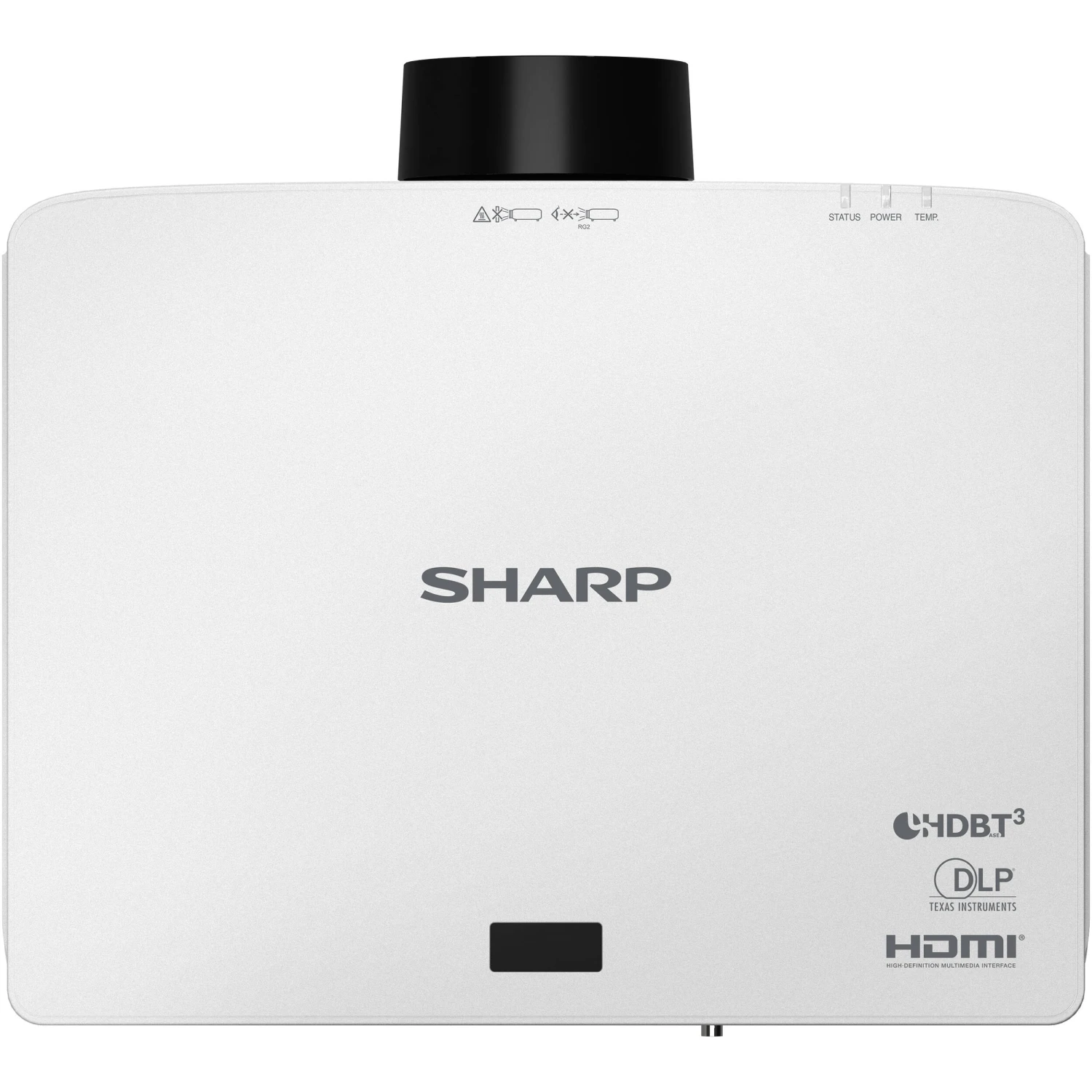

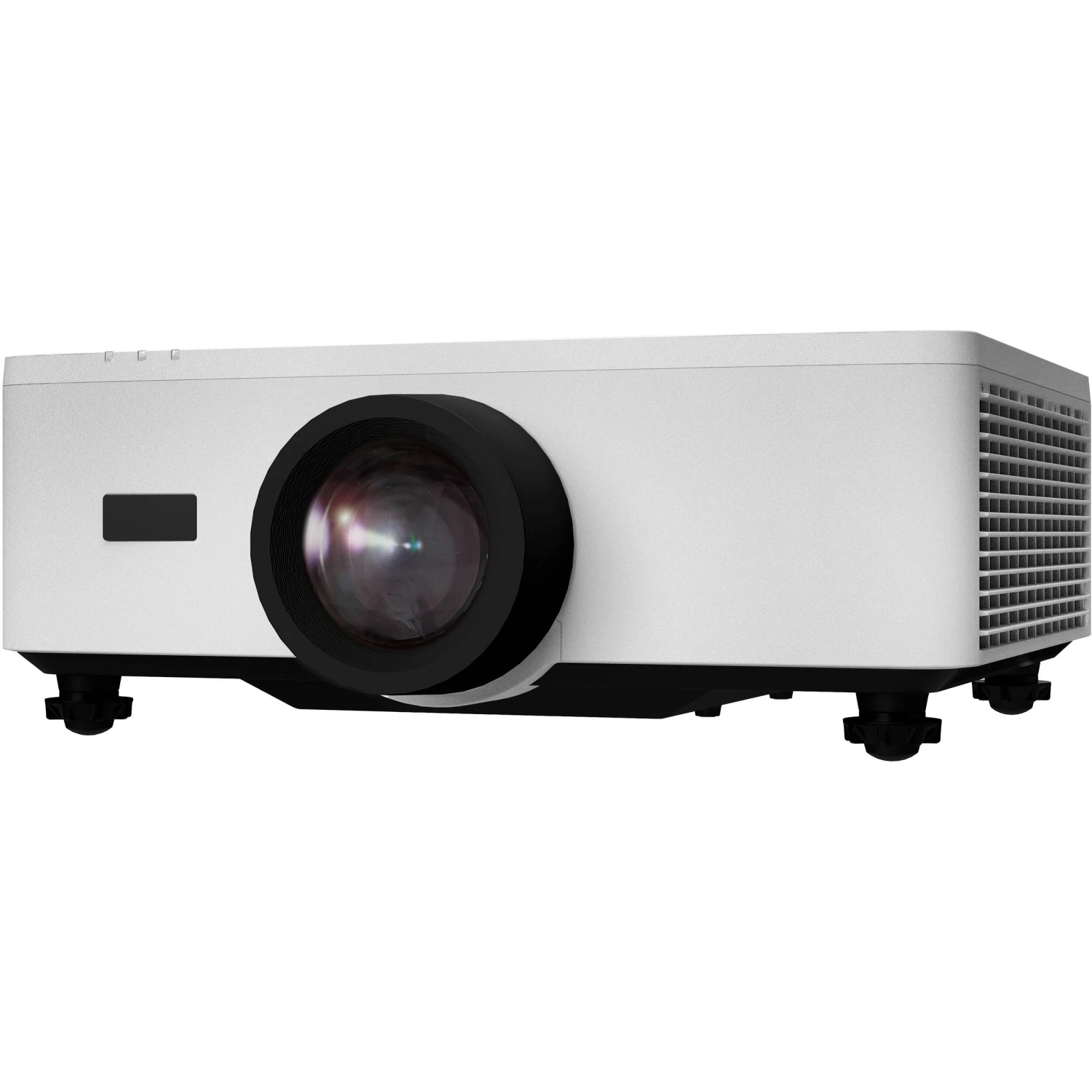

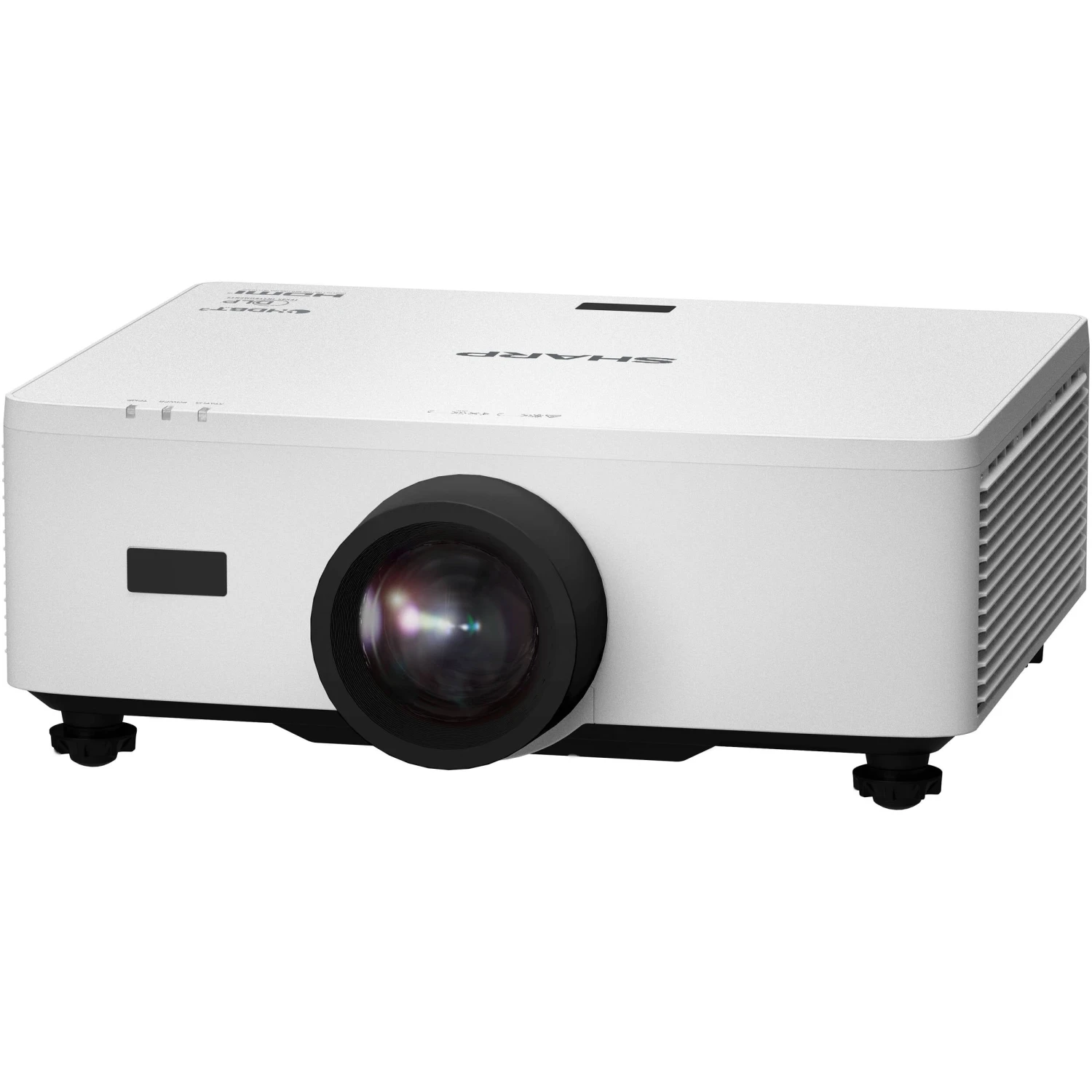

The Sharp XP-P721Q-W 7200-Lumen XPR 4K Laser DLP Projector is a commercial grade installation projector with an integrated standard-throw lens. With reliable DLP and laser technology, the XP-P721Q-W will produce clear images for up to 30,000 hours of maintenance-free use.
Connect sources via HDMI or HDBaseT for 4K on-screen resolution with support for 16:9, 16:10, and 21:9 aspect ratios. Motorized zoom, lens shift, and keystone capability enable flexible projector placement. Additionally, 360° and portrait orientation support make this a great choice for a wide range of commercial and artistic applications.
- Auto power on
- Cornerstone correction
- Eco mode
- 3.5mm variable audio output
- Dual 10W speakers
- Portrait mode
- Remote diagnostics
- NaviSet Administrator2 compatible
- Crestron RoomView
- Crestron, AMX, PJ Link support
- Power management
- Wired network connection
Items Included
- Sharp XP-P721Q-W 7200-Lumen XPR 4K Laser DLP Projector
- Power Cord
- Remote Control with Batteries
- Limited 5-Year Manufacturer Warranty (or 20,000 Hours, Whichever Comes First)
Additional Resources
User Manual
11.8 MB
Sharp XP-P721Q Specs
| Display System |
1-Chip 0.65″ DMD DLP |
| Native Resolution |
Not Specified by Manufacturer |
| Maximum Brightness |
7200 Lumens |
| Throw Ratio |
1.25 to 2:1 |
| Projection Size |
60 to 300″ / 1.5 to 7.6 m |
| HDR Support |
No |
| Inputs/Outputs |

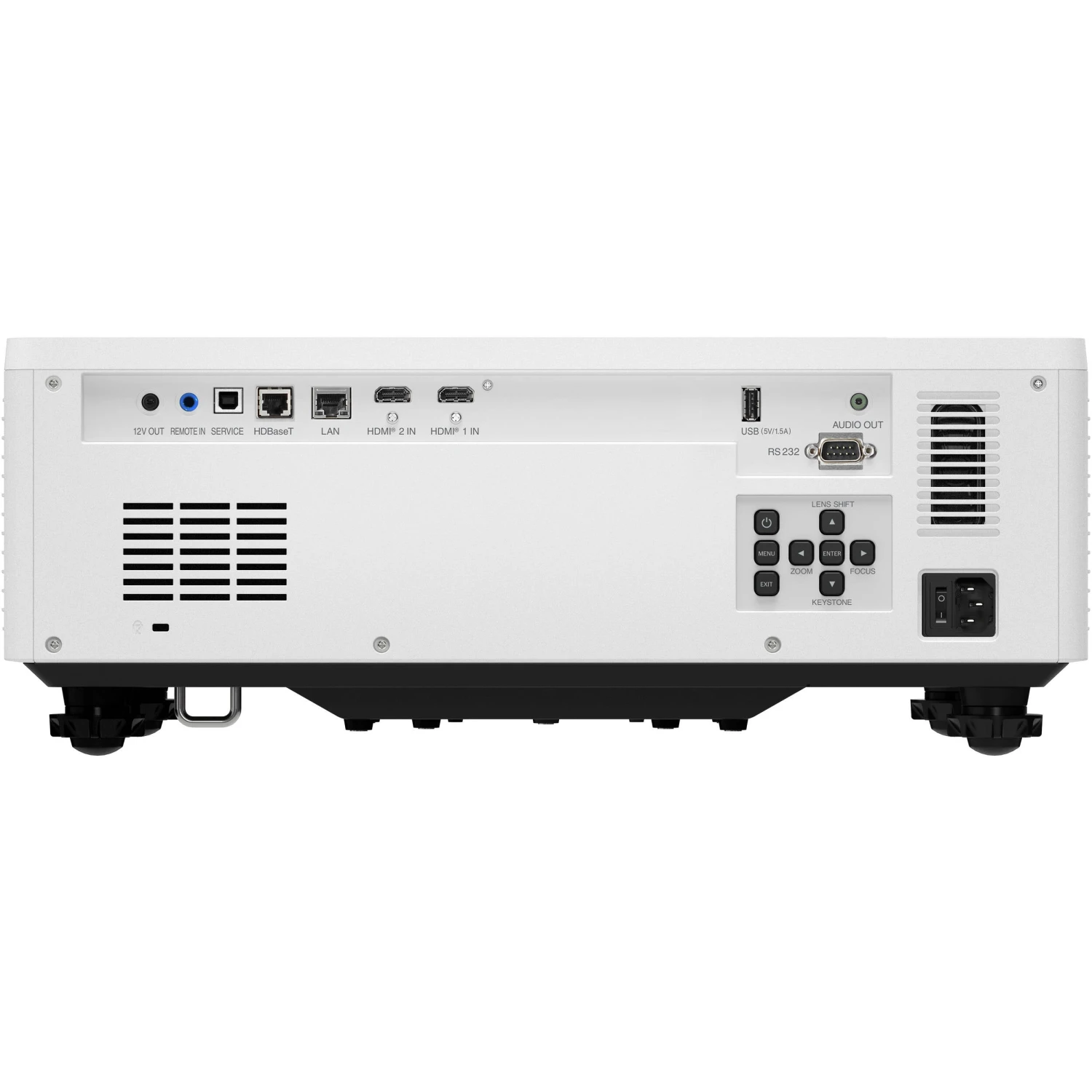

2x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input 1x USB-B Service Input 1x 12 V Trigger Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input |
| Light Source |
Laser Phosphor |
| Display System |
1-Chip 0.65″ DMD DLP |
| Native Resolution |
Not Specified by Manufacturer |
| On-Screen Resolution |
Up to 3840 x 2160 via Pixel-Shift Technology |
| Supported Resolutions |
Maximum: 3840 x 2160 |
| Maximum Brightness |
7200 Lumens |
| Aspect Ratio |
Native: 16:9 Supported: 4:3 Supported: 16:10 Supported: 21:9 |
| DLP Link 3D |
Yes |
| Includes Lens |
Yes |
| Focus |
Manual Powered |
| Aperture |
f/2.0 to 2.4 |
| Focal Length |
18.7 to 29.6mm |
| Lens Shift |
Vertical: ± 55% Horizontal: ± 25% |
| Optical Zoom |
Powered: 1.6x |
| Throw Distance |
5.2 to 42.3′ / 1.6 to 12.9 m |
| Throw Ratio |
1.25 to 2:1 |
| Projection Size |
60 to 300″ / 1.5 to 7.6 m |
| Keystone Correction |
Manual to Vertical: Manual to Horizontal: |
| HDR Support |
No |
| Multi-Input Support (PIP/PBP) |
No |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
20 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input 1x USB-B Service Input 1x 12 V Trigger Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 36 dB Low Brightness: 34 dB |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 530 W Low Brightness: 285 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
CSA, FCC Part 15 Class B, ICES-003 Issue 7, cTUVus |
| Operating Conditions |
32 to 113°F / 0 to 45°C at 10 to 85% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C |
| Dimensions (W x H x D) |
19.1 x 7.3 x 17.0″ / 486.0 x 185.5 x 432.5 mm |
| Weight |
32 lb / 14.5 kg |
| Package Weight |
41.5 lb |
| Box Dimensions (LxWxH) |
25.5 x 22.25 x 14.5″ |
