Sharp XP-A201U Overview

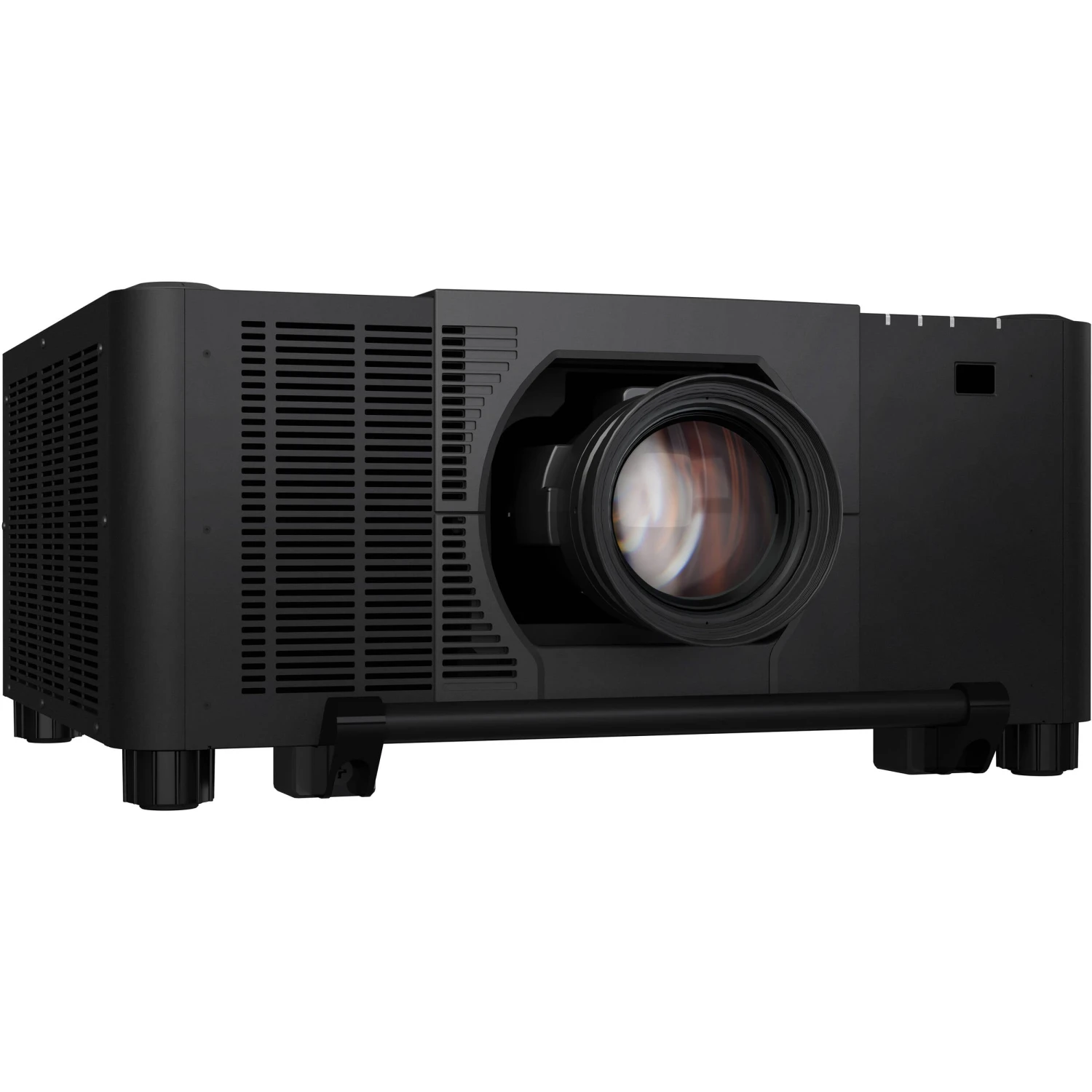

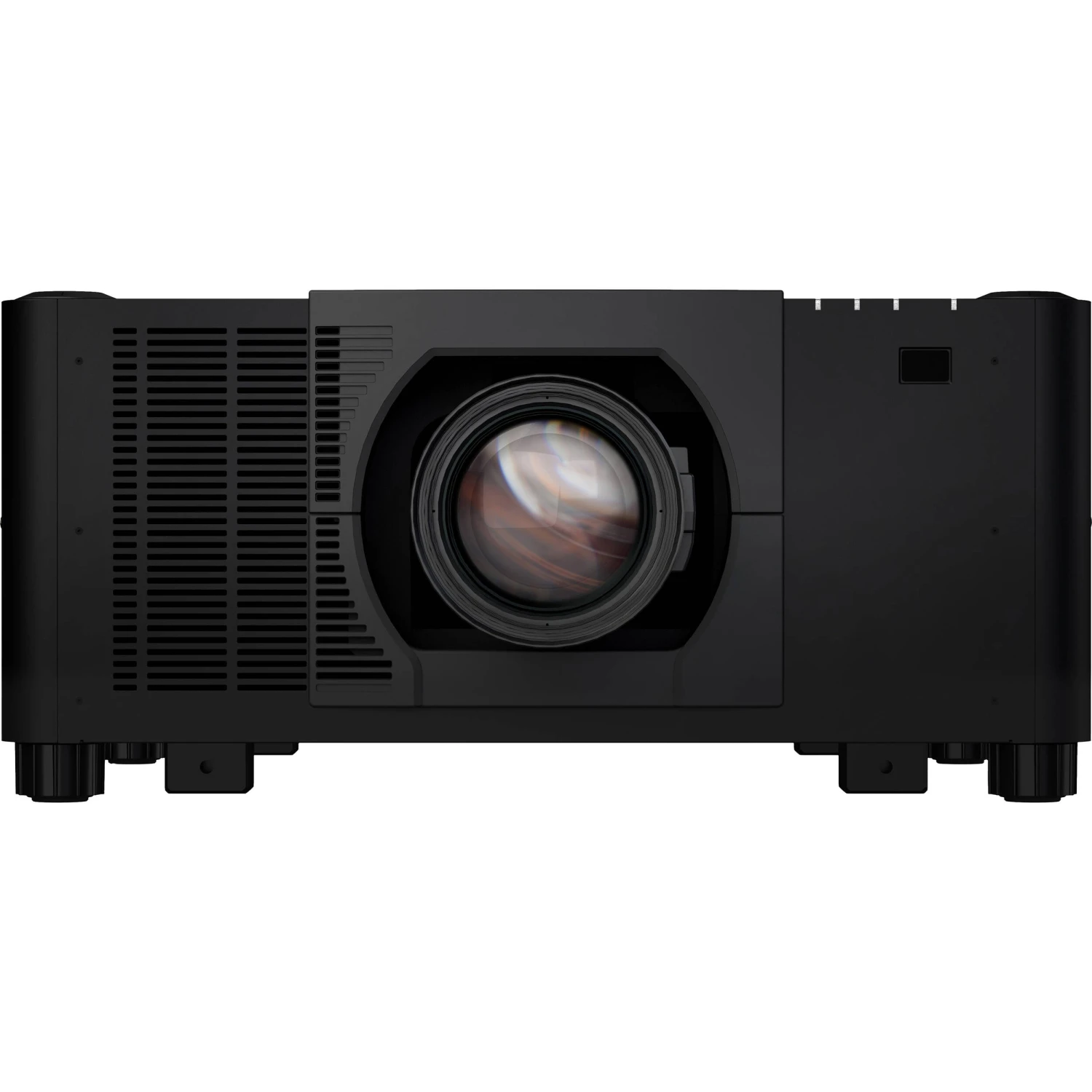

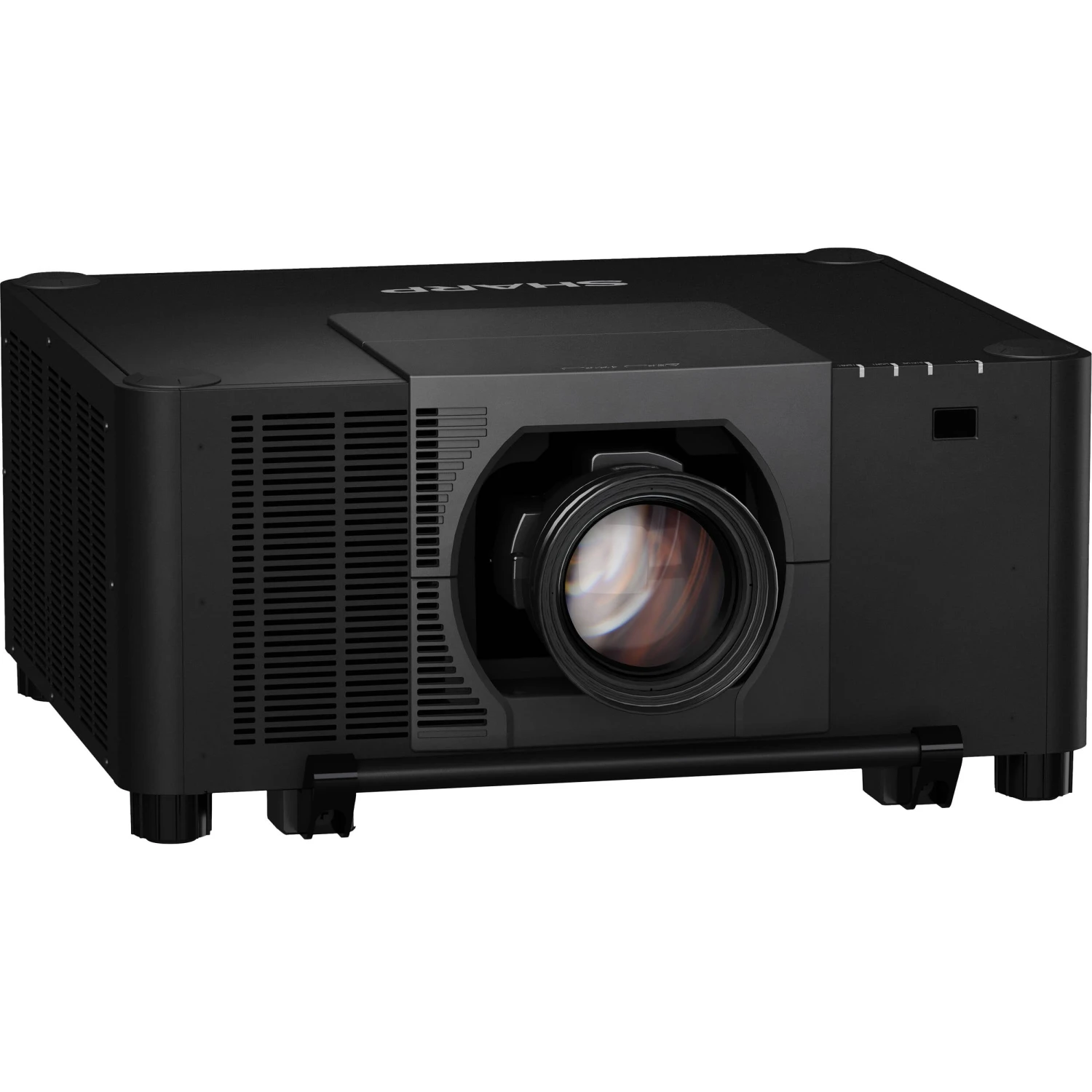

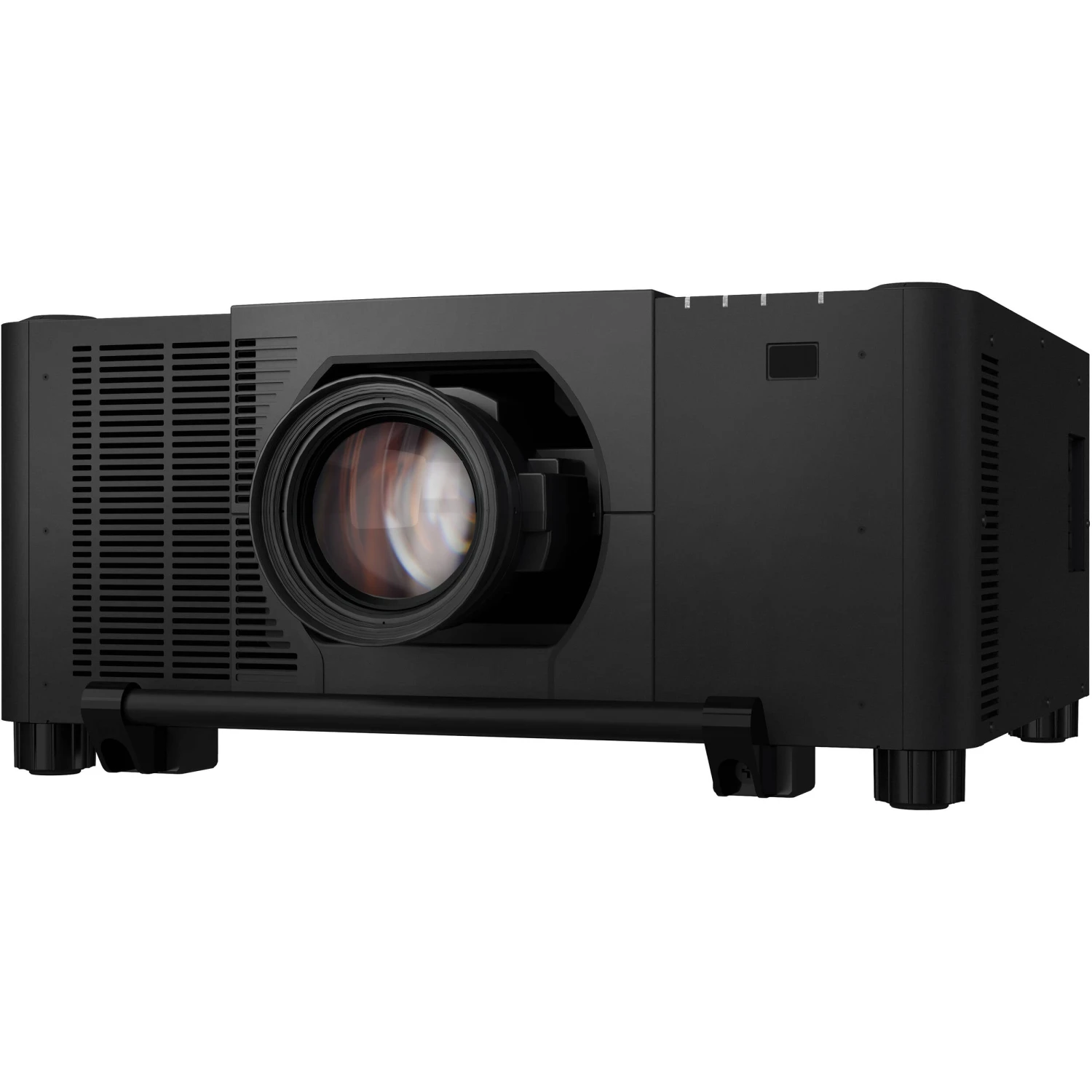

The Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB Laser LCD Projector is a large-venue, professional installation projector with features well suited to higher education and corporate users. A long-lasting laser light source and IP5X rated sealed optical engine provide thousands of hours of virtually maintenance free operation.

Installation is flexible with a complete line of optional motorized lenses (sold separately). Connect sources via HDMI, HDBaseT, or 3G SDI inputs. The onscreen resolution is Full HD, with input support for 4K content and passthrough for multi-projector setups. Built-in stacking and edge blending supports up to four projectors without the need for external hardware or processing.

HDBaseT

HDBaseT is optimized for video applications and supports uncompressed full HD digital video, audio, ethernet, power, and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.

Multi-Display Support

Built-in software supports picture-in-picture and picture-by-picture displays. TileMatrix capability via HDBaseT output enables 4K resolution using four projectors, with no need for external hardware. Built-in edge blending helps create a seamless image with multiple projectors.

Stacking Correction

This projector includes built-in stacking correction capabilities for up to four projectors. Stacking correction allows the projectors to boost an image�s brightness up to 80,000 lumens, which is ideal for larger sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

ProAssist Management

Projector management software for installation professionals provides full control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable though the GUI.

Integrator Friendly

Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete control system support. Furthermore, learning of basic control of competitors’ products reduces the need for reprogramming of a control system lowering the cost of your installation by eliminating the need for costly reprogramming of a control system.

Additional Features

Optional lenses support projection distances from 4.25 to 141′
Bayonet style lenses provide quick and easy exchange
Motorized zoom and focus
Roll-free installation capability, including portrait orientation
RB (Red and Blue) Laser system achieves 92% of the DCI color space
IP5X certified sealed LCD cooling system prevents dust from reaching the optics and eliminates the need for a filter
Built-in wall color correction
NaViSet Administrator 2

Items Included

Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB-Laser LCD Projector (No Lens)
Remote Control with Batteries
Power Cord
Lens Hole Cover
Lens Anti-Theft Screw
Limited 5-Year Manufacturer Warranty

Not Included

Essential Lenses & Lens Adapters

Additional Resources

User Manual

2.3 MB

Sharp XP-A201U Specs

Key Specs

Display System	1″ Micro Lens Array (MLA) LCD
Native Resolution	1920 x 120
Maximum Brightness	21,000 Lumens (Center) 20,000 Lumens (ISO)
HDR Support	Yes

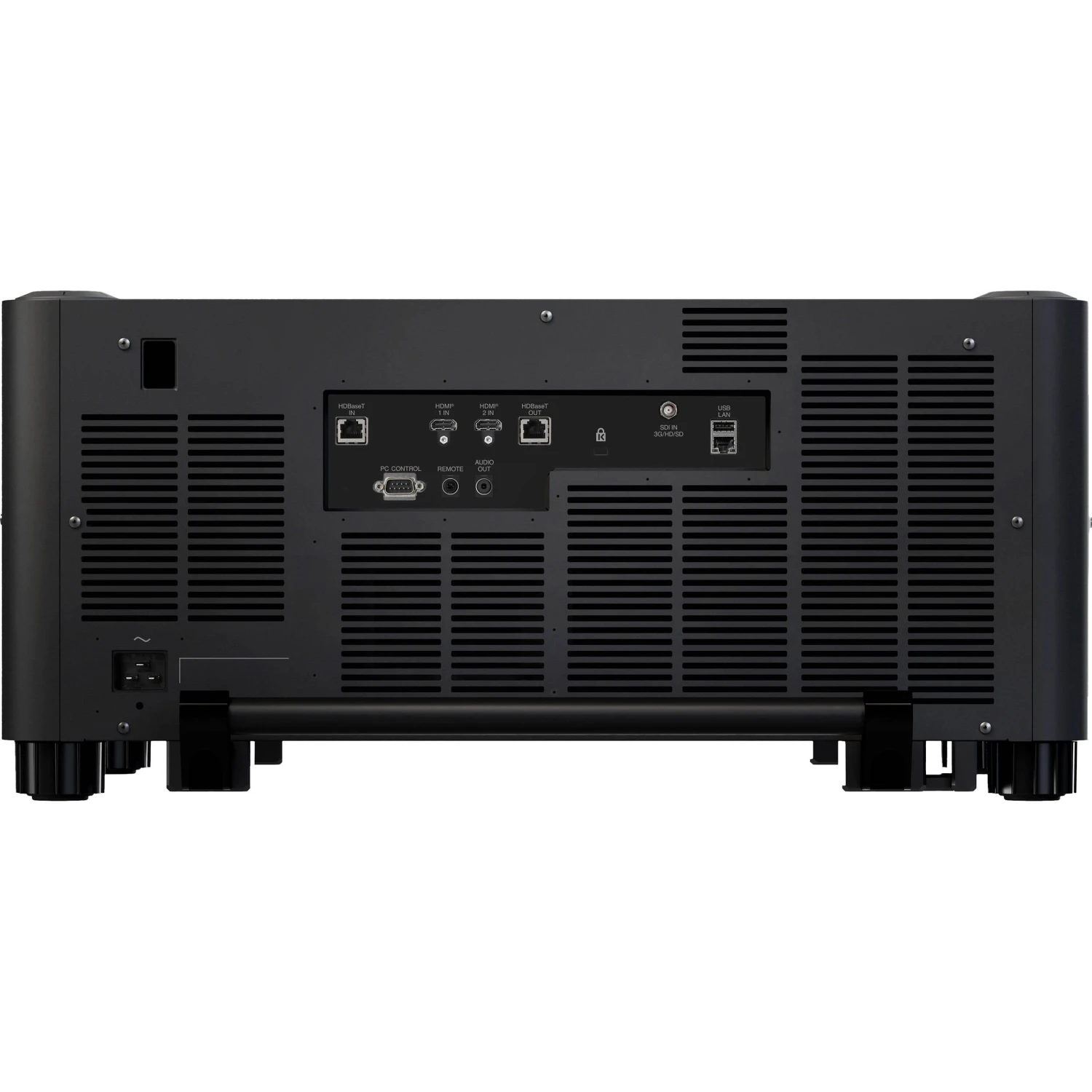

Inputs/Outputs	2x HDMI Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input
Light Source	Laser Phosphor

Image Display

Display System	1″ Micro Lens Array (MLA) LCD
Native Resolution	1920 x 120
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	21,000 Lumens (Center) 20,000 Lumens (ISO)
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio	3,000,000:1
Scan	Horizontal: 15 to 153kHz Vertical: 50 to 120Hz

Lens

Includes Lens

Features

Keystone Correction	Manual to Vertical: ± 40° Manual to Horizontal: ± 30°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Yes, Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	2x HDMI Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input
HDCP Support	Yes, Version 1.4/2.2
Media/Memory Card Slot	No

Hardware

Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Medium Brightness: 20,000 Hours
Fan Noise	Medium Brightness: 42 dB Low Brightness: 34 dB
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 1530 W Standby Mode (Lamp Off): < 1 W
Certifications	CSA C22.2 No.62368-1-19, FCC Part15, UL60950-1
Operating Conditions	32 to 113°F / 0 to 45°C
Storage Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Dimensions (W x H x D)	25.6 x 12.2 x 26.0″ / 650.0 x 311.0 x 661.0 mm
Weight	85.3 lb / 38.7 kg
