Sharp NP-PV800UL With NP41ZL Lens Overview
Frank Abbate

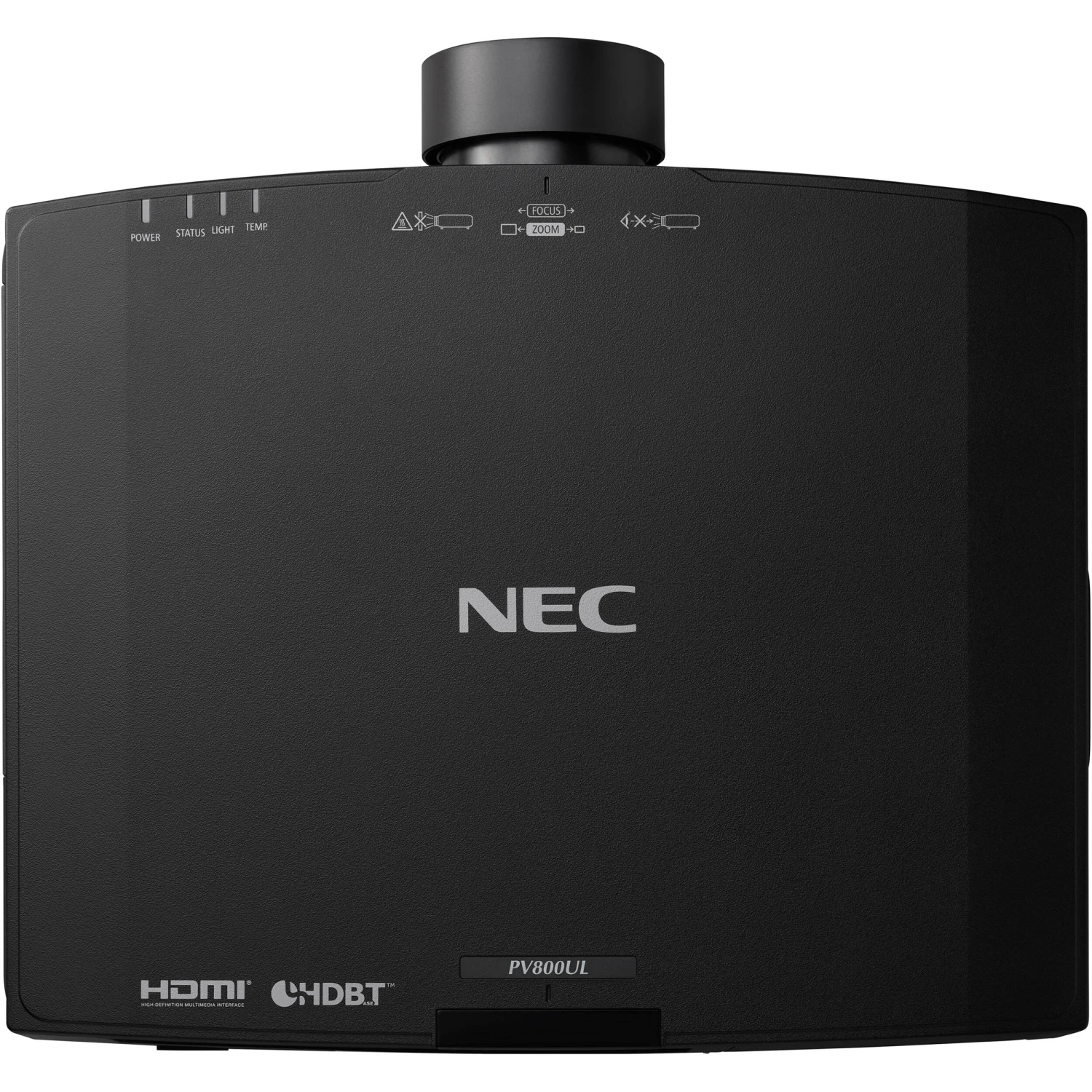

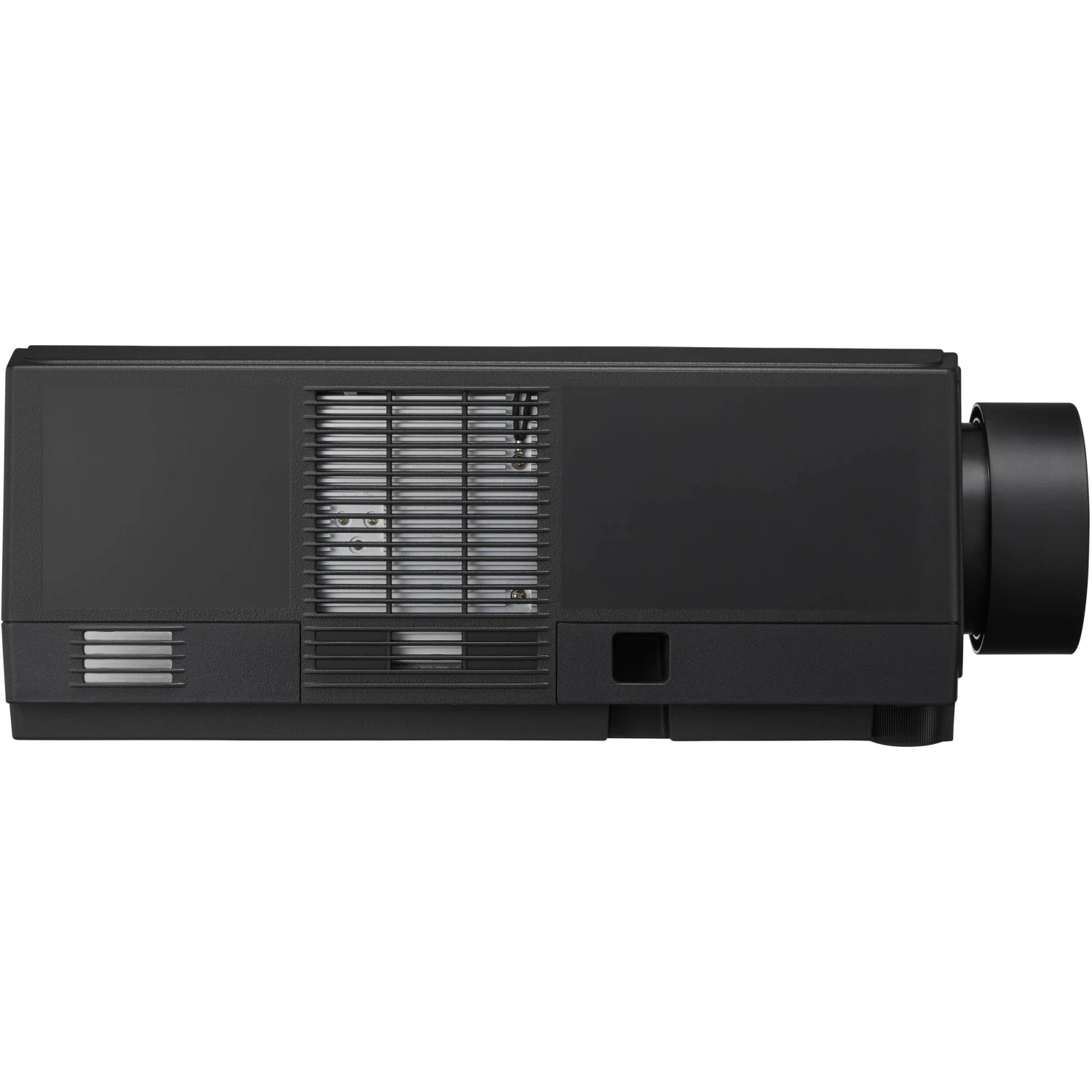

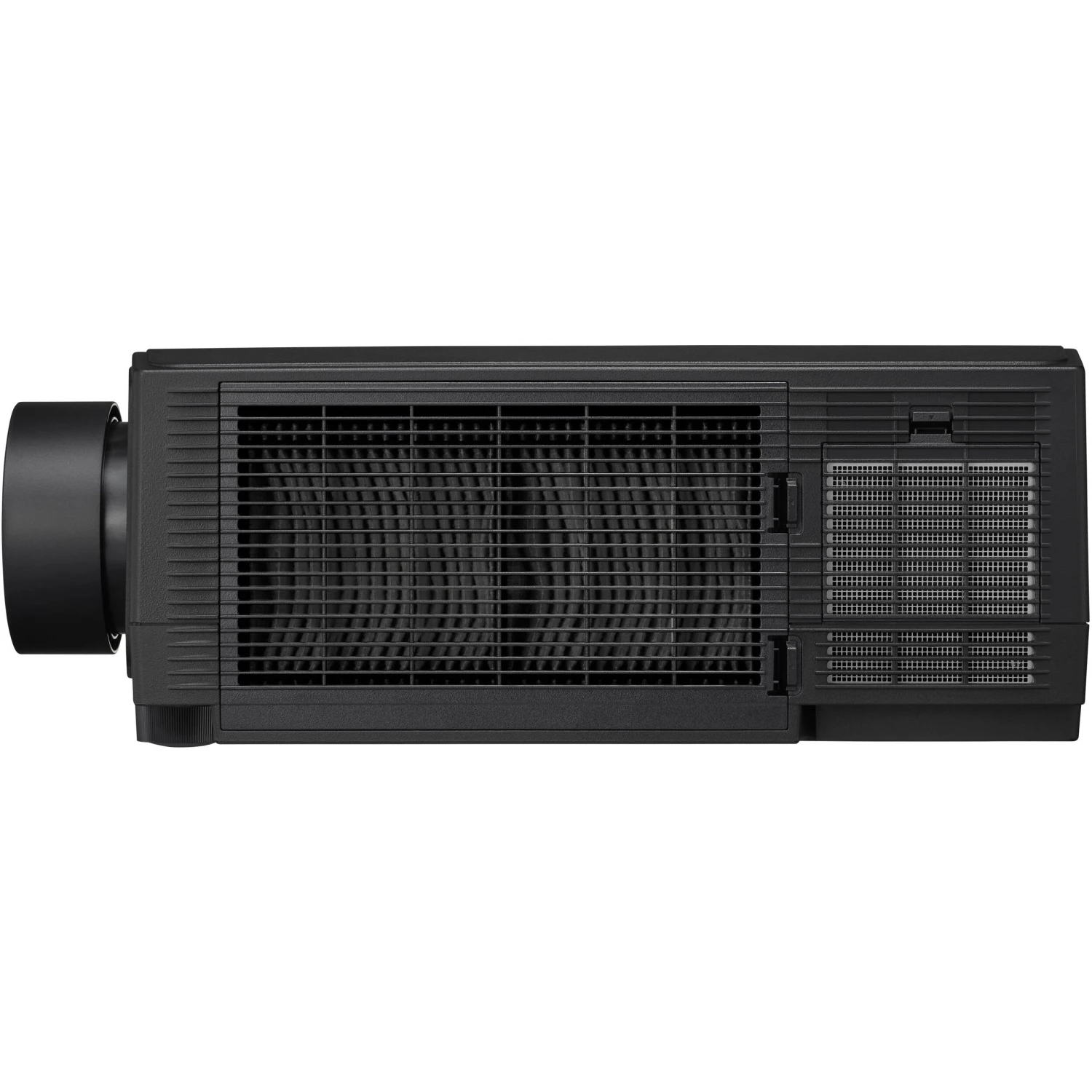

The black NEC NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector with NP41ZL Lens is a bright, professional installation projector designed for mid-size corporate and higher education spaces. This 4K ready projector features HDBaseT and two HDMI 2.0 inputs to connect a wide variety of sources. The included NP41ZL standard throw lens with motorized shift, focus, and zoom, combined with 360° roll-free orientation makes for flexible and user-friendly installation.
| Throw Ratio | Lens Type | Model Number |
| 0.79:1 | Short-throw lens | NP11FL |
| 1.16-1.52:1 | Standard-throw lens | NP12ZL |
| 1.46-2.95:1 | Standard-throw lens | NP13ZL |
| 2.90-4.64:1 | Long-throw zoom lens | NP14ZL |
| 4.59-7.02:1 | Long-throw zoom lens | NP15ZL |
| 0.32:1 | Ultra-short throw lens | NP44ML-01LK |
| 0.6-0.76:1 | Short-throw zoom lens | NP50ZL |
| 0.79-1.11:1 | Short-throw zoom lens | NP40ZL |
| 1.30-3.02:1 | Standard-throw zoom lens | NP41ZL |
| 2.99-5.93:1 | Long-throw zoom lens | NP43ZL |
- WUXGA native resolution
- Motorized zoom and focus
- Lens shift
- Cornerstone correction
- 3.5mm variable audio output
- Quick power on/off
- ECO Mode
- 360° roll-free installation
- Portrait mode
- Control over LAN or RS-232
- NaViSet Administrator 2
- Built-in wall color correction
- AutoSense
- Auto power off
Items Included
- Sharp NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector with NP41ZL Lens (Black)
- RMT-PJ40 Remote Control
- 2 x AAA Battery
- Power Cord
- Lens Cap
- Cable Cover
- Limited 5-Year Manufacturer Warranty (Or 20,000 Hours, Whichever Comes First)
Additional Resources
Guides & Manuals
Sharp NP-PV800UL With NP41ZL Lens Specs
| Display System |
3-Chip 0.76″ RGB Liquid Crystal Shutter Projection System LCD |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
8200 Lumens (Center) |
| Throw Ratio |
1.30 to 3.02:1 |
| HDR Support |
Yes |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A 2.0 Control Input 1x RJ45 (Ethernet) Control, LAN Input |
| Light Source |
Laser Phosphor |
| Display System |
3-Chip 0.76″ RGB Liquid Crystal Shutter Projection System LCD |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz |
| Maximum Brightness |
8200 Lumens (Center) |
| Aspect Ratio |
Native: 16:10 |
| Dynamic Contrast Ratio |
3,000,000:1 |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15 to 100kHz Vertical: 24 to 85Hz |
| Includes Lens |
Yes |
| Focus |
Manual Powered |
| Aperture |
f/1.7 to 2.0 |
| Focal Length |
21.8 to 49.8mm |
| Throw Distance |
4.99 to 41.7′ / 1.52 to 12.7 m |
| Throw Ratio |
1.30 to 3.02:1 |
| Keystone Correction |
Manual to Vertical: ± 30° Manual to Horizontal: ± 30° |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
No |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A 2.0 Control Input 1x RJ45 (Ethernet) Control, LAN Input |
| HDCP Support |
Yes, Version 2.2 |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 42 dB Low Brightness: 33 dB |
| Security |
Cable Lock Slot Password Protection Security Bar |
| Supported Languages |
Arabic Czech Danish Dutch English Finnish French German Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 490 W Standby Mode (Lamp Off): < 1.7 W |
| Certifications |
UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CSA C22.2 No.60950-1-07, 2nd edition, ICES-003 Issue(ANSI C63.4.2014) |
| Operating Conditions |
32 to 113°F / 0 to 45°C at 20 to 85% Humidity |
| Storage Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Dimensions (W x H x D) |
19.8 x 6.6 x 16.2″ / 503.0 x 168.0 x 411.0 mm |
| Weight |
24.7 lb / 11.2 kg |
| Package Weight |
40.5 lb |
| Box Dimensions (LxWxH) |
26 x 22.5 x 20.75″ |
