Sharp M380HL Overview
Rich Risitano, II

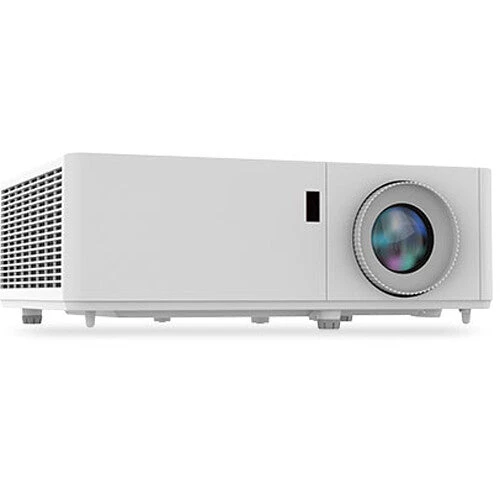

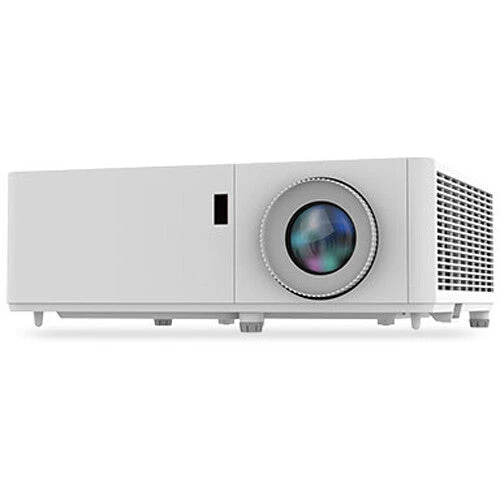

Set up your classroom presentations quickly with the NEC NP-M380HL 3800-Lumen Full HD Classroom Laser DLP Projector. Its auto-power-on feature turns the projector on as soon as it’s plugged into a power outlet, and quick startup lets you start projecting within four seconds. The 3800-lumen brightness can overcome ambient light in most classroom settings in case you have limited in-room lighting control.
Items Included
- Sharp NP-M380HL 3800-Lumen Full HD Classroom Laser DLP Projector
- Remote Control
- 2 x AAA Batteries
- VGA Cable
- Power Cord
- Limited 5-Year Manufacturer Warranty (Or 20,000 Hours, Whichever Comes First, with Registration)
Additional Resources
User Manual
6.4 MB
Sharp M380HL Specs
| Display System |
0.65″ DLP |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
3800 Lumens |
| Throw Ratio |
1.4 to 2.24:1 |
| Projection Size |
30 to 300″ / 76.2 to 762.0 cm |
| HDR Support |
No |
| Inputs/Outputs |
2x HDMI Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A 2.0 Power Output 1x Micro-USB 2.0 Service Input 1x DE-9/DB-9 (RS-232) Control Input |
| Light Source |
Laser Phosphor |
| Display System |
0.65″ DLP |
| Native Resolution |
1920 x 1080 |
| Supported Resolutions |
Maximum: 3840 x 2160 @ 60 Hz |
| Maximum Brightness |
3800 Lumens |
| Aspect Ratio |
Native: 16:9 |
| Dynamic Contrast Ratio |
1800:1 |
| DLP Link 3D |
Yes |
| Scan |
Horizontal: 24 to 100kHz or 15kHz Vertical: 48 to 100Hz or 120Hz |
| Includes Lens |
Yes |
| Focus |
Manual |
| Aperture |
f/2.5 to 3.26 |
| Focal Length |
20.911 to 32.62mm |
| Optical Zoom |
Manual: 1.6x |
| Throw Distance |
3 to 50′ / 0.9 to 15.2 m |
| Throw Ratio |
1.4 to 2.24:1 |
| Projection Size |
30 to 300″ / 76.2 to 762.0 cm |
| Keystone Correction |
Manual to Horizontal: Manual to Vertical: |
| HDR Support |
No |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes |
| Speaker Power |
10 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A 2.0 Power Output 1x Micro-USB 2.0 Service Input 1x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support |
Not Specified by Manufacturer |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 34 dB Low Brightness: 31 dB |
| Security |
Cable Lock Slot |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 240 W Low Brightness: 180 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Conditions |
41 to 104°F / 5 to 40°C at 20 to 85% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C |
| Dimensions (W x H x D) |
13.3 x 4.7 x 10.4″ / 33.8 x 11.9 x 26.4 cm |
| Weight |
9.7 lb / 4.4 kg |
| Package Weight |
13.535 lb |
| Box Dimensions (LxWxH) |
19.6 x 15.7 x 7.6″ |
