Sharp NP-PA1705UL Overview
Frank Abbate

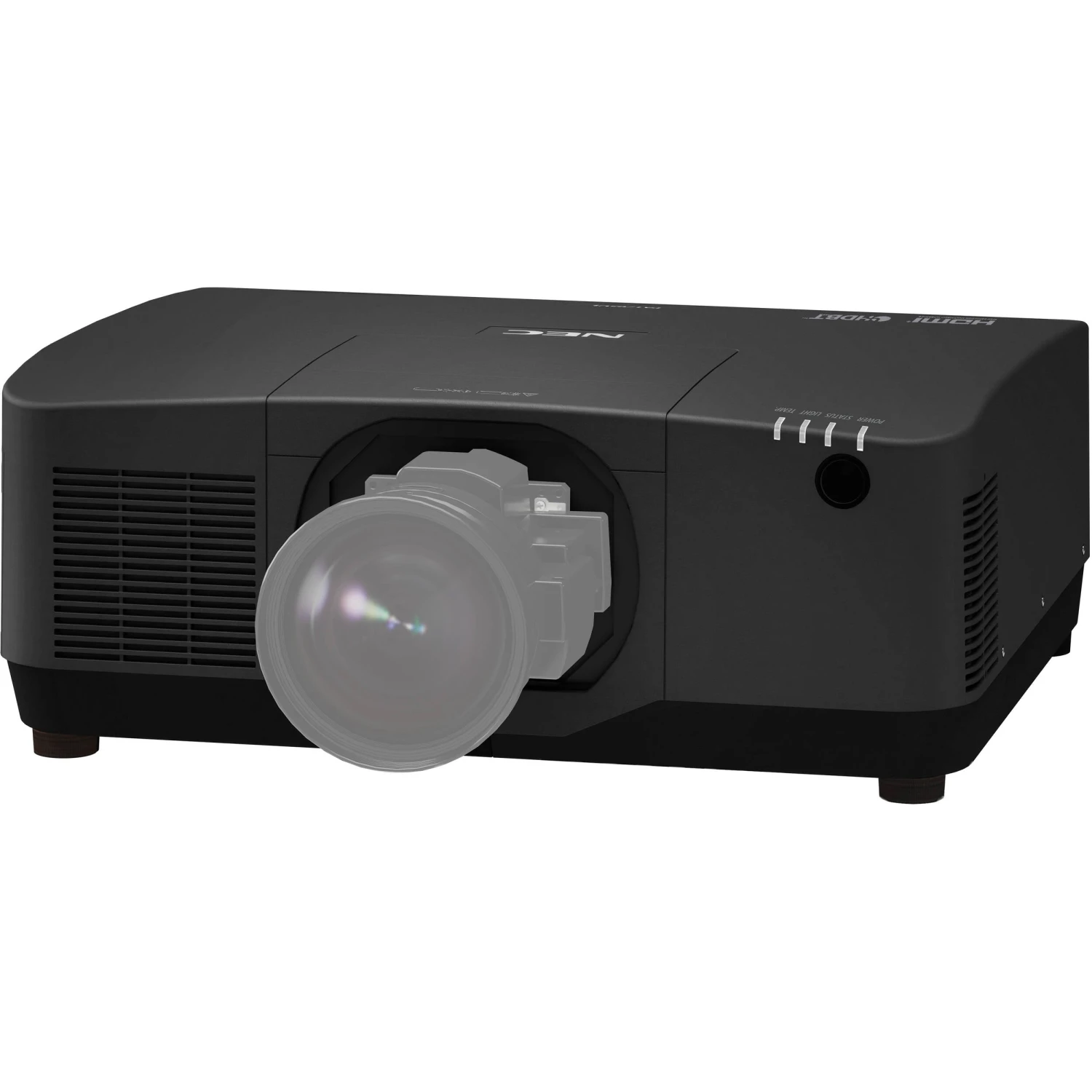

The black NEC NP-PA1705UL 17,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1705UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction. Connect a variety of devices via 3G-SDI, HDBaseT, and HDMI 2.0 inputs with support for up to 4K60 video signals. Additionally, an HDBaseT output is available for daisy chaining in multi-projector setups with stacking and edge blending capability built in.
| Throw Ratio | Lens Type | Model Number |
| 0.86-1.25:1 | Short/Standard-throw zoom lens | NP53ZL |
| 1.24-2.01:1 | Standard-throw zoom lens | NP54ZL |
| 1.98-3.95 | Long-throw zoom lens | NP55ZL |
- WUXGA native resolution
- Motorized lens shift
- Motorized zoom and focus
- 3.5mm variable audio output
- Instant on/off
- Auto power off
- 360° roll-free installation
- Portrait mode
- Picture-in-picture
- Picture-by-picture
- Multi-display and tile matrix via HDBaseT daisy chain
- Control over LAN or RS-232
- Built-in wall color correction
Items Included
- Sharp NEC NP-PA1705UL 17,000-Lumen WUXGA Laser 3LCD Projector (No Lens, Black)
- Remote Control
- 2 x AAA Battery
- Dust Cap for Lens Hole
- Cable Cover
- Power Cord
- Limited 5-Year Manufacturer Warranty (or 20,000 Hours, Whichever Comes First)
Additional Resources
User Manual
2.7 MB
Sharp NP-PA1705UL Specs
| Display System |
3-Chip RGB Liquid Crystal Shutter Projection System LCD |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
17,000 Lumens (Center) |
| HDR Support |
Yes |

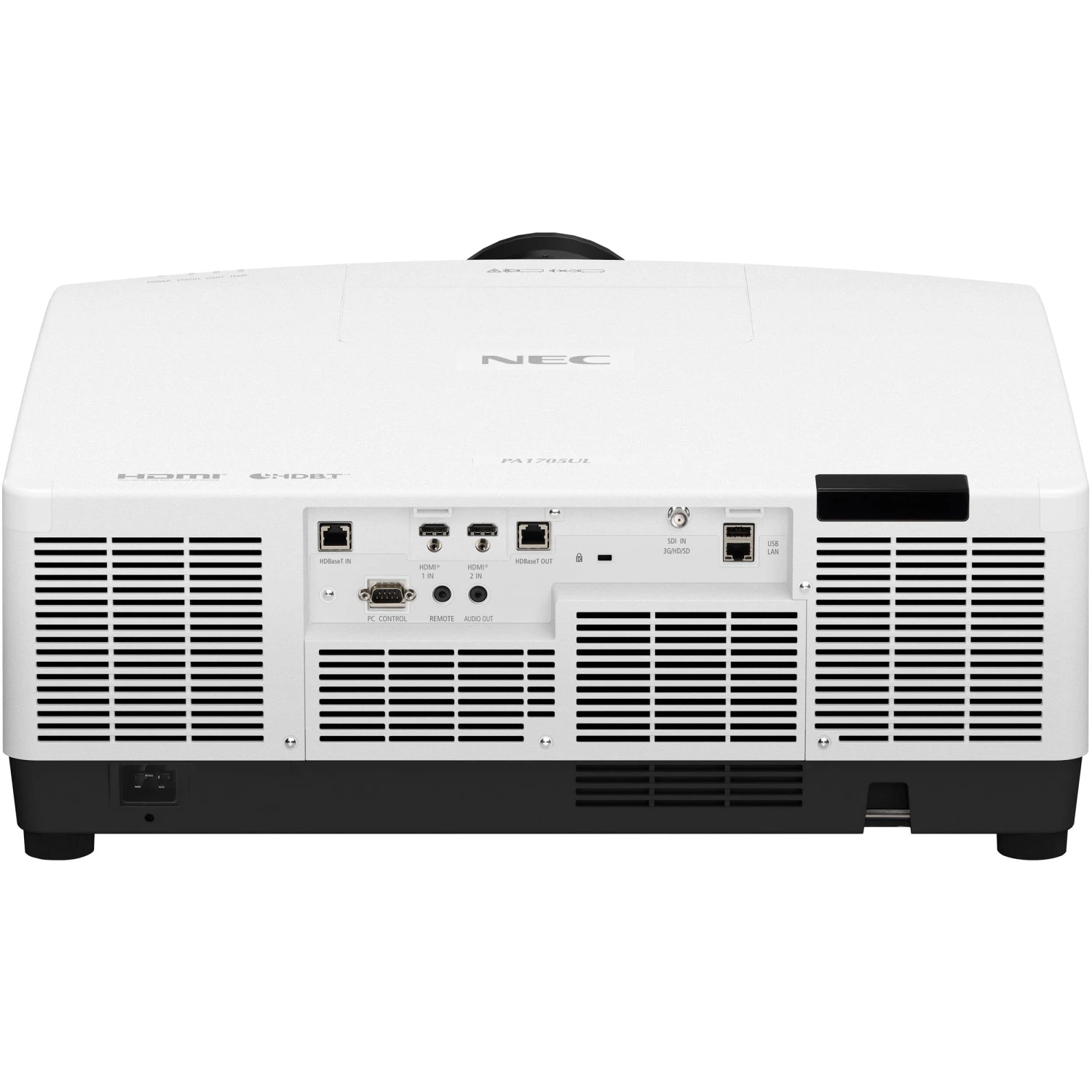

| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input |
| Light Source |
Laser Phosphor |
| Display System |
3-Chip RGB Liquid Crystal Shutter Projection System LCD |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz |
| Maximum Brightness |
17,000 Lumens (Center) |
| Aspect Ratio |
Native: 16:10 |
| Dynamic Contrast Ratio |
3,000,000:1 |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15 to 153kHz Vertical: 24 to 120Hz |
| Includes Lens |
No |
| Keystone Correction |
Vertical: ± 30° Horizontal: ± 40° |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
No |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input |
| HDCP Support |
Yes, Version 2.2 |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 43 dB |
| Security |
Cable Lock Slot Password Protection Security Bar |
| Supported Languages |
Arabic Croatian Czech Danish Dutch English Finnish French German Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 1035 W Standby Mode (Lamp Off): < 0.4 W |
| Operating Conditions |
32 to 113°F / 0 to 45°C at 20 to 80% Humidity |
| Storage Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Dimensions (W x H x D) |
23.6 x 9.4 x 19.3″ / 599.0 x 238.0 x 490.0 mm (including protruding parts) |
| Weight |
63.7 lb / 28.9 kg |
