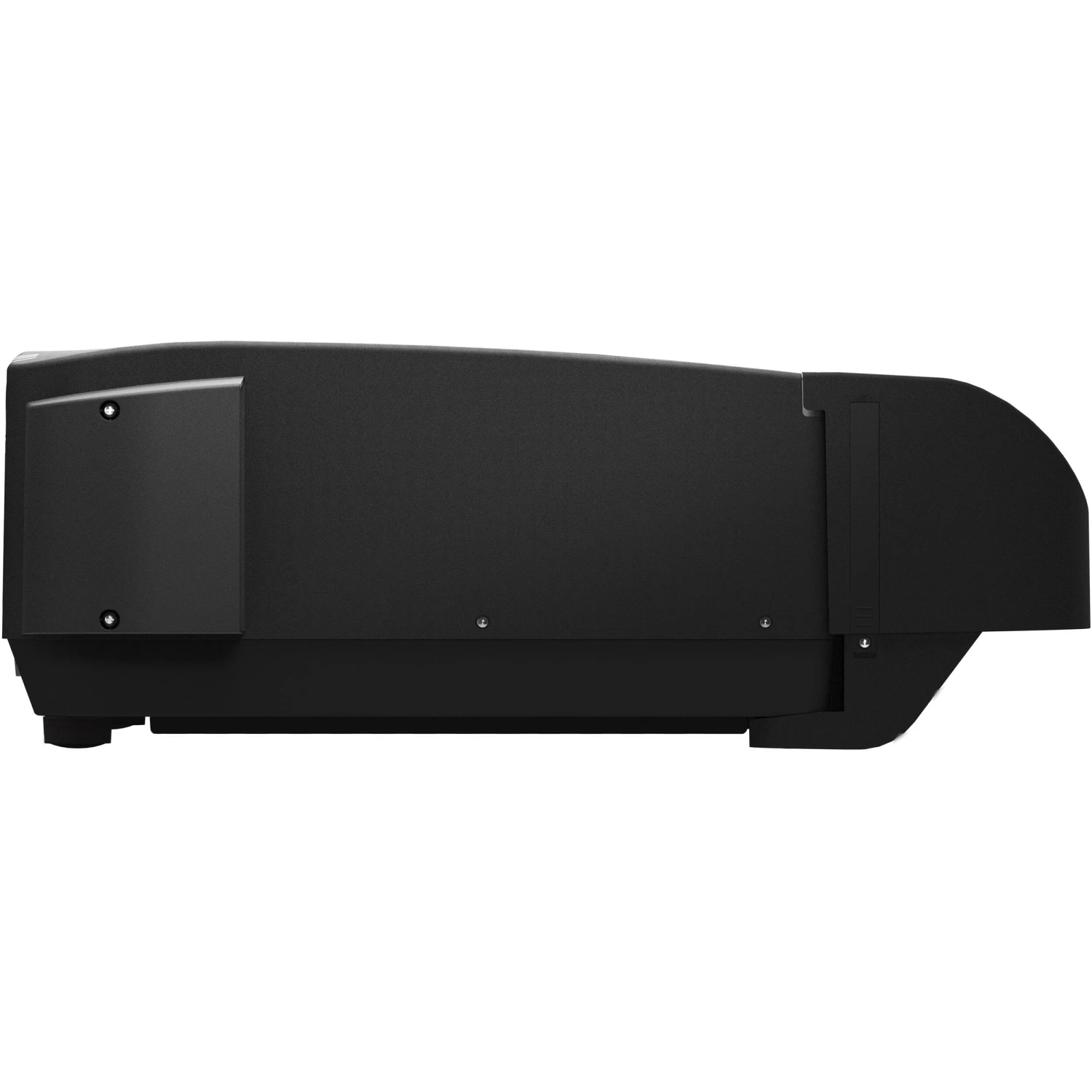

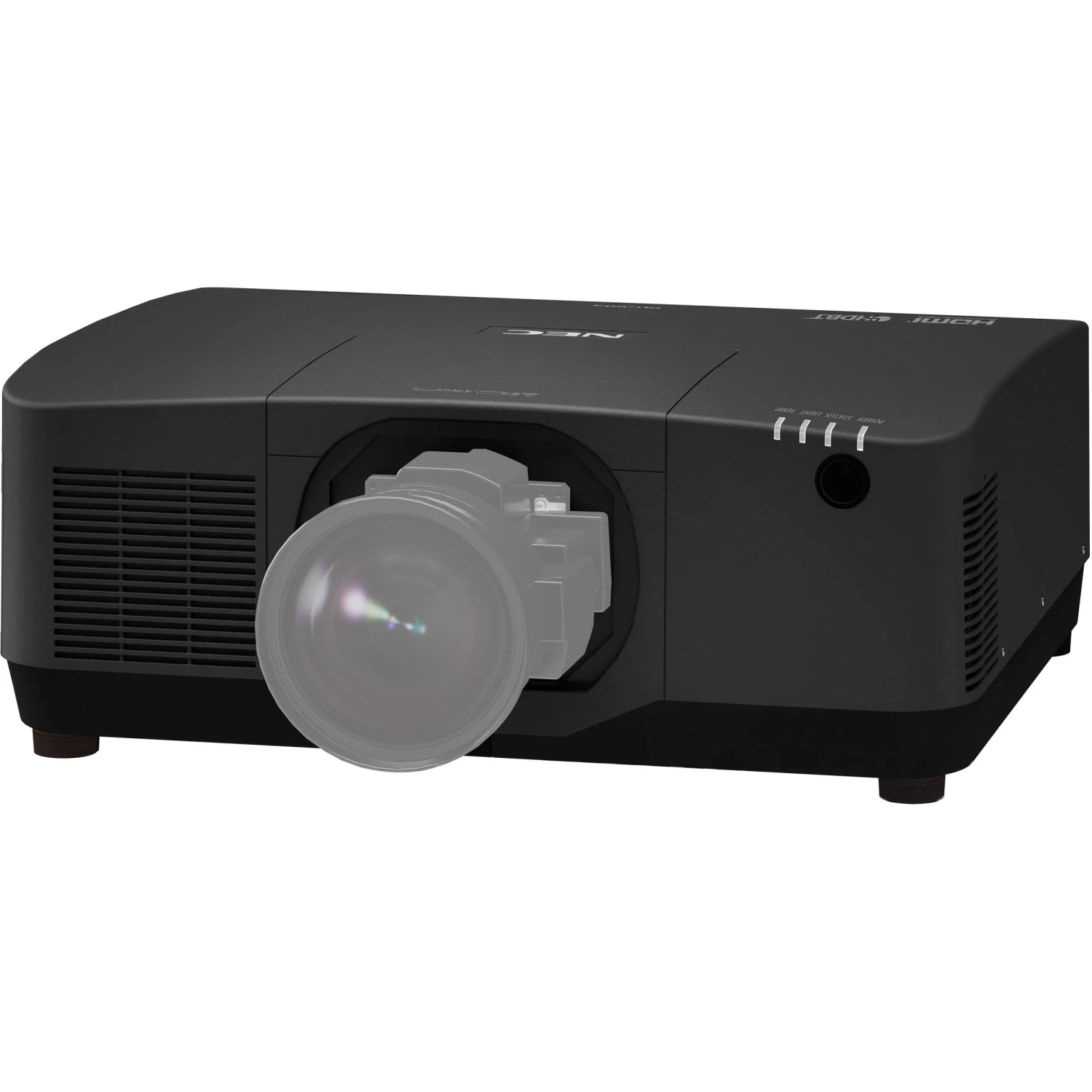

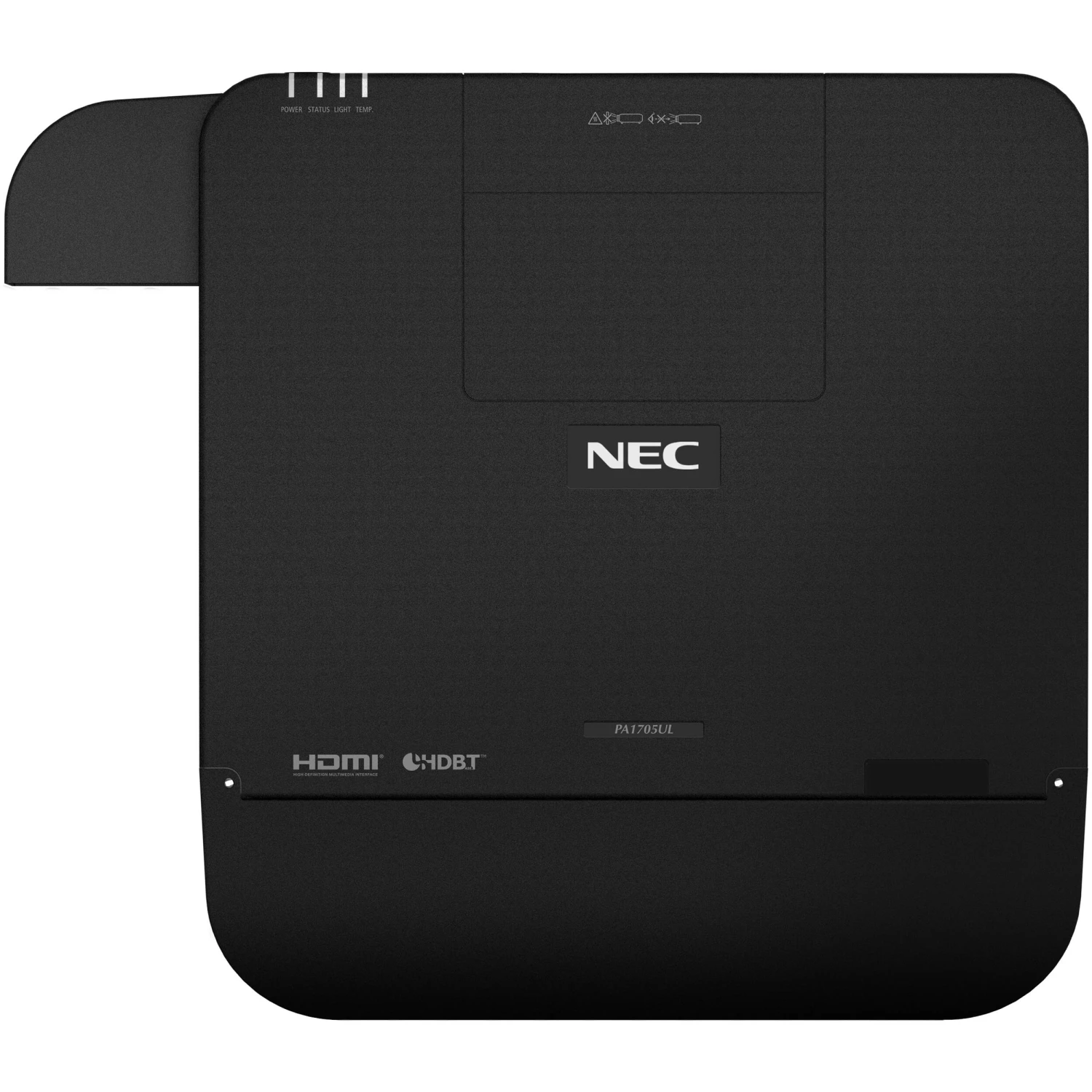

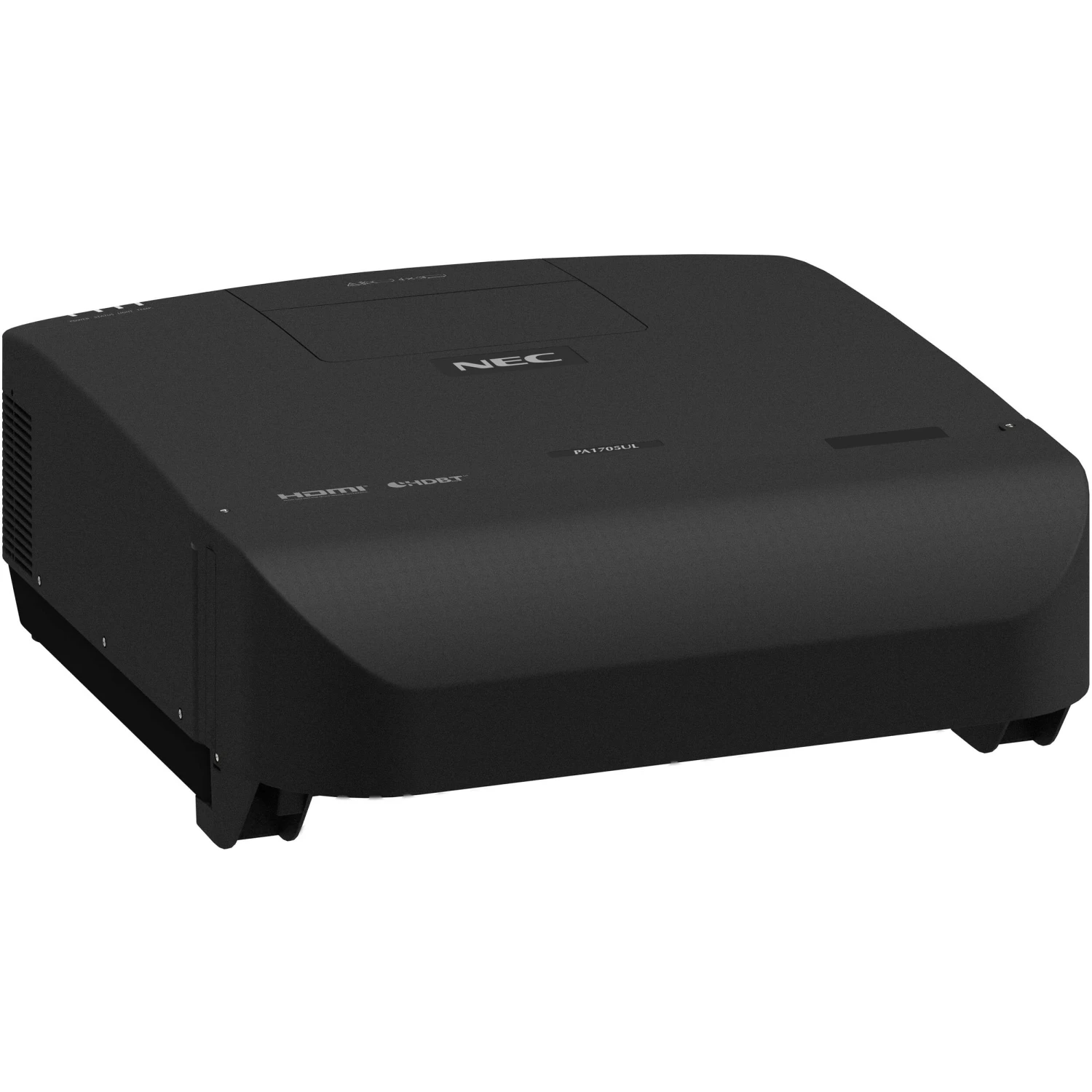

Sharp NEC NP-PA1505UL 15,000-Lumen WUXGA Laser 3LCD Projector (No Lens, Black)(Sharp Nec Np Pa1505ul 15 000 Lumen Wuxga Laser 3lcd Projector No Lens Black)

Sharp NEC NP-PA1505UL 15,000-Lumen WUXGA Laser 3LCD Projector (No Lens, Black)(Sharp Nec Np Pa1505ul 15 000 Lumen Wuxga Laser 3lcd Projector No Lens Black)

Original price was: $384.00.Current price is: $95.99.

SKU: DGFUB 7074952183893 Categories: Audio Visual Presentation, Computer & Presentation, Projectors Tags: All Projectors, Audio Visual Presentation, Projectors, Sharp NP-PA1505UL

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Sharp NP-PA1505UL Overview

The black NEC NP-PA1505UL 14,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1505UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction. Connect a variety of devices via 3G-SDI, HDBaseT, and HDMI 2.0 inputs with support for up to 4K60 video signals. Additionally, an HDBaseT output is available for daisy chaining in multi-projector setups with stacking and edge blending capability built in.

4K Ready

Display stunning 4K60 content using NEC’s proprietary high-performance video processing/scaling chip without the loss of critical details.

HDBaseT

Simplify your installations with HDBaseT, which is optimized for video applications and supporting uncompressed full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 327′) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.

Built-In Stacking and Edge Blending

Stacking capability allows the projectors to boost an image’s brightness up to 68,000 lumens, which is ideal for larger sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector. Edge blending blends multiple projected images to display a single high-resolution image.

Geometric Correction

Projecting an image is not confined to a standard flat screen or wall with the NEC PA Series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.

Control System Support

Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control.

NEC ProAssist

Projector management software for installation professionals provides full projector control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable through the GUI.

Optional Lenses

Enjoy greater installation flexibility with motorized bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 4.25 to 141ft.

Throw Ratio	Lens Type	Model Number
0.86-1.25:1	Short/Standard-throw zoom lens	NP53ZL
1.24-2.01:1	Standard-throw zoom lens	NP54ZL
1.98-3.95	Long-throw zoom lens	NP55ZL

Additional Features

WUXGA native resolution
Motorized lens shift
Motorized zoom and focus
3.5mm variable audio output
Instant on/off
Auto power off
360° roll-free installation
Portrait mode
Picture-in-picture
Picture-by-picture
Multi-display and tile matrix via HDBaseT daisy chain
Control over LAN or RS-232
Built-in wall color correction

UPC: 805736078541

Items Included

Sharp NEC NP-PA1505UL 15,000-Lumen WUXGA Laser 3LCD Projector (No Lens, Black)
Remote Control
2 x AAA Battery
Dust Cap for Lens Hole
Cable Cover
Power Cord
Limited 5-Year Manufacturer Warranty (or 20,000 Hours, Whichever Comes First)

Additional Resources

User Manual

2.7 MB

Sharp NP-PA1505UL Specs

Key Specs

Display System	3-Chip RGB Liquid Crystal Shutter Projection System LCD
Native Resolution	1920 x 1200
Maximum Brightness	15,000 Lumens (Center)
HDR Support	Yes

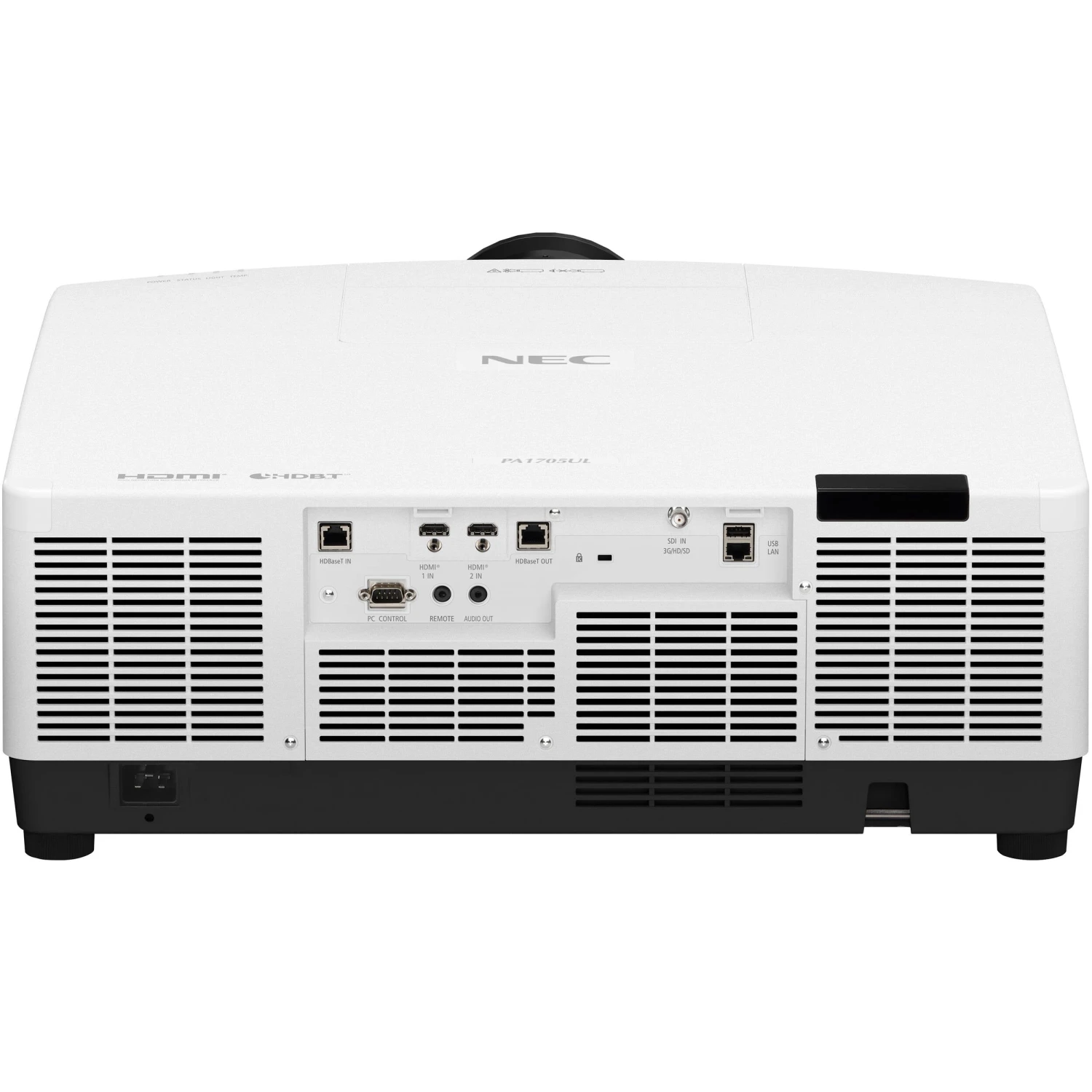

Inputs/Outputs	2x HDMI 2.0 Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input
Light Source	Laser Phosphor

Image Display

Display System	3-Chip RGB Liquid Crystal Shutter Projection System LCD
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness	15,000 Lumens (Center)
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	3,000,000:1
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15 to 153kHz Vertical: 24 to 120Hz
Includes Lens	No

Features

Keystone Correction	Vertical: ± 30° Horizontal: ± 40°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	2x HDMI 2.0 Audio, Video Input 1x BNC (3G-SDI) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input
HDCP Support	Yes, Version 2.2

Hardware

Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 38 dB
Security	Cable Lock Slot Password Protection Security Bar
Supported Languages	Arabic Croatian Czech Danish Dutch English Finnish French German Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 960 W Standby Mode (Lamp Off): < 0.4 W
Certifications	UL 60950-1: 2nd Edition, UL 62368. 3rd Edition, FCC, CAN/CSA, ICES-003 Issue 7
Operating Conditions	32 to 113°F / 0 to 45°C at 20 to 80% Humidity
Storage Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Dimensions (W x H x D)	23.6 x 9.4 x 19.3″ / 599.0 x 238.0 x 490.0 mm (including protruding parts)
Weight	63.3 lb / 28.7 kg
