Sharp M551 Overview
The NEC M Series 55″ 4K Commercial Display with SoC Media Player and Anonymous Traffic Software provides pixel-perfect imagery for large-format commercial applications. Supporting both landscape and portrait orientations, this display also features modular customization to meet the needs of your unique situation. A full-metal mechanical chassis allows for a more robust design necessary for commercial applications while maintaining aesthetics that work with a wide range of environments. A DisplayPort and two HDMI interfaces ensure ample connectivity. The NEC M series boasts a 500 nits brightness that is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail, and grocery store environments where a clear message is key. This display features an integrated SoC media player with NaViSense Anonymous Traffic Software.
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before

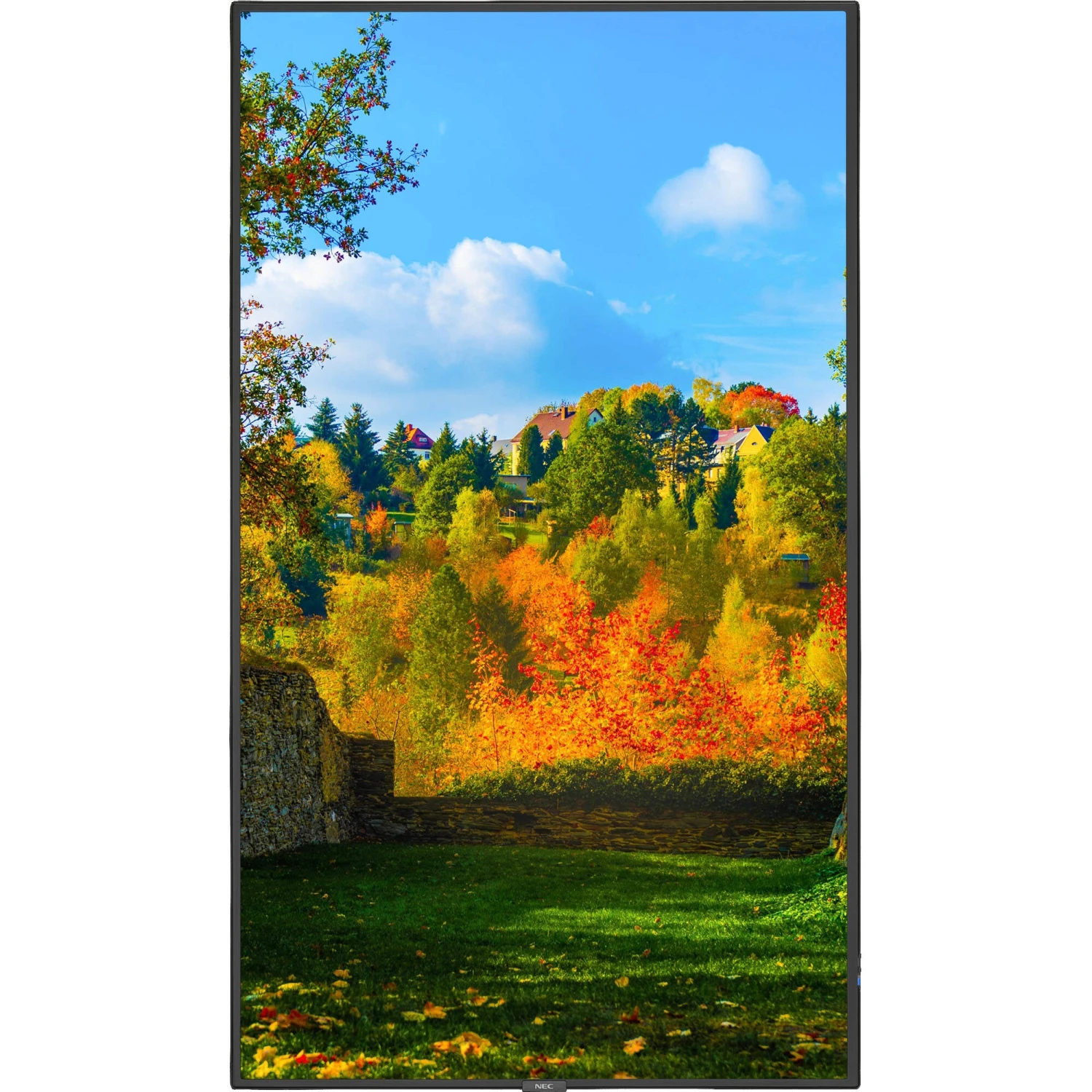

- Landscape and portrait orientation allows for flexibility of installation dependent on your needs
- An integrated SoC media player features NaViSense Anonymous Traffic Software.
- Accepts optional Intel Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
- Compatibility with optional Raspberry Pi Compute Module 4 SoC allows for future-proof expansion and NEC Media Player support
- Bidirectional and full external control allows for easy integration into control systems via LAN or RS-232C
- A 500 nits brightness and HDR compatibility will capture the attention of audience in almost any situation
- Integrated media player allows for audio, video or image playback via USB
- Failover capabilities with full input detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated ambient light sensor allows the display to automatically adjust its luminance based on external brightness conditions
- ENERGY STAR 8.0 certified product
- Full 3-year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution eases administration and management of larger display device installations
Items Included
- Sharp M Series 55″ 4K Commercial Display with SoC Media Player and Anonymous Traffic Software
- Power Cable (9.8′)
- HDMI Cable (6.6′)
- Wireless Remote
- Batteries
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
6.3 MB
Sharp M551 Specs
| Display Size |
55″ |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
500 nits / cd/m2 |
| Inputs |
2x HDMI 2.0 2x DisplayPort 1.4 |
| Outputs |
1x HDMI 2.0 1x DisplayPort 1.4 |
| Wireless |
No |
| USB I/O |
2x USB-A 2.0 1x USB-B 2.0 |
| Ethernet I/O |
1x RJ45 10/100 Mb/s Ethernet |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) 1x 1/8″ / 3.5 mm IR |
| Built-In Speakers |
No |
| Media Card Reader |
No |
| Display Size |
55″ |
| Panel Type |
IPS-Type LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape, Portrait |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
500 nits / cd/m2 |
| Lighting System |
Edge-Lit LED |
| HDR Support |
Yes, HDR10/HDR10+ |
| Contrast Ratio |
8000:1 |
| Response Time |
8 ms (GtG) |
| Refresh Rate |
60 Hz |
| Color Support |
1.07 Billion Colors |
| Viewing Angle (H x V) |
178 x 178° |
| Horizontal Frequency |
15 to 135 kHz (Digital) |
| Vertical Frequency |
23 to 76 Hz (Digital) |
| Pixels Per Inch (ppi) |
81 ppi |
| TV Tuner |
No |
| Inputs |
2x HDMI 2.0 2x DisplayPort 1.4 |
| Outputs |
1x HDMI 2.0 1x DisplayPort 1.4 |
| HDCP Support |
Yes |
| Wireless |
No |
| NFC |
No |
| USB I/O |
2x USB-A 2.0 1x USB-B 2.0 |
| Ethernet I/O |
1x RJ45 10/100 Mb/s Ethernet |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) 1x 1/8″ / 3.5 mm IR |
| Ambient Light Sensor |
Yes |
| Multi-Input Support (PIP/PBP) |
No |
| Built-In Speakers |
No |
| OS Compatibility |
Computer: Windows / macOS / Linux / Ubuntu / Chrome OS Mobile: Android Only |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Power Consumption |
Maximum: 255.0 W Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 80% Humidity |
| Certifications |
ENERGY STAR |
| Mounting-Hole Pattern |
300 x 300 mm |
| Environmental Resistance |
No |
| Impact Resistance |
No |
| Lock Slot |
No |
| Bezel Thickness |
12.5 mm (Right/Left) 12 mm (Top) 15.6 mm (Bottom) |
| Duty Cycle |
24 Hours / 7 Days |
| Dimensions |
48.8 x 28.1 x 2.4″ / 124 x 71.4 x 6.1 cm |
| Weight |
60.8 lb / 27.6 kg |
