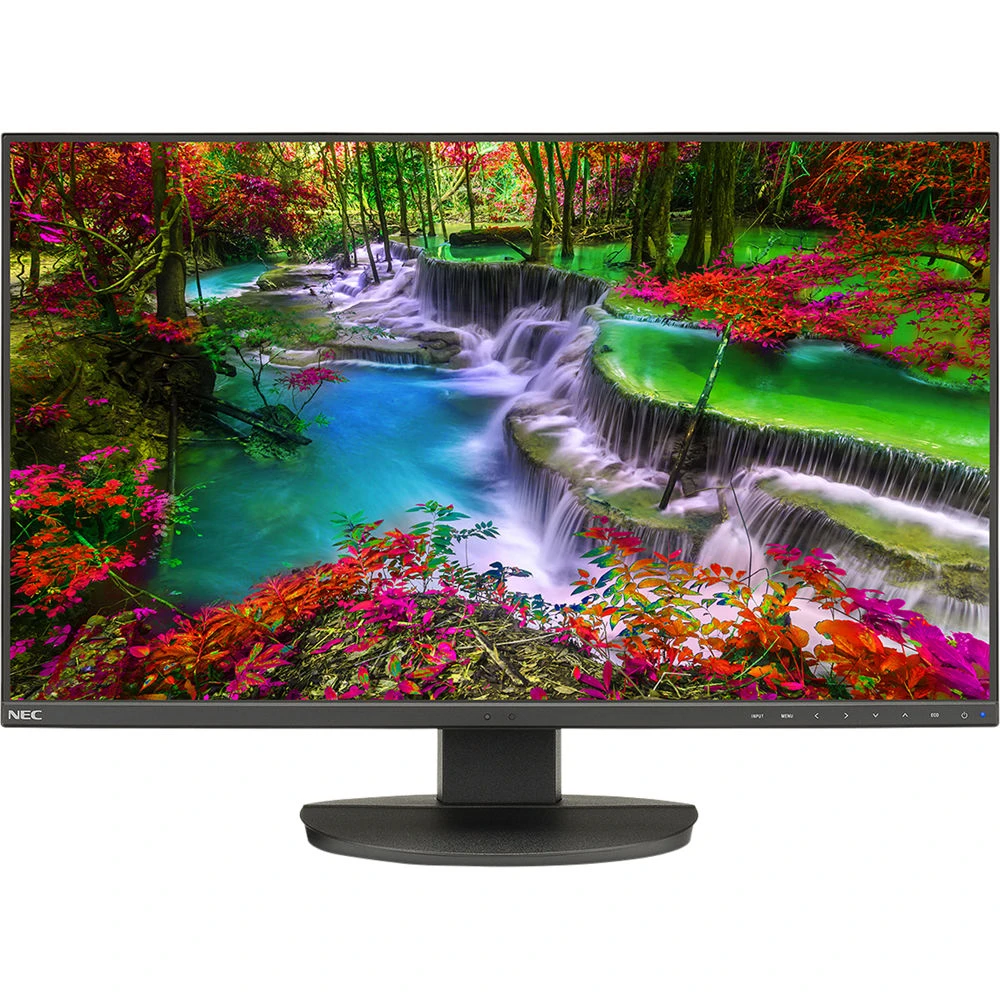

Sharp EA271F-BK Overview

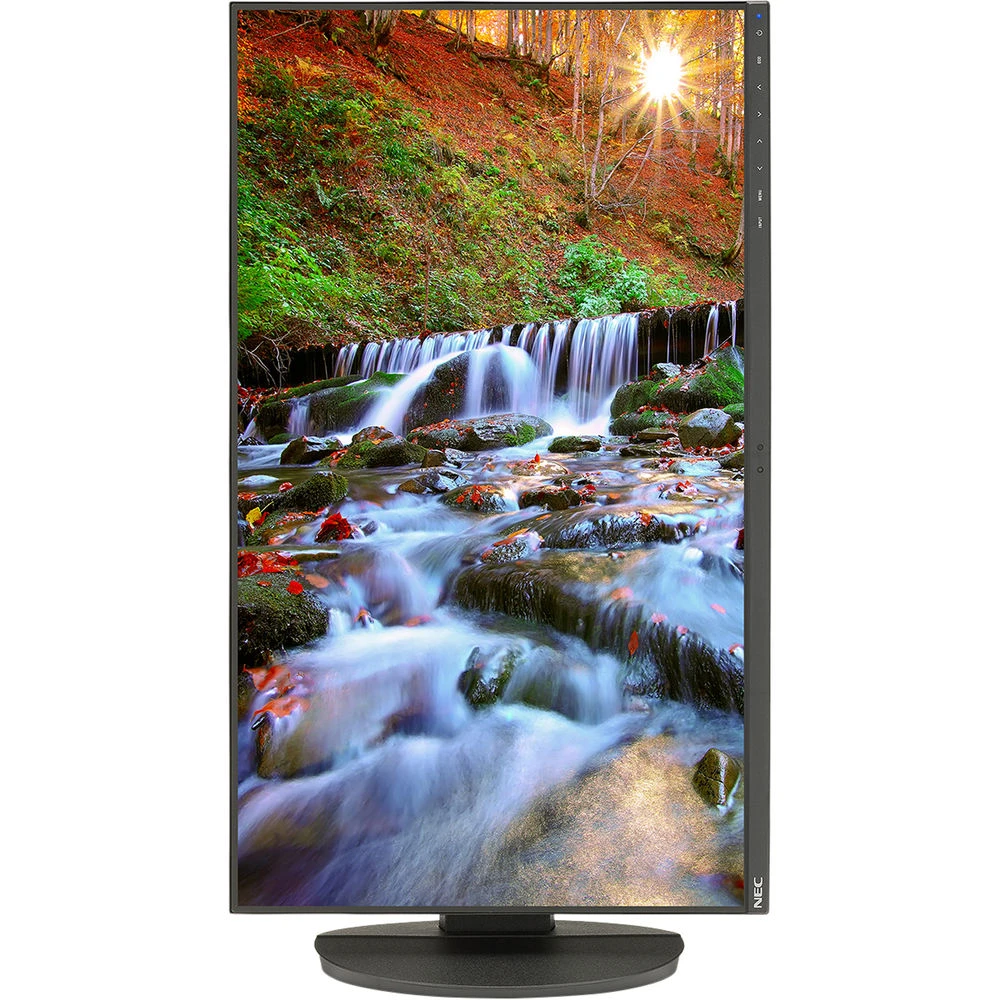

Tilt, pivot, swivel, and adjust the height of the EA271F-BK 27″ 16:9 IPS Monitor from NEC for maximum viewing comfort. This detachable ergonomic stand features a quick-release function so you can detach it from the base and mount it to the wall using a VESA compatible wall mount. Whether you’re looking at the display on the stand or the wall, the IPS (In-Plane Switching) panel supports 178° horizontal and vertical viewing angles, which reduces distortion so you can see the screen from nearly any perspective.
Setup is simple as the EA271F-BK comes equipped with DisplayPort, HDMI, DVI-D, VGA, and DVI-D connectors. Once connected, the monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 nits brightness rating, a 6 ms response time, and support for up to 16.7 million colors. Furthermore, this NEC display comes equipped with touch-sensitive OSD controls, which allows for easy adjustment display settings, and a built-in ambient light sensor that adjusts the display’s brightness to match nearby lighting conditions.
- LED backlight technology reduces power consumption and hazardous materials
- Fully adjustable quick-release stand, including height-adjust (130mm), pivot, tilt, and swivel capabilities, adds flexibility and comfort to your viewing preferences
- Full connectivity, including DisplayPort, HDMI, DVI-D, and VGA inputs
- Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easy
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs
- Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
- SpectraViewII compatible
- ControlSync
- Customize setting
- Integrated speakers
- 3-port USB hub
- LED backlit
- Auto brightness with ambient light sensor
- Human sensor
- ECO mode
- Carbon footprint meter
- Resettable cost meter
- Ultra-narrow bezel
- Tilt
- Swivel
- Dual direction pivot
- Height-adjustable stand
- Rapid response
- Ambix
- XtraView
- Hot key
- OSD lock out
- Cable management
- Dynamic visual mode
- NaViSet software
- VESA mount
- HDCP
- DDC/CI
- No touch auto adjust
- Plug-and-Play (VESA DDC2B)
- VESA DPMS power management
- AccuColor color control
- Digital controls
- ISO 9241-307 Class I
Items Included
- Sharp EA271F-BK 27″ 16:9 IPS Monitor
- DisplayPort Cable
- USB Cable
- ControlSync Cable
- Power Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Sharp EA271F-BK Specs
| Display Size |
27″ |
| Panel Type |
IPS-Type LCD |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
250 nits / cd/m2 |
| HDR Support |
No |
| Color Support |
16.7 Million Colors (6-Bit+FRC) |
| Color Gamut |
72% NTSC |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
No |
| Inputs |
1x 1/8″ / 3.5 mm 1x DisplayPort 1x DVI-D 1x HDMI 1x DE-15/DB-15 |
| Outputs |
1x 1/8″ / 3.5 mm |
| USB I/O |
No |
| Built-In Speakers |
No |
| Display Size |
27″ |
| Panel Type |
IPS-Type LCD |
| Aspect Ratio |
16:9 |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
250 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
1000:1 |
| Response Time |
6 ms |
| Refresh Rate |
60 Hz |
| Variable Refresh Technology |
No |
| Color Support |
16.7 Million Colors (6-Bit+FRC) |
| Color Gamut |
72% NTSC |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
27.48 x 13.24″ / 69.79 x 33.63 cm |
| Pixels Per Inch (ppi) |
82 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
No |
| Inputs |
1x 1/8″ / 3.5 mm 1x DisplayPort 1x DVI-D 1x HDMI 1x DE-15/DB-15 |
| Outputs |
1x 1/8″ / 3.5 mm |
| HDCP Support |
Yes |
| USB I/O |
No |
| Multi-Input Support (PIP/PBP) |
No |
| Built-In Speakers |
No |
| Power Consumption |
Eco Mode: 0.3 W Typical: 17.0 W |
| Operating Conditions |
41 to 95°F / 5 to 35°C at 20 to 80% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C at 10 to 85% Humidity |
| Certifications |
ENERGY STAR, RoHS, TCO Certified |
| Adjustments |
Height: 5.12″ / 130 mm Tilt Swivel |
| Mounting-Hole Pattern |
100 x 100 mm |
| Lock Slot |
No |
| Dimensions |
24 x 20.8 x 9.8″ / 61 x 52.8 x 24.9 cm (with Stand) 24 x 14.2 x 1.8″ / 61 x 36.1 x 4.6 cm (without Stand) |
| Weight |
16.8 lb / 7.62 kg (with Stand) 11.0 lb / 4.99 kg (without Stand) |
| Package Weight |
21.4 lb |
| Box Dimensions (LxWxH) |
29 x 19 x 8″ |
