Seeed Studio 113060007 Radio Module Lora With Cable 433MHz 5V / 3.3V Arduino Board(Seeed Studio 113060007 Radio Module Lora With Cable 433mhz 5v 3 3v Arduino Board)

Grove – LoRa Radio 433MHz is RFM98, which is a transceiver features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove – LoRa Radio 433MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

• Using RFM95 module based on SX1276 LoRa®
• ~28mA(avg) @+20dBm continuous transmit
• ~8.4mA(avg) at standby mode
• ~20mA(avg) at receive mode, BW-500KHz

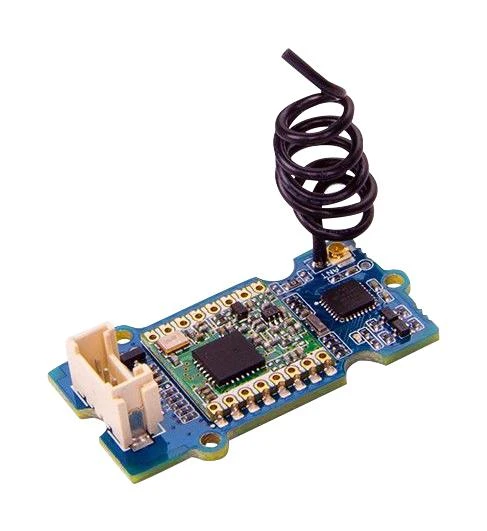

• Simple wire antenna or MHF connector for external high gain antenna
• 20dBm – 100mW power output capability
• UART interface

Contents

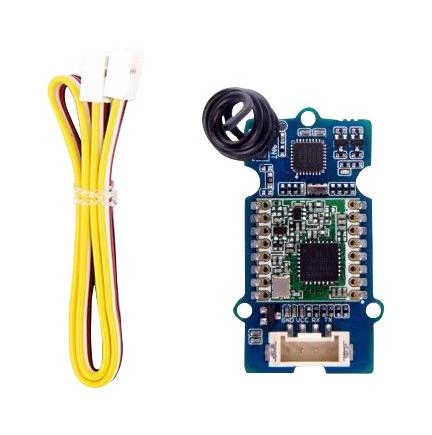

Grove – LoRa Radio 433MHz x 1, Grove cable x 1.

Product details

Accessory Type	433MHz LoRa Radio Module
For Use With	Arduino Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	113060007
Quantity	Each
Technical Data Sheet EN
