Seeed Studio 109020041 Amplifier Gain Board ADC Programmable16 Bit 4 Channel Arduino Raspberry Pi & Ardupy(Seeed Studio 109020041 Amplifier Gain Board Adc Programmable16 Bit 4 Channel Arduino Raspberry Pi Amp Ardupy)

Original price was: $15.75.Current price is: $11.03.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

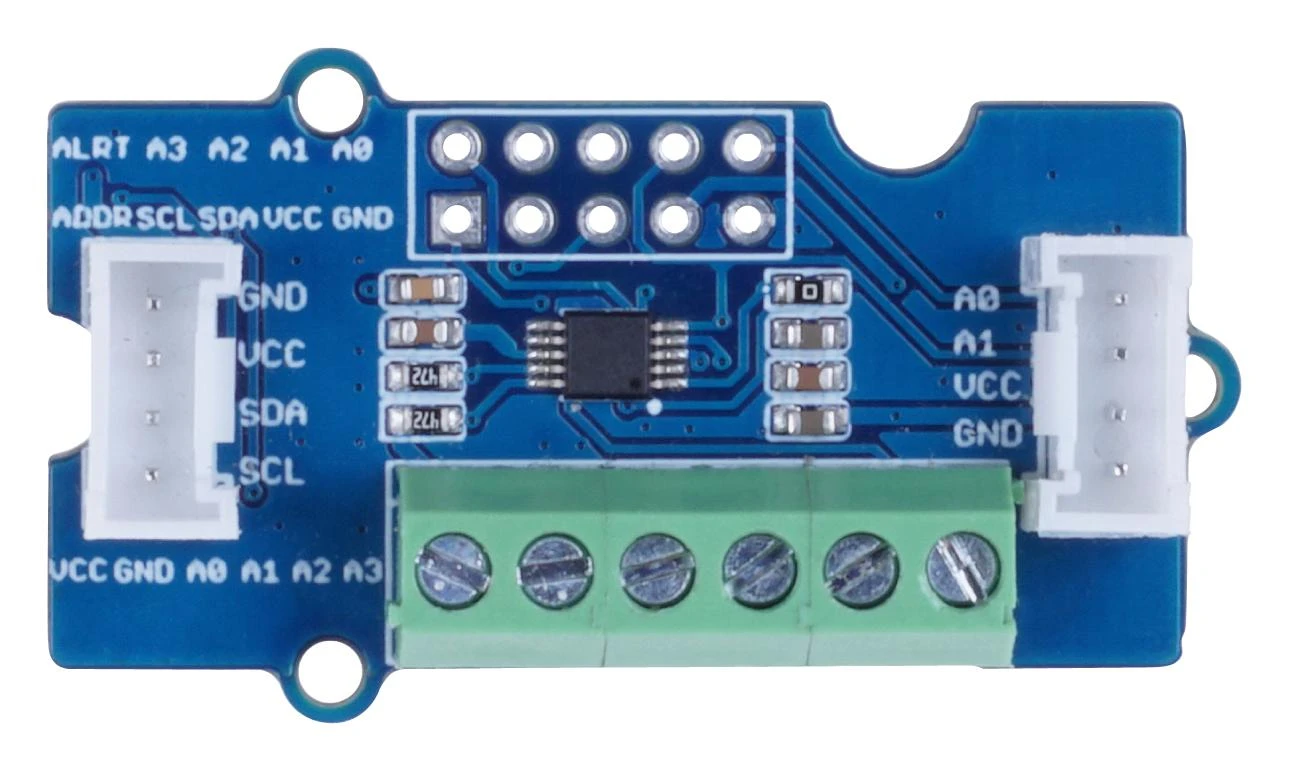

Grove – 4 Channel 16-bit ADC (ADS1115) is a 4-channel 16-bit high-resolution, low-power ADC chip with PGA (programmable gain amplifier) function. The PGA allows it to measure input voltages from Â±256 mV to Â±6.144 V, thus greatly expanding its application scenarios.

Wide supply range from 2.0V to 5.5V, support 3.3/5V system
Programmable data rate is 8 SPS to 860 SPS
Internal Programmable Gain: x16 with Internal low-drift voltage reference and oscillator
Built-in PGA is gain-adjustable and can be controlled by software
4 single-ended inputs or 2 differential Inputs
Input voltage is 3.3V / 5V

Product details

Accessory Type	ADC W/ Programmable Amplifier Gain Board
For Use With	Arduino, Raspberry Pi & ArduPy Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	109020041
Quantity	Each
Technical Data Sheet EN
