Seeed Studio 108020102 PWM Driver Board With Cable 16 Channel Arduino(Seeed Studio 108020102 Pwm Driver Board With Cable 16 Channel Arduino)

Original price was: $21.28.Current price is: $14.90.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

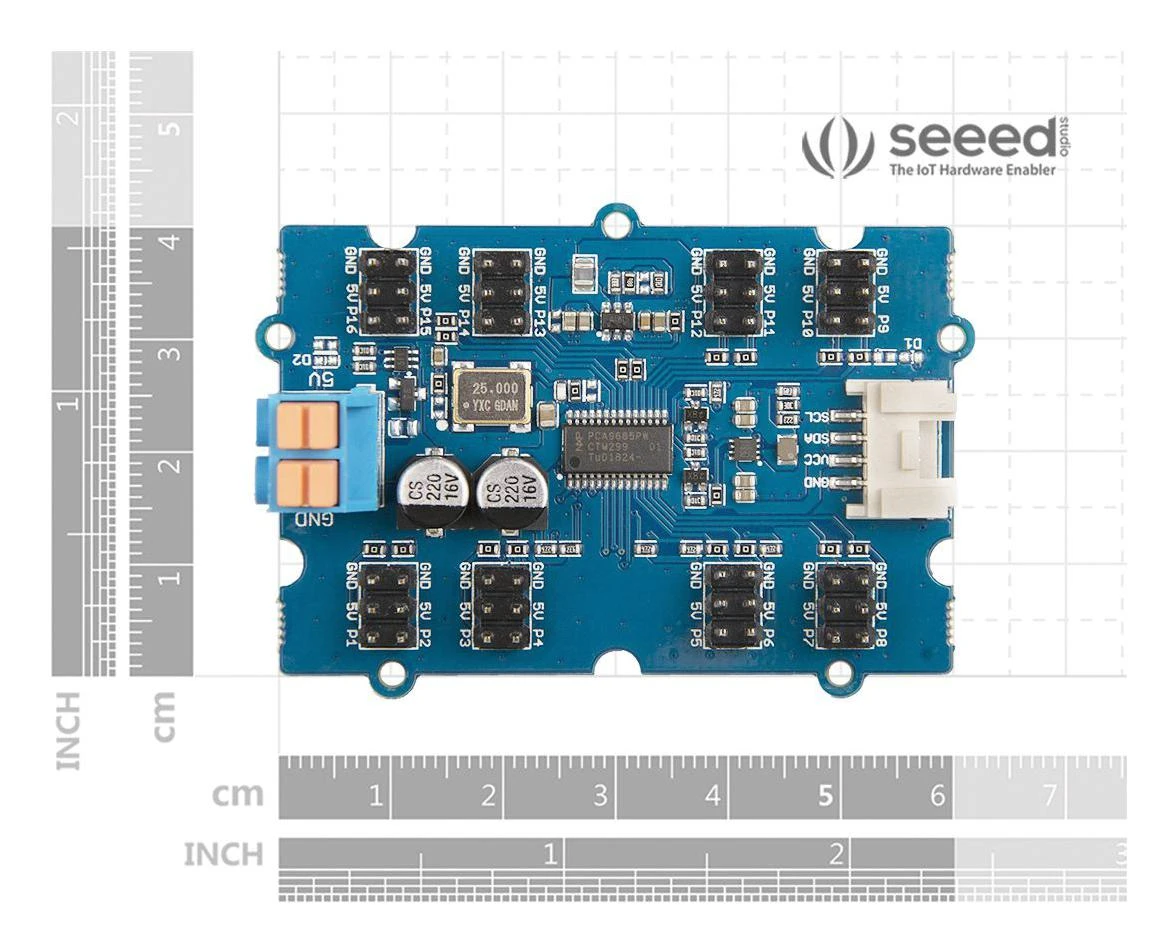

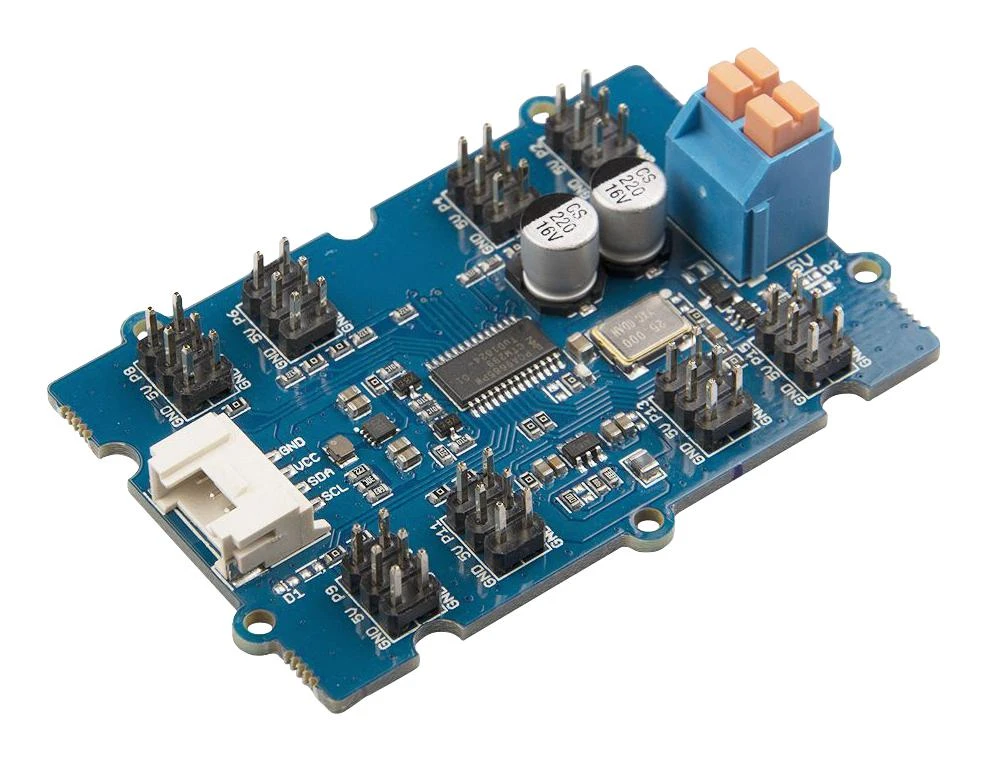

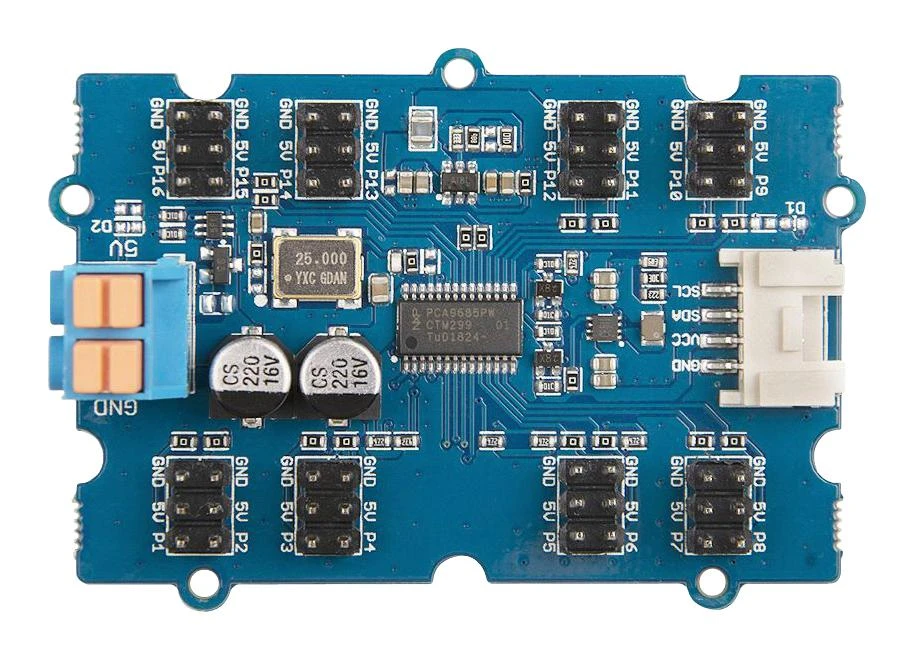

Grove – 16-Channel PWM Driver (PCA9685) is a 12-bit PWM driver based on the NXP PCA9685 and can drive up to 16 servos with an external power supply of 5V. Typical applications include multi-channel PWM/servos driver, RGB or RGBA LED driver and Robot car.

1MHz fast-mode plus compatible I2C-bus

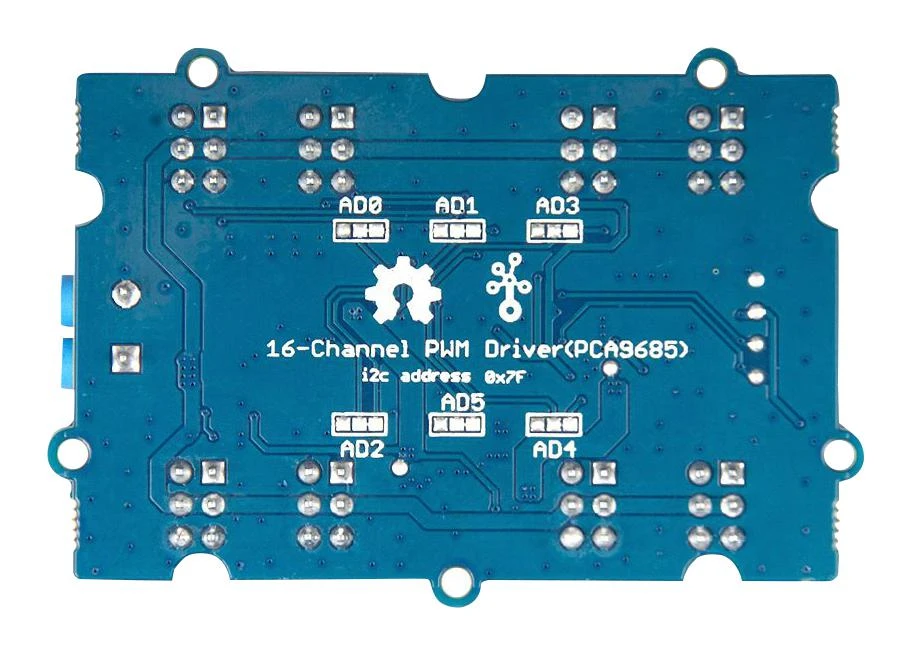

6 hardware address pins allow 62 PCA9685 devices to be connected to the same I2C-bus
Low standby current
Noise filter on SDA/SCL inputs

Contents

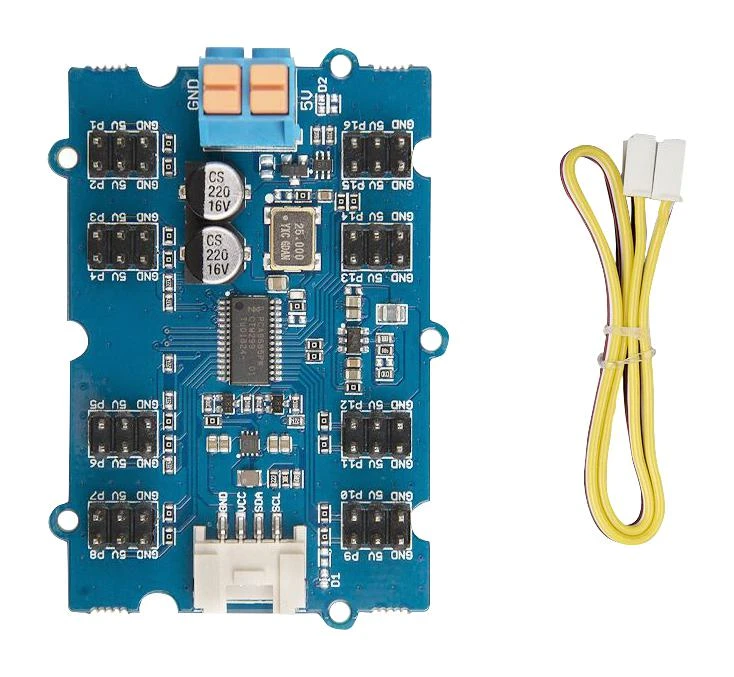

Grove – 16-channel PWM driver (PCA9685) x 1, Grove cable x 1.

Product details

Accessory Type	16-Channel PWM Driver Board
For Use With	Arduino Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	108020102
Quantity	Each
Technical Data Sheet EN
