Seeed Studio 105020012 Accelerometer & Gyroscope Board With Cable 6 Axis 5V / 3.3V Arduino Raspberry Pi(Seeed Studio 105020012 Accelerometer Amp Gyroscope Board With Cable 6 Axis 5v 3 3v Arduino Raspberry Pi)

Grove – 6-Axis Accelerometer Gyroscope is a cost-effective Grove sensor integrated with a 3-axis digital accelerometer and a 3-axis digital gyroscope. With a low power consumption digital chip LSM6DS3 and power supply regulator inside, it features high sensitivity, green tech and low noise interference. It can be configured to different sensitivity levels of acceleration and different angular rate measurement range. Provided with detailed SDK, it can make the prototyping process quicker and easier.

• Grove interfaced and cost-effective
• Digital-output for 6 DOF motion data
• ±2/±4/±8/±16g full scale leaner acceleration sensing range for various environment
• ±125, ±245, ±500, ±1000, ±2000dps for angular rate measurement range make it versatile
• Detailed SDK for easier programming
• Regulated power supply for reliable data to be collected
• Programmed interrupts for different event
• 8KB data buffering

Contents

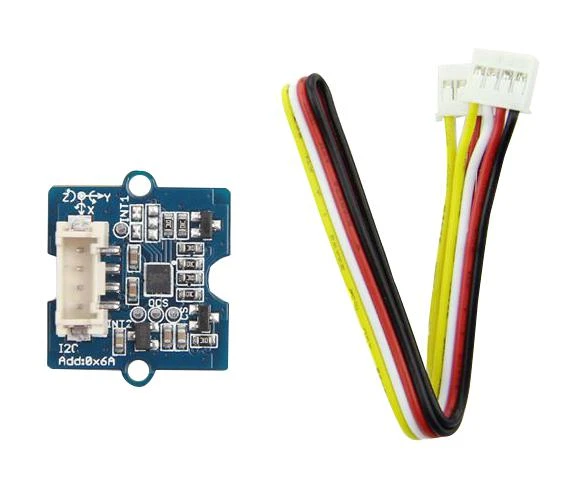

Grove – 6-axis accelerometer gyroscope x 1, Grove – cable x 1.

Product details

Accessory Type	Six-Axis Accelerometer & Gyroscope Board
For Use With	Arduino & Raspberry Pi Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	105020012
Quantity	Each
Technical Data Sheet EN
