Seeed Studio 104030011 Oled Display Board 1.12″ 3.6 V 96 X Pixels Arduino & Raspberry Pi(Seeed Studio 104030011 Oled Display Board 1 12 3 6 V 96 X Pixels Arduino Amp Raspberry Pi)

Grove – OLED 28.4mm is a 16 colour grayscale 96Ã�96 dot matrix OLED display module with Grove compatible 4pin I2C interface. Grove – OLED 28.4mm is constructed with 96 x 96 dot matrix OLED module ([ LY120])and SSD1327 driver IC. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption.

• Supports both normal and inverse colour display
• Supports continuous horizontal scrolling
• Grove compatible 4pin I2C connector
• Works with both 5V and 3.3V logic MCUs
• Wide range of operating temperature from -40°C to 70°C

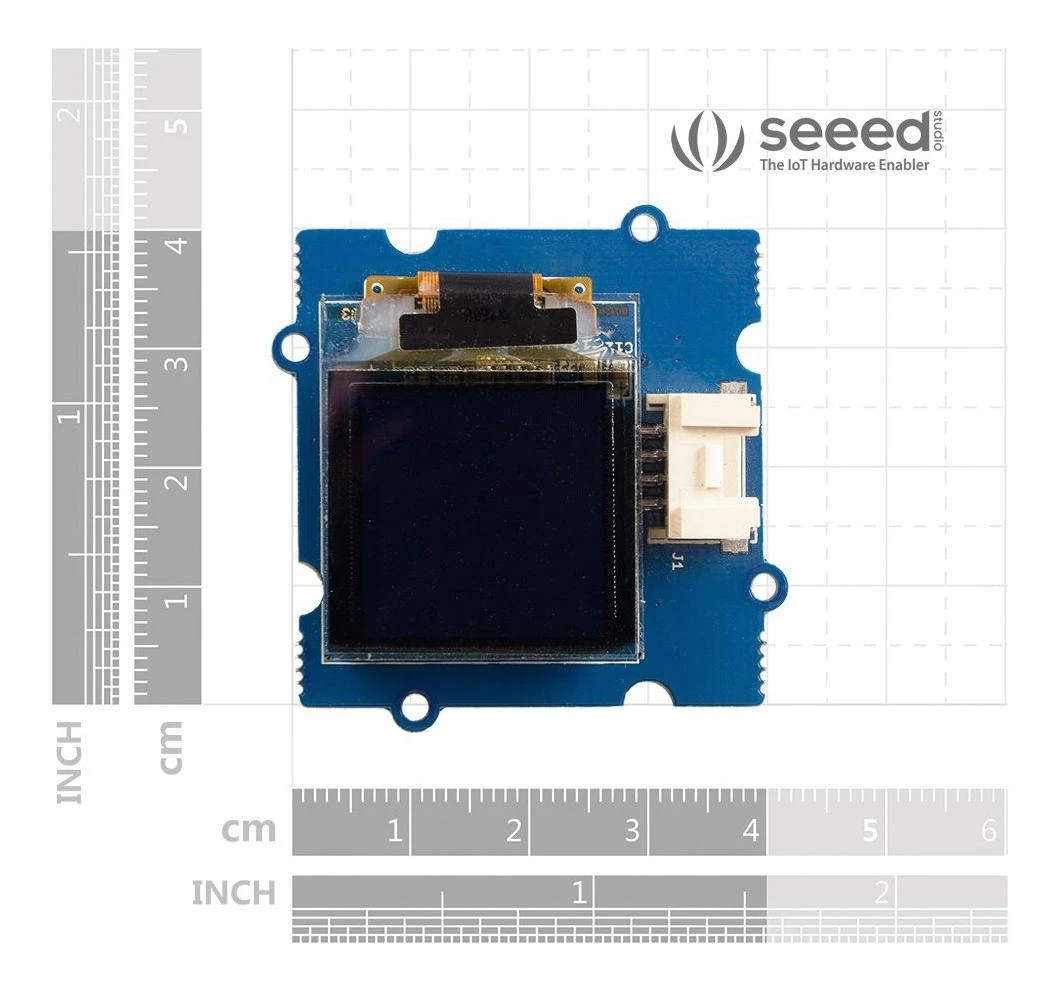

• Dimension is 40mm x 40mm x 10mm

Product details

Accessory Type	1.12″ OLED Display Board
For Use With	Arduino & Raspberry Pi Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	104030011
Quantity	Each
Technical Data Sheet EN
