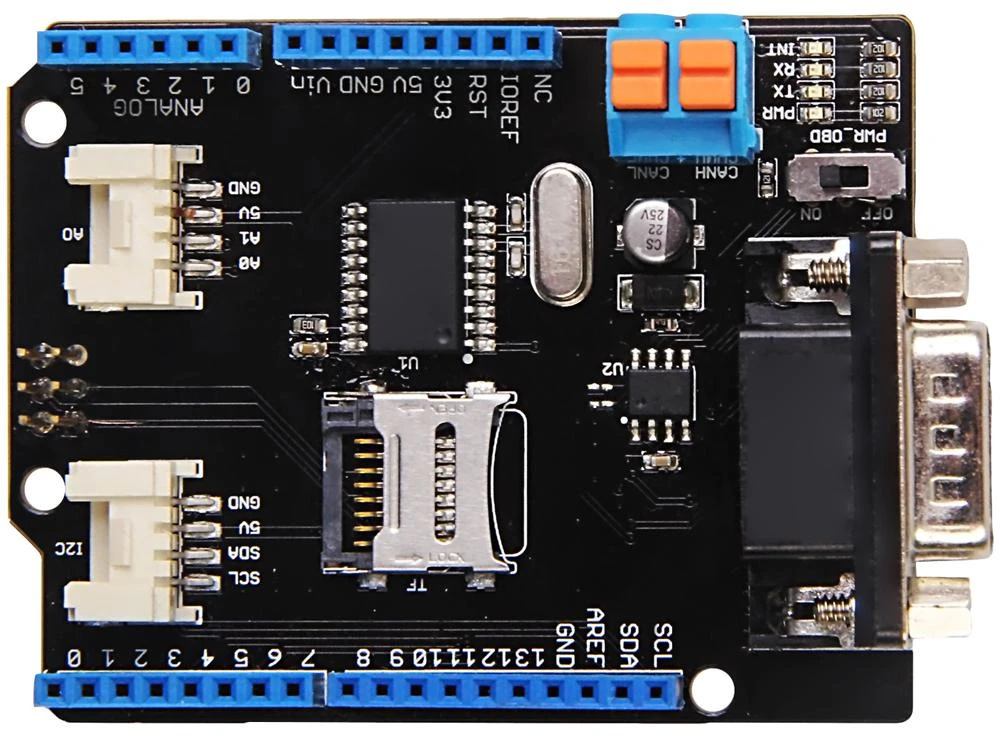

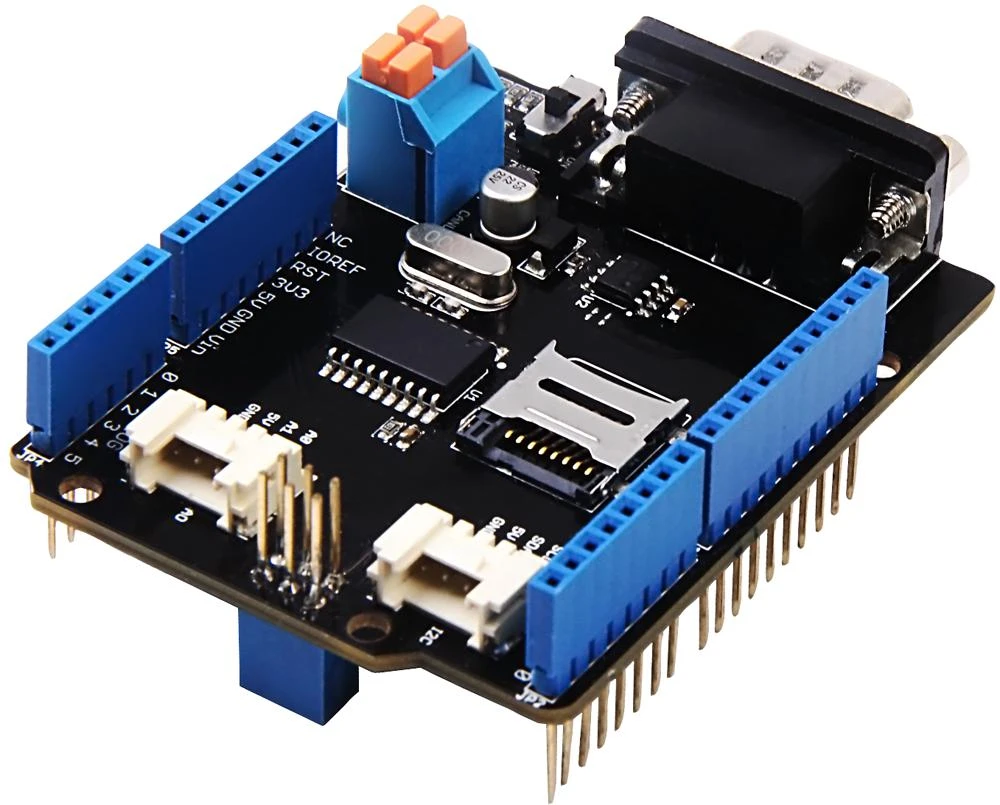

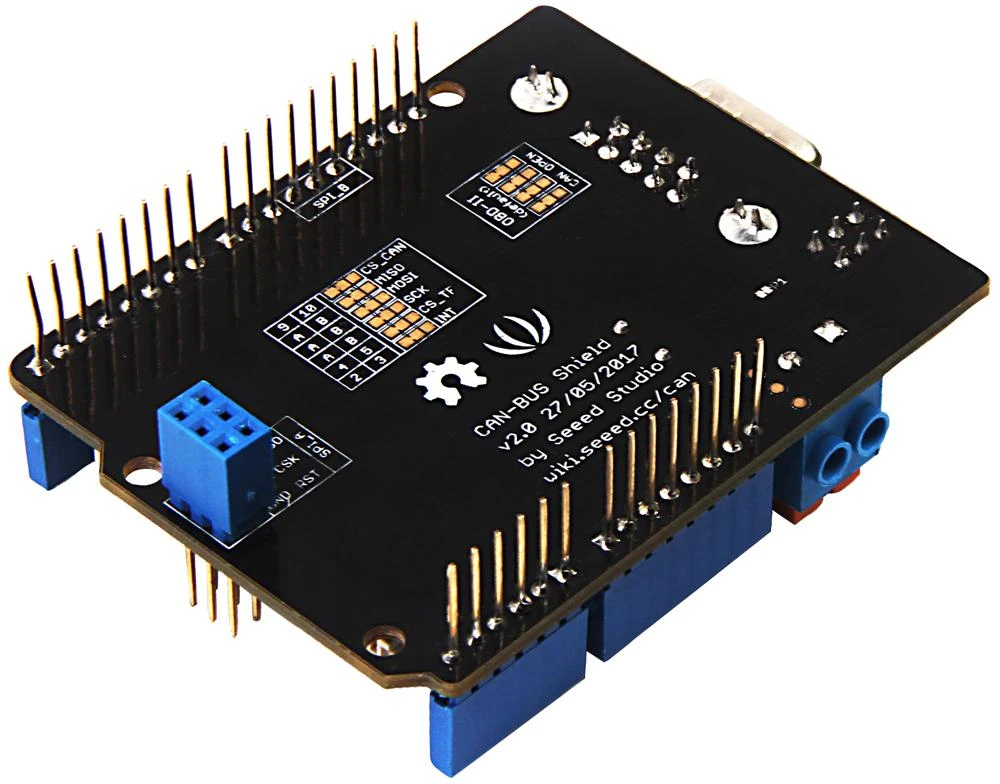

Seeed Studio 103030215 CAN-BUS Shield Board MCP2515 MCP2551 Controller And Transceiver Arduino(Seeed Studio 103030215 Can Bus Shield Board Mcp2515 Mcp2551 Controller And Transceiver Arduino)

CAN-BUS shield V2 adopts MCP2515 and MCP2551 for controller and transceiver, it is compatible with Arduino which means it can switch an Arduino board like Arduino Uno to start your CAN-BUS project.

• Implements CAN V2.0B at up to 1 Mb/s
• Industrial standard 9 pin sub-D connector
• OBD-II and CAN standard pinout selectable
• Changeable chip select pin, changeable CS pin for TF card slot, changeable INT pin
• Screw terminal that easily to connect CAN
• H and CAN
• L
• Arduino uno pin headers
• Micro SD card holder
• 2 grove connectors (I2C and UART), SPI interface up to 10MHz
• Standard (11 bit) and extended (29 bit) data and remote frames
• Two receive buffers with prioritized message storage

Product details

Silicon Manufacturer	Microchip
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	MCP2515, MCP2551
Silicon Family Name	–
For Use With	Arduino Board
Kit Contents	CAN-BUS Shield Board MCP2515, MCP2551
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	103030215
Quantity	Each
Technical Data Sheet EN
Drawing EN
