SEEED STUDIO 103020133 Relay Board, With Cable, Acrylic Case, SPDT, 4 Channel, 5V, Arduino Board(Seeed Studio 103020133 Relay Board With Cable Acrylic Case Spdt 4 Channel 5v Arduino Board)

Original price was: $19.64.Current price is: $13.75.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

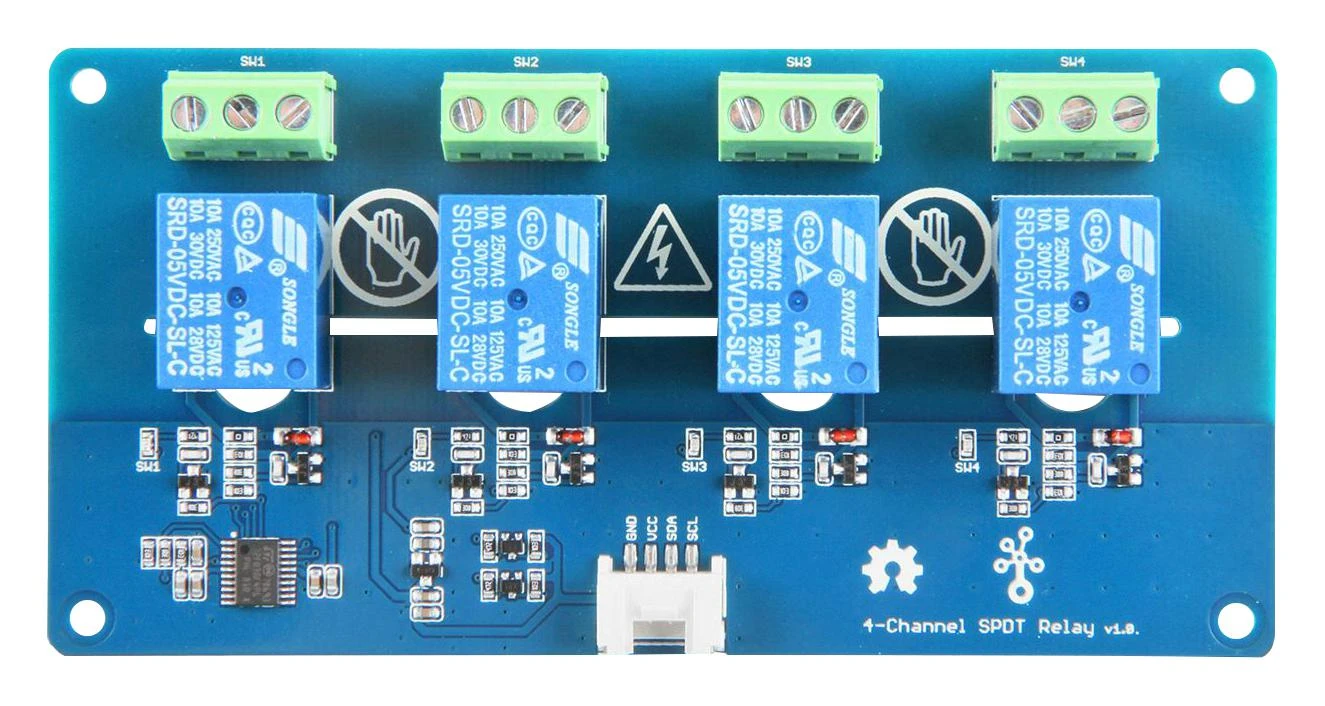

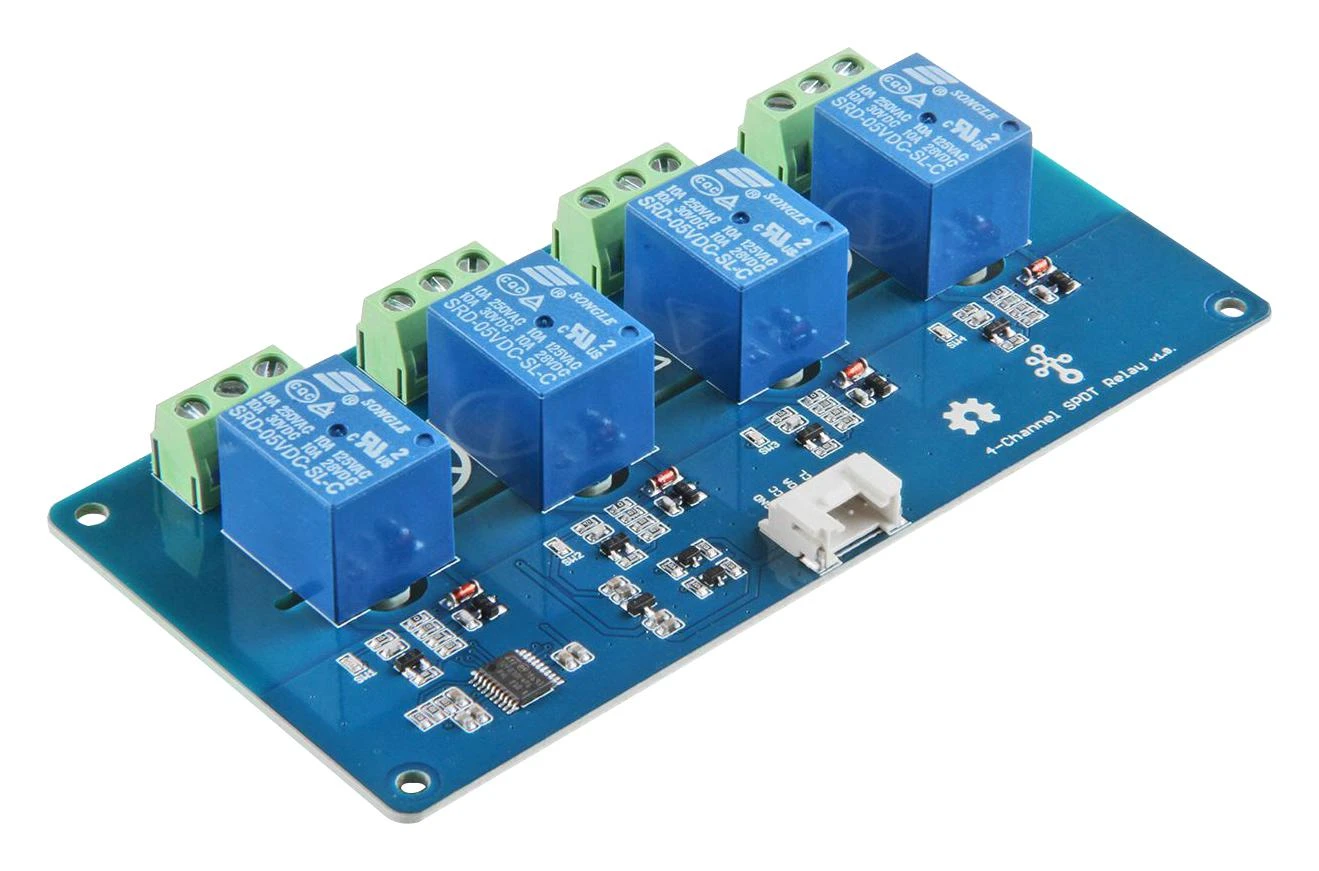

Grove – 4-Channel SPDT Relay has four single pole – double throw (SPDT) switches. It only requires low-voltage and low current signals to control those switches.

High-temperature resistant plastic shell
High voltage load
Low power consumption
Long-lasting
128 optional I2C address
Working voltage is 5V
Nominal coil current is 89.3mA
Maximum allowable voltage is 250VAC/110VDC
Power consumption is 0.45W
Contact resistance is 100mohm max, insulation resistance is 100Mohm min. (500VDC)

Product details

Accessory Type:

4-Channel SPDT Relay Board

For Use With:

Arduino Board

Product Range:

–

Other details

Brand	SEEED STUDIO
Part Number	103020133
Quantity	Each
Technical Data Sheet EN
