Seeed Studio 102991596 Development Board RP2040 32 Bit ARM Cortex-M0+ New(Seeed Studio 102991596 Development Board Rp2040 32 Bit Arm Cortex M0 New)

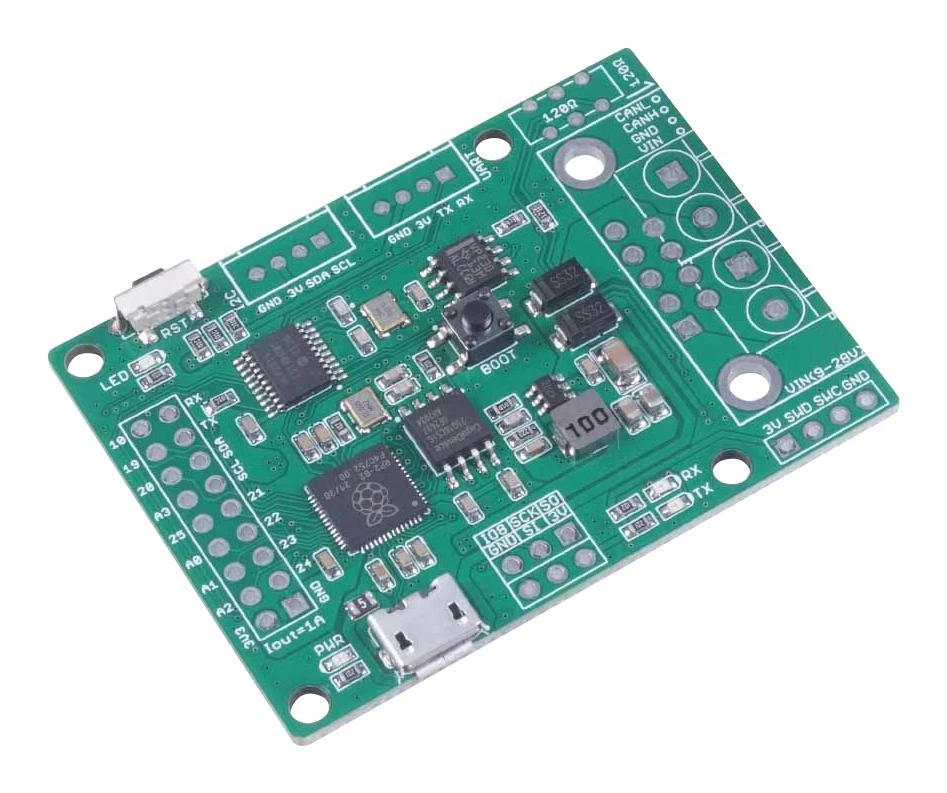

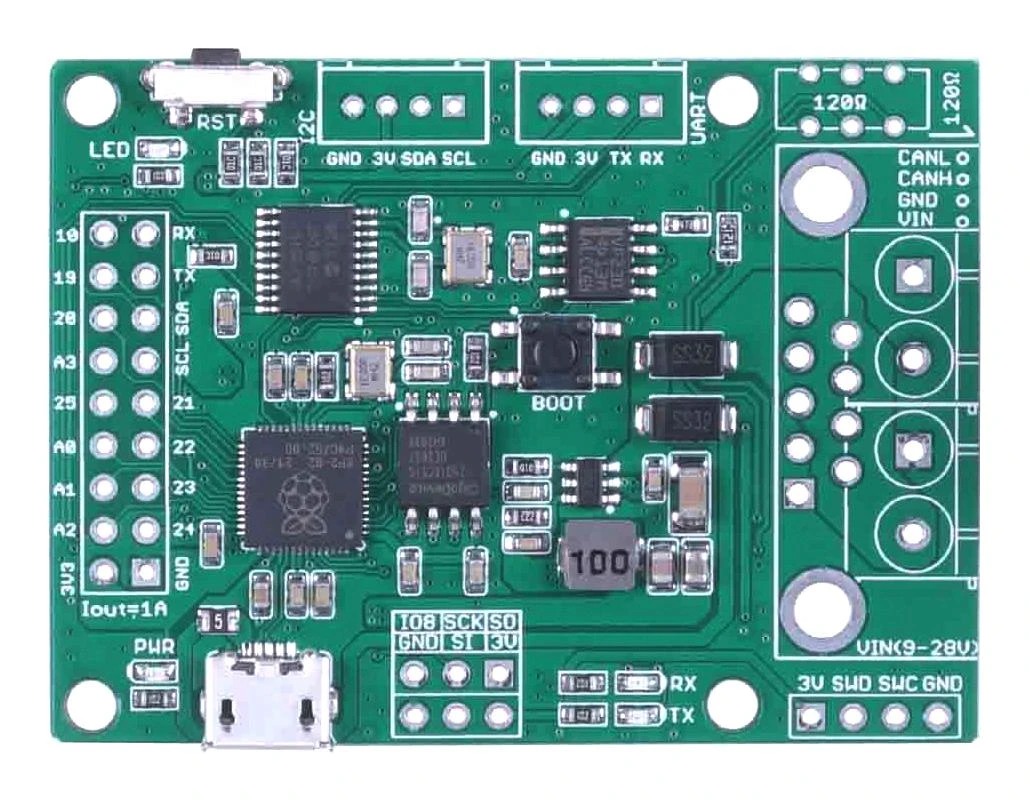

CANBed CAN Bus development board equipped powerful RP2040 has high-performance CAN controller and receiver operating at CAN 2.0 up to 133Mhz. It has flexible CAN interface which can be used as 4-PIN Terminal or D89 connector as OBD-II mode through a programmable Micro USB.

• Powerful Raspberry Pi RP2040 processor
• Implements CAN V2.0B at up to 1Mb/s
• Industrial standard 9 pin sub-D connector or 4pin terminal

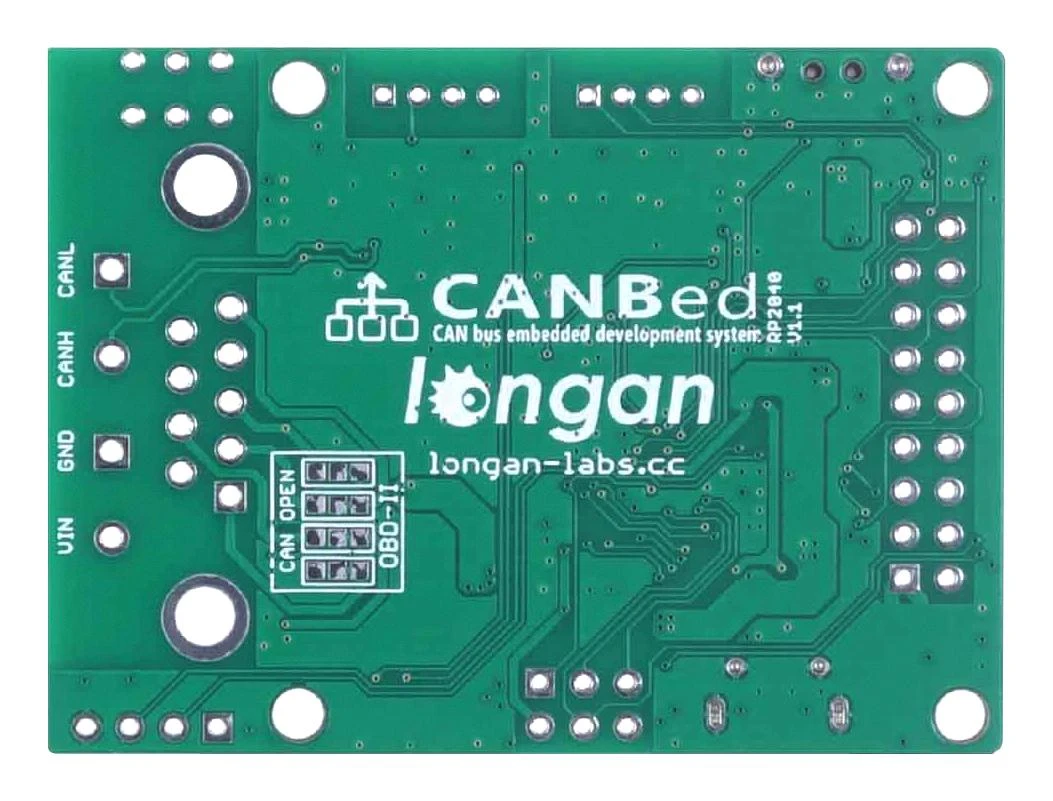

• OBD-II and CAN standard pinout selectable at the sub-D connector
• 2×4 pin connector compatible with grove system from Seeedstudio
• SPI interface
• Standard (11 bit) and extended (29 bit) data and remote frames
• Power input from 9 to 28V

Product details

Silicon Manufacturer	Raspberry Pi
No. of Bits	32bit
Silicon Family Name	–
Core Architecture	ARM
Core Sub-Architecture	Cortex-M0+
Silicon Core Number	RP2040

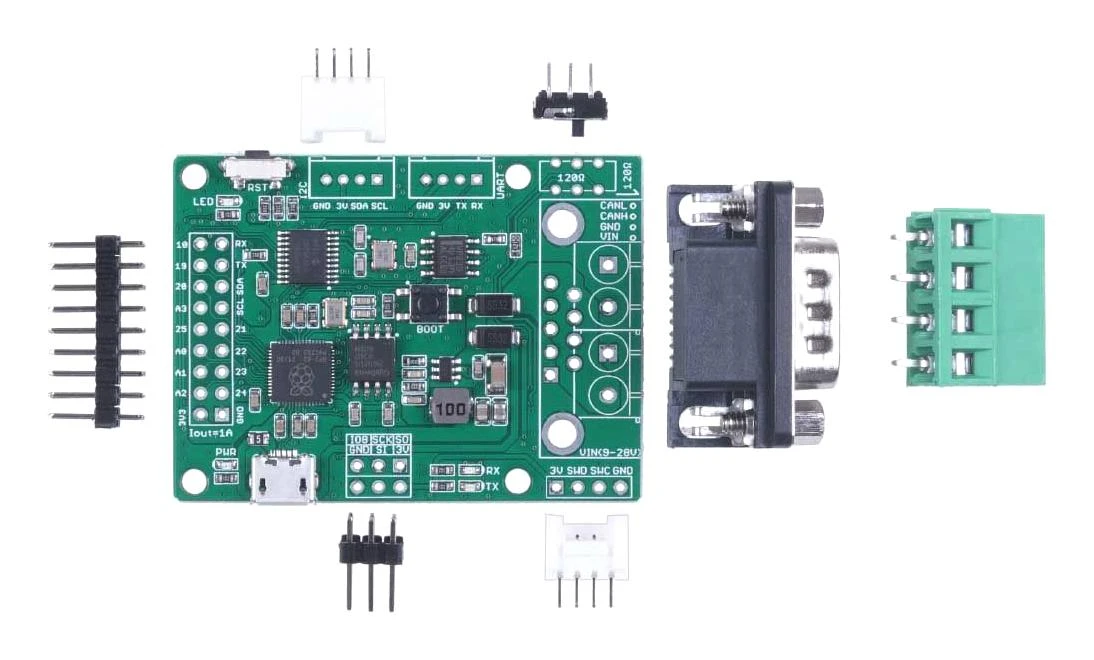

Kit Contents	Sub-D Connector, 4Pin Terminal & HY2.0 Connector, 9×2 & 3×3 2.54 Header, 120 ohm Terminal Resistor
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	102991596
Quantity	Each
