Seeed Studio 101020557 Sensor Array Module Infrared Thermal Temperature 3.3V / 5V Arduino & Raspberry Pi Board(Seeed Studio 101020557 Sensor Array Module Infrared Thermal Temperature 3 3v 5v Arduino Amp Raspberry Pi Board)

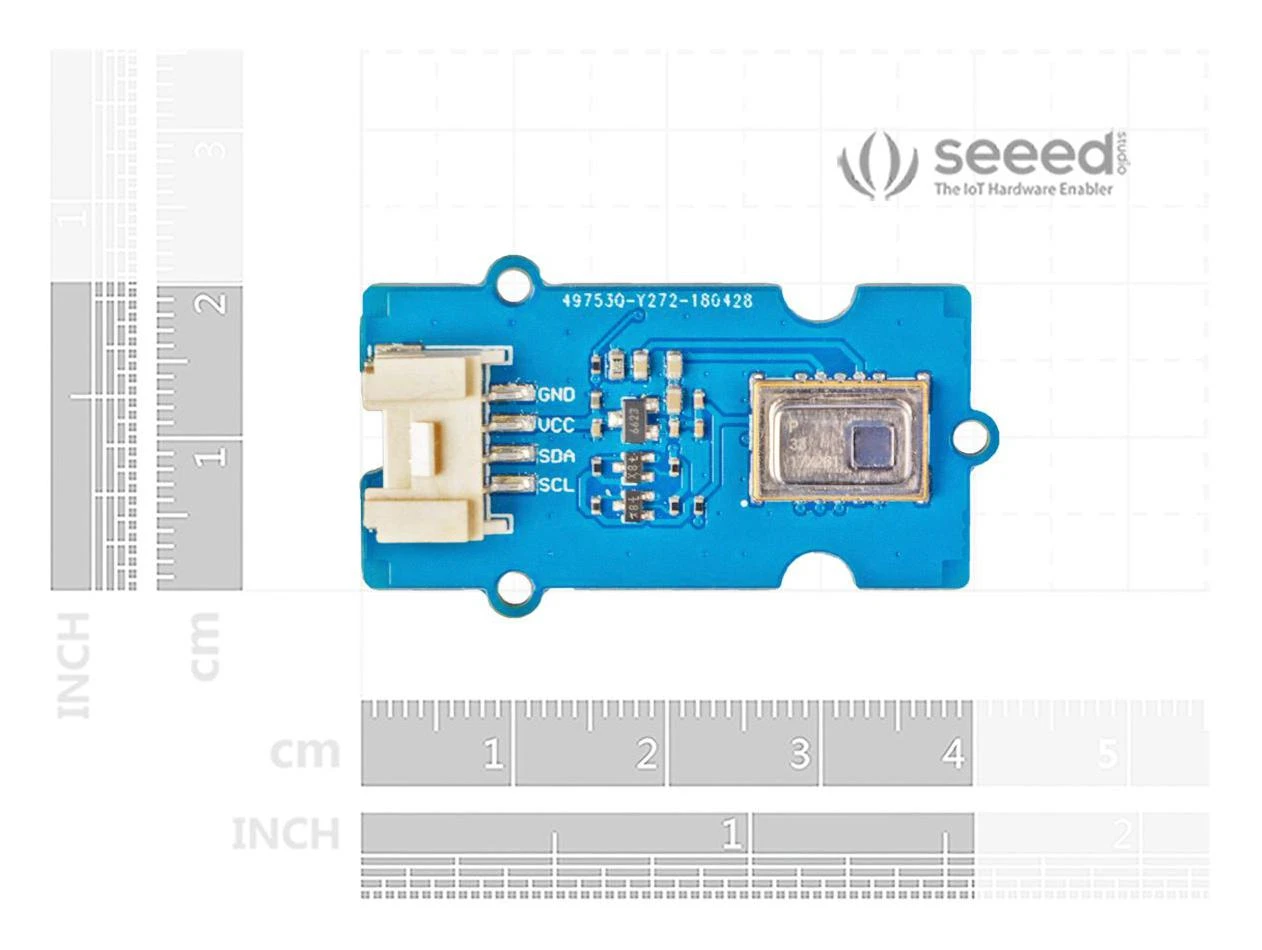

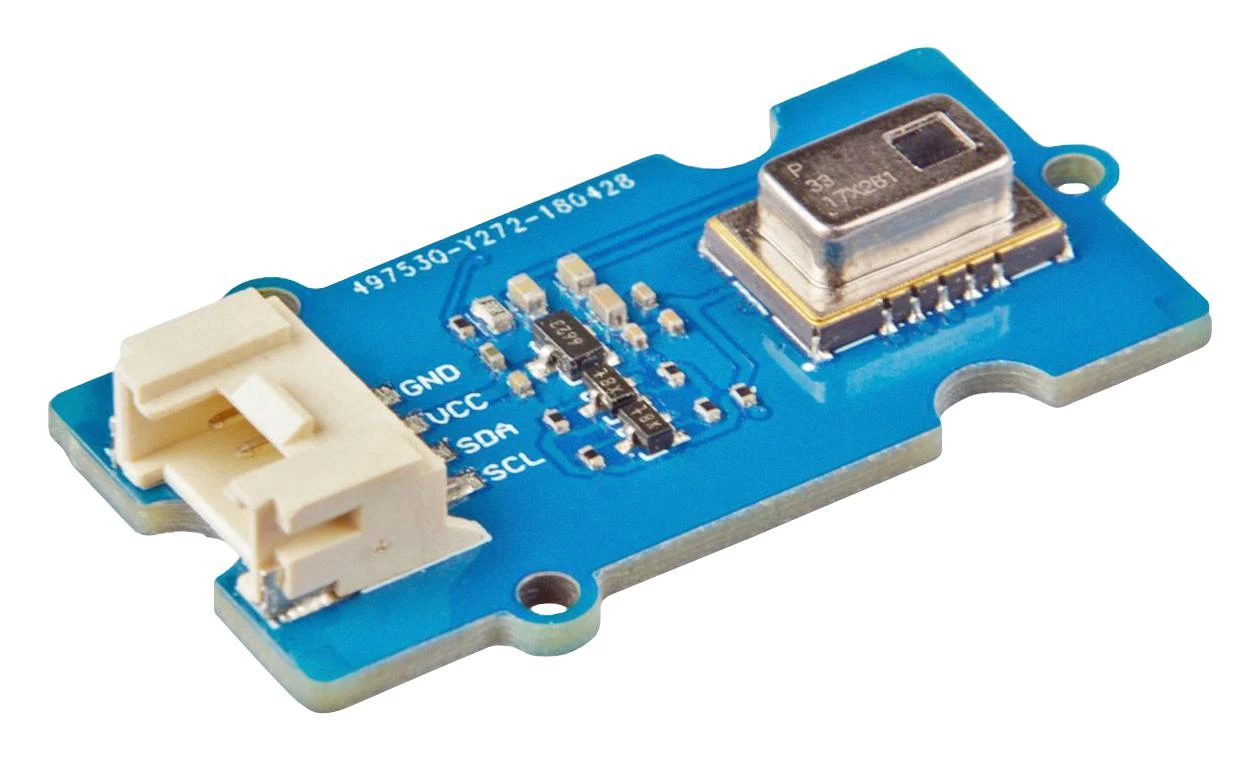

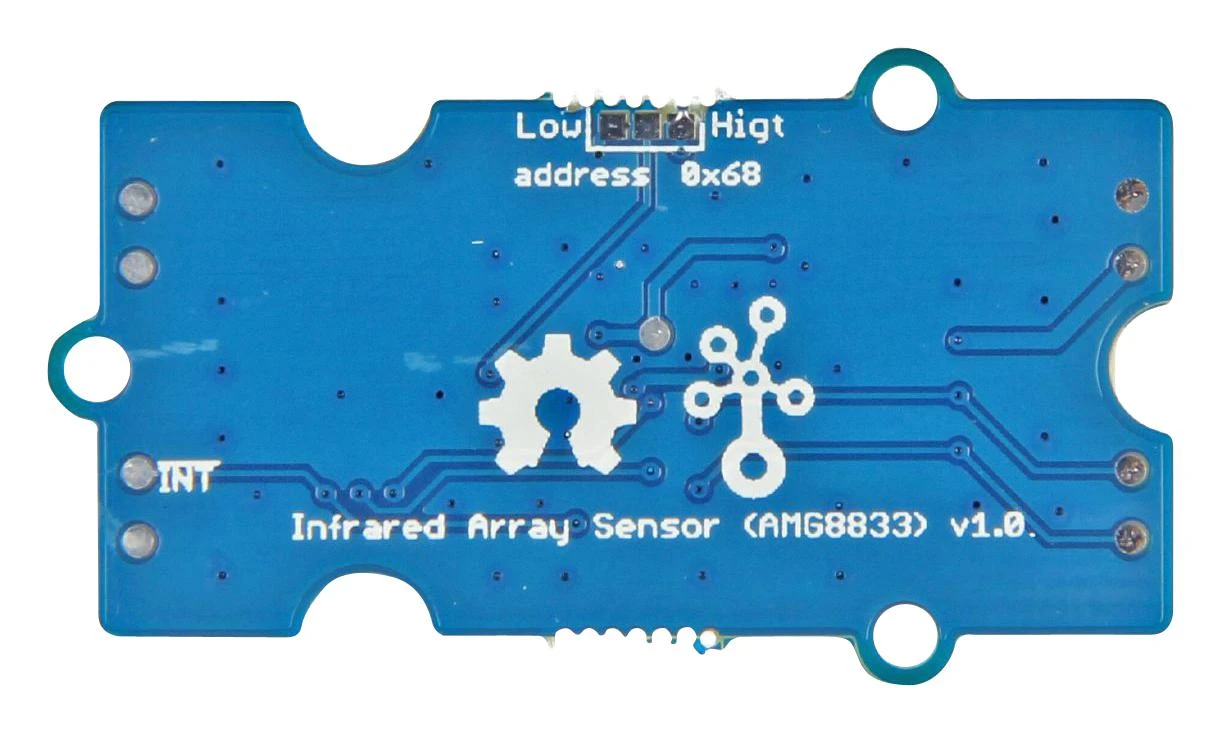

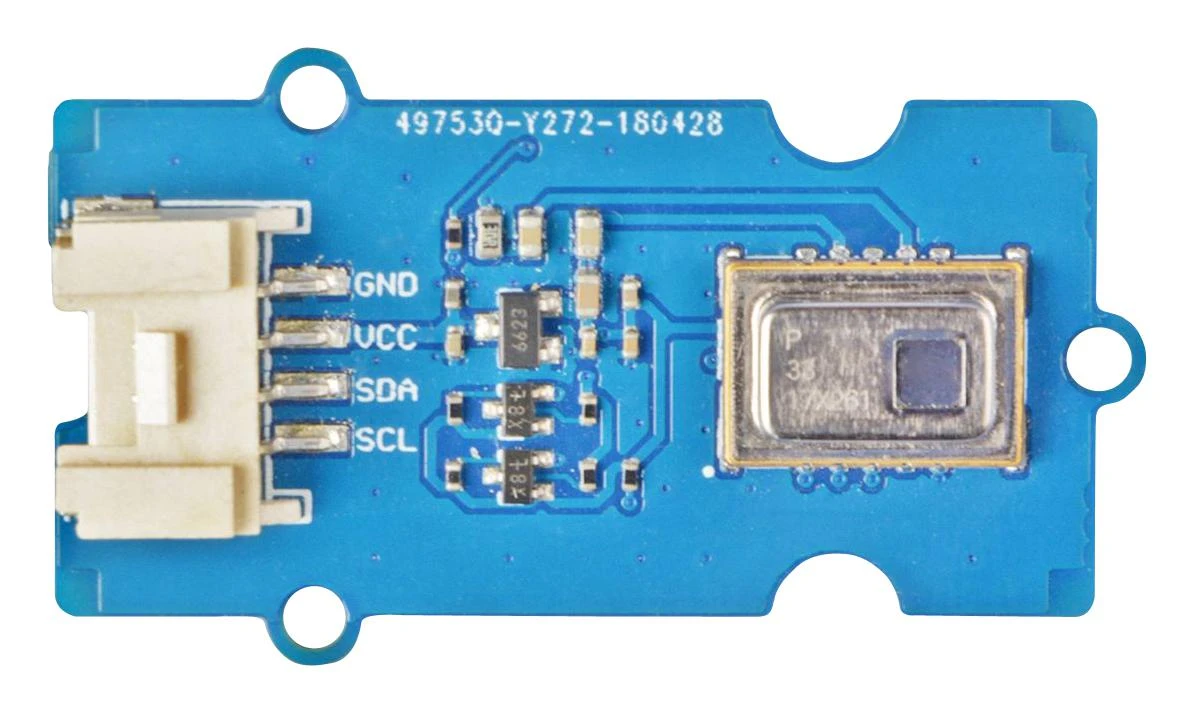

Grove – AMG8833 8×8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology, which can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5°C (4.5°F). It can support temperature detection of the two-dimensional area of 8 Ã� 8 (64 pixels) and a maximum 7 meters detection distance.

• Temperature detection of the two-dimensional area: 8 Ã� 8 (64 pixels)
• Temperature range of measuring object: 0°C to 80°C +32°F to +176°F
• I2C output (capability of temperature value output)
• High precision
• Long detection distance
• Operating voltage is 3.3V / 5VDC

Contents

Grove – infrared temperature sensor array (AMG8833) x 1, Grove cable x 1.

Product details

Accessory Type	8×8 Infrared Thermal Temperature Sensor Array Module
For Use With	Arduino & Raspberry Pi Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	101020557
Quantity	Each
Technical Data Sheet EN
