Seeed Studio 101020553 Round Force Sensor Module 3.3V / 5V Arduino & Raspberry Pi Board(Seeed Studio 101020553 Round Force Sensor Module 3 3v 5v Arduino Amp Raspberry Pi Board)

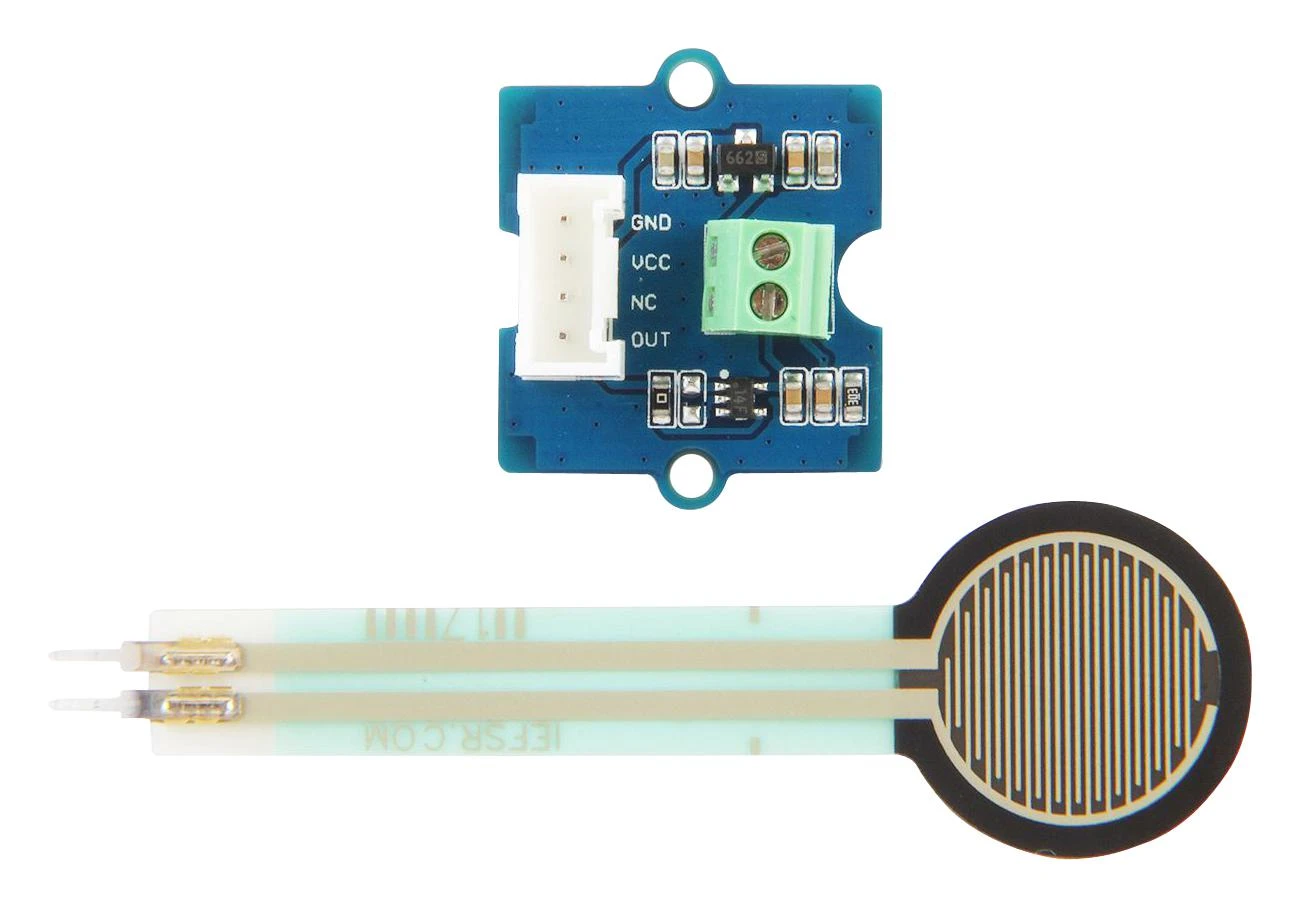

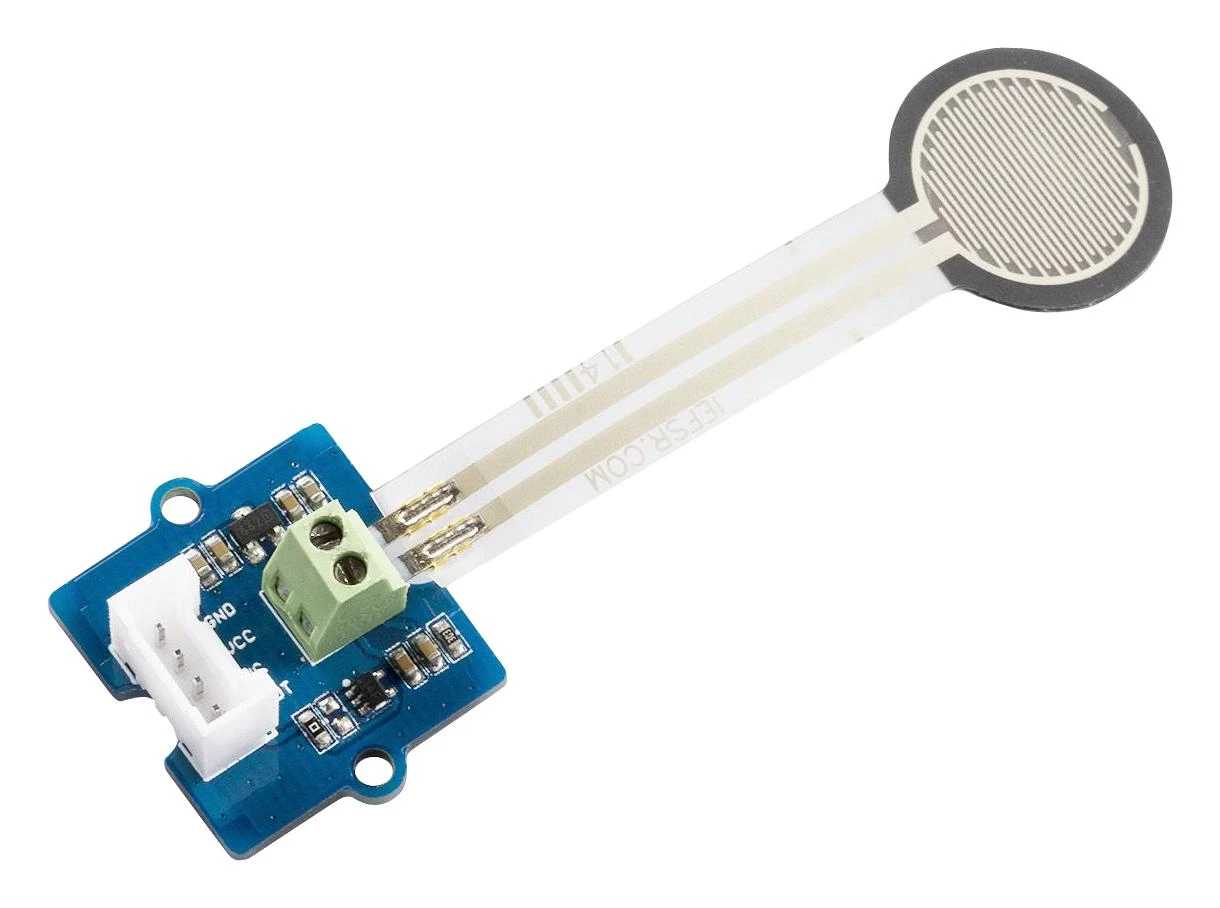

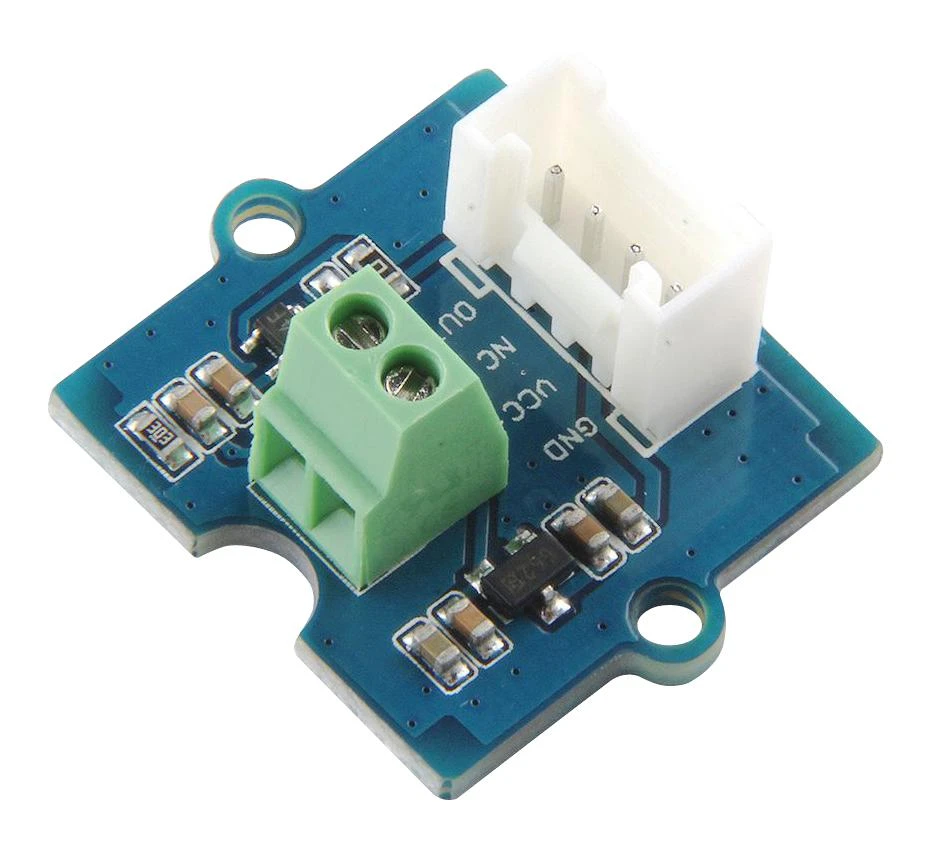

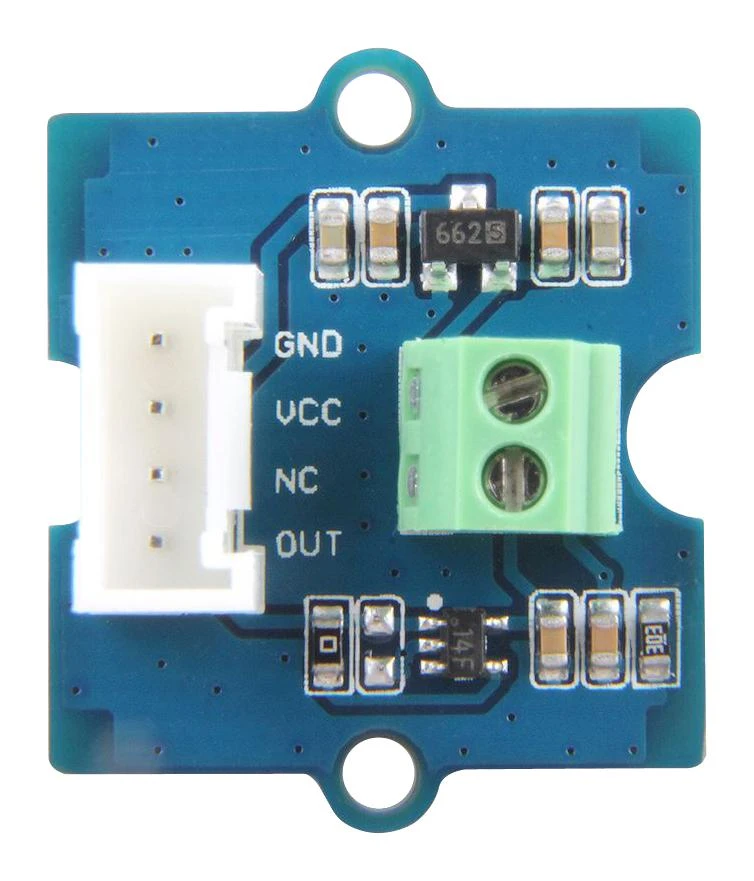

Grove-Round Force Sensor(FSR402) is a force sensitive module. At the end of the sensor there is a round force sensitive resistor, the resistance of which depends on pressure applied to this resistor. Typical applications include automotive electronics, medical systems, industrial controls, robotics and interactive educational toy.

• Analog output
• Reliable mechanical structure
• High durability tested to 10 million actuations, 1kg, 4Hz / -10% average resistance change
• Working voltage is 3.3V/5V
• Force sensitivity range from 0.2N–20N
• Operating temperature range from -10°C to 60°C

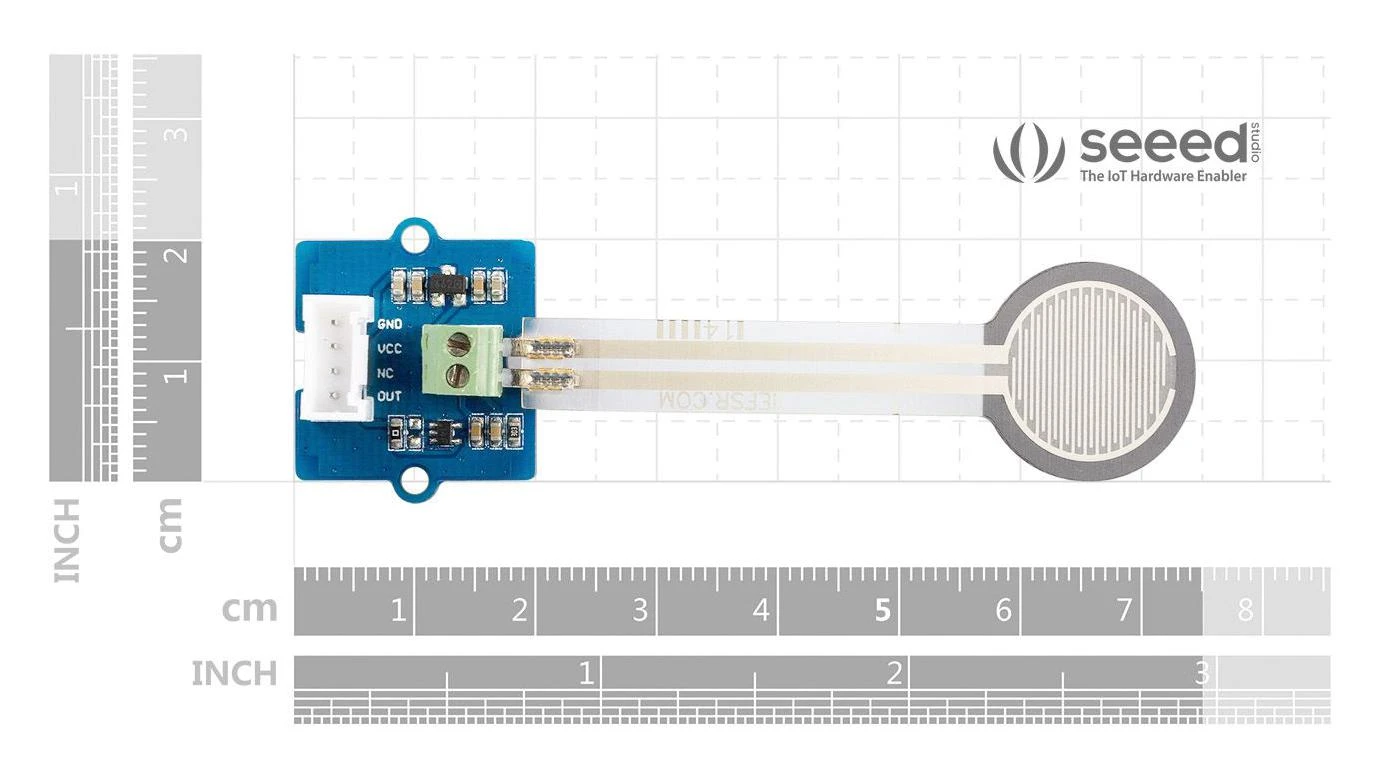

• Dimension is 20mm x 20mm x 13mm

Contents

Grove – round force sensor (FSR402) x 1, Grove cable x 1.

Product details

Accessory Type	Round Force Sensor Module
For Use With	Arduino & Raspberry Pi Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	101020553
Quantity	Each
Technical Data Sheet EN
