Seeed Studio 101020068 Barometer Sensor With Cable 3.3 V To 5.5 300 Haps 1200 Arduino & Raspberry Pi Board(Seeed Studio 101020068 Barometer Sensor With Cable 3 3 V To 5 5 300 Haps 1200 Arduino Amp Raspberry Pi Board)

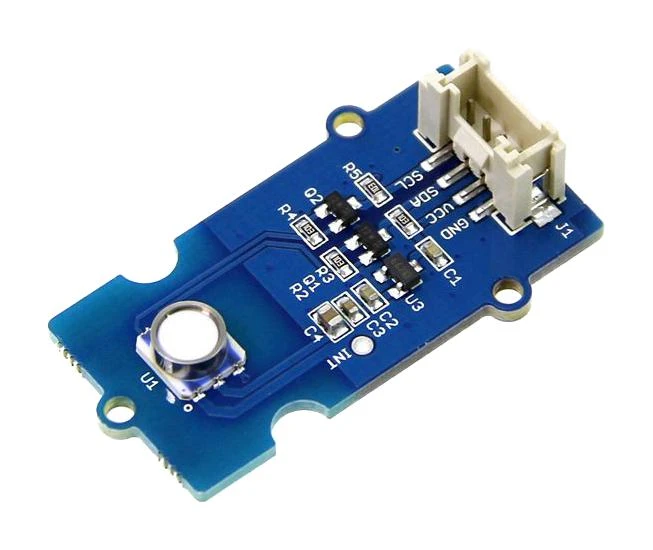

Grove – Barometer (High-Accuracy) Sensor features an HP206C high-accuracy chip to detect barometric pressure, Altimeter, and temperature. It can widely measure pressure ranging from 300mbar~1200mbar, with super high accuracy of 0.01mbar(0.1m) in ultra-high resolution mode. The chip only accepts 1.8V to 3.6V input voltage. However, with the outer circuit added, this module becomes compatible with 3.3V and 5V. Therefore, it can be used on Arduino/Seeeduino boards or Seeeduino Stalker without modification. It is designed to be connected directly to a microcontroller via the I2C bus.

• Command-based reading, compensated (optional)
• Programmable Events and Interrupt Controls
• Full data compensation
• Wide barometric pressure range
• Flexible supply voltage range
• Ultra-low power consumption
• Altitude resolution down to 0.01 meter
• Temperature measurement included

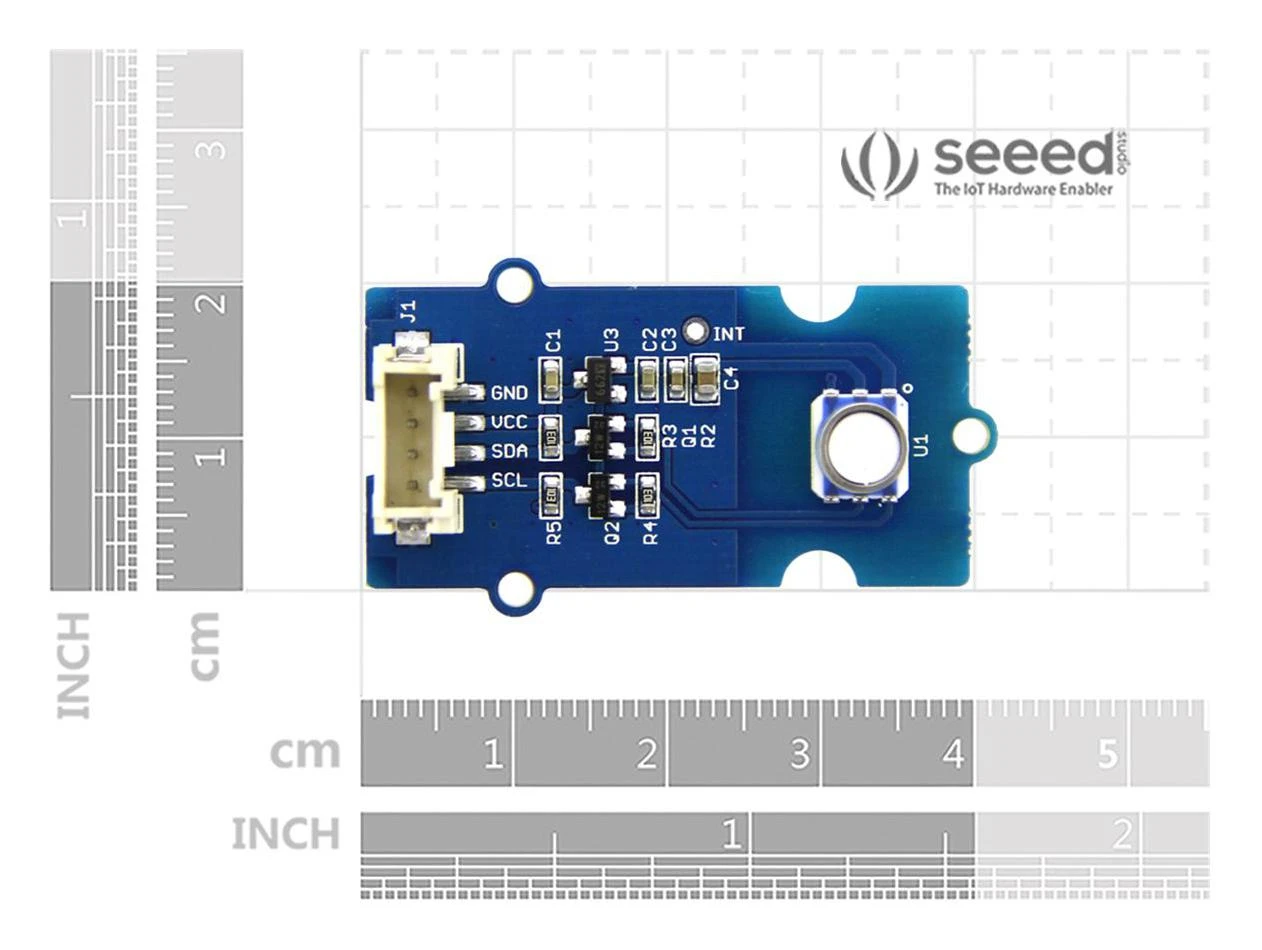

• Dimension is 140mm x85mm x10.6mm

Contents

Grove – barometer (high-accuracy) x 1, Grove – cable x 1.

Product details

Accessory Type	Barometer Sensor
For Use With	Arduino & Raspberry Pi Board
Product Range	–

Other details

Brand	SEEED STUDIO
Part Number	101020068
Quantity	Each
Technical Data Sheet EN
