Seagate Internal HDD Overview
Hard Drives by Application: Which Is Best for You?

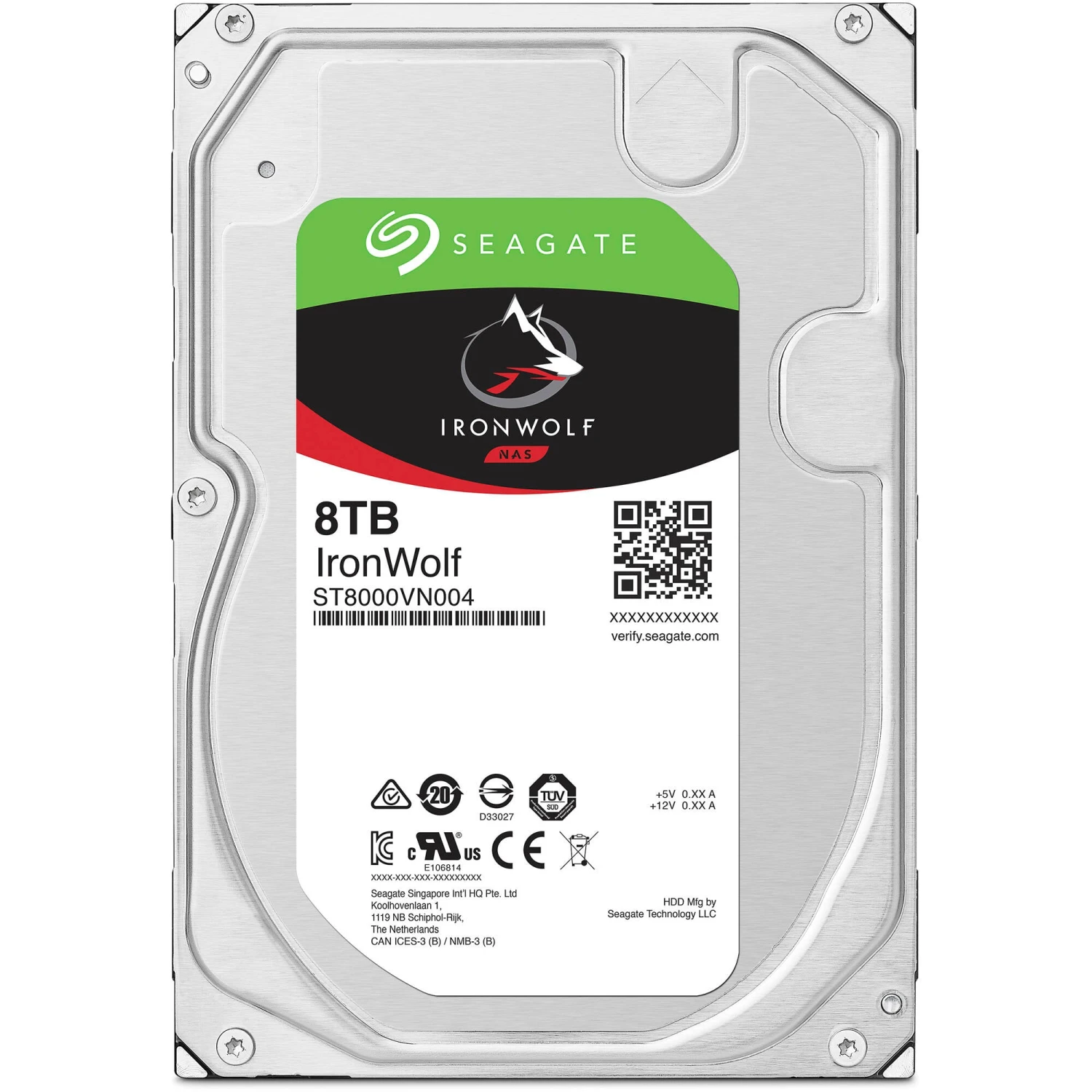

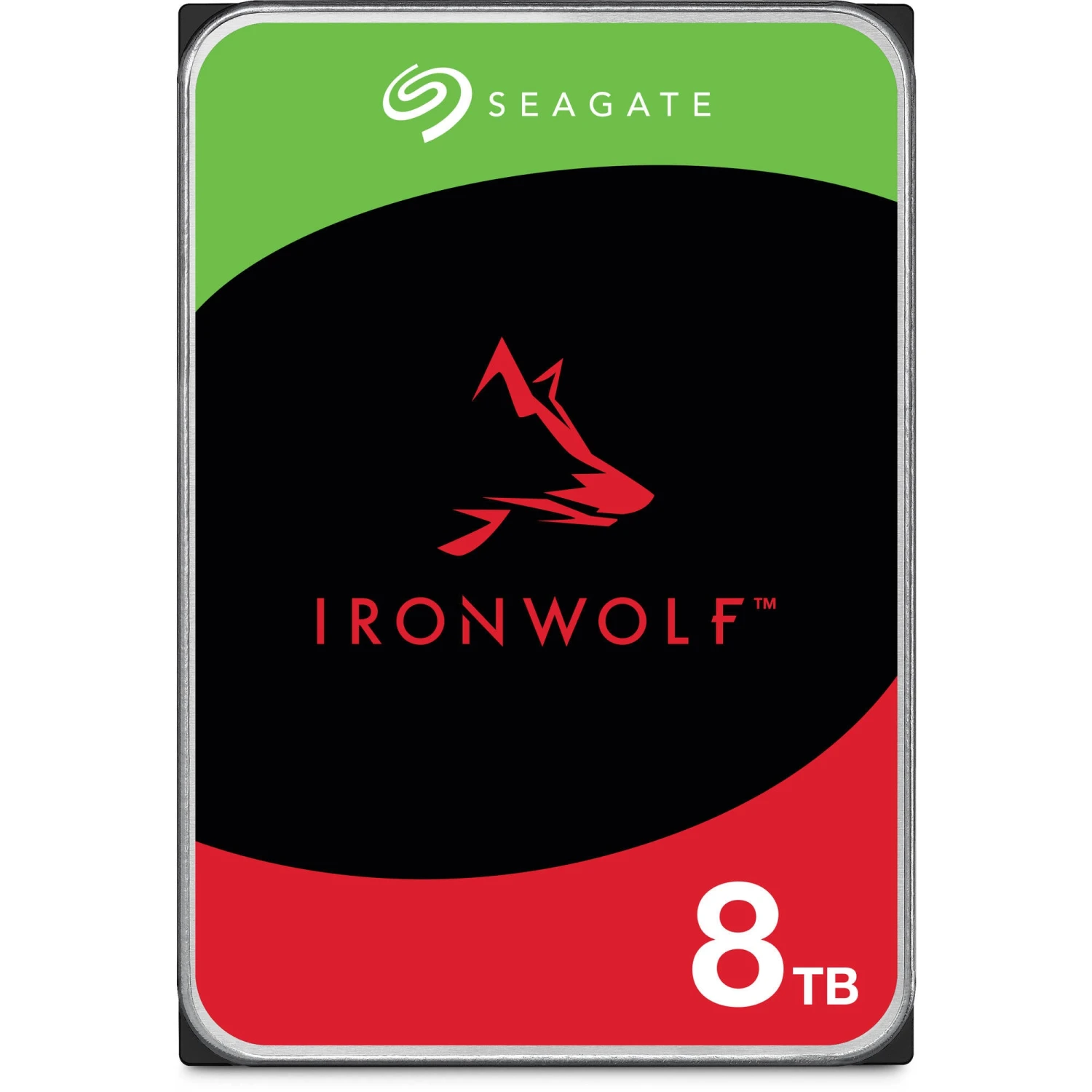

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5″ Internal NAS HDD from Seagate is built to withstand 24×7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5″ form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
General Features
Optimized for NAS with AgileArray
IronWolf Health Management
Reduced Lag Times

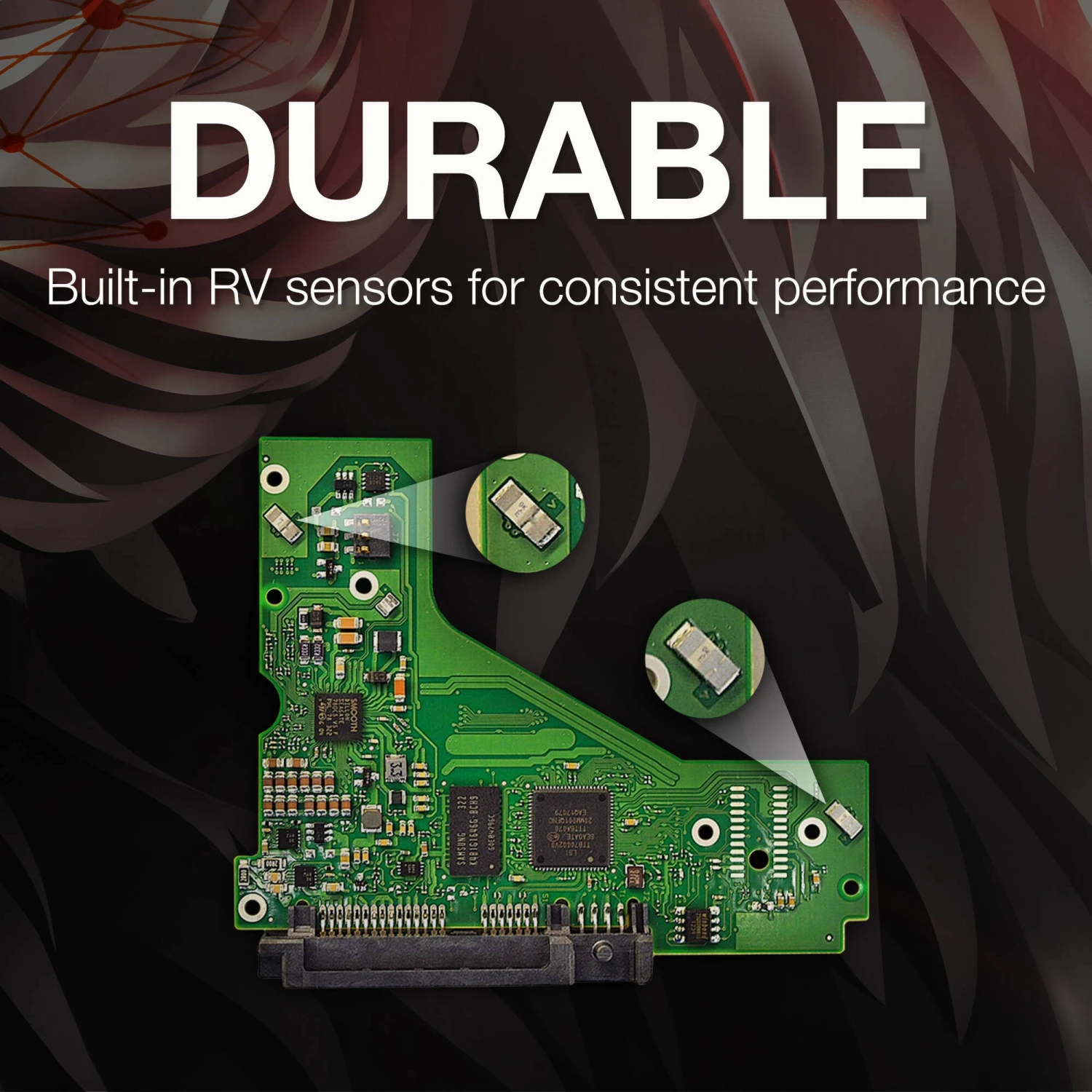

Rotational Vibration (RV) Sensors
Multi-User Environments
Designed for Always-On, Always-Accessible 24/7 Performance
Cache Memory
1.0 Million Hours MTBF | Limited 3-Year Warranty
Designed for 24×7 Performance
Best-Fit Applications
In the Box
- Seagate 8TB IronWolf 7200 rpm SATA III 3.5″ Internal NAS HDD (OEM)
- Limited 3-Year Warranty
More from manufacturer
Seagate Internal HDD Specs
| Quantity | 1 |
| Buffer | 256 MB |
| Write Speed | Not Specified by Manufacturer |
| Read Speed | Maximum: 210 MB/s |
| Drive Type | HDD |
| Form Factor | 3.5″ |
| Noise Level | 3.2 dB (Active) 2.8 dB (Idle) |
| Spindle Speed (RPM) | 7200 RPM |
| Endurance (Total Bytes Written) | 180 TB |
| Load/Unload Cycles | 600,000 |
| Mean Time Between Failures (MTBF) | 1.0 Million Hours |
| Non-Recoverable Read Errors per Bits Read | 1 in 1015 |
| Power Draw | 8.8 W (Active) 7.6 W (Idle) 0.6 W (Standby) |
| Supported Voltage | 5 VDC, 12 VDC |
| Current | 1.8 A at 12 VDC |
| Operating Shock | 70 G / 2.0 ms |
| Storage Shock | 250 G / 2.0 ms |
| Operating Temperature | 41 to 158°F / 5 to 70°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Certifications | FCC, UL, cUL, as per Manufacturer |
| Dimensions (W x H x D) | 4.01 x 1.03 x 5.79″ / 101.85 x 26.11 x 146.99 mm |
| Weight | 1.59 lb / 0.72 kg |
| Package Weight | 1.895 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.1 x 2.9″ |
