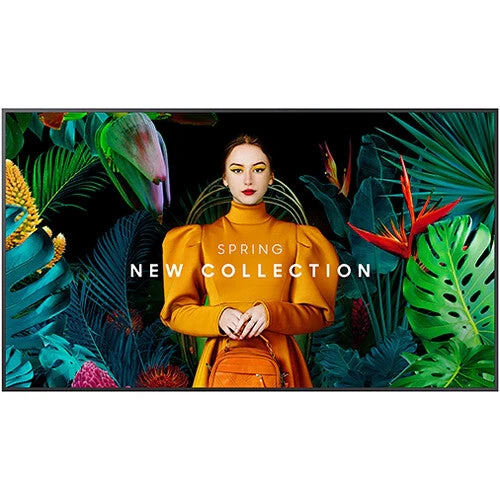

Allow your content to make maximum impact in minimum space with the Samsung QM75C 75″ Commercial Monitor. The QM75C is a sleek, ultra-thin, 500 nits bright, UHD 4K display. Capable of 24/7 operation and just 1.1 inches in depth with a uniform bezel, it is ideal for corporate, retail, and public signage applications.
Push content to the screen via HDMI, DisplayPort, and USB inputs or over your network via Wi-FI and RJ45 LAN connections. Samsung MagicInfo digital signage software is included for content creation and management with optional licenses available for remote and cloud based management.
In the Box
- Samsung QM75C 75″ UHD 4K Commercial Monitor
- Power Cord
- Remote Control
- 2 x AAA Battery for Remote
- RS-232C Adapter
- Limited 3-Year Manufacturer Warranty
User Manual
2.5 MB
- Description
- Ultra-Slim Depth
- Uniform Bezels and Central Mounting
- Dynamic Crystal Color and Quantum Processor Lite 4K
- Screen Share with SmartView+
- Anti-Glare Screen
- Integrated MagicINFO Software
- Improved User Interface
- Smart Screen Calibration with Mobile App
- Optional Cloud-Based Content Management
Samsung QMC Specs
| Display Size |
74.5″ |
| Resolution |
3840 x 2160 |
| Maximum Brightness |
500 nits / cd/m2 |
| Inputs |
3x HDMI 2.0 1x DisplayPort 1.2 |
| Outputs |
1x 1/8″ / 3.5 mm (Analog Audio) |
| Wireless |
Wi-Fi / Bluetooth |
| USB I/O |
2x USB-A 2.0 (Audio/Photo/Video/Control) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x Serial (RS-232C) Control Input 1x Serial (RS-232C) Control Output |
| Built-In Speakers |
Yes, 2x 10 W |
| Media Card Reader |
No |
| Display Size |
74.5″ |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape, Portrait |
| Resolution |
3840 x 2160 |
| Maximum Brightness |
500 nits / cd/m2 |
| Contrast Ratio |
4000:1 |
| Response Time |
8 ms |
| Refresh Rate |
60 Hz |
| Bit Depth / Color Support |
Not Specified by Manufacturer |
| Color Gamut |
72% NTSC |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
64.97 x 36.55″ / 1650.24 x 928.26 mm |
| Horizontal Frequency |
30 to 81 kHz |
| Vertical Frequency |
48 to 75 Hz |
| Dot Pitch |
0.429 x 0.429 mm |
| Pixels Per Inch (ppi) |
59 ppi |
| Finish |
Anti-Glare / Matte |
| Haze Level |
25% |
| TV Tuner |
No |
| Inputs |
3x HDMI 2.0 1x DisplayPort 1.2 |
| Outputs |
1x 1/8″ / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes |
| Wireless |
Wi-Fi / Bluetooth |
| USB I/O |
2x USB-A 2.0 (Audio/Photo/Video/Control) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x Serial (RS-232C) Control Input 1x Serial (RS-232C) Control Output |
| Built-In Speakers |
Yes, 2x 10 W |
| Speaker Configuration |
2-Channel |
| Smart TV |
Tizen |
| Storage |
16 GB |
| Mobile App Compatible |
Yes: Android & iOS |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 113°F / -20 to 45°C |
| Operating Humidity |
10 to 80% |
| Storage Humidity |
5 to 95% (Non-Condensing) |
| Power Consumption |
Standby: < 0.5 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
Internal |
| Certifications |
ENERGY STAR 8.0, EPEAT |
| Mounting-Hole Pattern |
400 x 400 mm |
| Environmental Protection |
Dust-Resistant (IP5X) |
| IK Rating |
No |
| Bezel Thickness |
13.4 mm (Bottom/Right/Top/Left) |
