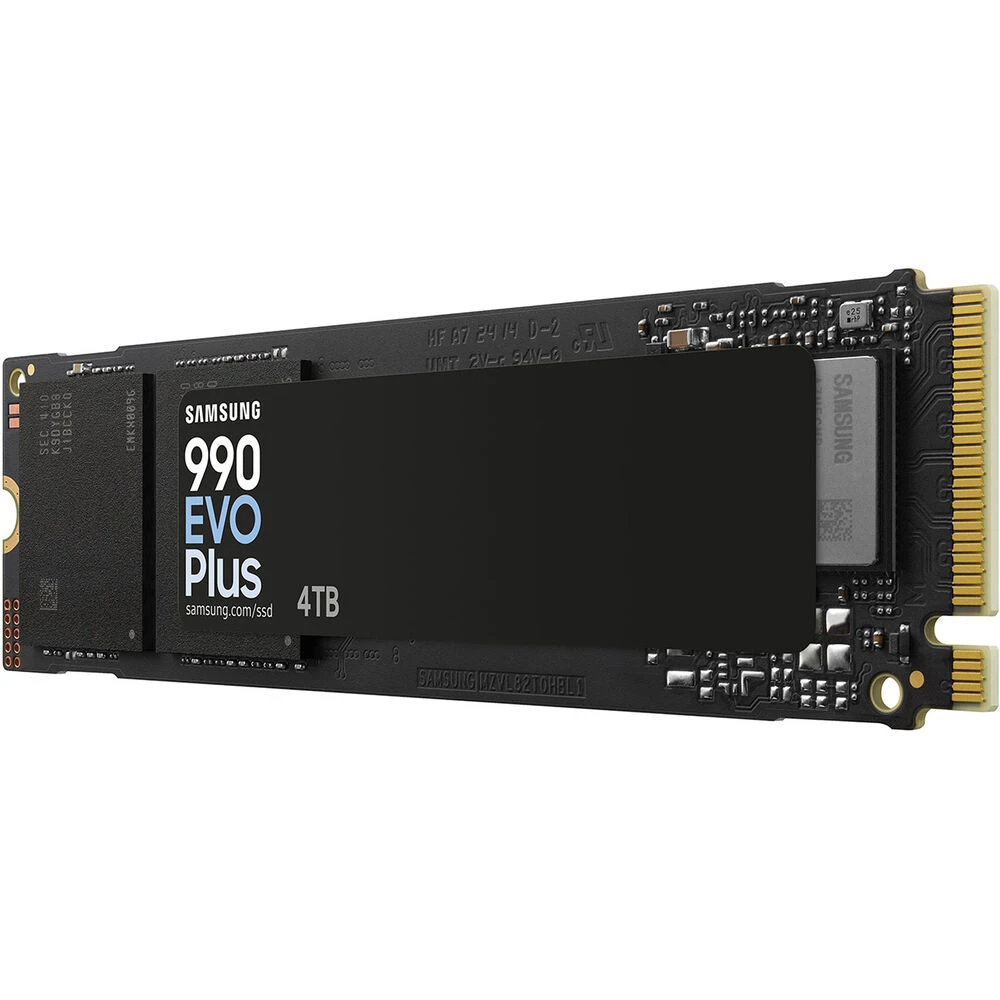

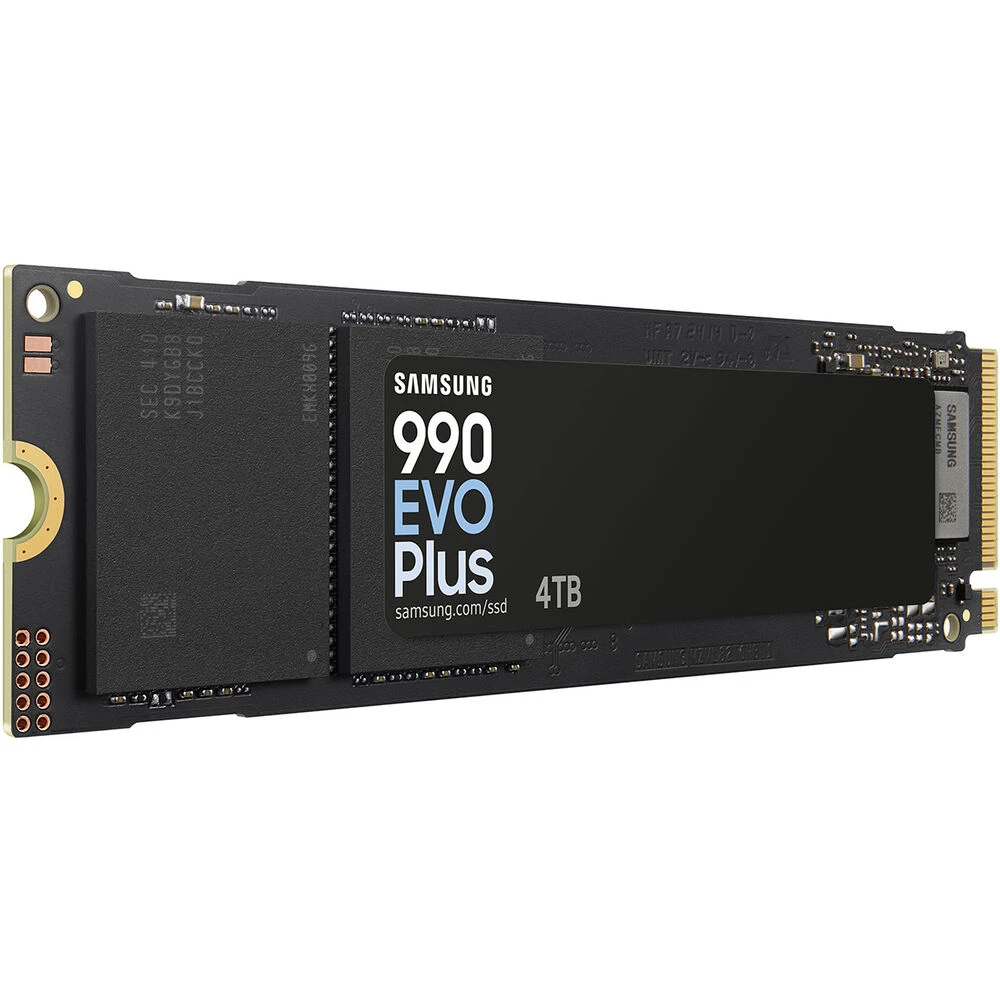

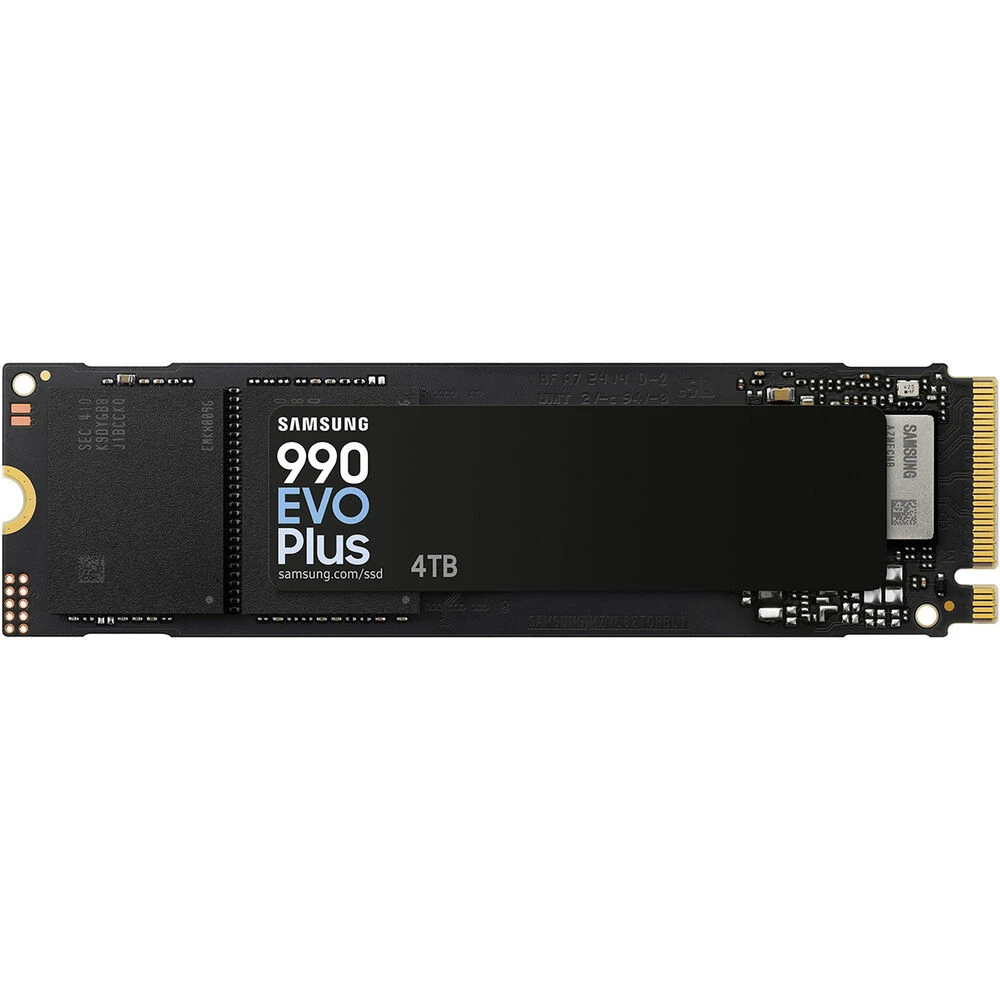

Samsung 990 EVO Plus Internal SSD Overview
Built using their V NAND TLC NAND (V8) flash technology and in-house controller, the 4TB 990 EVO Plus PCIe 5.0 x2 M.2 Internal SSD from Samsung offers an M.2 2280 form factor and a PCIe 5.0 x2/4.0 x4 interface to deliver sequential read speeds of up to 7250 MB/s and sequential write speeds of up to 6300 MB/s. Users will also have access to encryption via AES 256-bit, TCG/Opal 2.0, and MS eDrive, while a TBW (Total Bytes Written) rating of 2400TB helps ensure a long operational life.
Items Included
- Samsung 4TB 990 EVO Plus PCIe 5.0 x2 M.2 Internal SSD
- Limited 5-Year Manufacturer Warranty
Additional Resources
Spec Sheet
0.3 MB
Samsung 990 EVO Plus Internal SSD Specs
| Total Installed Storage |
4 TB |
| Drive Type |
PCIe 4.0 x4 / 5.0 x2 / M.2 2280 SSD |
| Read Speed |
Sequential: 7250 MB/s Random: 1,050,000 IOPS |
| Write Speed |
Sequential: 6300 MB/s Random: 1,400,000 IOPS |
| Heatsink Included |
No |
| Drive Type |
PCIe 4.0 x4 / 5.0 x2 / M.2 2280 SSD |
| Read Speed |
Sequential: 7250 MB/s Random: 1,050,000 IOPS |
| Write Speed |
Sequential: 6300 MB/s Random: 1,400,000 IOPS |
| Encryption Support |
Yes |
| Endurance (Total Bytes Written) |
2400 TB |
| Heatsink Included |
No |
| Power Draw |
5.5 W (Active) 60.00 mW (Standby) |
| Dimensions |
3.2 x 0.9 x 0.1″ / 81.3 x 22.9 x 2.5 mm |
| Weight |
0.3 oz / 9 g |
| Package Weight |
0.15 lb |
| Box Dimensions (LxWxH) |
6.5 x 4 x 1″ |
