Russound MBX-PRE Network Streaming Audio Player Preamp(Russound Mbx Pre Network Streaming Audio Player Preamp)

Russound MBX-PRE Network Streaming Audio Player Preamp(Russound Mbx Pre Network Streaming Audio Player Preamp) - Image 2

Russound MBX-PRE Network Streaming Audio Player Preamp(Russound Mbx Pre Network Streaming Audio Player Preamp) - Image 3

Russound MBX-PRE Network Streaming Audio Player Preamp(Russound Mbx Pre Network Streaming Audio Player Preamp)

Original price was: $364.00.Current price is: $97.99.

SKU: DGFUB 7133152837717 Categories: Receivers & Amplifiers, TV & Entertainment, TV & Mobile Tags: Amplifiers, Receivers & Amplifiers, Russound MBX-Pre, TVs Entertainment

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Russound MBX-Pre Overview

Enjoy simple streaming music with the MBX-PRE Network Streaming Audio Player Preamp from Russound. The MBX-PRE is an easy-to-install audio solution for adding streaming content to any audio system. The MBX-PRE can be used as a stereo audio streaming source for a single room or supply an audio stream to a larger whole-house system through its easy-to-use digital and analog audio inputs and outputs.

Designed to be installer-friendly when connected to your network via LAN or Wi-Fi, the MBX-PRE allows for expansion to up to 32 streaming rooms of audio in a single installation with any combination of other MBX-Series streaming products from Russound. In addition to network and streaming capability, the MBX-PRE includes digital optical and 3.5mm analog audio inputs and outputs for easy integration with other audio systems and components.

Connectivity

The MBX-PRE works well with any Russound SMZ-Series or MCA-Series controller as a fully integrated Russound source. This enables it to be controlled by any Russound SMZ Series or MCA-Series Keypad like the XTS7 or IPK-1. Additionally, the MBX-PRE can be used with any other amplifier or receiver as an easy way to add hi-res audio streaming and app control to an existing installation. Additionally, it can be used as a Bluetooth audio source.

Streaming Access

For voice control, the MBX-PRE is compatible with Amazon Alexa and Google Home due to its advanced Chromecast built-in features. With a large array of great entertainment sources, the MBX-AMP provides ready access to Spotify, Pandora, SiriusXM, TuneIn, vTuner, Deezer, Tidal, Napster, and any other service using Apple AirPlay, or any app that supports Google Cast like iHeartRadio, Google Play Music, YouTube Music, etc.

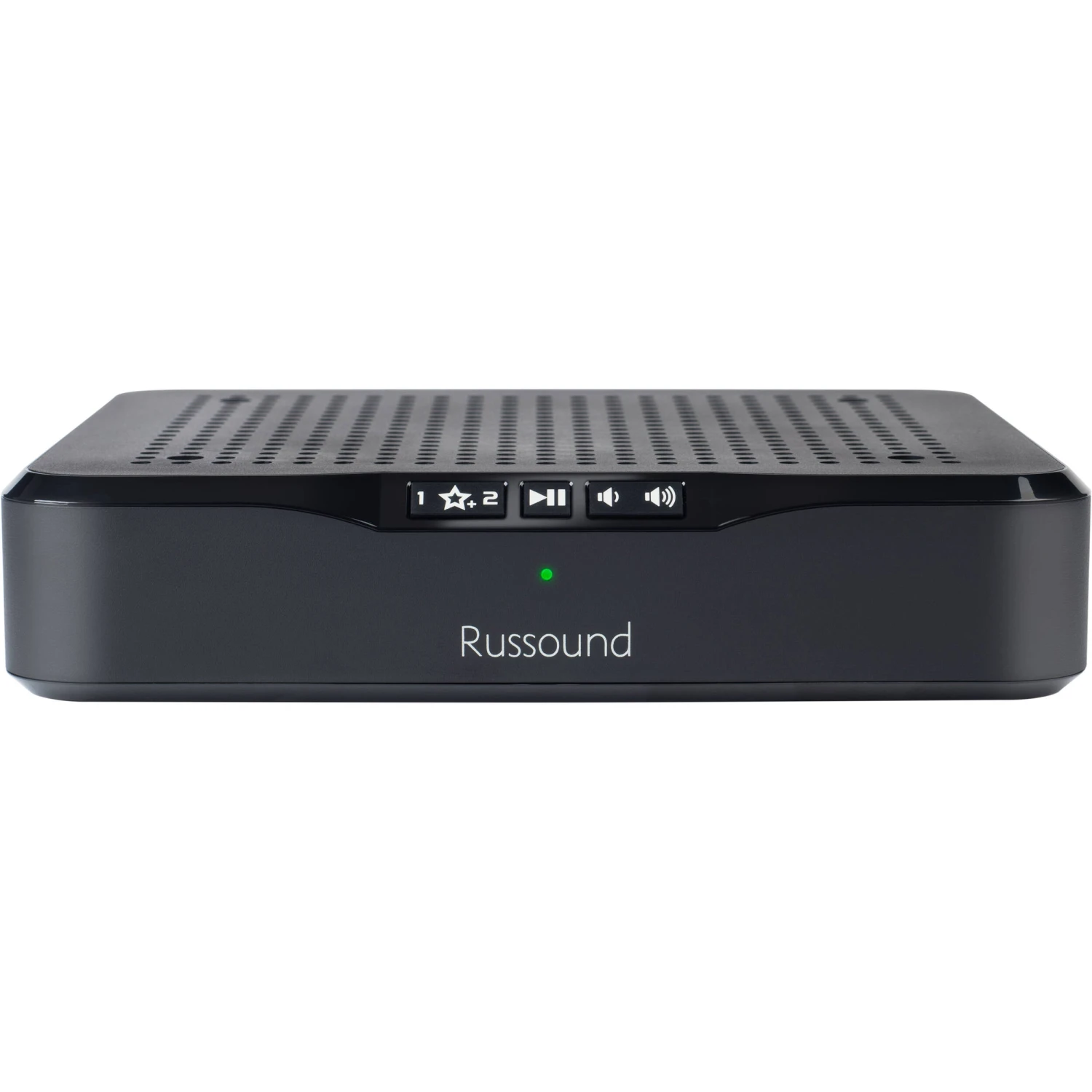

Front Panel Controls

The MBX-PRE has easily accessible front panel controls for play, pause, and volume, as well as the ability to program two “favorites” for easy one-summary recall.

Additional Details

USB port supports music playback from USB storage devices
12V trigger output
Onboard browser-based configuration, accessible from a smartphone or tablet

UPC: 612934537226

Items Included

Russound MBX-PRE Network Streaming Audio Player Preamp
DC Power Supply
4 x Rubber Foot
Limited 2-Year Manufacturer Warranty

Additional Resources

User Manual

1.0 MB

Russound MBX-Pre Specs

Key Specs

Channels	2.0
Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	Yes

Amplifier

Amplifier Type	Preamplifier
Channels	2.0
Frequency Response	20 Hz to 20 kHz

Audio Processing

Auro 3D Support	No
Supported File Formats	AAC, FLAC, MP3, OGG, WAV
Supported Sample Rates	Up to 192 kHz / 24-Bit

Video

GUI

Connectivity

Rear A/V Inputs	1x 1/8″ / 3.5 mm Mic 1x Optical TOSLINK
Rear A/V Outputs	1x Optical TOSLINK Line-Out 1x Stereo RCA Line-Out
Front I/O	No

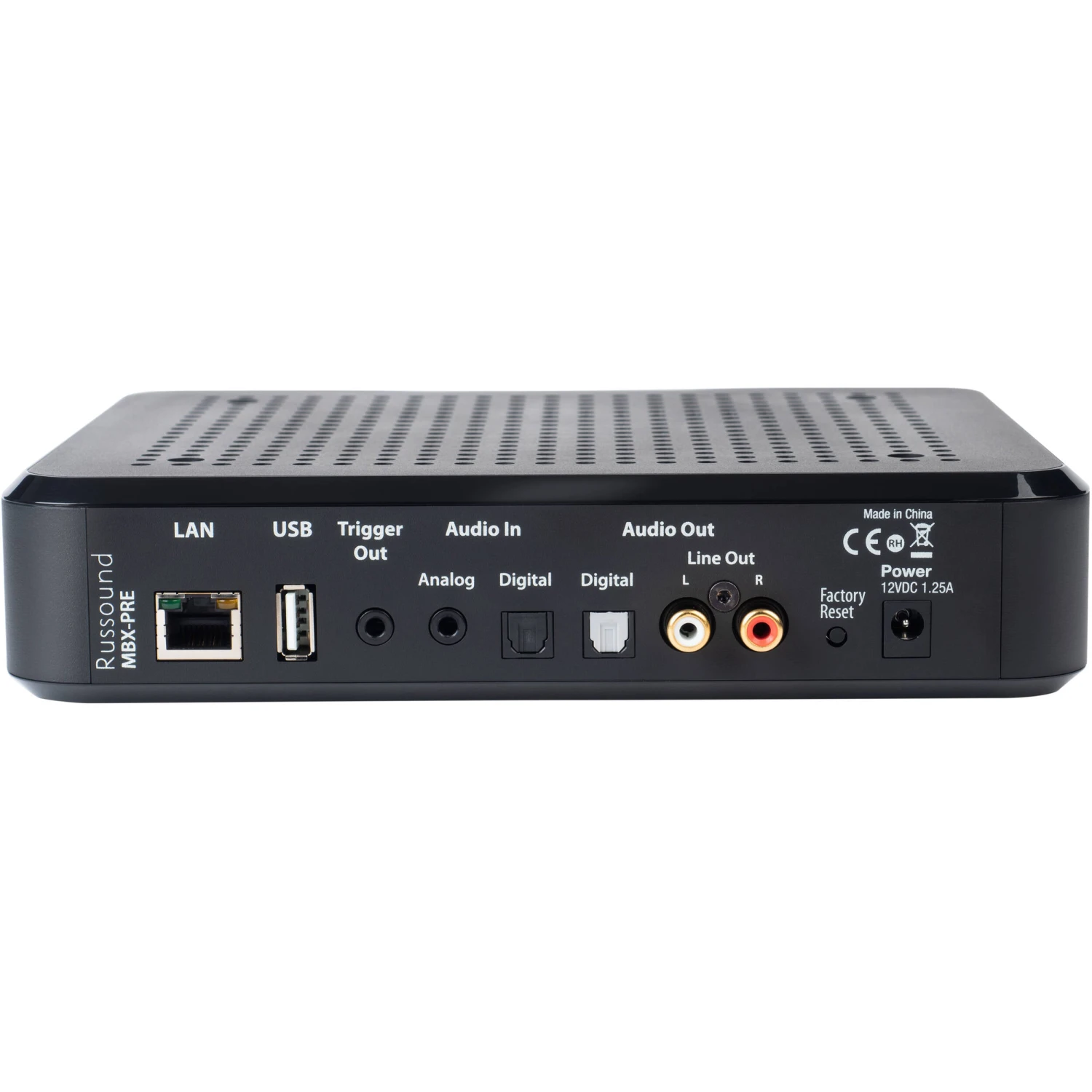

Other Rear I/O	1x 1/8″ / 3.5 mm (12 V Trigger) Output 1x USB-A Input 1x RJ45 (10/100 Mbps Ethernet) Input
Media Card Slot	No
Rated Output / Impedance	Line: 2 Vrms /

Wireless Connectivity

Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	Yes

Control

External Control Support	Android/iOS Control App, Control4, RTI, URC
Virtual Assistant	Apple AirPlay, Works with Google Assistant
Mobile App Compatible	Yes, Required: Android & iOS App Name: Russound App Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed

Power

Input Power

12 VDC at 100 mA

Physical

Dimensions (W x H x D)	8.3 x 1.8 x 7.0″ / 21.0 x 4.5 x 17.8 cm
Weight	0.99 lb / 0.45 kg

Packaging Info

Package Weight	2.625 lb
Box Dimensions (LxWxH)	12.1 x 10.5 x 4.2″
