Russound ALT-126R Overview

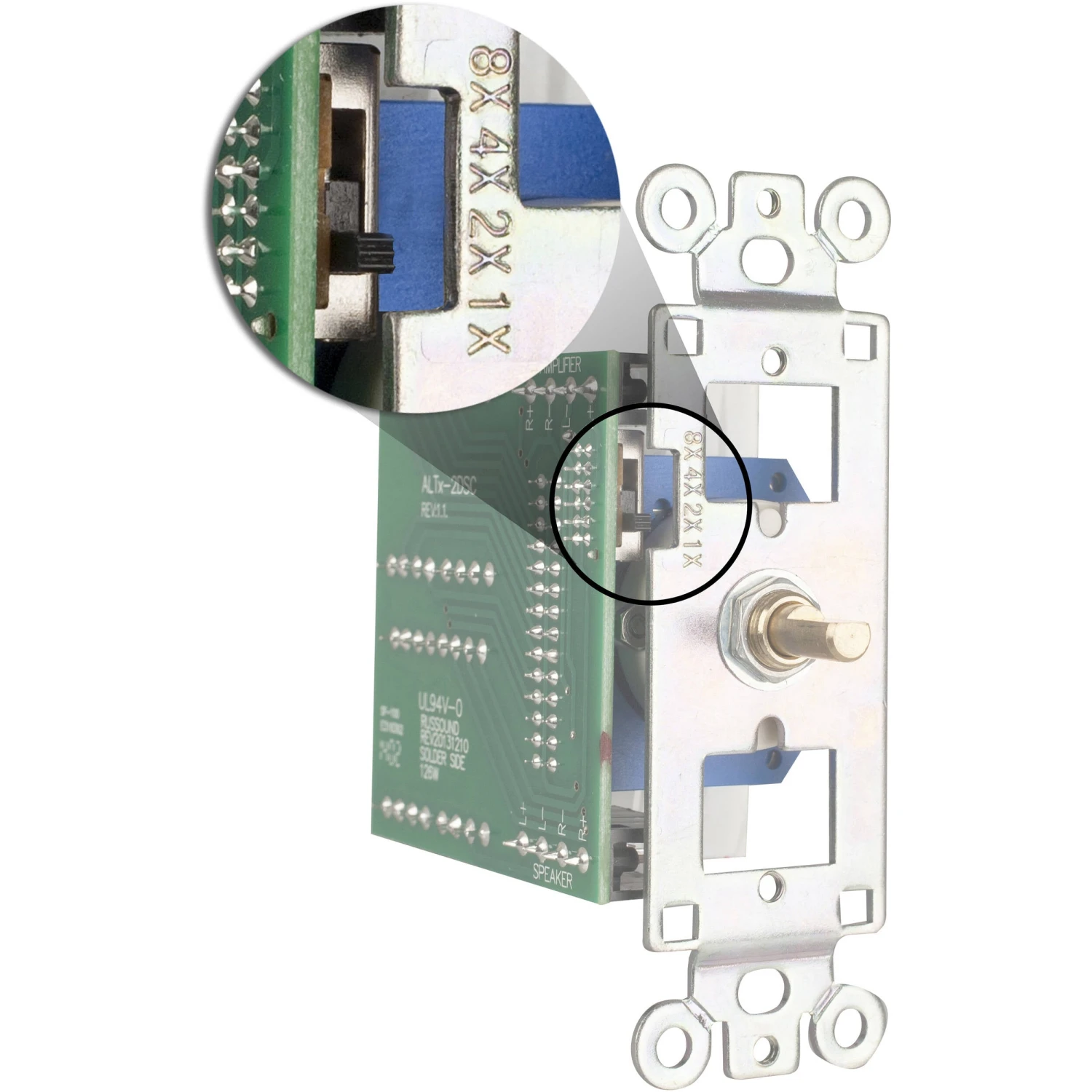

Set up convenient control of your audio system with this ALT-126R 126W Impedance Matching Volume Control from Russound. This wall-mounted plate and volume knob gives you 12-step control (including off) for a system in a single room or a whole-home audio solution, as it can handle up to 126W of peak audio power (up to 42W RMS). Its impedance-matching design allows multiple speakers to be connected to the same amplifier, and an easy-access impedance switch is located right behind the front plate.
- Accepts 12 AWG cabling
- UL/CSA certified

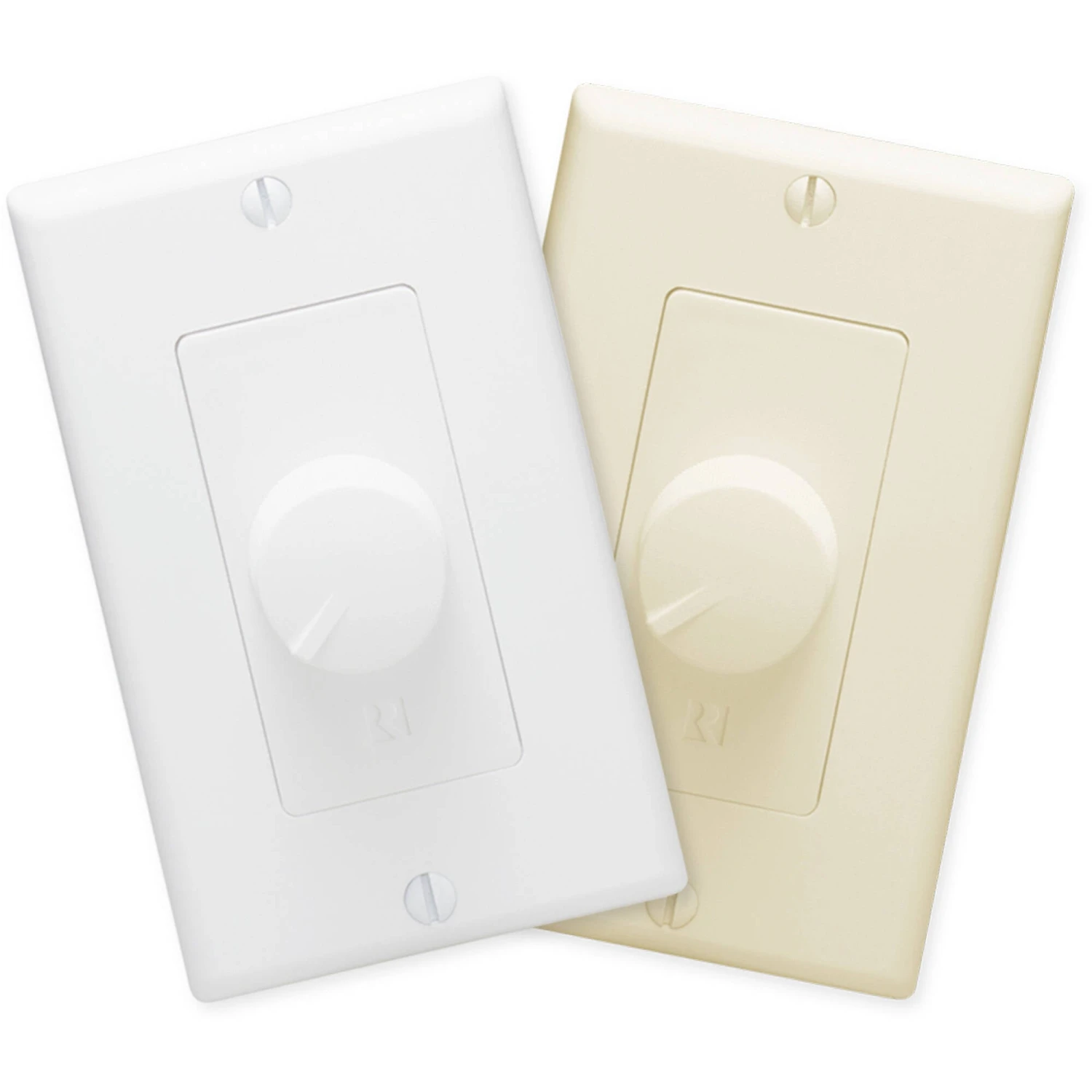

- White and light almond-colored plate and knob to match your décor
Items Included
- Russound ALT-126R 126W Impedance Matching Volume Control
- White Plate & Knob
- Light Almond Plate & Knob
- Limited Lifetime Warranty
Additional Resources
User Manual
0.9 MB
Russound ALT-126R Specs
| Power Handling |
RMS (Per Channel, Continuous): Up to 42 W Peak (Per Channel): Up to 126 W |
| Frequency Response |
20 Hz to 20 kHz, +/- 1.0/-0.5 dB |
| Impedance |
Impedance: 4 Ohms (Minimum) Impedance Matching Type: Autoformer Based |
| Cable Gauge |
12 AWG / 2.4 mm (Maximum) |
| Connection |
4-Pole Screw Down Accepts up to 12 AWG Cable |
| Volume Control |
12 Steps (Including Off), Total Attenuation 48 dB |
| Package Weight |
1.2 lb |
| Box Dimensions (LxWxH) |
6.4 x 6.2 x 2.5″ |
