Ricoh WUL6690 Overview

Tackle large-venue and multi-projector installations with ease using the Ricoh PJ-WUL6690 9600-Lumen WUXGA Laser DLP Projector. Featuring a bright multi-module laser light source, advanced image processing, and geometric correction, the PJ-WUL6690 is engineered for large conference rooms, lecture halls, and auditoriums. Equipped with a wide range of image adjustment functions, including edge blending, motorized lens shift, zoom, and focus, this projector can be adjusted to fit an array of orientations, angles, and surfaces, including curved spaces and uneven walls.

Multi-Module Laser Light Source

Laser light sources typically enable maintenance-free operation for up to 20,000 hours. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.

Motorized Zoom, Focus, Lens Shift

With a wide horizonal shift of ±25% and vertical shift of ±55%, the motorized lens adjustment allows for more flexibility after installation. Eliminate the need to physically adjust the projector with motorized focusing and high-magnification zoom capabilities.

Multiple Image Adjustment Functions

Featuring four corner correction, grid correction, and ±30° vertical and horizontal keystone correction, the PJ-WUL6690 can adjust for a wide variety of angles and even curved surfaces, using the remote control.

Built-in Edge Blending

Built-in edge blending functions allow for seamless multi-projection of large images. This feature dynamically adjusts the fusion bandwidth to eliminate excessive brightness in overlapping areas.

HDBaseT

HDBaseT technology is a multi-signal transmission system that uses a single ethernet cable. High-definition video, audio, control functions, and data can be transmitted uncompressed through LAN cable, with a maximum transmission distance of up to 328’/100m.

Remote Control ID Setup

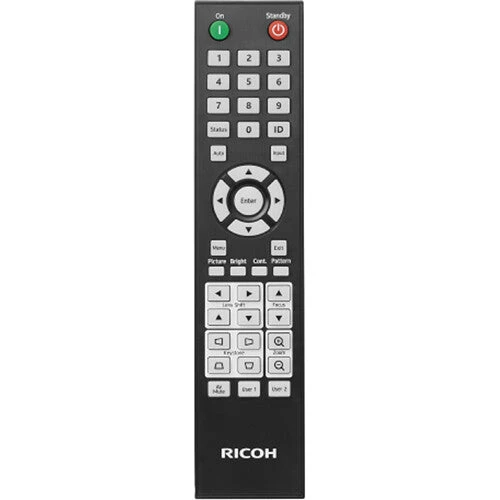

By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.

Control System Integration

The PJ-WUL6690 is compatible with various network protocols such as Extron, PJ Link, AMX, Telnet, and Webserver. Manage the status and operation of multiple projectors over your local wired network.

Additional Features

Covers more than 97% of the Rec.709 color gamut
Certified IP5X dust resistant
HDMI 2.0 input compatible with 4K sources
Picture-in-picture and picture-by-picture capability
DICOM-Sim mode
Supports 360° and portrait orientation

UPC: 026649326677

Items Included

Ricoh PJ-WUL6690 9600-Lumen WUXGA Laser DLP Projector
Remote Control with Batteries
Power Cord (5.9′)
HDMI Cable (5.9′)
Limited 3-Year Manufacturer Warranty

Additional Resources

Guides & Manuals

Ricoh WUL6690 Specs

Key Specs

Display System	1-Chip 0.67″ DLP
Native Resolution	1920 x 1200
Maximum Brightness	9600 Lumens
Throw Ratio	1.25 to 2:1
Projection Size	30 to 300″ / .8 to 7.6 m
HDR Support	Yes

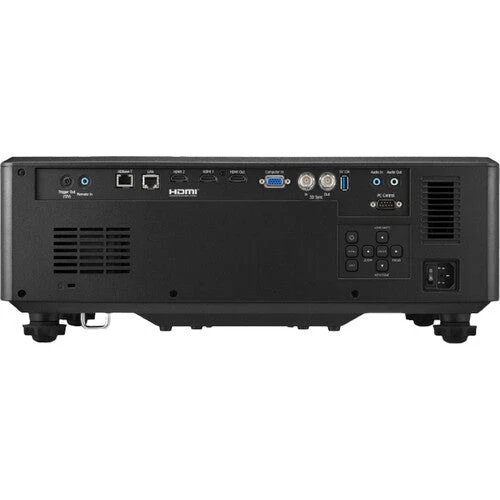

Inputs/Outputs	1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x HDMI 2.0 Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output
Light Source	Laser Phosphor

Image Display

Display System	1-Chip 0.67″ DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	9600 Lumens
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio	3,380,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Packing Side by Side Top Bottom Frame Sequential
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Vertical: 23.98 to 120Hz

Lens

Includes Lens	Yes
Focus	Manual Powered
Lens Shift	Vertical: ± 55% Horizontal: ± 25%
Optical Zoom	Powered: 1.6x
Throw Distance	2.6 to 42.3′ / 0.8 to 12.9 m
Throw Ratio	1.25 to 2:1
Projection Size	30 to 300″ / .8 to 7.6 m

Features

Keystone Correction	Manual to Vertical: ± 30° Manual to Horizontal: ± 30°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Yes, Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Stereo)
Speaker Power	10 W
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x HDMI 2.0 Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output
HDCP Support	Yes, Version 1.4/2.2
Media/Memory Card Slot	No
Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Security	Cable Lock Slot
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 620 W Low Brightness: 310 W Standby Mode (Lamp Off): < 0.5 W
Certifications	CE, FCC, IEC, UKCA
Operating Conditions	32 to 104°F / 0 to 40°C up to 85% Humidity
Storage Conditions	14 to 140°F / -10 to 60°C up to 90% Humidity
Dimensions (W x H x D)	19.1 x 5.9 x 14.8″ / 486.0 x 150.0 x 376.0 mm (Without Feet)
Weight	29.76 lb / 13.5 kg

Packaging Info

Package Weight	39.985 lb
Box Dimensions (LxWxH)	27 x 21.9 x 14.2″
