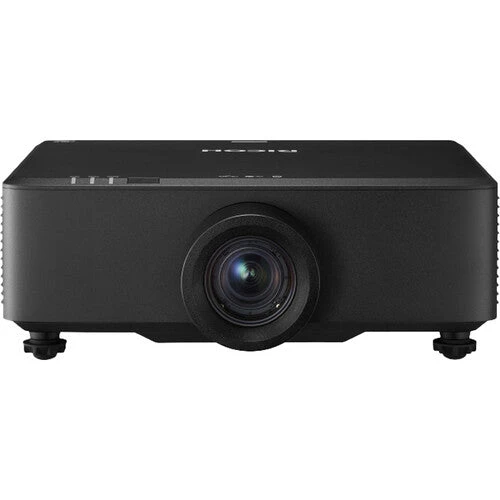

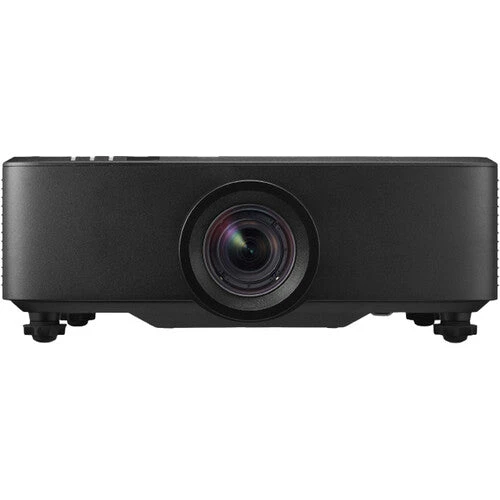

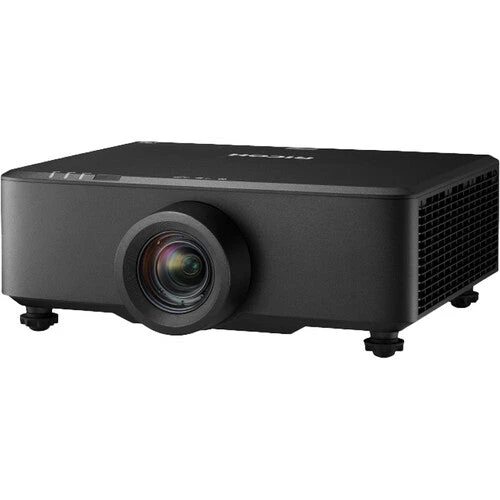

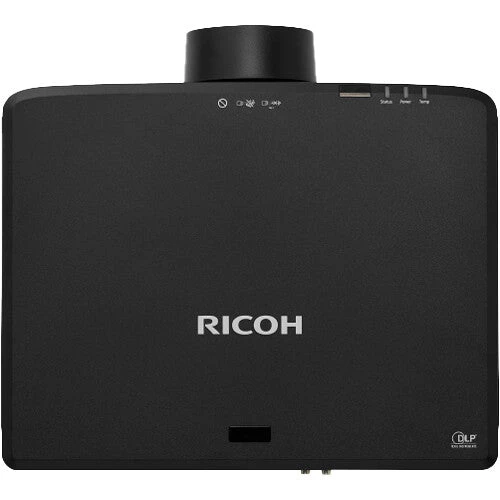

Ricoh PJ-WUL6670 7200-Lumen WUXGA Laser DLP Projector(Ricoh Pj Wul6670 7200 Lumen Wuxga Laser Dlp Projector)
Original price was: $387.00.$99.99Current price is: $99.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Ricoh WUL6670 Overview
By Photo’s
Frank Abbate
Tackle large-venue and multi-projector installations with ease using the Ricoh PJ-WUL6670 7200-Lumen WUXGA Laser DLP Projector. Featuring a bright multi-module laser light source, advanced image processing, and geometric correction, the PJ-WUL6670 is engineered for large conference rooms, lecture halls, and auditoriums. Equipped with a wide range of image adjustment functions, including edge blending, motorized lens shift, zoom, and focus, this projector can be adjusted to fit an array of orientations, angles, and surfaces, including curved spaces and uneven walls.
Multi-Module Laser Light Source
Laser light sources typically enable maintenance-free operation for up to 20,000 hours. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.
Motorized Zoom, Focus, Lens Shift
With a wide horizonal shift of ±25% and a vertical shift of ±55%, the motorized lens adjustment allows for more flexibility after installation. Eliminate the need to physically adjust the projector with motorized focusing and high-magnification zoom capabilities.
Multiple Image Adjustment Functions
Featuring four corner correction, grid correction, and ±30° vertical and horizontal keystone correction, the PJ-WUL6670 can adjust for a wide variety of angles and even curved surfaces, using the remote control.
Built-in Edge Blending
Built-in edge blending functions allow for seamless multi-projection of large images. This feature dynamically adjusts the fusion bandwidth to eliminate excessive brightness in overlapping areas.
HDBaseT
HDBaseT technology is a multi-signal transmission system that uses a single ethernet cable. High-definition video, audio, control functions, and data can be transmitted uncompressed through LAN cable, with a maximum transmission distance of up to 328’/100m.
Remote Control ID Setup
By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.
Control System Integration
The PJ-WUL6670 is compatible with various network protocols such as Extron, PJ Link, AMX, Telnet, and Webserver. Manage the status and operation of multiple projectors over your local wired network.
Additional Features
- Covers more than 97% of the Rec.709 color gamut
- Certified IP5X dust resistant
- HDMI 2.0 input compatible with 4K sources
- Picture-in-picture and picture-by-picture capability
- DICOM-Sim mode
- Supports 360° and portrait orientation
UPC: 026649326653
Items Included
- Ricoh PJ-WUL6670 7200-Lumen WUXGA Laser DLP Projector
- Remote Control with Batteries
- Power Cord (5.9′)
- HDMI Cable (5.9′)
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
42.1 MB
Ricoh WUL6670 Specs
Key Specs
| Display System |
1-Chip 0.67″ DLP |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
7200 Lumens |
| Throw Ratio |
1.22 to 1.53:1 |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| HDR Support |
Yes |
| Inputs/Outputs |
1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x HDMI 2.0 Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output |
| Light Source |
Laser Phosphor |
Image Display
| Display System |
1-Chip 0.67″ DLP |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz |
| Maximum Brightness |
7200 Lumens |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
3,380,000:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Frame Packing Side by Side Top Bottom Frame Sequential |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Vertical: 23.98 to 120Hz |
Lens
| Includes Lens |
Yes |
| Focus |
Manual Powered |
| Lens Shift |
Vertical: ± 55% Horizontal: ± 25% |
| Optical Zoom |
Powered: 1.6x |
| Throw Distance |
2.6 to 32.3′ / 0.8 to 9.8 m |
| Throw Ratio |
1.22 to 1.53:1 |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
Features
| Keystone Correction |
Manual to Vertical: ± 30° Manual to Horizontal: ± 30° |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
10 W |
| Projection Tilt Option |
Yes |

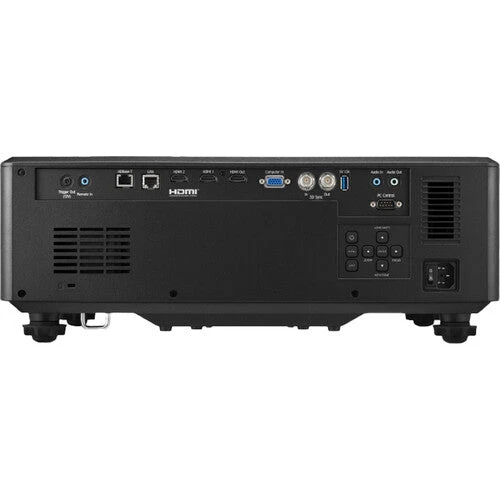

Input/Output Connectors
| Inputs/Outputs |
1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x HDMI 2.0 Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output |
| HDCP Support |
Yes, Version 1.4/2.2 |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Medium Brightness: 30 dB Low Brightness: 25 dB |
| Security |
Cable Lock Slot |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 470 W Low Brightness: 235 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
FCC, CE, UKCA, IEC |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 85% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C up to 90% Humidity |
| Dimensions (W x H x D) |
19.1 x 5.9 x 14.8″ / 486.0 x 150.0 x 376.0 mm (Without Feet) |
| Weight |
26.46 lb / 12 kg |
Packaging Info
| Package Weight |
35.04 lb |
| Box Dimensions (LxWxH) |
25.3 x 22.3 x 15″ |
