Ricoh WUL5A50 Overview
Frank Abbate

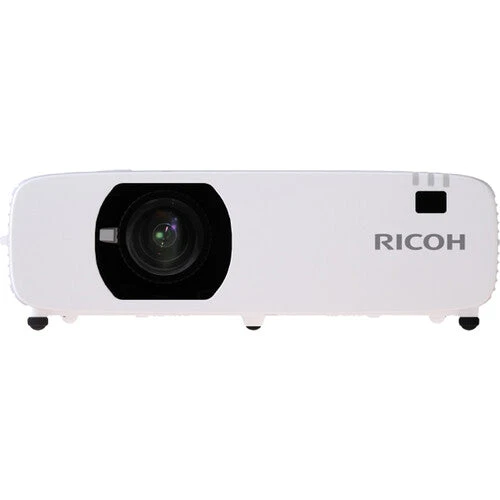

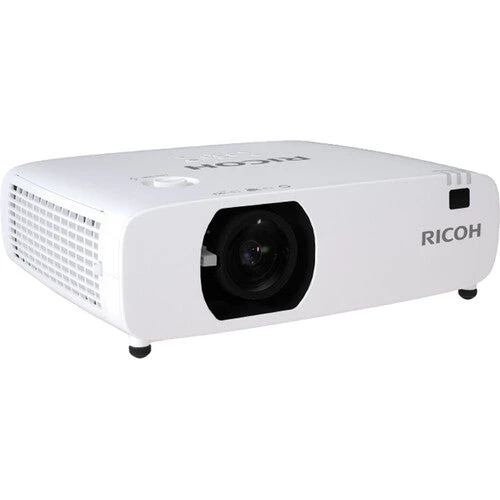

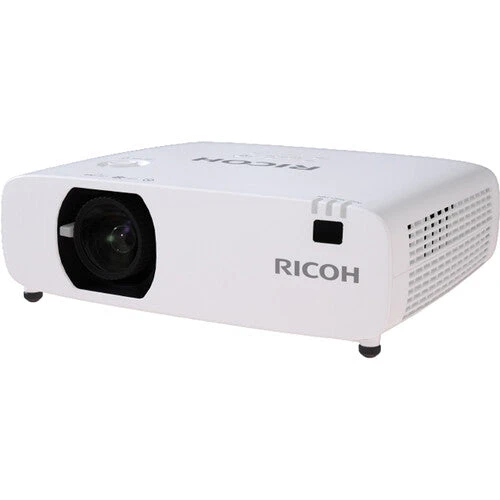

Enjoy bright images and lifelike color with the Ricoh PJ-WUL5A50 5200-Lumen WUXGA Laser 3LCD Projector. Featuring a long-lasting laser light source, compact portable design, and various image correction functions, the PJ-WUL5A50 is well suited for day-to-day use in small to medium size classrooms and meeting spaces.
A 5200-lumen light output and LCD color ensure bright images, even in the presence of ambient light. A variety of SD and HD sources are supported via HDMI, VGA, and RCA composite A/V inputs. The integrated standard-throw lens is capable of filling a 16:10 aspect screen, 100″ in diagonal, from 8.5′ away. Additionally, 360° orientation support, 1.6x optical zoom, image correction, and multiple display modes make this a solid option for tricky installations.
- 60% vertical lens shift
- Automatic angle correction
- Quick power on/off
- DICOM Sim mode
- Built-in 16W mono speaker
Items Included
- Ricoh PJ-WUL5A50 5200-Lumen WUXGA Laser 3LCD Projector
- Remote Control with Batteries
- Power Cord
- HDMI Cable (6′)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Manual
23.1 MB
Ricoh WUL5A50 Specs
| Display System |
3-Chip 0.64″ LCD |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
5200 Lumens |
| Throw Ratio |
1.2 to 2:1 (100″ Screen Size @ 8.5′ / 2.6 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| HDR Support |
No |
| Inputs/Outputs |
2x HDMI 1.4 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RCA (Composite) Video Input 1x 2RCA Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-B Service Input 1x USB-A Data, Power Input/Output 1x RJ45 (Ethernet) LAN Input |
| Light Source |
Laser Phosphor |
| Display System |
3-Chip 0.64″ LCD |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 1920 x 1200 @ 60 Hz |
| Maximum Brightness |
5200 Lumens |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
5,000,000:1 |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15.6 to 91.1kHz Vertical: 24 to 85Hz |
| Includes Lens |
Yes |
| Focus |
Manual |
| Aperture |
f/1.6 |
| Focal Length |
6.39mm |
| Optical Zoom |
No |
| Throw Distance |
2.64 to 42.5′ / 0.8 to 13 m |
| Throw Ratio |
1.2 to 2:1 (100″ Screen Size @ 8.5′ / 2.6 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| Keystone Correction |
Auto / Manual to Vertical: ± 15° Manual to Horizontal: ± 15° |
| HDR Support |
No |
| Multi-Input Support (PIP/PBP) |
No |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
16 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 1.4 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RCA (Composite) Video Input 1x 2RCA Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-B Service Input 1x USB-A Data, Power Input/Output 1x RJ45 (Ethernet) LAN Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 37 dB Low Brightness: 28 dB |
| Security |
Cable Lock Slot Keypad Lock |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: < 360 W Standby Mode (Lamp Off): < 2 W |
| Certifications |
IEC, FCC, CE, UKCA |
| Operating Conditions |
41 to 104°F / 5 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
14 to 122°F / -10 to 50°C at 10 to 85% Humidity |
| Dimensions (W x H x D) |
15.4 x 4.6 x 11.6″ / 390.0 x 116.0 x 294.0 mm (Not Including Feet) |
| Weight |
11.46 lb / 5.2 kg |
| Package Weight |
15 lb |
| Box Dimensions (LxWxH) |
19.2 x 17.5 x 9.8″ |
