Ricoh N7100E Overview
The N7100E Network Image Scanner from Ricoh secures stand-alone network operations and improves business processes through secure Ethernet connectivity, and it provides an extra-large touchscreen for customizable jobs. Featuring an optical resolution of 600 dpi, the N7100E offers a simplex scanning speed of 25 ppm and a duplex scanning speed of 50 ipm. An integrated 50-sheet ADF accommodates both single- and double-sided documents as well as plastic cards. Normal scanning allows working with documents from 2 x 2″ up to 8.5 x 14″, and a long page scanning mode accepts documents up to a maximum length of 120″.
Built for busy environments, the scanner can be customized for secure group use, and you can customize the touch panel job menu and scan settings to suit the work of a specific user or registered user group. In this way, you or an administrator can control what each operator can do and customize a single unit to function as a terminal, exclusive to each operator. Additionally, the unit implements verification before scanning and ensures automatic data encryption during processing and data deletion after scanning.
Designed to be shared among multiple users, it also offers administration functions that allow administrators to individually or collectively set up and manage a vast network of units from a single console. The Admin Tool function allows administrators to adjust running environment settings one scanner at a time, and Scanner Central Admin feature enables collective monitoring and managing of scanner usage, settings, and more for multiple units.

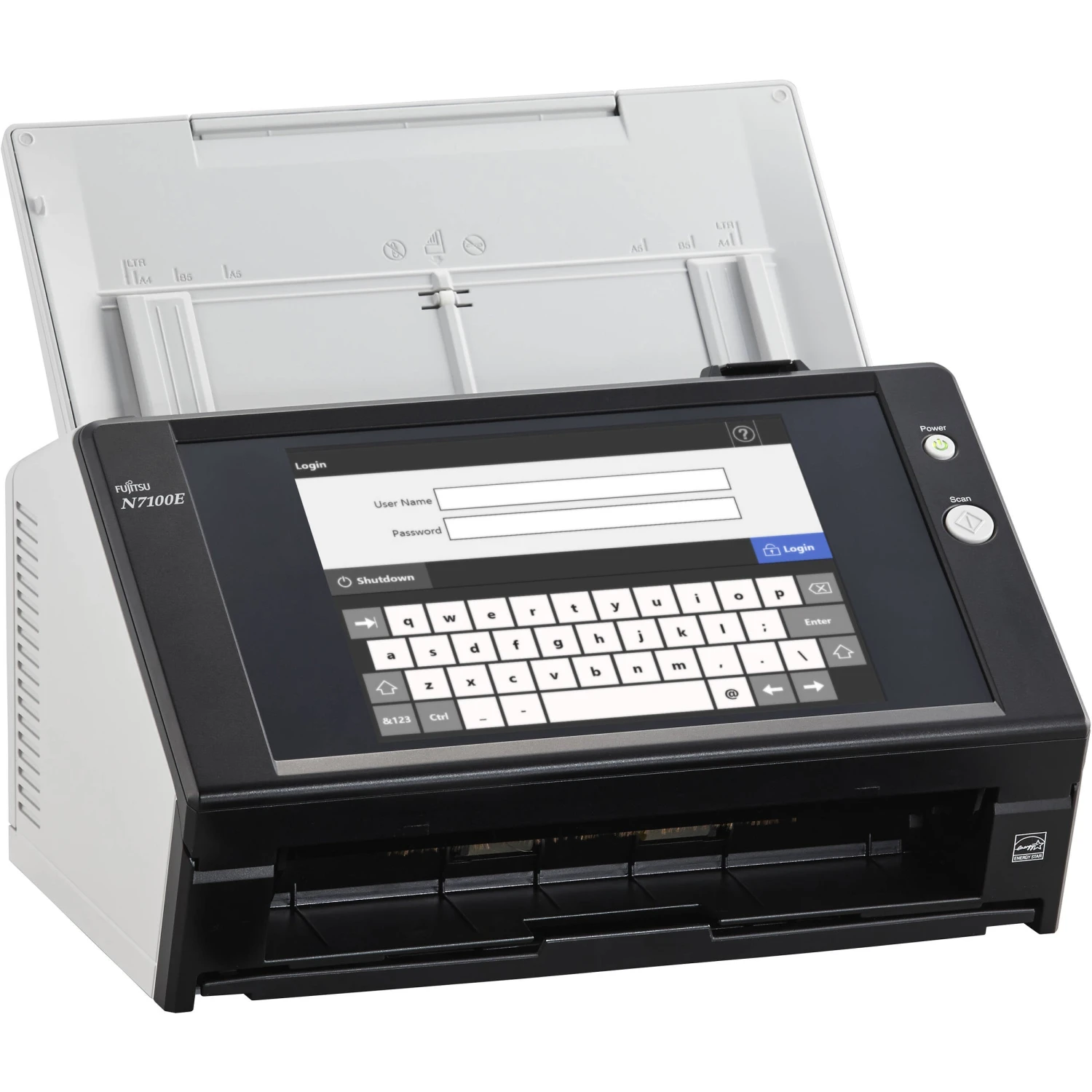

- Simple operation via large touch screen and on-screen keyboard
- Customizable job menus and numerous built-in security measures
- User applications for integrating the scanner as add-in software using the exclusive software development kit (Windows OS)
- Admin Tool function and Scanner Central Admin Server for centralized management
- Supports strong security protocols including LDAPS, HTTPS, and FTPS
- Scanned data deletion feature automatically deletes the temporarily stored data from internal memory after scanned data has been emailed, faxed, printed out, and saved to a network folder
- USB port for keyboard, mouse, and USB equipment for contactless IC card readers
Items Included
- Ricoh N7100E Network Image Scanner
- LAN Cable
- AC Cable
- AC Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
28.9 MB
Ricoh N7100E Specs
| Scanner Type |
Automatic Document Feeder (ADF) |
| Scanner Maximum Resolution |
600 dpi (Optical) |
| Power Source |
AC Adapter (Included) |
| Scanner Type |
Automatic Document Feeder (ADF) |
| Scanner Maximum Resolution |
600 dpi (Optical) |
| Scan Modes |
Color, Grayscale, Monochrome |
| Light Source |
LED |
| Image Sensor |
2x Contact Image Sensor (CIS) |
| Duplex Scanning |
Yes |
| Single Pass Duplex |
Yes |
| Scan Speed |
Simplex Speed 25 ppm at 200, 300 dpi in Color/Grayscale/Black & White Duplex Speed 50 ipm at 200, 300 dpi in Color/Grayscale/Black & White |
| Automatic Image Corrections |
Yes |
| File Formats |
JPEG, PDF, TIFF |
| Scan Sizes |
Minimum: 2 x 2″ / 5.1 x 5.1 cm Maximum: 8.5 x 120″ / 21.6 x 304.8 cm |
| Media Thickness |
ADF: Up to 31.5 mil / 0.8 mm |
| Paper Capacity |
ADF: 50x Sheet |
| Multi-Feed Detection |
Yes |
| Media Weight |
40 to 209 gsm / 11 to 56 lb |
| Daily Duty Cycle |
4000 Scans |
| Special Media Support |
Business Card, Check, Credit Card, Envelope, ID Card |
| Data I/O |
1x USB-A Input (Keyboard Only) 1x USB-A Input (Mouse Only) 1x RJ45 Input |
| OS Compatibility |
Windows / macOS |
| Display Size |
8.4″ |
| Display Type |
Color Touchscreen LCD |
| Power Source |
AC Adapter (Included) |
| Battery |
No |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
38 W (Maximum) 0.3 W (Sleep) |
| Operating Conditions |
41 to 95°F / 5 to 35°C at 20 to 80% Humidity |
| Certifications |
ENERGY STAR, RoHS |
| Dimensions (W x H x D) |
11.8 x 6.8 x 9.1″ / 30 x 17.3 x 23.1 cm |
| Weight |
13 lb / 5.9 kg |
| Package Weight |
16.04 lb |
| Box Dimensions (LxWxH) |
15.9 x 13.8 x 13.1″ |
