Ricoh G900 II Digital Camera(Ricoh G900 Ii Digital Camera)

The Enhanced Worksite Workhorse

The sequel to
Ricoh‘s worksite workhorse, the
G900 II Digital Camera expands the functionality of the rugged, industrial-grade point-and-shoot, bringing Full HD webcam capability and FlashAir compatibility to the camera’s impressive image quality, build and design, and security features. Tough and feature-rich, the camera is ideal for use at a variety of jobsites, including civil engineering, construction, disaster relief, health care, manufacturing, and indoor industrial sites.

Tough and Durable for Use in Any Environment

The G900 II is designed to withstand a wide variety of conditions for dependable use in harsh climates and on demanding worksites:

• Waterproof for use underwater to depths of 65.6′ for up to two hours of continuous operation (IPX8/JIS Class 8-equivalent)
• Freezeproof to temperatures as low as 14°F / -10°C
• Shockproof to falls from 6.8′ high
• Crushproof to withstand up to 220 lbf of pressure
• Dustproof to protect the internal components of the camera (IPX6/JIS Class 6-equivalent)
• Chemical-resistant for using ethanol disinfection, bleach disinfection, and liquid chlorine dioxide, to suit business, industrial, and construction site use



20MP BSI CMOS Sensor

Featuring a 20MP BSI CMOS sensor, the G900 II is capable of recording high-resolution stills and UHD 4K30 video. The sensor’s back-illuminated design offers improved clarity, reduced noise, and a sensitivity range from ISO 1250-25600 to suit working in a variety of lighting conditions.

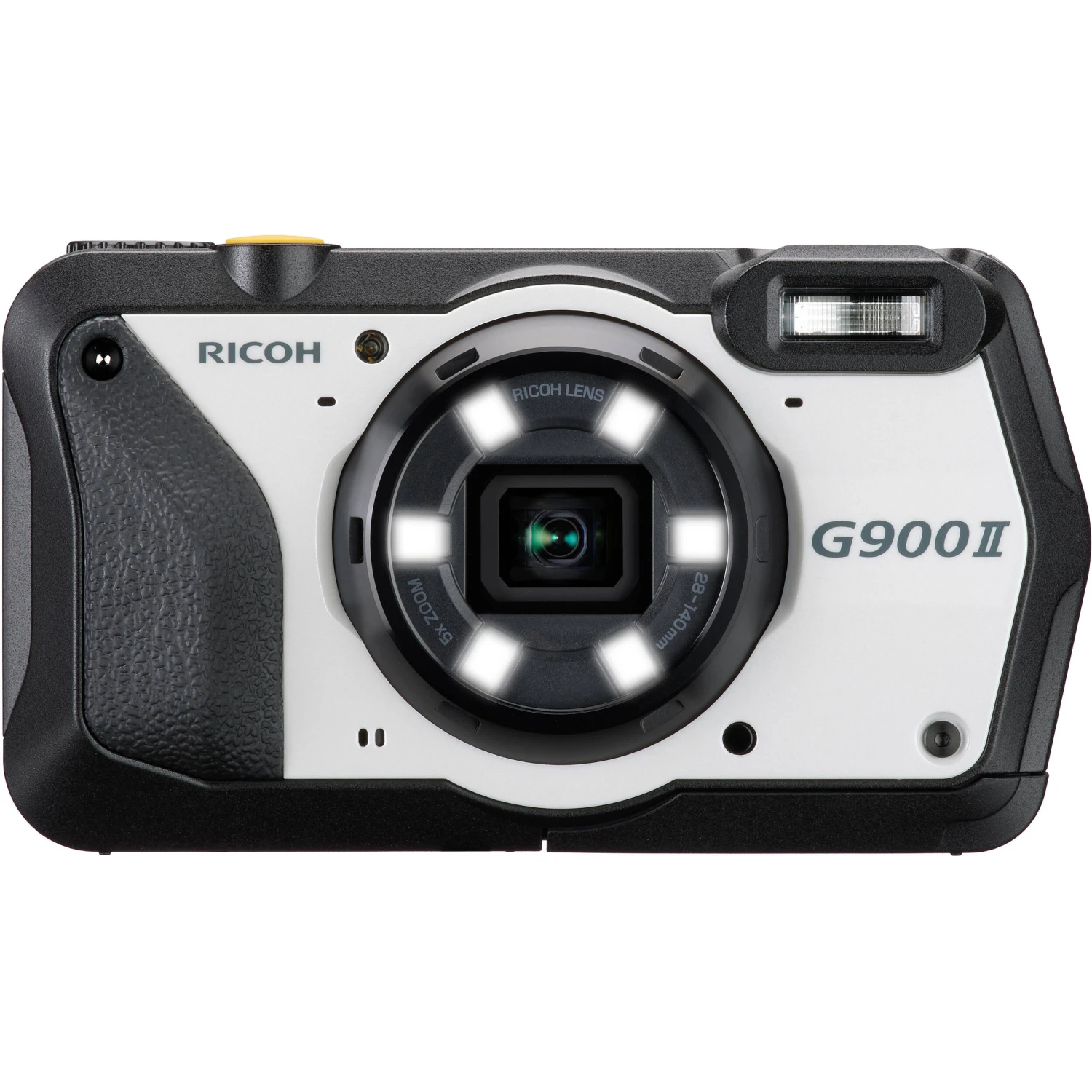

Ricoh 5x Optical Zoom Lens and LED Ring Light

Spanning wide-angle to telephoto focal lengths, the 5x optical zoom lens covers a 28-140mm equivalent range to suit photographing a wide array of subject types. Surrounding the lens is an LED ring light, which incorporates six individual LEDs, to produce bright and even lighting when photographing close-up subjects. Ten brightness levels are available to adjust the light output, the lighting pattern can be configured, and an enhanced Digital Microscope mode enables close focusing to 0.4″.

Full HD Webcam

Connect the camera to a computer with the included USB cable and engage the UVC mode to turn the G900 II into a web camera for real-time streaming of Full HD resolution video images at 30 fps. When combined with the camera’s macro shooting capability and built-in ring light, users can deliver more detailed, creative images than those captured by the computer’s built-in camera during online business meetings or private online communications.

Camera Memo Function

The camera memo function reduces the post-shooting workload, allowing users to choose among a number of options to facilitate data management in the field:

• Attach up to 100 text items to an image, with up to 128 characters per item
• Attach an audio file up to 30 seconds in length to an image
• Browse compatible reference images, like plans or blueprints, on the camera monitor
• Built-in barcode scanning function can embed scanned barcode information into the image data



Password-Protected Camera Lock Function

The G900 II’s operation can be restricted entirely or partially by locking camera functions using a password. Lockable functions include camera access, menu access, internal memory viewing, and USB connection, and the camera can be unlocked by either inputting a password using the onscreen keyboard or by scanning a barcode. Up to two passwords can be created-one for a user, one for an administrator-and password protection further carries over to encrypting used SD memory cards to prevent disclosing images if a card is lost or stolen.

UHD 4K Video and Movie SR+

UHD 4K30 video recording is supported for high-resolution playback and is benefitted by a Movie SR+ (Shake Reduction) setting, which offers “electronic gimbal” functionality to steady footage taken while moving. Conventional Movie SR can also be used for a more natural, less distorted look, and actively clips the frame to promote steadier shots.

Other Worksite Features

• The integrated LED ring light also facilitates the ability to scan barcodes in a dedicated Barcode Scanning mode.
• The SD memory card slot now offers FlashAir compatibility for wireless data transfer, in addition to the camera’s 6.5GB of internal memory for image storage
• Helping to maintain consistent compositions and for assessing progress at a construction site, Transparency Guide allows you to recall a previously captured image on the LCD monitor and use it as a template for capturing a new image with the same composition. The transparency level can be adjusted between 20% to 80% and you can recall two separate images for at-a-glance comparisons.
• Image Clipping function allows the user to check two related images, such as a worksite photo and an image of survey data, on a computer screen.
• A range of highly legible Ricoh RT fonts can be used for adding text overlays onto images.
• Electronic Level guide can be used to maintain consistently straight horizons and verticals.

GPS

Enhanced for greater accuracy, the integrated GPS module receives signals from GPS satellites and GLONASS allows for quick start-up of GPS functions and the attachment of user-selected GPS data on captured images. When shooting indoors, the GPS Lock function allows the recording of GPS data onto captured images by using previously acquired position data. It’s also possible to record GPS log data by the second onto still images and movie clips and synchronize the camera’s clock with the GPS clock. The G900 II also affords access to an electronic compass, which covers 360° in 16 directions.

Ricoh G900 II Specs

Sensor Resolution	Effective: 20 Megapixel
Image Sensor	1/2.3″-Type CMOS
Focal Length	5 to 25mm (35mm Equivalent: 28 to 140mm)
Optical Zoom	5x
Maximum Aperture	f/3.5 to 5.5
ISO Sensitivity Range	125 to 25,600 in Manual, Auto Mode
Internal Recording Modes	H.264 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC
Wireless	No
Display Size	3″
Display Type	Fixed Non-Touchscreen LCD
Built-In Flash/Light	Yes, Flash Only
Battery Type	1x DB-110 Rechargeable Lithium-Ion, 3.6 VDC, 1350 mAh (Approx. 340 Shots)
Dimensions (W x H x D)	4.7 x 2.6 x 1.3″ / 118.2 x 65.5 x 33.1 mm
Weight	7.6 oz / 215 g (Body Only) 8.5 oz / 242 g (With Battery, Recording Media)

Sensor Resolution	Effective: 20 Megapixel
Image Sensor	1/2.3″-Type CMOS

Focal Length	5 to 25mm (35mm Equivalent: 28 to 140mm)
Optical Zoom	5x
Digital Zoom	8.1x Maximum (40.5x Combined Zoom)
Maximum Aperture	f/3.5 to 5.5
Minimum Aperture	f/4.2 to 6.6
Focus Range	Normal 1.6′ to Infinity / 0.5 m to Infinity Macro 0.3″ to 2′ / 0.1 m to 0.6 m
Optical Design	11 Elements in 9 Groups

Shutter Speed	Mechanical Shutter 1/4000 to 1/4 Seconds Electronic Shutter 1/4000 to 1/4 Seconds
ISO Sensitivity Range	125 to 25,600 in Manual, Auto Mode
Metering Method	Center-Weighted Average, Multi-Zone, Spot
Exposure Modes	Auto, Program
Exposure Compensation	-2 to +2 EV
White Balance	Presets: Auto, Cloudy, Daylight, Fluorescent (Day White), Fluorescent (Natural White), Fluorescent (Warm White), Fluorescent (White), Manual, Ring Light, Shade, Tungsten
Interval Recording	Yes

Aspect Ratio	1:1, 3:2, 4:3
Image File Format	JPEG

Internal Recording Modes	H.264 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps
Recording Limit	Up to 25 Minutes
Broadcast Output	NTSC
IP Streaming	UVC/UAC 1920 x 1080 at 29.97p

Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC
Internal Memory	6.5 GB
Video I/O	1x Micro-HDMI Output
Other I/O	1x USB-C (USB 3.2 / 3.1 Gen 1) Data Output
Wireless	No
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	GLONASS, GPS

Display Size	3″
Resolution	1,040,000 Dot
Display Type	Fixed Non-Touchscreen LCD

Built-In Flash/Light	Yes, Flash Only
Flash Modes	Flash On, Off, Red-Eye Reduction
Effective Flash Range	ISO Auto 0.7 to 18′ / 0.2 to 5.5 m (Wide) 0.7 to 11.5′ / 0.2 to 3.5 m (Telephoto)
External Flash Connection	No
