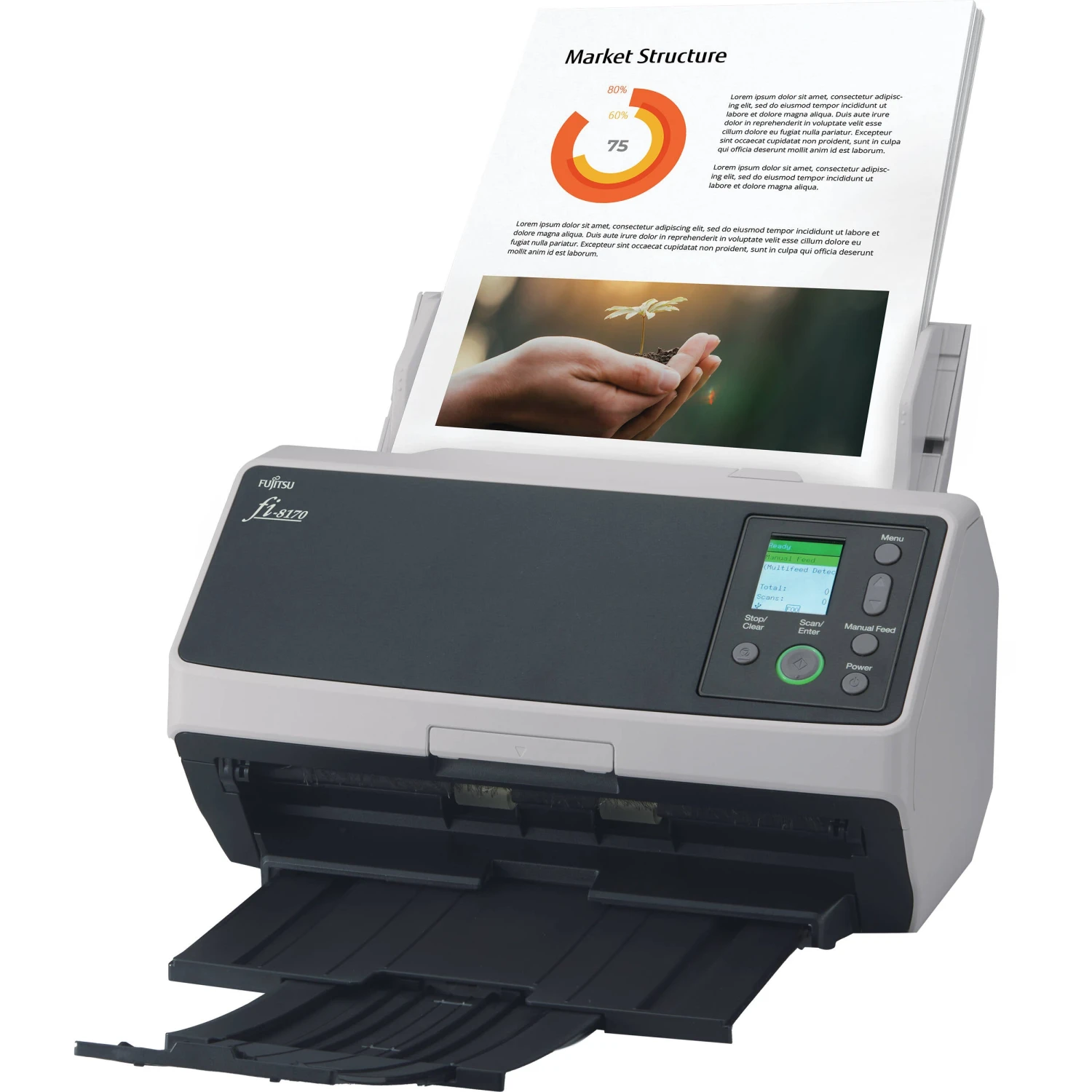

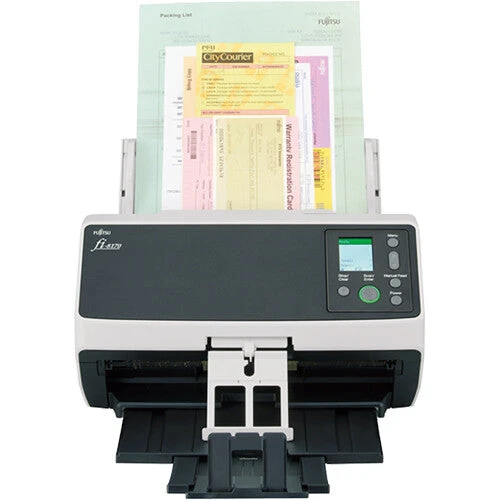

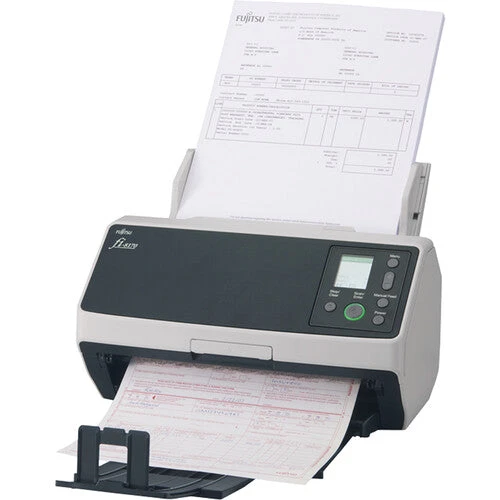

Ricoh fi-8170 Overview
The FI-8170 Color Duplex Document Scanner from Ricoh offers an innovative and superior scanning experience. Compact and reliable, the scanner achieves scan speeds of 70 ppm/140 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 10,000 sheets a day. The scanner supports both USB and LAN connectivity so that it can be used not only near the computer but also in various places under the network environment.
Items Included
- Ricoh FI-8170 Color Duplex Document Scanner (TAA Compliant)
- ADF Paper Chute
- AC Cable
- AC Adapter
- USB Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
3.1 MB
Ricoh fi-8170 Specs
| Scanner Type |
Portable Scanner with Automatic Document Feeder (ADF) / Manual Feed |
| Scanner Maximum Resolution |
ADF/Document Feeder 600 dpi (Optical) 50 x 600 dpi (Hardware) |
| Scanner Color Depth |
24-Bit (Internal) |
| Power Source |
AC Adapter (Included) |
| Scanner Type |
Portable Scanner with Automatic Document Feeder (ADF) / Manual Feed |
| Scanner Maximum Resolution |
ADF/Document Feeder 600 dpi (Optical) 50 x 600 dpi (Hardware) |
| Scan Modes |
Color, Grayscale, Monochrome |
| Scanner Color Depth |
24-Bit (Internal) |
| Grayscale Depth |
8-Bit (Internal) |
| Light Source |
LED |
| Image Sensor |
2x Contact Image Sensor (CIS) |
| Duplex Scanning |
Yes |
| Single Pass Duplex |
No |
| Scan Speed |
Simplex Speed 70 ppm at 200, 300 dpi in Black & White Duplex Speed 140 ppm at 200, 300 dpi in Black & White |
| Automatic Image Corrections |
No |
| File Formats |
JPEG, TIFF |
| Scan Sizes |
ADF / Document Feeder Minimum: 1.9 x 2″ / 4.8 x 5.1 cm Maximum: 8.5 x 14″ / 21.6 x 35.6 cm |
| Paper Capacity |
ADF: 100x Sheet |
| Multi-Feed Detection |
Yes |
| Media Weight |
20 to 465 gsm / 5.3 to 124 lb |
| Daily Life Expectancy |
10,000 Sheets |
| Special Media Support |
Business Card, Credit Card, ID Card, Index Card |
| Data I/O |
1x USB-B 3.0 / 3.1/3.2 Gen 1 Input 1x RJ45 Input |
| Scanner Drivers |
TWAIN, WIA, ISIS, ICA, SANE |
| OS Compatibility |
Windows / macOS / Ubuntu / Linux |
| Display Type |
Color LCD |
| Power Source |
AC Adapter (Included) |
| Battery |
No |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Scanner 28 W (Maximum) 2 W (Sleep) 0.2 W (Standby) |
| Operating Conditions |
41 to 95°F / 5 to 35°C at 15 to 80% Humidity |
| Certifications |
ENERGY STAR, RoHS, EPEAT Silver |
| Dimensions (W x H x D) |
Scanner 11.8 x 6.4 x 6.7″ / 30 x 16.3 x 17 cm |
| Weight |
Scanner 8.8 lb / 4 kg |
| Package Weight |
13.15 lb |
| Box Dimensions (LxWxH) |
18.1 x 12 x 10.5″ |
