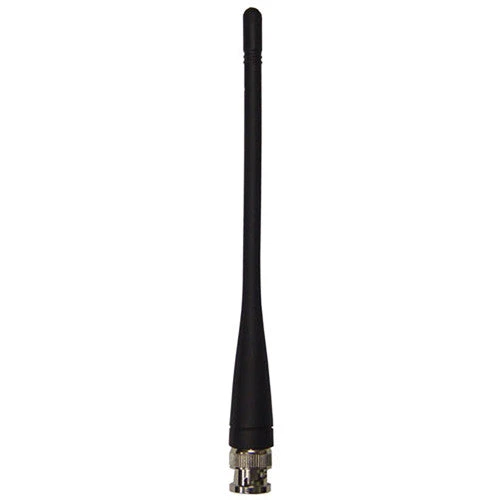

RF-Links AN-4786H Overview
The AN-4786H UHF Antenna (2.4 dB Gain) from RF Video is designed for use with the GX/M series video transmitters/receivers and works with the UHF TV band (channels 14 through 69). This antenna covers a frequency range of 470 to 860 MHz.
In the Box
- RF-Links AN-4786H UHF Antenna (2.4 dB Gain)
- Limited 90-Day Manufacturer Warranty
RF-Links AN-4786H Specs
| Operating Frequency |
470-860 MHz |
| Impedance |
50 ohms |
| Length |
5″ (127 mm) |
| Polarization |
Vertical |
| Connector |
BNC male |
| Input Power |
30 W |
| VSWR |
< 1.5:1 average |
| Gain |
2.4 dBi |
| Channels |
14-69 UHF |
| Temperature Range |
-40 to 185°F (-40 to 85°C) |
| Weight |
0.04 lb (21 g) |
