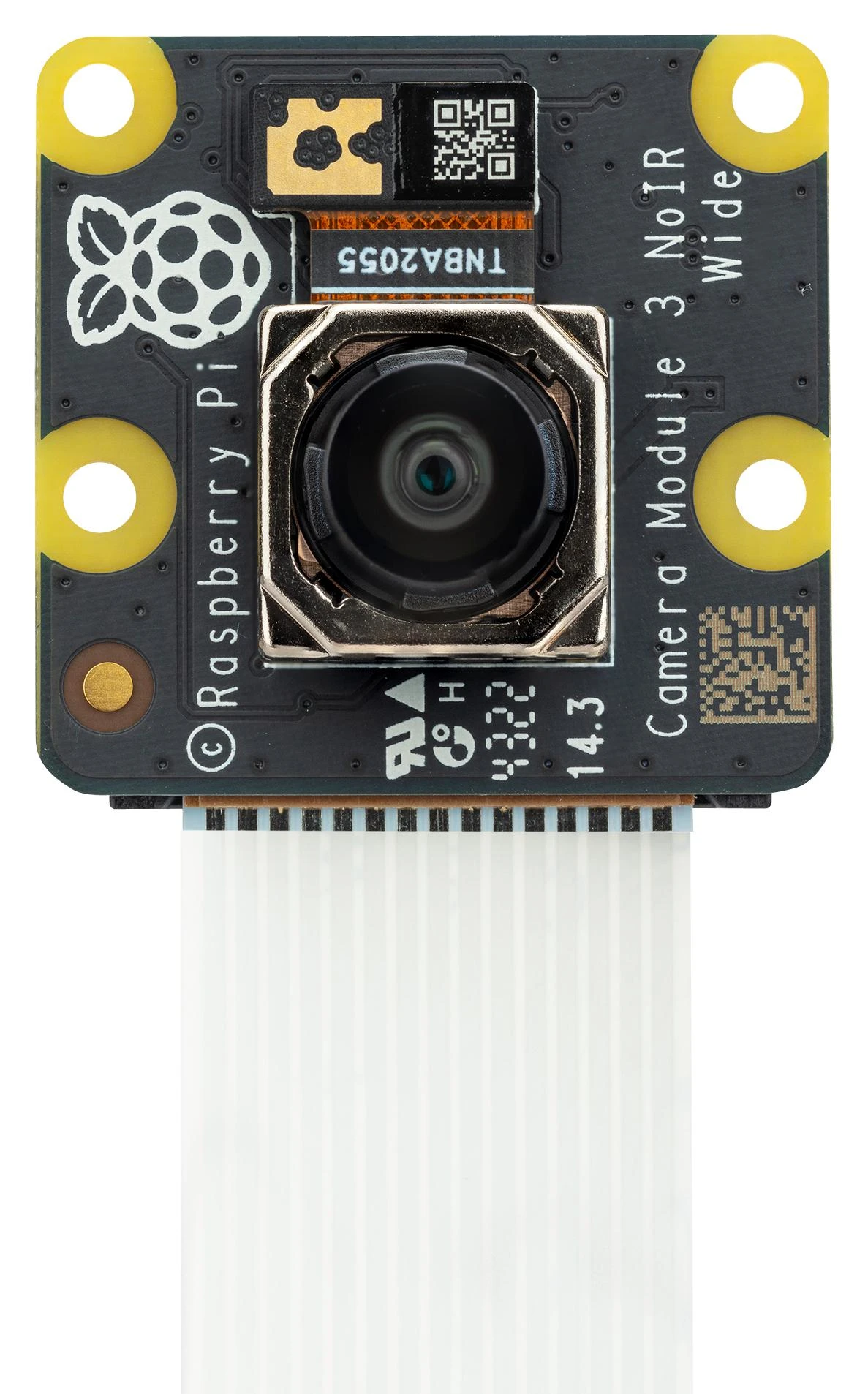

RASPBERRY-PI SC0875 SC0875 Raspberry Pi Camera Module 3 Wide Noir IMX708 Computers(Raspberry Pi Sc0875 Sc0875 Raspberry Pi Camera Module 3 Wide Noir Imx708 Computers)

The latest version of the official Raspberry Pi camera module, the V3 camera provides a 12 Megapixel Sony image sensor with HDR support and rapid autofocus with libcamera compatability. The camera is designed for ease of use while still providing additional features for advanced users. The NoIR Wide model has a wide angle lens (120°) and has no IR filter on the lens, making it perfect for use in low-light environments.

• Sony IMX708 back-illuminated CMOS 12 Megapixel sensor
• HDR mode (up to 3 Megapixel output)
• RAW10 output, capable of 4608×2592 pixel images
• Phase Detection Autofocus (PDAF) system
• Full support for libcamera library, including rapid autofocus feature
• 2 Wire serial communication with support for I2C fast mode and fast-mode plus
• Focal Range: 50mm – â��
• Focal Length: 2.75mm
• Folar Ratio: F2.2
• FOV: 102° (Horizontal), 67° (Vertical), 120° (Diagonal)
• 200mm Ribbon cable with 15x1mm FPC connector
• Compatible with all Raspberry Pi models with FPC camera connector
• Dimensions (HxWxD): 12.4x25x24mm

Contents

Camera and fitted ribbon cable

Product details

Silicon Manufacturer	Sony
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	IMX708
Silicon Family Name	–
For Use With	Raspberry Pi Computers
Kit Contents	Raspberry Pi Camera Module 3 Wide NoIR
Product Range	–

Other details

Brand	RASPBERRY-PI
Part Number	SC0875
Quantity	Each
Technical Data Sheet EN
