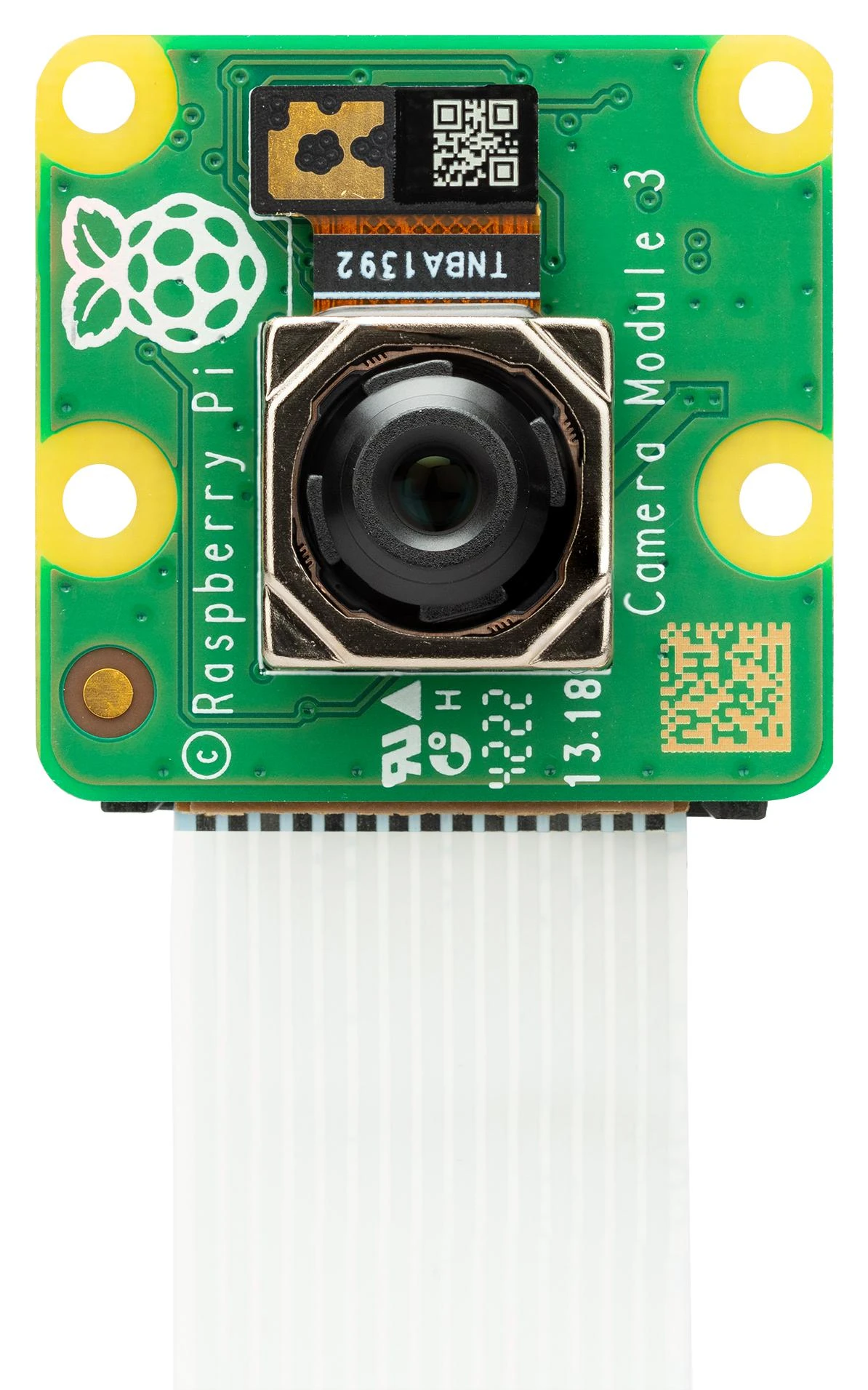

RASPBERRY-PI SC0872 SC0872 Raspberry Pi Camera Module 3 IMX708 Computers(Raspberry Pi Sc0872 Sc0872 Raspberry Pi Camera Module 3 Imx708 Computers)

The latest version of the official Raspberry Pi camera module, the V3 camera provides a 12 Megapixel Sony image sensor with HDR support and rapid autofocus with libcamera compatability. The camera is designed for ease of use while still providing additional features for advanced users.

• Sony IMX708 back-illuminated CMOS 12 Megapixel sensor
• HDR mode (up to 3 Megapixel output)
• RAW10 output, capable of 4608×2592 pixel images
• Phase Detection Autofocus (PDAF) system
• Full support for libcamera library, including rapid autofocus feature
• 2 Wire serial communication with support for I2C fast mode and fast-mode plus
• Focal Range: 100mm – â��
• Focal Length: 4.74mm
• Folar Ratio: F1.8
• FOV: 66° (Horizontal), 41° (Vertical), 75° (Diagonal)
• 200mm Ribbon cable with 15x1mm FPC connector
• Compatible with all Raspberry Pi models with FPC camera connector
• Dimensions (HxWxD): 11.5x25x24mm

Contents

Camera and fitted ribbon cable

Product details

Silicon Manufacturer	Sony
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	IMX708
Silicon Family Name	–
For Use With	Raspberry Pi Computers
Kit Contents	Raspberry Pi Camera Module 3
Product Range	–

Other details

Brand	RASPBERRY-PI
Part Number	SC0872
Quantity	Each
Technical Data Sheet EN
