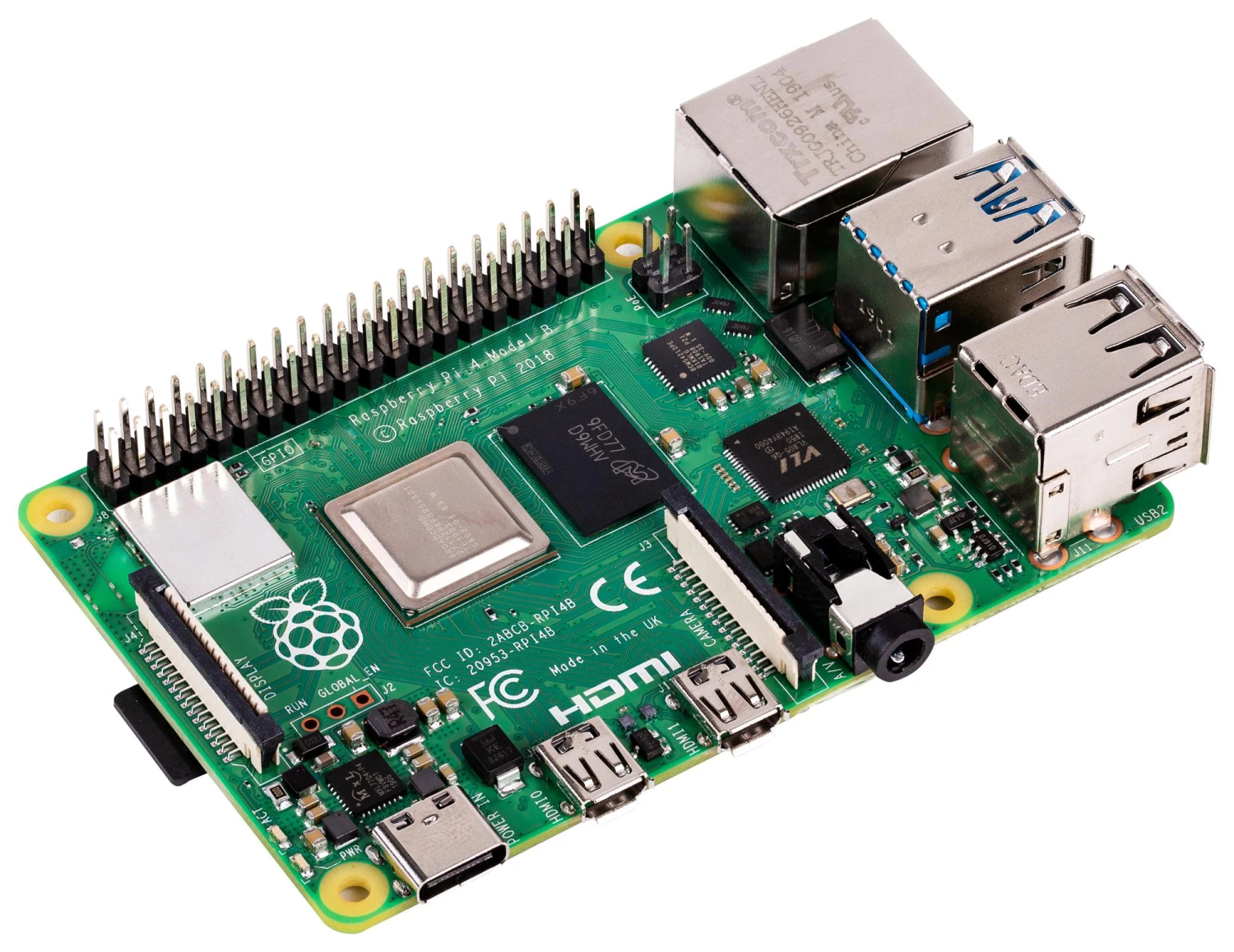

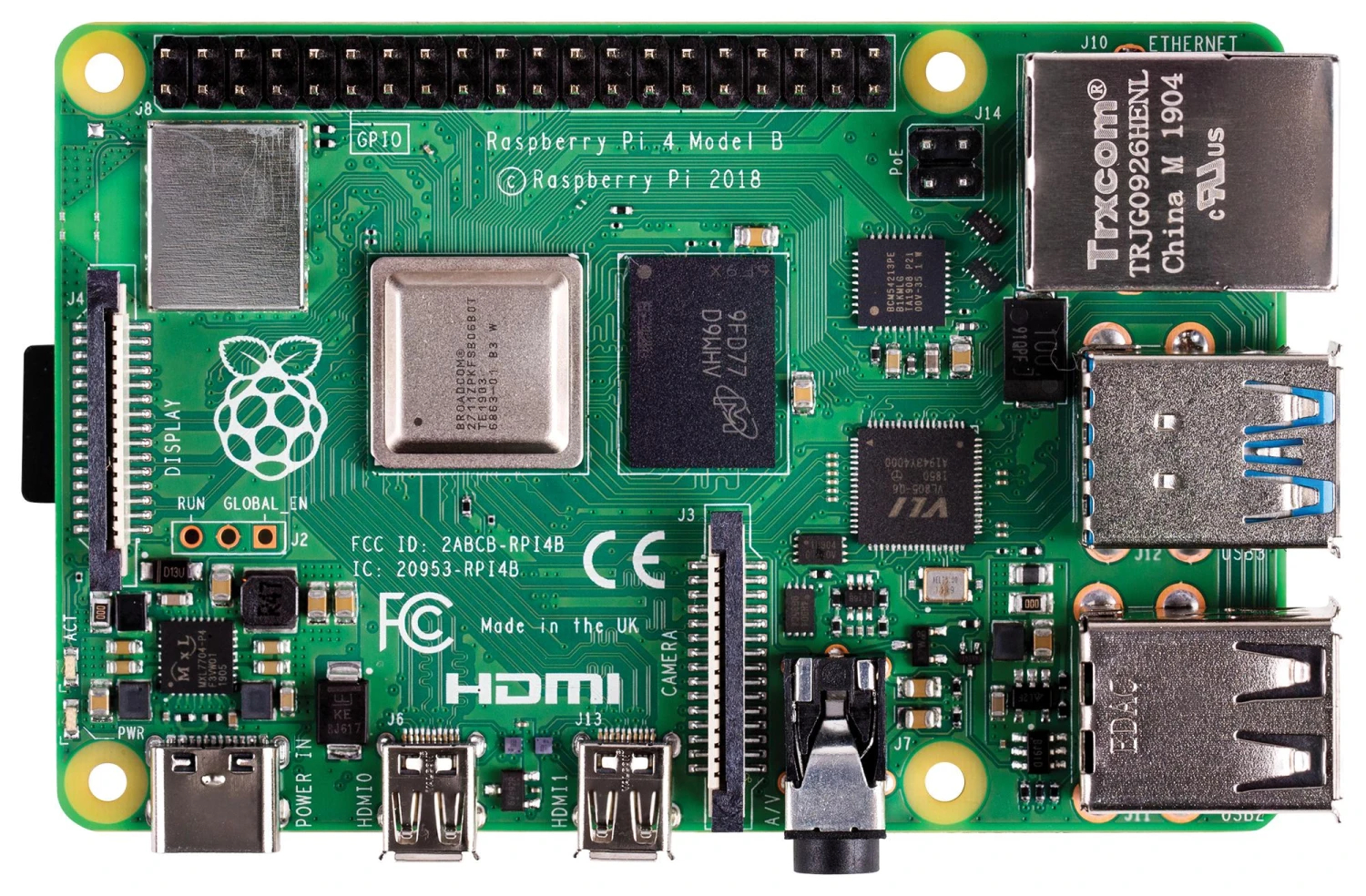

RASPBERRY-PI RPI4-MODBP-8GB SBC, Raspberry Pi4 B 8GB, BCM2711, ARM Cortex-A72, 8GB RAM, MicroSD, Linux, Wifi, 2x Micro HDMI GTIN UPC EAN: 0765756931199(Raspberry Pi Rpi4 Modbp 8gb Sbc Raspberry Pi4 B 8gb Bcm2711 Arm Cortex A72 8gb Ram Microsd Linux Wifi 2x Micro Hdmi Gtin Upc Ean 0765756931199)

The Raspberry Pi 4 Model B offers ground-breaking increases in processor speed, multimedia performance, memory and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems. This product�s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

• Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

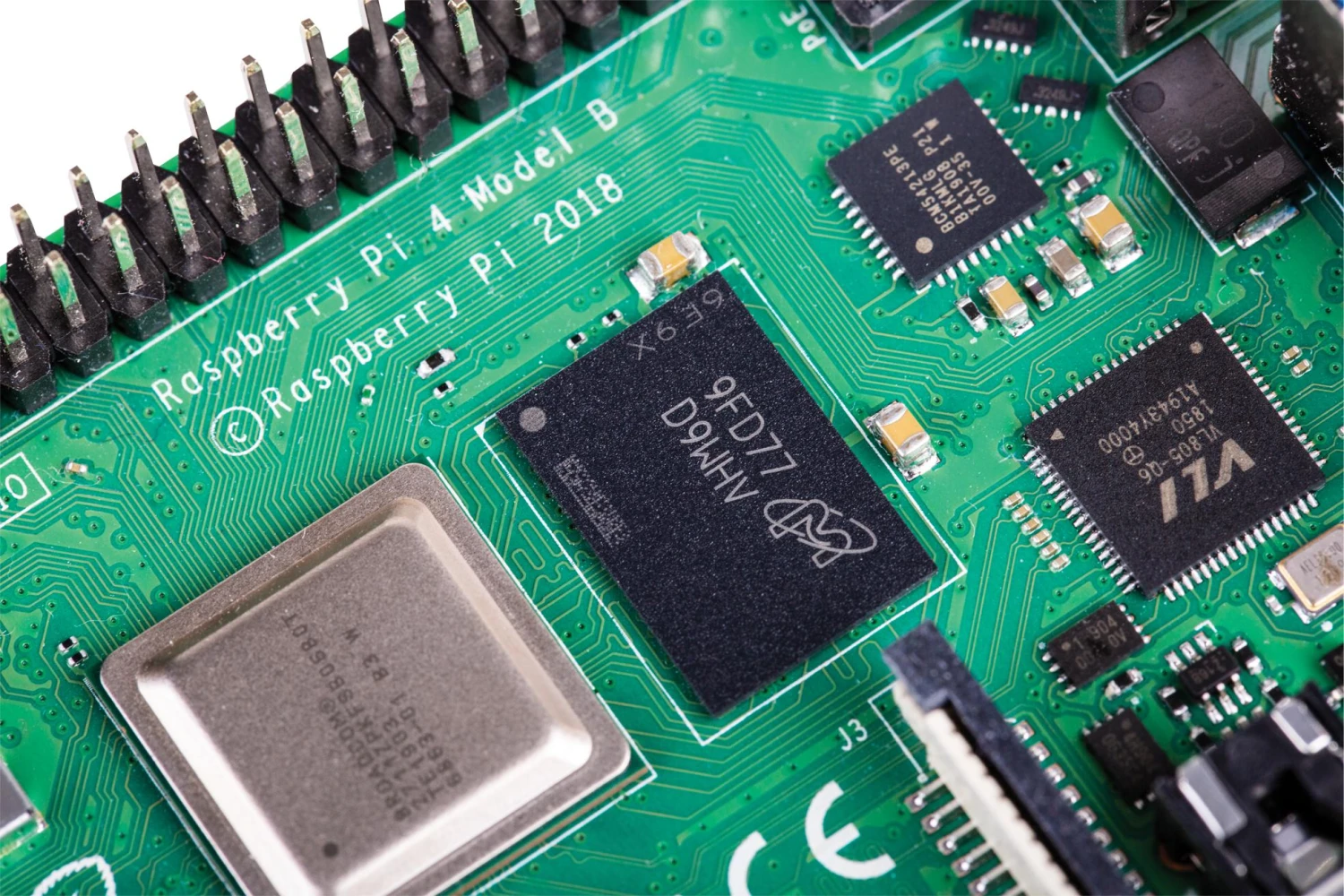

• 8GB LPDDR4 SDRAM
• 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
• True Gigabit Ethernet

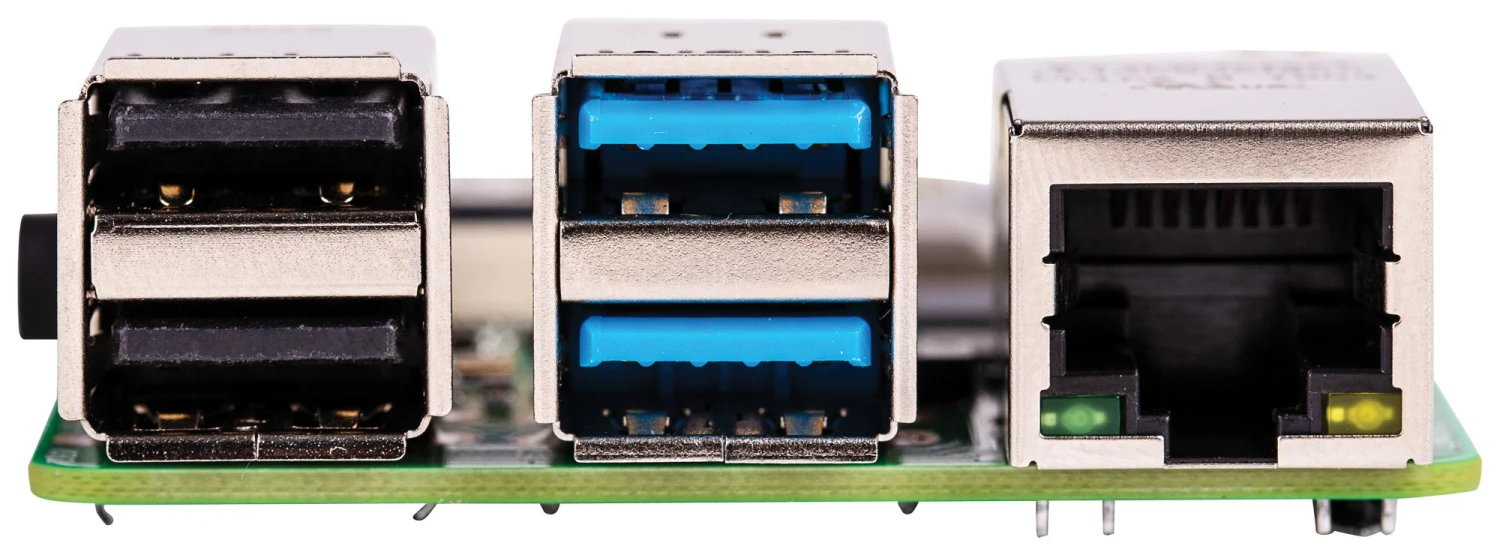

• 2x USB 3.0 ports, 2x USB 2.0 Ports
• Fully backwards compatible 40-pin GPIO header

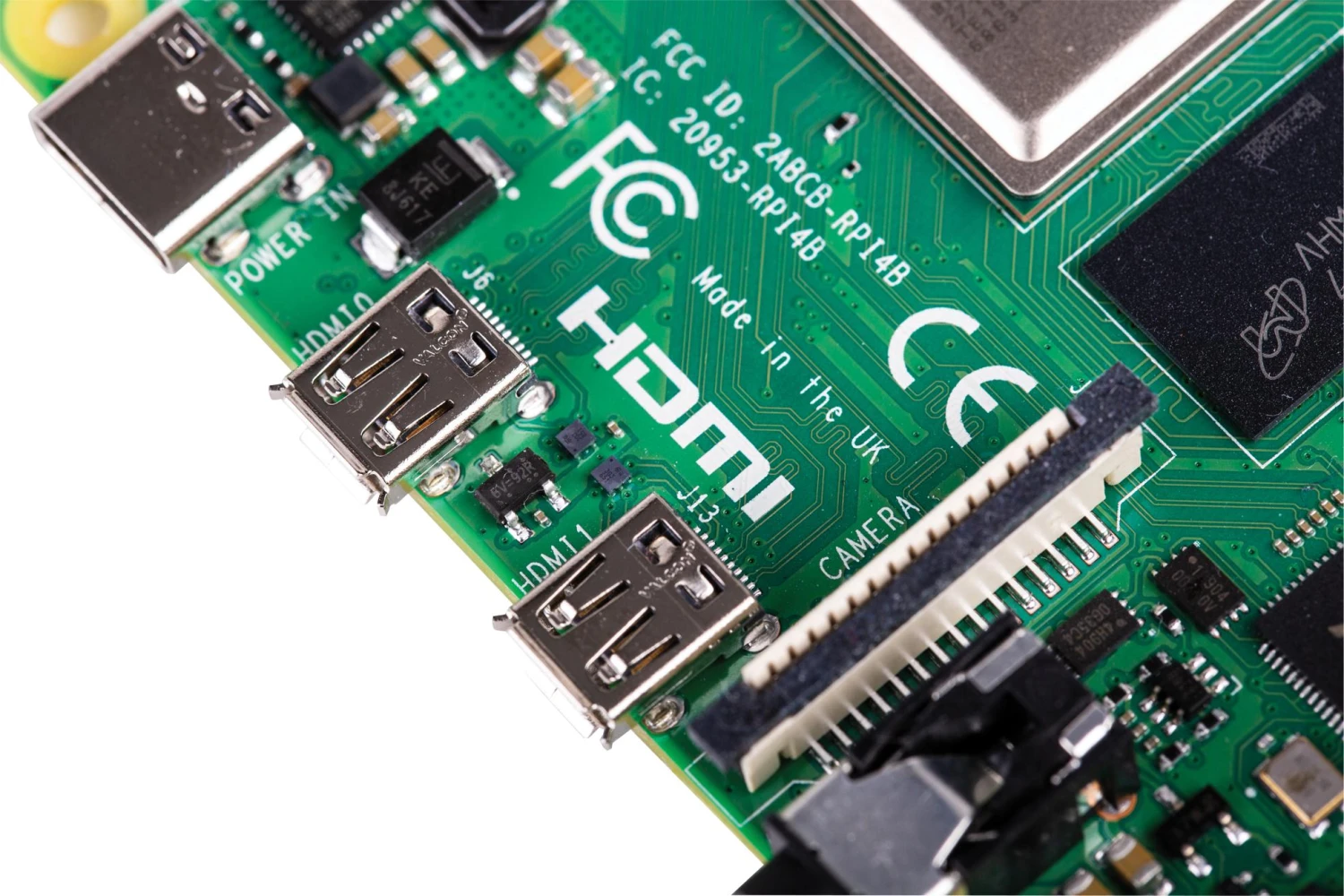

• 2x Micro HDMI ports supporting up to 4K 60Hz video resolution
• 2-lane MIPI DSI/CSI ports for camera and display
• 4-pole stereo audio and composite video port
• MicroSD card slot for loading operating system and data storage

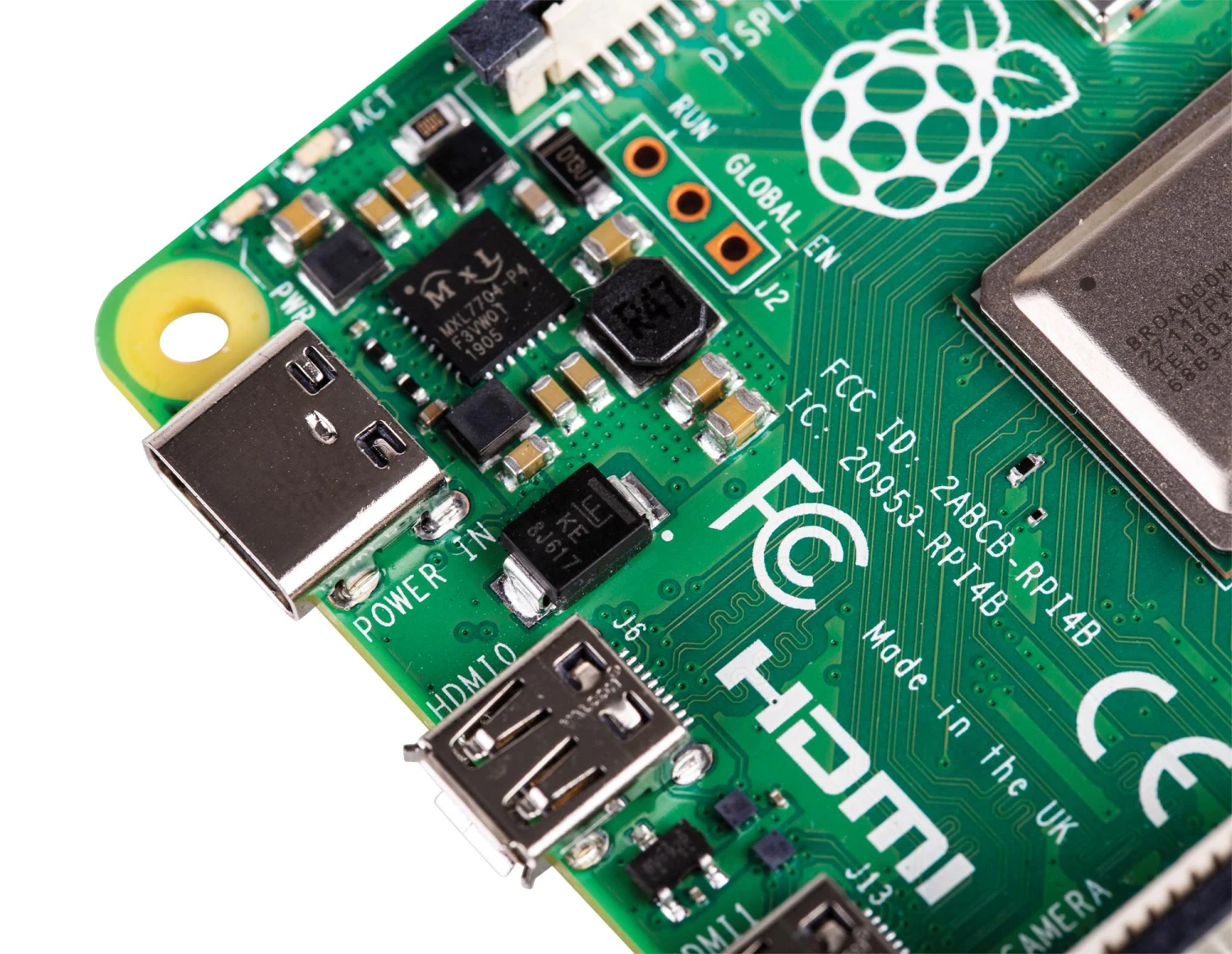

• Requires 5.1V, 3A power via USB-C or GPIO

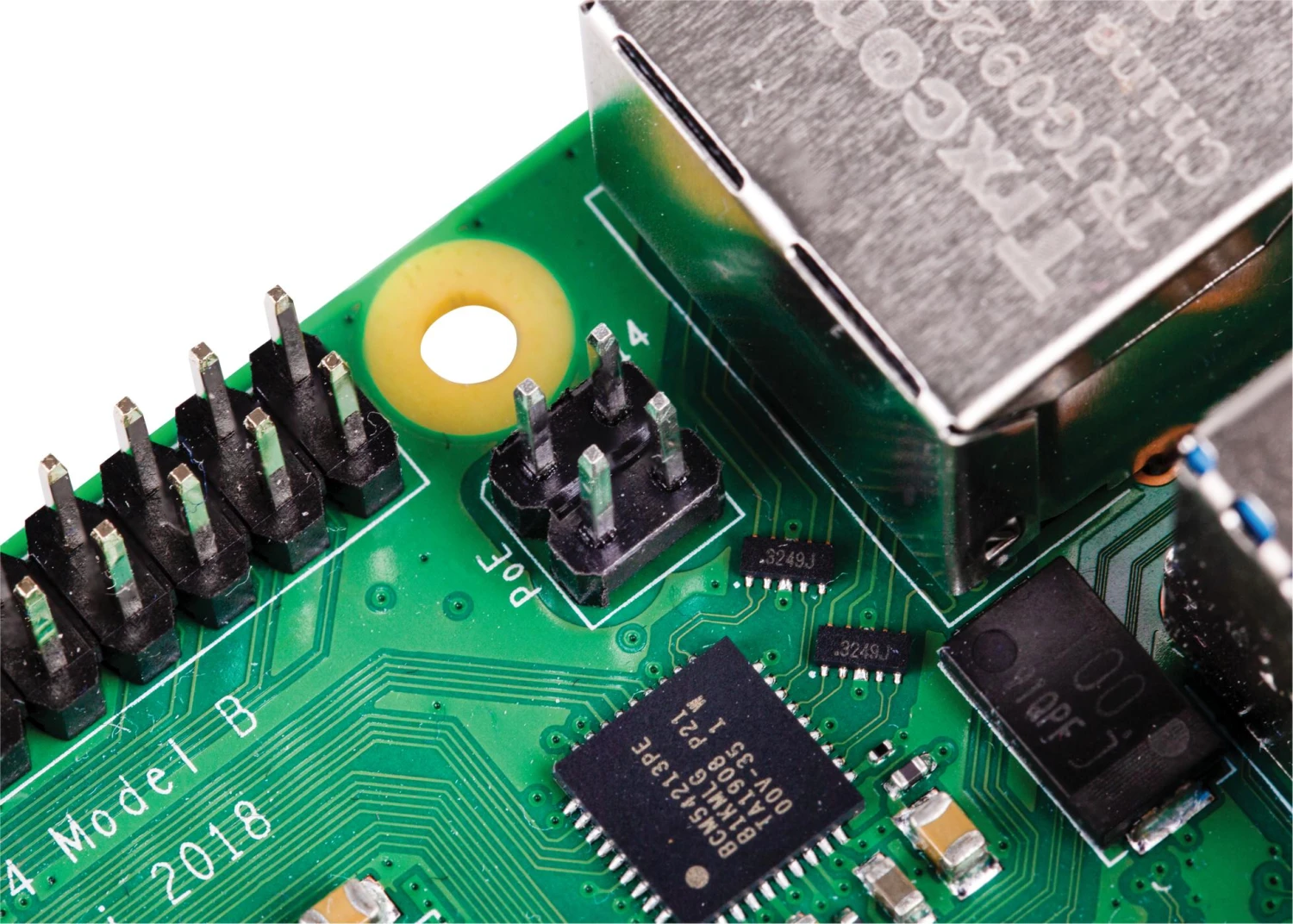

• PoE (Power over Ethernet) enabled (requires PoE HAT)

Applications

Embedded Design & Development, Hobby & Education, IoT (Internet of Things), Communications & Networking

Contents

Pi 4 Model B Board only
