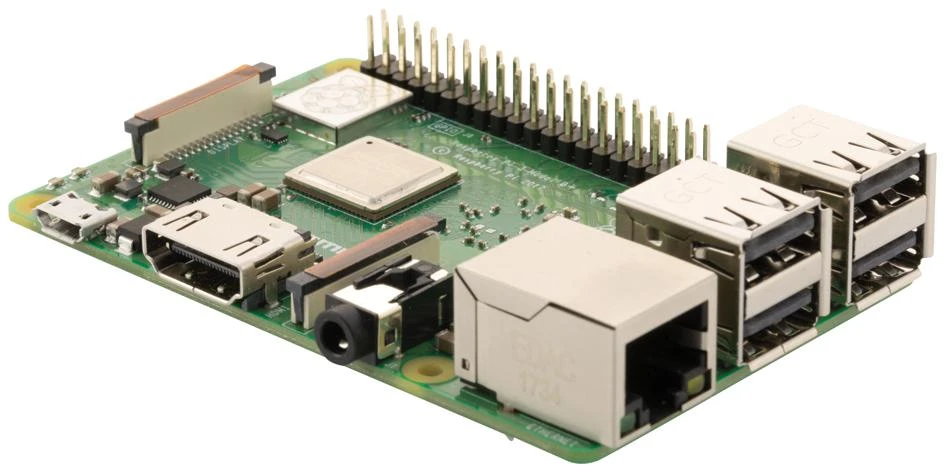

RASPBERRY-PI RPI3-MODBP SBC, Raspberry Pi3 B+, BCM2837B0, ARM Cortex-A53, 1GB RAM, MicroSD, Wifi, HDMI, 4xUSB 2.0 Ports GTIN UPC EAN: 713179640259(Raspberry Pi Rpi3 Modbp Sbc Raspberry Pi3 B Bcm2837b0 Arm Cortex A53 1gb Ram Microsd Wifi Hdmi 4xusb 2 0 Ports Gtin Upc Ean 713179640259)

The Raspberry Pi 3 Model B+ is the final revision of the third generation single board computer, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

• Broadcom BCM2837B0, Cortex-A53, 64-bit, quad-core SoC @ 1.4GHz
• 1GB LPDDR2 SDRAM
• 2.4GHz/5GHz IEEE 802.11 b/g/n/ac Wireless LAN (WLAN)
• Bluetooth Low Energy v4.2 (BLE)
• Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
• 4 x USB 2.0 Ports
• Extended 40-pin GPIO Header
• Full Size HDMI, MIPI DSI display port, MIPI CSI camera port
• 4-pole stereo audio/composite video output port
• MicroSD card slot for operating system and data storage
• Power over Ethernet (PoE) enabled (requires separate PoE HAT)
• Power supply requirements – 5V/2.5A DC via micro USB or GPIO

Applications

Embedded Design & Development, Electronics Design, Hobby & Education, Communications & Networking, Consumer Electronics, IoT (Internet of Things)
