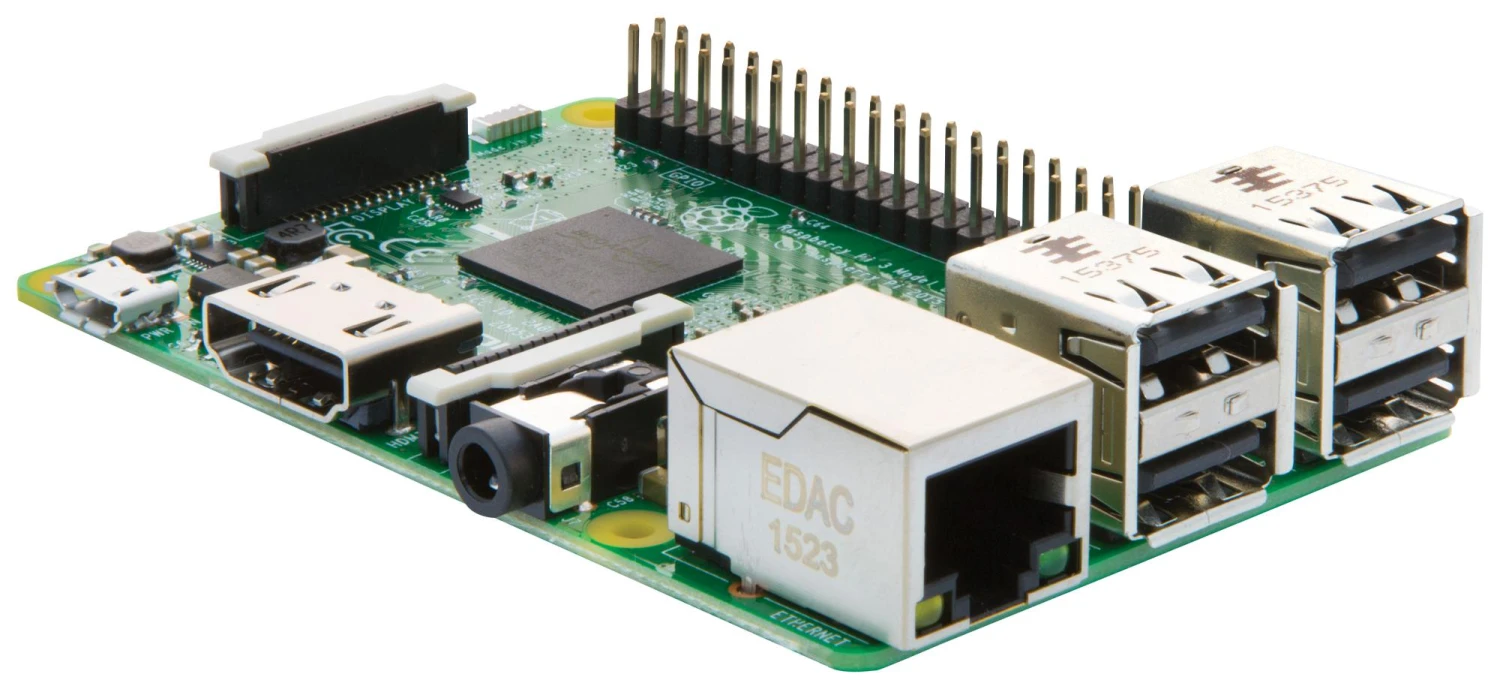

- Quad Core 1.2GHz Broadcom BCM2837 64bit CPU
- 1GB RAM
- BCM43438 WiFi and Bluetooth Low Energy (BLE) on board
- 40-pin Extended GPIO
- 4x USB 2 ports
- 4 Pole stereo output and composite video port
- Full size HDMI
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- Micro SD port for loading your operating system and storing data
- Upgraded switched Micro USB power source up to 2.5A
Applications
Communications & Networking, Wireless, Hobby & Education, Consumer Electronics
Product details
| SOC Type:
Broadcom BCM2837 |
| Core Type:
64-bit ARM Cortex-A53 |
| No. of Cores:
4Cores |
| GPU:
VideoCore IV |
| CPU Speed:
1.2GHz |
| RAM Memory Size:
1GB |
| USB Ports:
USB 2.0 x 4 |
| Ethernet Ports:
10/100M Ethernet |
| HDMI Ports:
Full Size HDMI x 1 |
| Product Range:
Raspberry Pi 3 Model B |
| Audio / Video Interface:
3.5mm Audio Jack |
| General Purpose I/O:
40Pins |
| Display Interface:
Supported |
| Memory Card Support:
microSD |
| Camera Interface:
Supported |
| Wi-Fi Connectivity:
Supported 802.11n |
| Bluetooth Connectivity:
Bluetooth 4.1 BLE |
| Power Inlet:
microUSB or GPIO |
| Power Over Ethernet:
– |
Other details
| Brand | RASPBERRY-PI |
| Part Number | RASPBERRYPI3-MODB-1GB |
| Quantity | Each |
| Technical Data Sheet EN |
