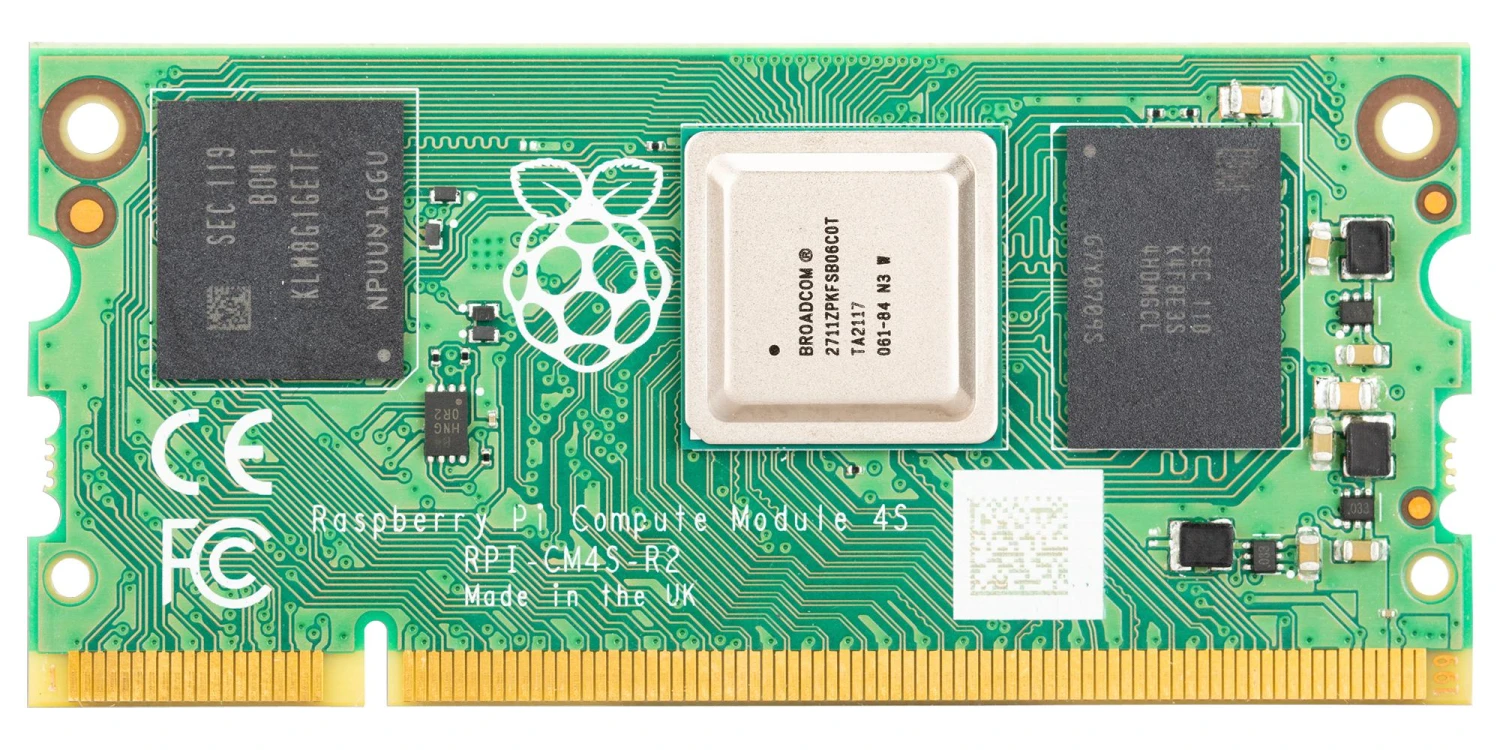

RASPBERRY-PI CM4S01016B SBC, RPI Compute Module 4S, BCM2711, ARM Cortex-A72, 1GB RAM, 16GB EMMC, HDMI 2.0, USB 2.0, Bulk(Raspberry Pi Cm4s01016b Sbc Rpi Compute Module 4s Bcm2711 Arm Cortex A72 1gb Ram 16gb Emmc Hdmi 2 0 Usb 2 0 Bulk)

COMPUTE MODULE 4 SODIMM (CM4S) is a System on Module (SoM) containing processor, memory, eMMC Flash, and supporting power circuitry. It allows a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. The design of the CM4S is loosely based on the Raspberry Pi 4 Model B, and for cost-sensitive applications it can be supplied without the eMMC fitted; this version is called the Raspberry Pi Compute Module 4 SODIMM Lite (CM4SLite). The CM4S is in the same form factor as the older Raspberry Pi Compute 3 and 3+ modules, which are mechanically compatible with DDR2-SODIMM.

• Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• Features 1GB RAM, 16GB eMMC storage
• DDR2-SODIMM-mechanically-compatible form factor
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics
• 1 Ã� USB 2.0 port (high speed)
• 46 Ã� GPIO supporting either 1.8V or 3.3V signalling and peripheral options
• 1 Ã� HDMI 2.0 ports (up to 4Kp60 supported)
• MIPI DSI, MIPI CSI-2 interface
