RASPBERRY-PI CM4IO CM4IO Compute Module 4 I/O Board Raspberry Pi BCM2711 ARM Cortex-A72(Raspberry Pi Cm4io Cm4io Compute Module 4 I O Board Raspberry Pi Bcm2711 Arm Cortex A72)

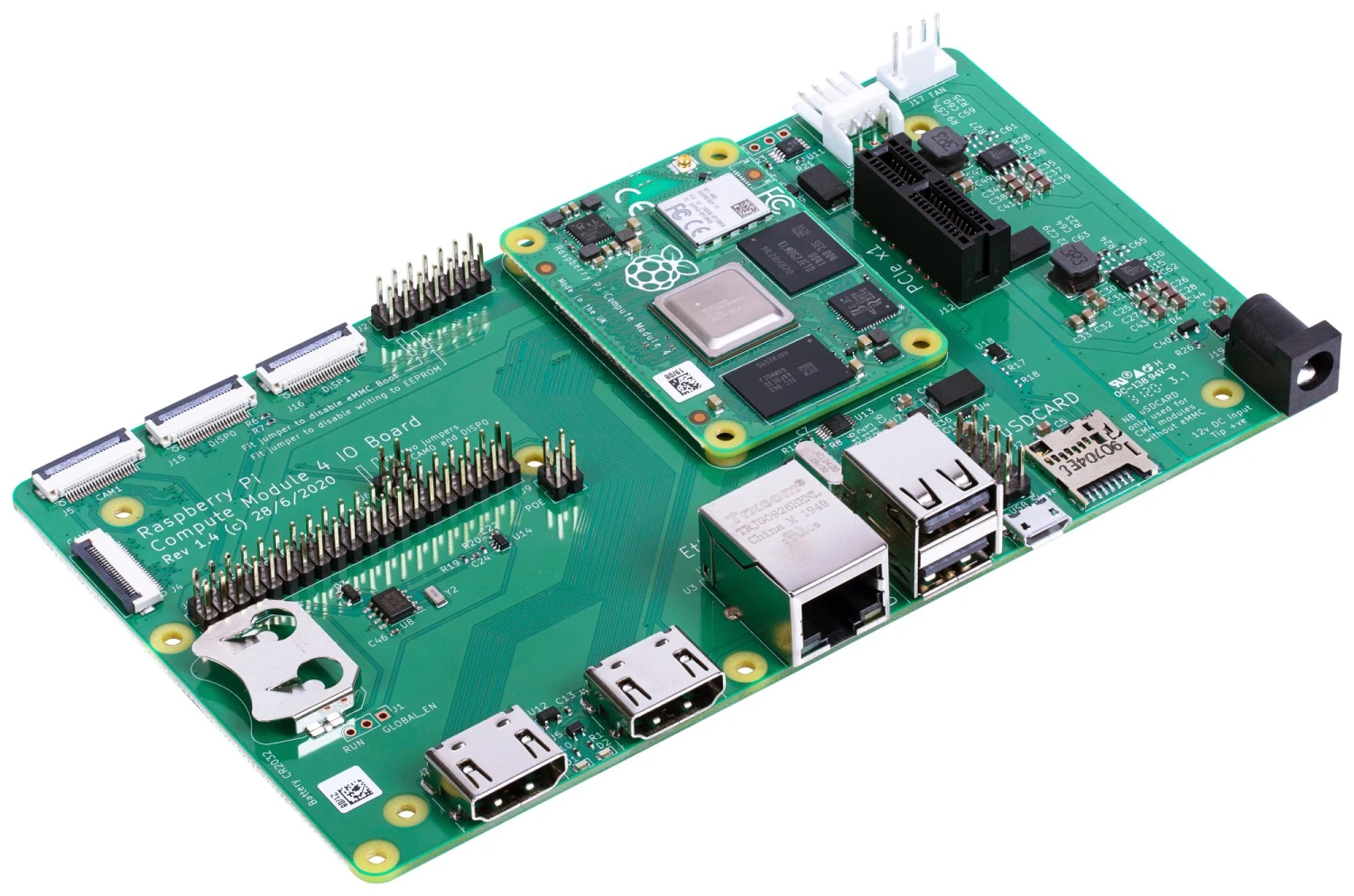

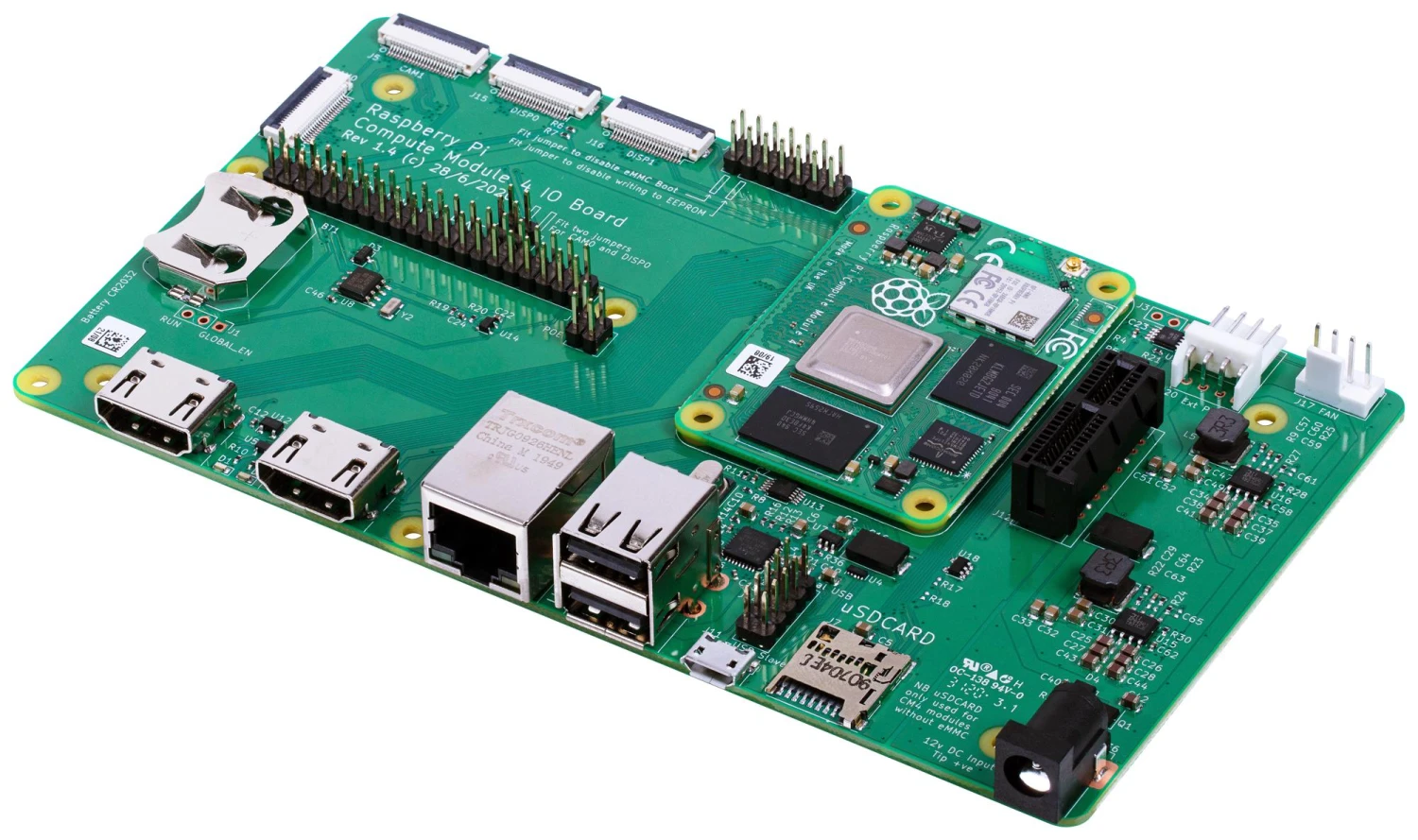

Raspberry Pi Compute Module 4 IO board (CM4IO) is designed to assist in the development of products that make use of the Raspberry Pi Compute Module 4. The Raspberry Pi Compute Module 4 IO Board contains many of the interfaces that the Raspberry Pi 4, Model. The significant difference between CM4IO and Raspberry Pi 4, Model B is the addition of a single PCIe socket. The CM4IO has been designed as both a reference design for CM4 or to be used directly as a product with the possible addition of PCIe Cards and Raspberry Pi HATs.

• External +12V PSU
• 2 x full-size HDMI 2.0 connectors
• Gigabit Ethernet RJ45 with POE support
• 2 x USB 2 socket, with header for two more sockets
• Micro USB socket for updating the CM4 and micro SD card socket for CM4Lite modules
• PCIe Gen 2 socket
• Standard Fan connector
• External power connector (+5V, +12V)
• 2 x MIPI DSI display FPC connectors, 2 x MIPI CSI-2 camera FPC connectors
• RTC with battery socket and ability to wake up CM4

Other details

Brand	RASPBERRY-PI
Part Number	CM4IO
Quantity	Each
Technical Data Sheet EN
