QNAP QSW-M3216R-8S8T-US Overview
- 1Description
- 2User-Friendly Management Interface
- 3Layer 2 Network
- 4Effective Heat Dissipation

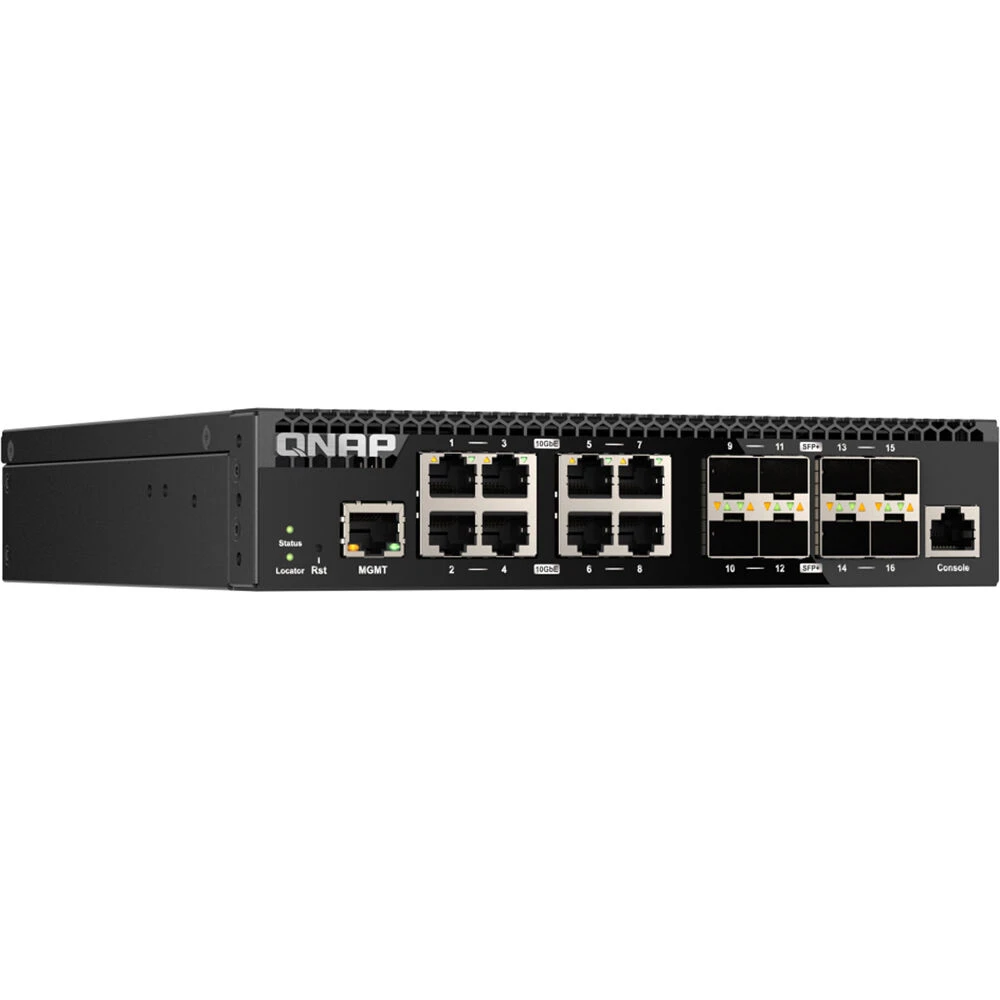

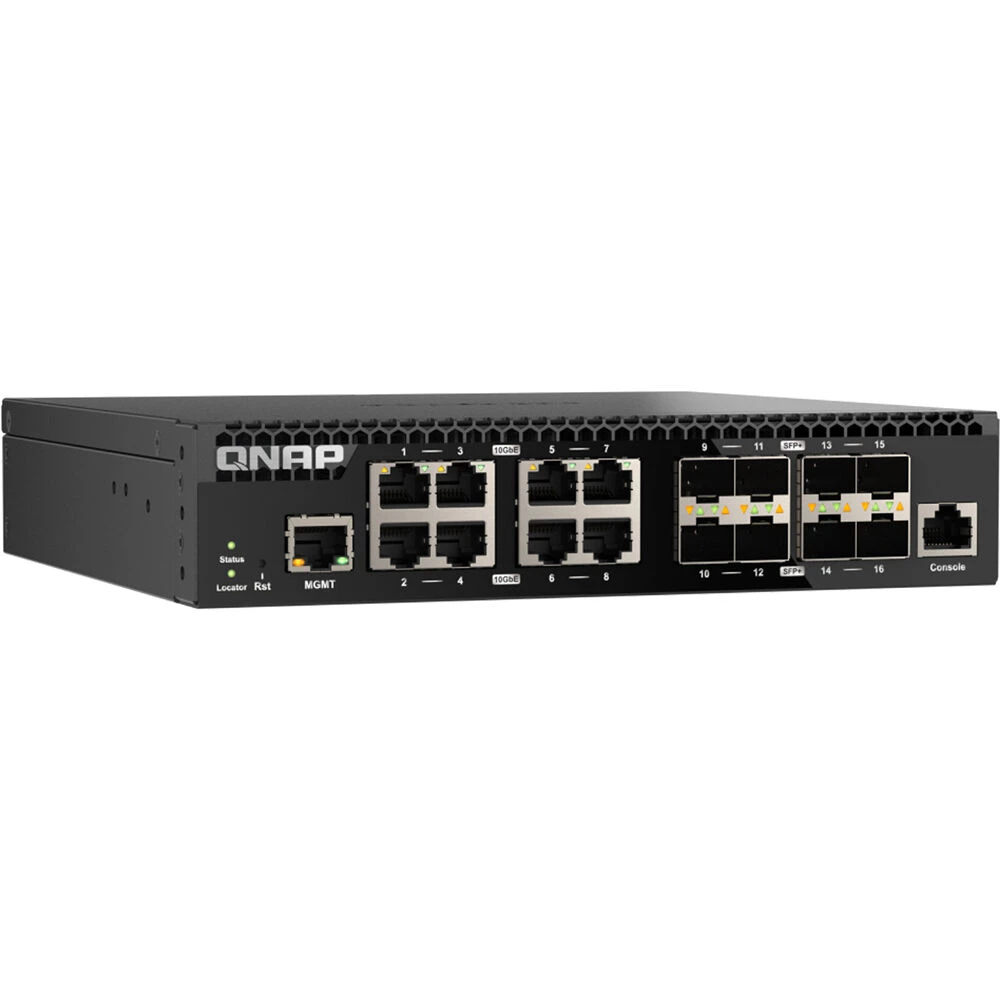

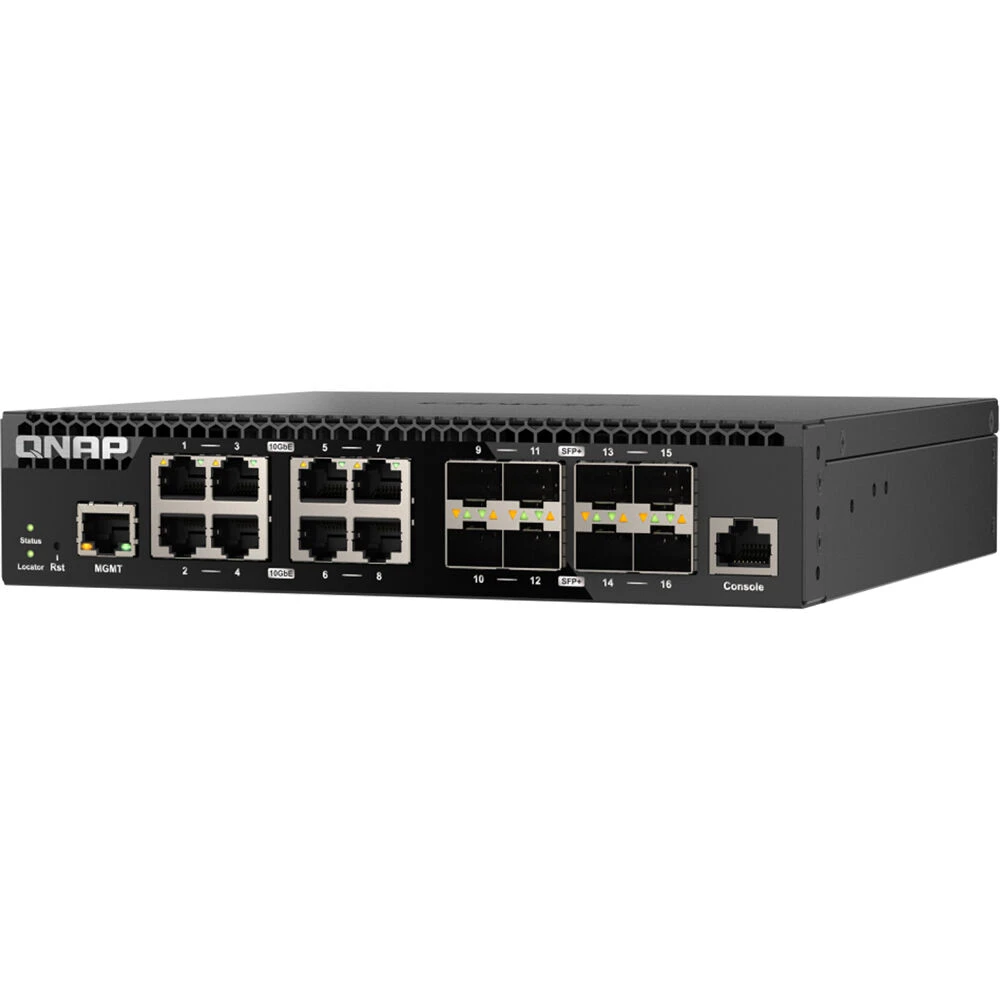

Grow your home or business’s network with ease by including the QNAP QSW-M3216R-8S8T 16-Port 10G RJ45 / SFP+ Managed Network Switch. Designed for hassle-free, high-speed connectivity, this 16-port entry-level network switch provides up to 10 Gb/s connectivity to compatible RJ45 Ethernet and SFP+ devices.

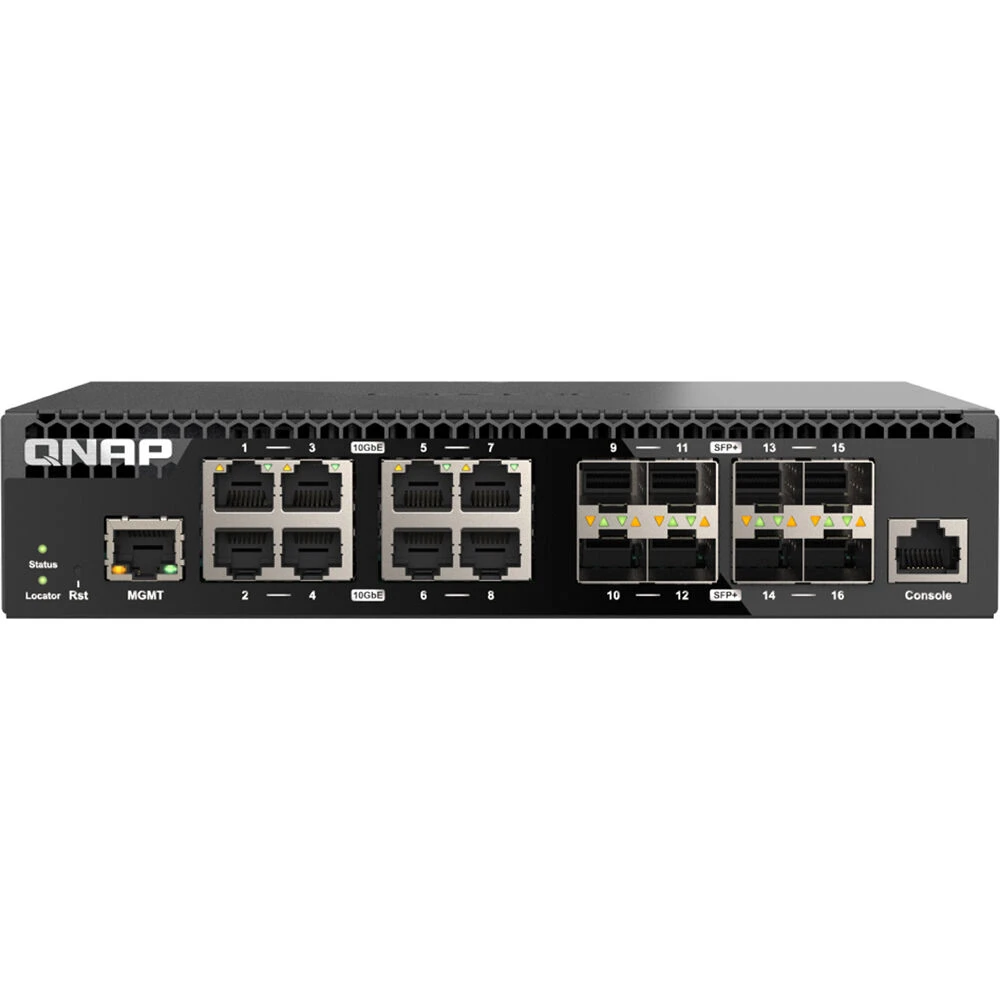

Eight RJ45 Ethernet ports are available alongside eight SFP+ fiber ports with a 320 Gb/s (160 Gb/s non-blocking) switching capacity, providing smooth and fast data connections to compatible computers, servers, NAS systems, and other network devices. Its half-width design allows you to maximize your installation by fitting up to two switches into 1 RU of rackmount space. This Layer 2 switch may be managed through the QNAP Switch System web-based interface.
In the Box
- QNAP QSW-M3216R-8S8T 16-Port 10G RJ45 / SFP+ Managed Network Switch
- Power Cable
- Limited 2-Year Manufacturer Warranty
- Description
- User-Friendly Management Interface
- Layer 2 Network
- Effective Heat Dissipation
QNAP QSW-M3216R-8S8T-US Specs
| Inputs/Outputs |
8 x RJ45 10 GbE 8 x SFP+ 10 GbE |
| Inputs/Outputs |
8 x RJ45 10 GbE 8 x SFP+ 10 GbE |
| Layer Services Supported |
Layer 2 |
| Supported Protocols |
IGMP Snooping IPv4 |
| Jumbo Frames Support |
9000 Bytes |
| MAC Address Table Size |
16K |
| Supported IEEE Standards |
802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z |
| Switching Bandwidth |
160 Gb/s (Non-Blocking) 320 Gb/s |
| Power Draw |
80.00 W (Max) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type |
Internal |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
5 to 95% |
| Certifications |
FCC, CE, VCCI, BSMI |

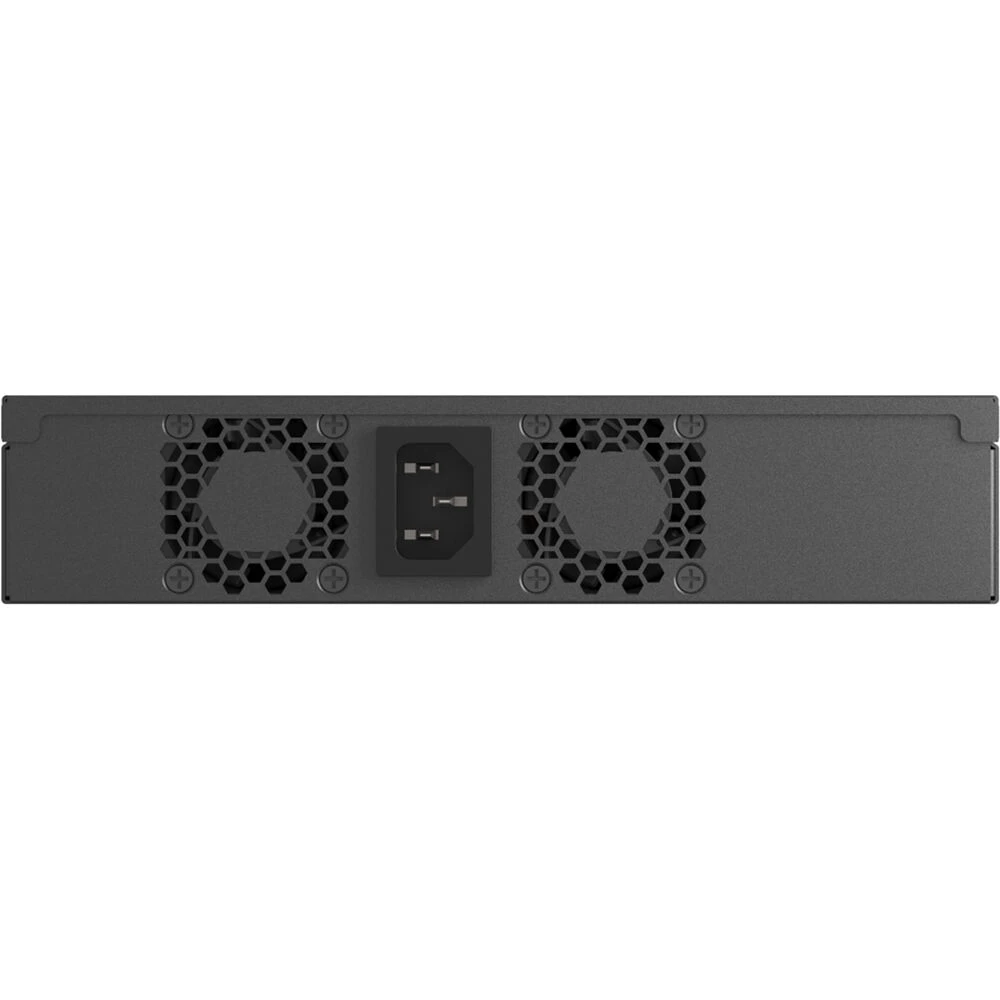

| Cooling System |
Fan |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, Power, Status |
| Rack Form Factor |
1 RU |
| Dimensions |
8.1 x 7.9 x 1.7″ / 207 x 199.5 x 43.3 mm |
| Weight |
3.35 lb / 1.52 kg |
| Package Weight |
5.045 lb |
| Box Dimensions (LxWxH) |
13.8 x 11.8 x 3.5″ |
