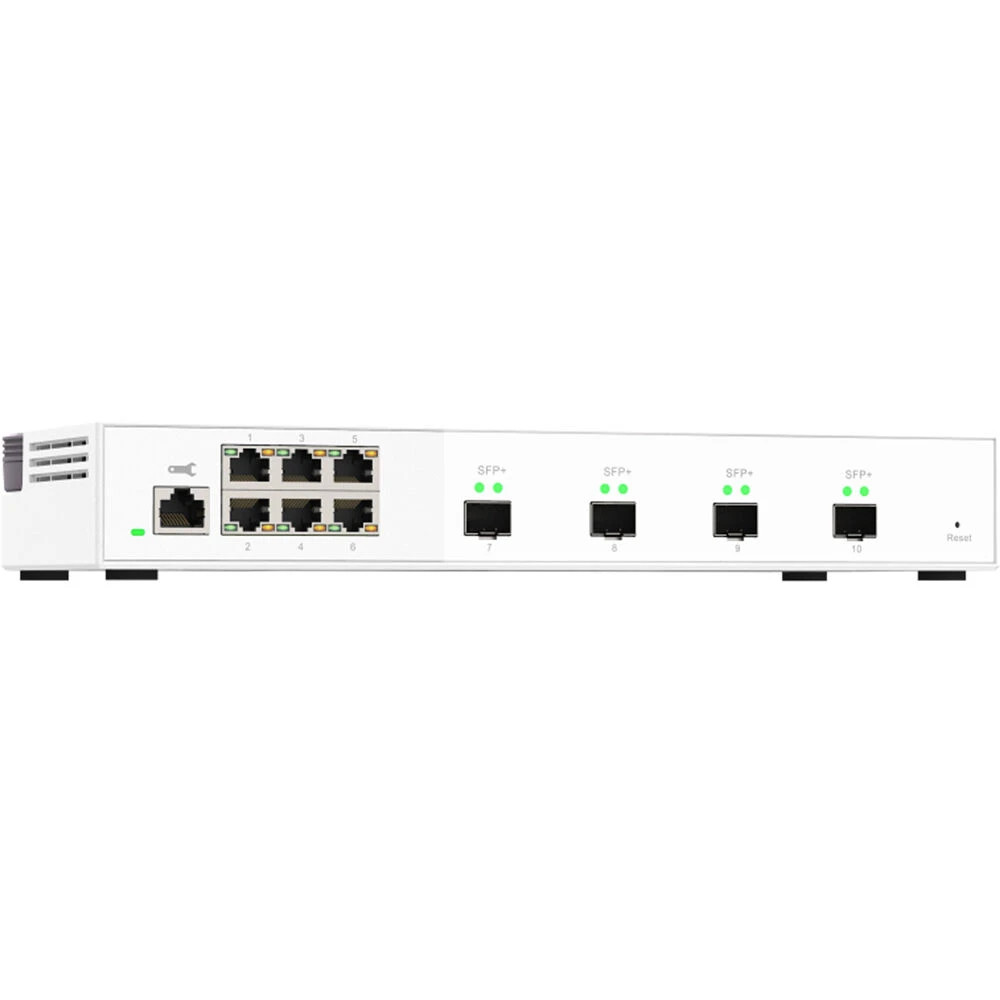

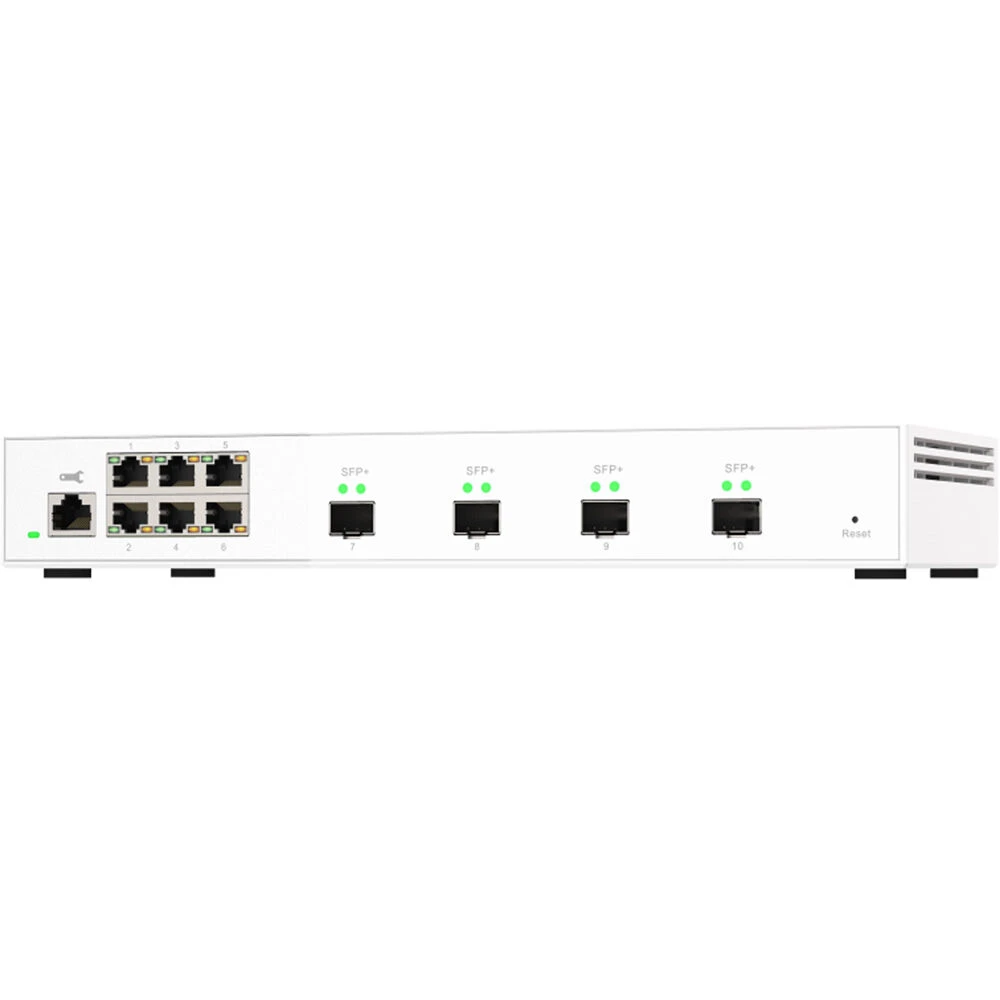

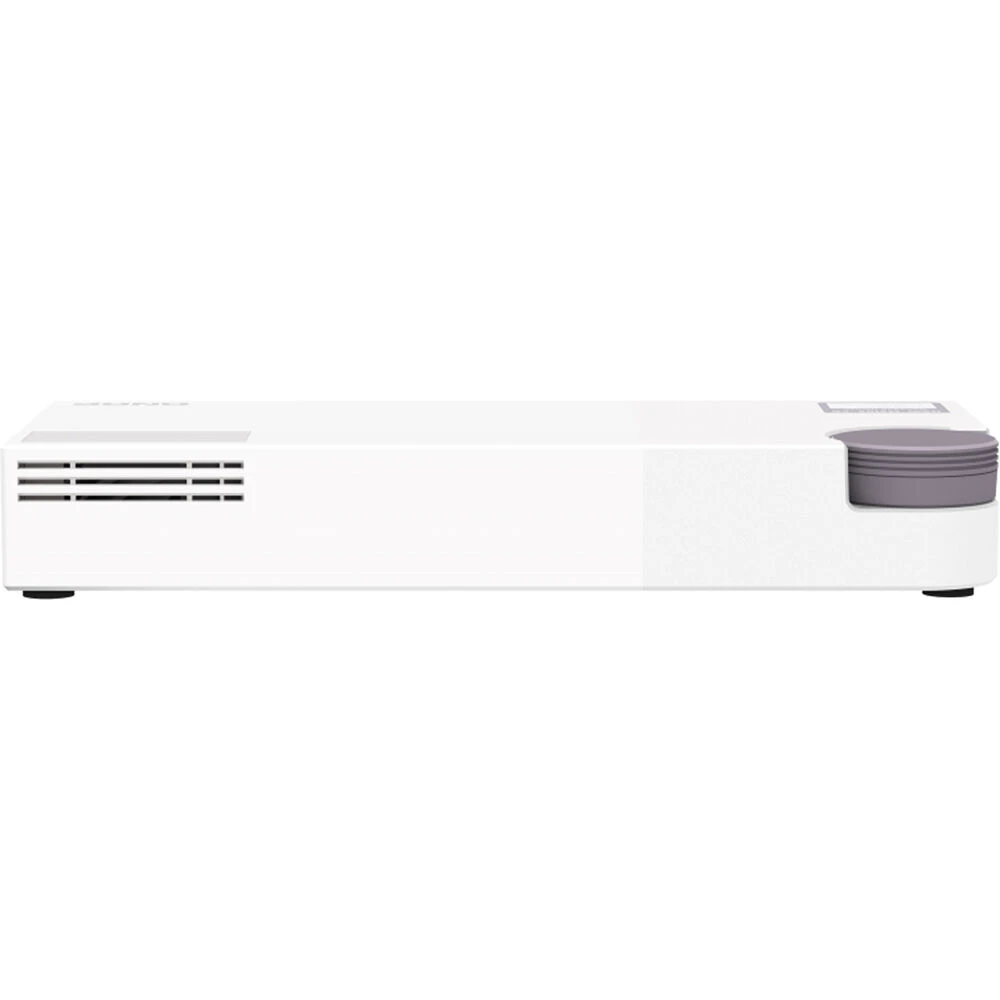

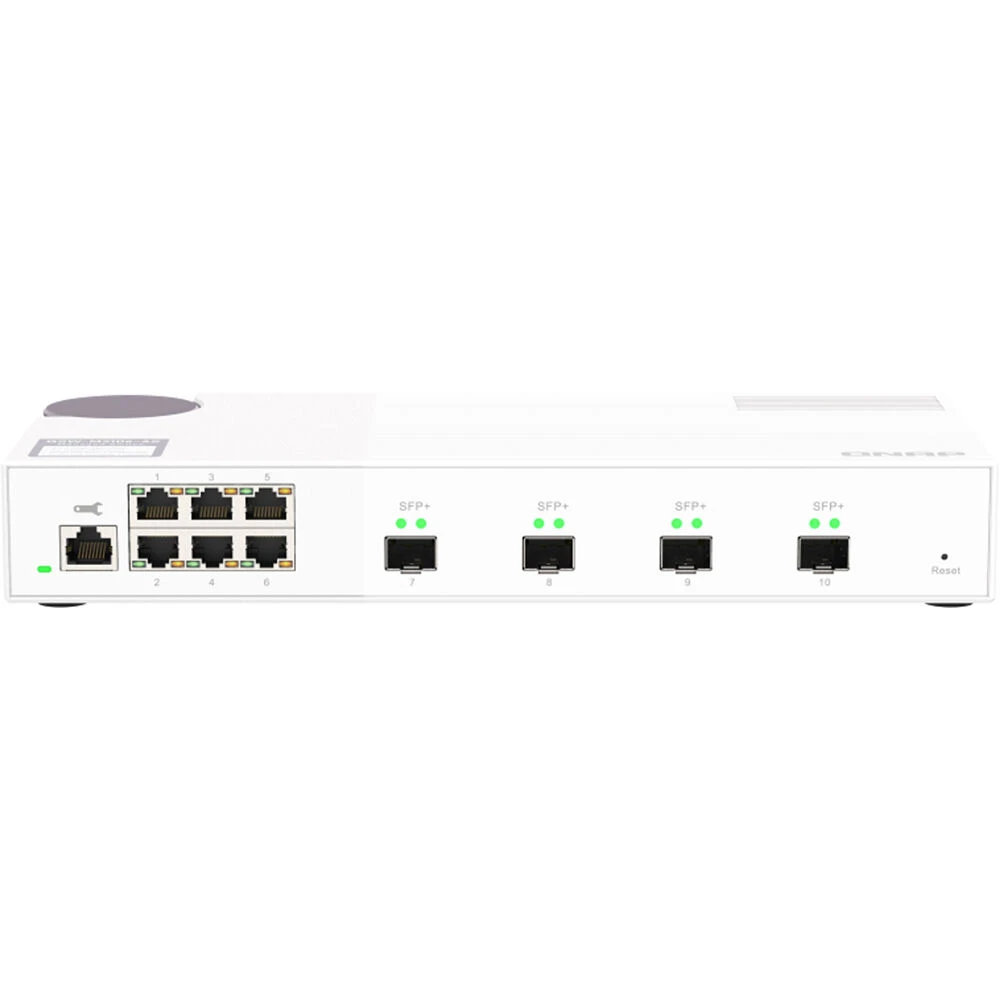

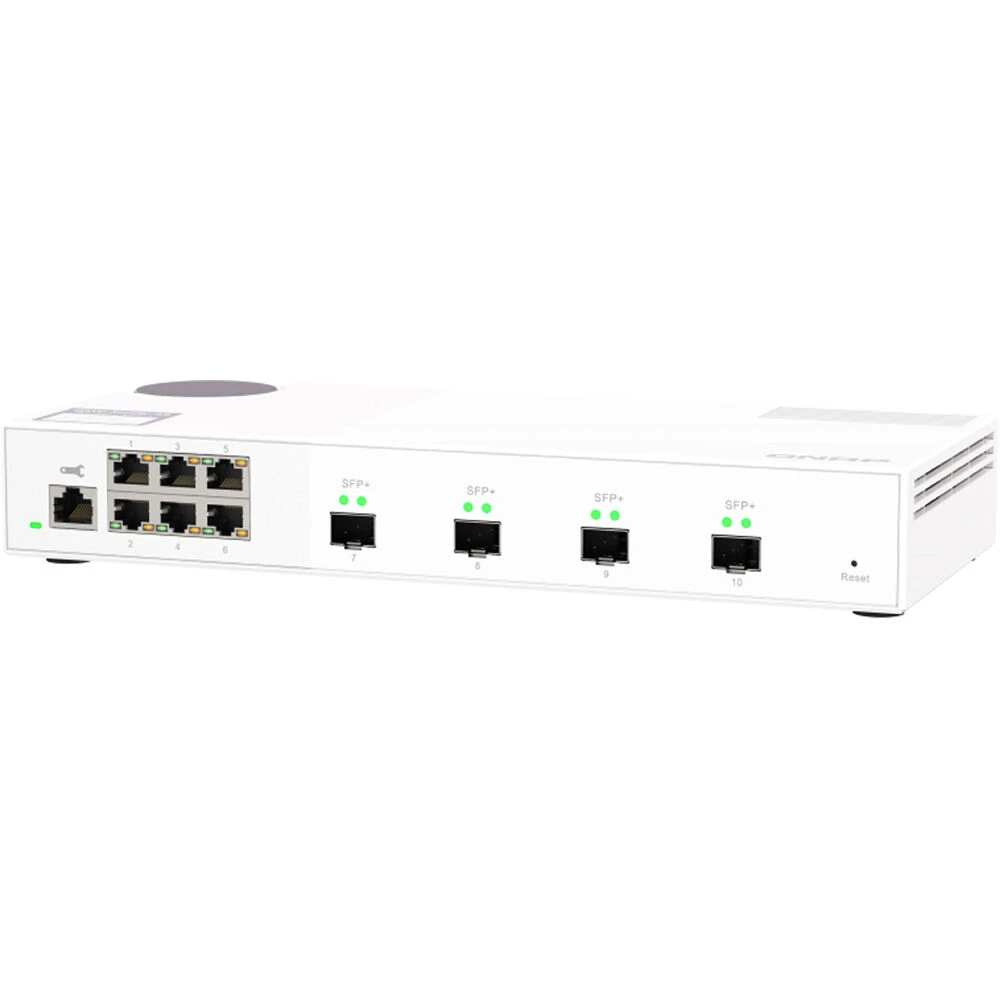

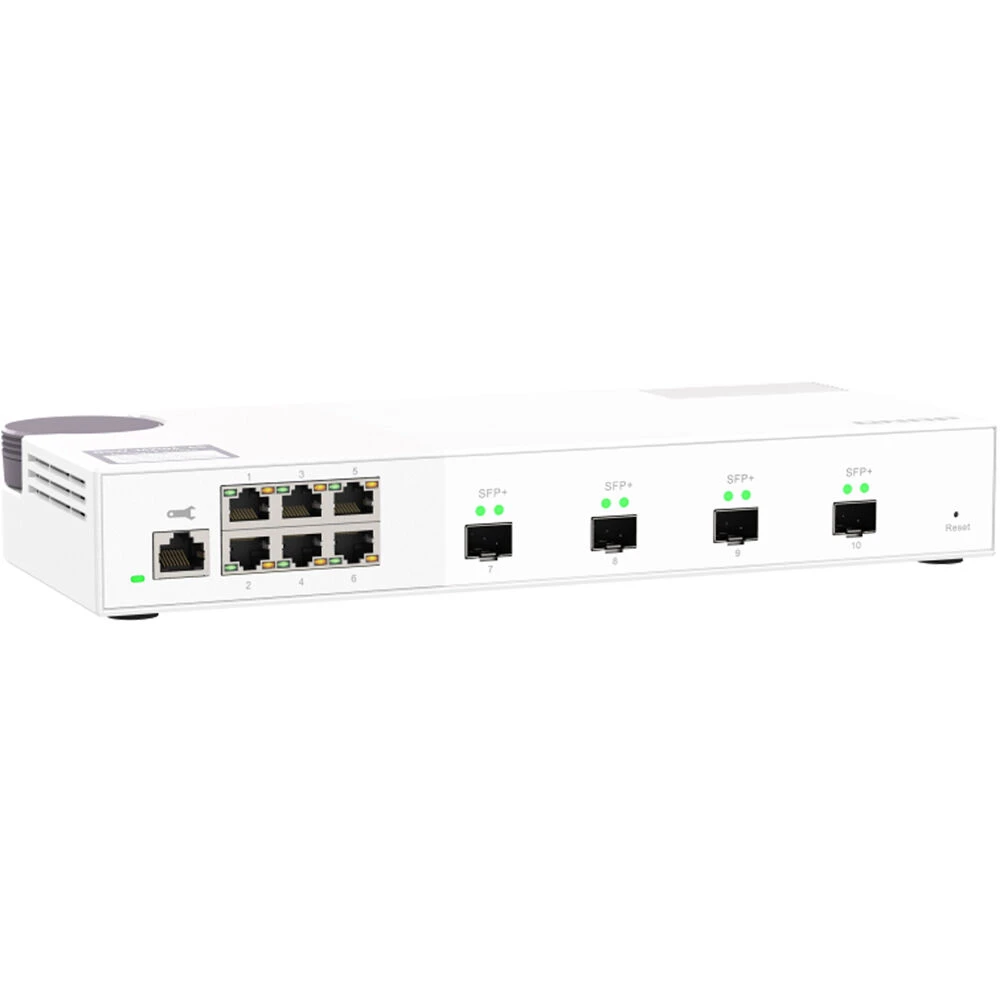

QSW-M2106-4S 10-Port 10GbE/2.5GbE Layer 2 Web Managed Switch from
QNAP features four 10GbE SFP+ ports and six 2.5GbE ports. Thanks to support for Layer 2 switching and network management via the QNAP Switch System (QSS) interface, the QSW-M2106-4S offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With high performance, user-friendly management, and a desktop form factor, the QSW-M2106-4S is a cost-effective upgrade for those looking to install a 2.5GbE or 10GbE network, while also optimizing bandwidth and ensuring secure network maintenance.
QNAP 2.5GbE/10GbE switches support 2.5Gb/10Gb and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A Fast NAS
A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade Desktops and Servers
Servers and desktops can install QNAP PCIe network cards that support 10Gb/5Gb/2.5Gb/1Gb/100Mb Multi-Gig.
Add a 5GbE/10GbE Port to Laptops
Laptops and upgrade-limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter, allowing you to connect to 5Gb/2.5Gb/1Gb/100Mb networks.
View real-time system information, port connection status, and port traffic.
Port Management
View port status, port packet statistics, and configure port speeds.
Setting Guide
Quickly learn how to set up the network using the introduction and step-by-step guide.
Exclusive Status Chart Referencing
Refer to four major status charts during each configuration to avoid going back and forth between different settings pages.
Online Firmware Check and Update
Keep your QNAP switch secure with one-click firmware updates.
In the Box
- QNAP QSW-M2106-4S 10-Port 10GbE/2.5GbE Layer 2 Web Managed Switch
- Power Cord
- Power Adapter
- Limited 2-Year Manufacturer Warranty
- Description
- Flexible Deployment with Multiple 10G SFP+ Fiber and Gigabit Ports
- Port Compatibility
- Fully Embrace High-Speed Networking with QNAP
- QSS: Human-Centered Settings Guide
- Optimize Network Performance with Bandwidth and Packet Control
- Desktop Form Factor for Easy Use in Offices
QNAP QSW-M2106-4S-US Specs
| Inputs/Outputs | 4 x 10Gb SFP+ 6 x 2.5 Gb/s Ethernet (RJ45) 1 x Ethernet (RJ45) |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | DHCP Server IPv4 |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16000K |
| Supported IEEE Standards | 802.1ab, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z |
| Switching Bandwidth | 110 Gb/s 55 Gb/s (Non-Blocking) |
| Processor | Marvell |
| CPU | Up to 2.3 GHz Dual-Core |
| Power Draw | 16.00 W (Max) |
| DC Input Power | 12 VDC at 3 A |
| Power Supply Type | External |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Certifications | CE, FCC, VCCI, BSMI *as per Manufacturer |
| Cooling System | Fan |
| Indicator Lights | Link/Activity/Speed, System/Power |
| Dimensions | 11.4 x 5 x 1.7″ / 290 x 127 x 42.5 mm |
| Weight | 2.54 lb / 1.15 kg |
| Package Weight | 3.78 lb |
| Box Dimensions (LxWxH) | 12.9 x 8.6 x 2.4″ |
