QNAP QM2-2P-384A Overview

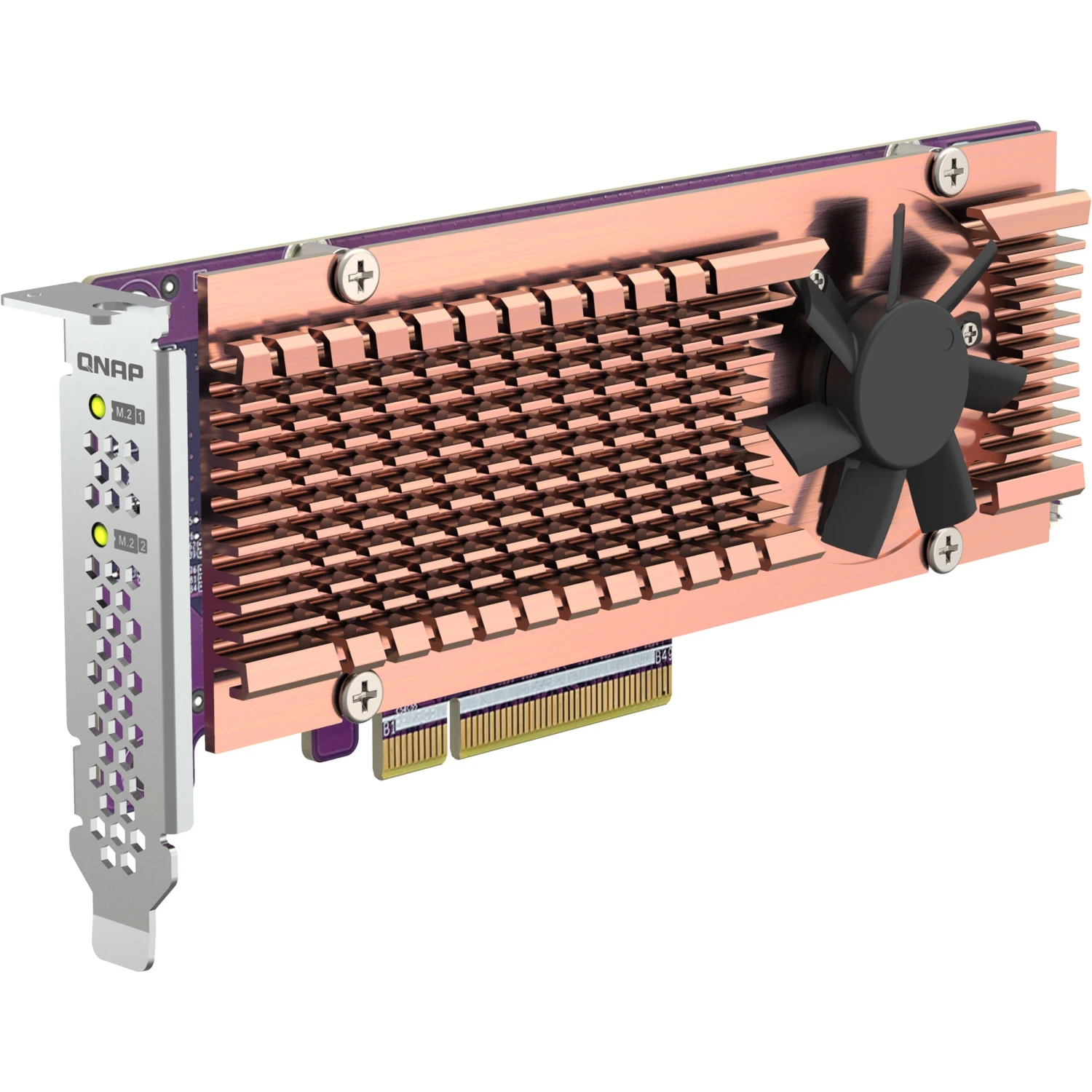

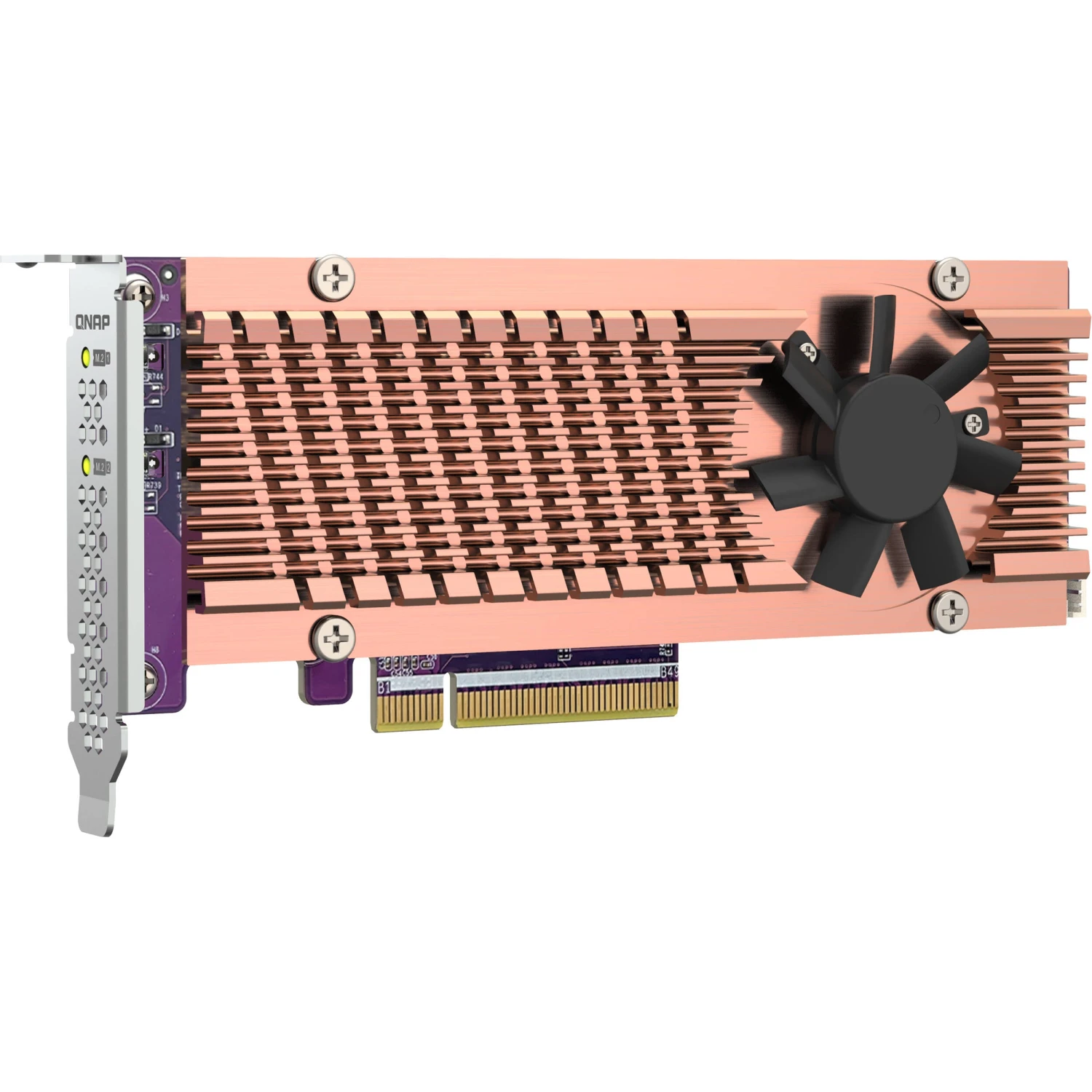

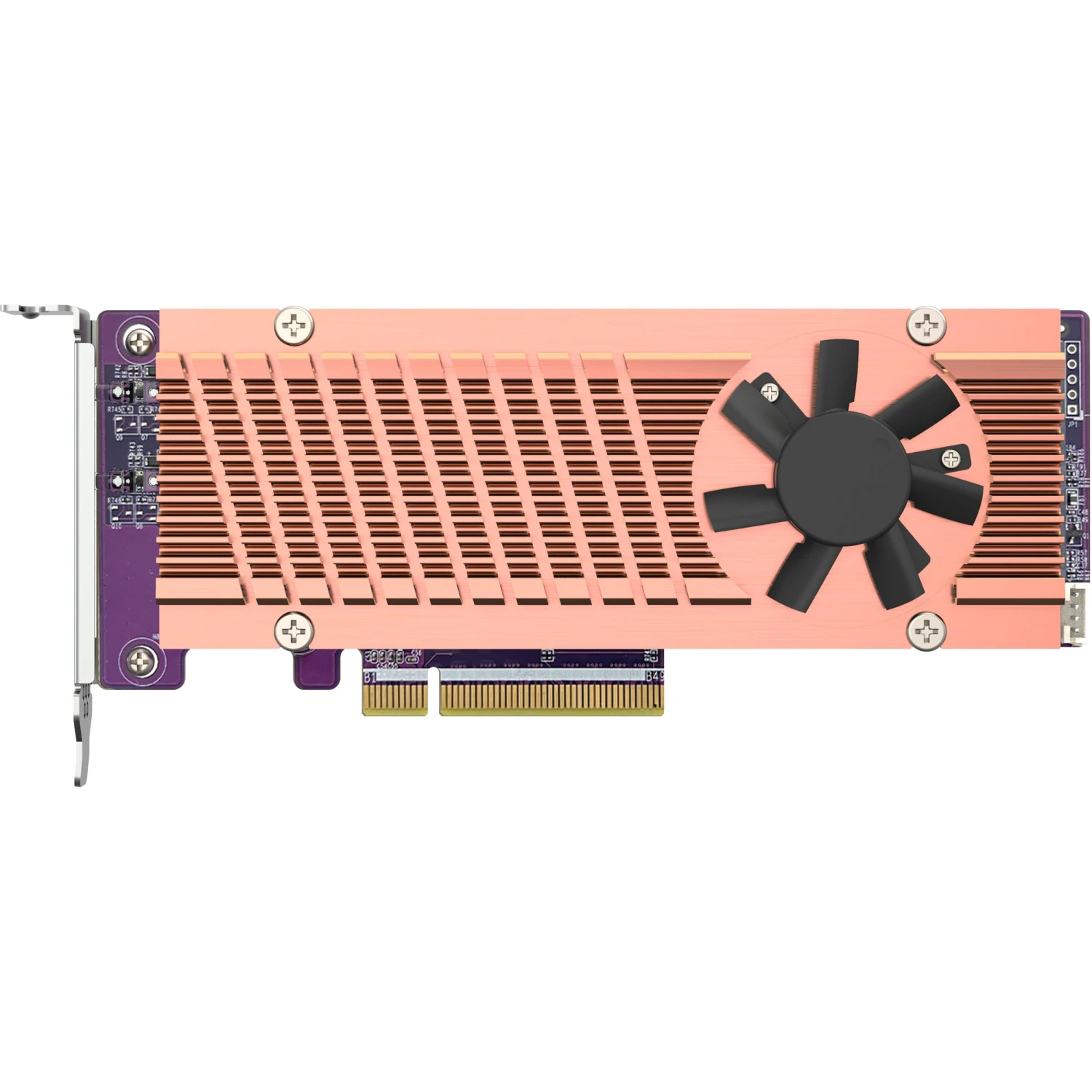

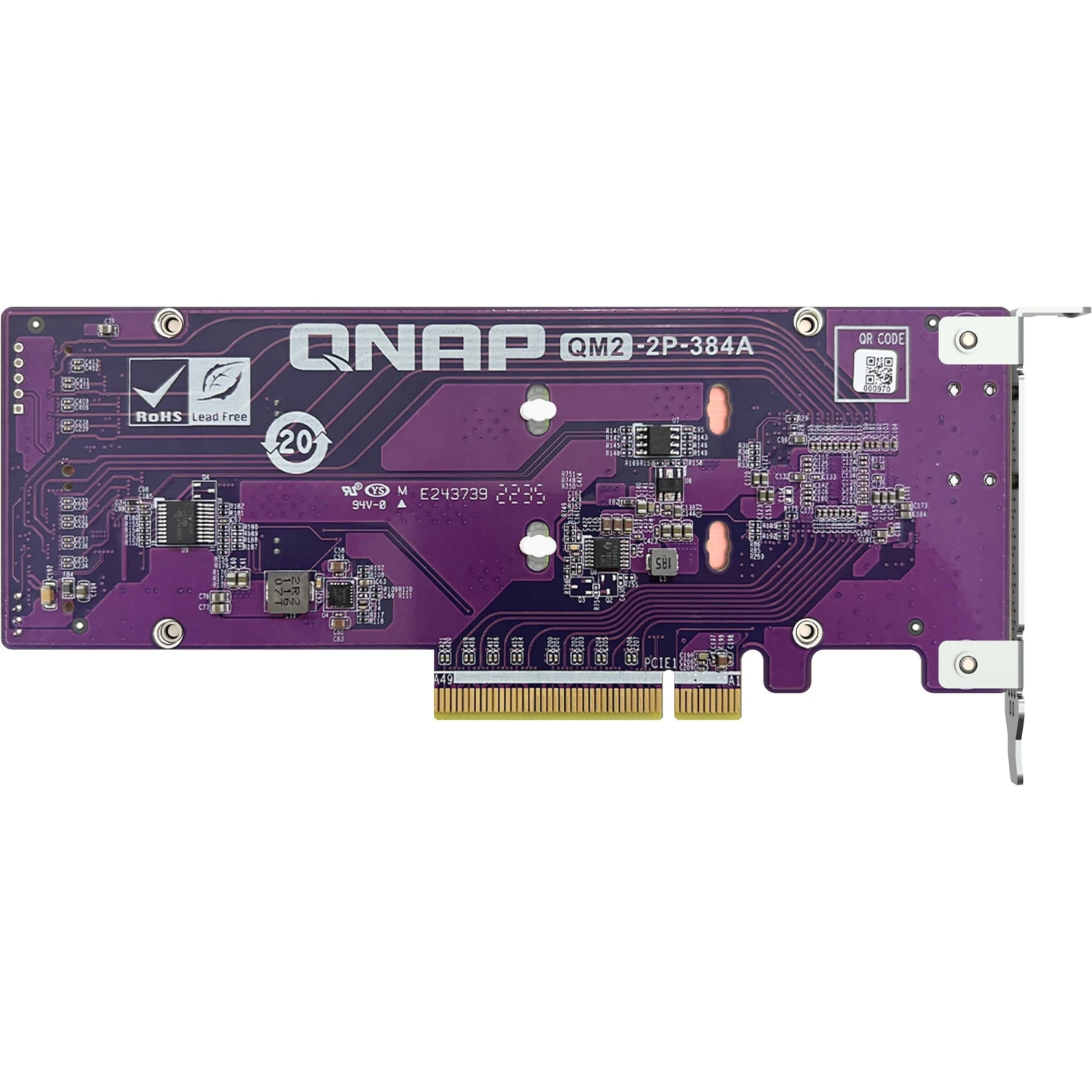

Add support for two M.2 SSDs to your compatible QNAP NAS, Windows/Linux PC, or server using the Dual M.2 22110 / 2280 PCIe Gen3 x8 NVMe SSD Expansion Card from QNAP. The two M.2 slots support 2280 or 22110 NVMe PCIe Gen3 x4 M.2 SSDs and interfaces with your host system using a PCIe Gen3 x8 connection, which provides up to 64 Gb/s of bandwidth. M.2 SSDs can be installed to form caching pools or an auto-tiering volume, while integrated thermal sensors allow for real-time temperature monitoring. A quiet cooling module, made up of a heat sink and a fan, help minimize overheating risks and maintain high performance.

Please be aware that M.2 SSDs are not included.

Fast, Efficient, and Easy to Use

The efficient architecture of the QM2-2P-384A allows you to easily install NVMe SSDs and maximize their performance with a quiet cooling module.

Dual M.2 PCIe Slots

Install M.2 SSDs to configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS/PC performance, with no screwdrivers required.

LED Indicators

Monitor the status of any installed M.2 SSDs with the LED indicators.

Thermal Sensors

Monitor the temperature of any installed M.2 SSDs with the thermal sensors.

Cooling Module and Fan

A quiet cooling module (heat sink and smart fan) helps minimize overheating risks and sustains constant high performance.

SSD Caching

Enable SSD caching to optimize system performance and reduce I/O latency. Caching is especially ideal for IOPS-demanding applications such as virtual machines and systems with a large number of small files.

Qtier

Alternatively, you can set up Qtier auto-tiering to your NAS to improve overall system performance and maximize storage utilization.

Qtier is only supported by x86-based NAS (Intel or AMD) and 64-bit ARM-based NAS with 2GB RAM and QTS 4.4.1 (or later).

Super-Fast NVMe SSD Storage Volume

Photographers and videographers can tackle high-resolution raw multimedia editing directly on NVMe SSD volumes. There will also be improved performance for apps that require faster speeds, including Final Cut Pro, Adobe Premiere Pro, or Adobe After Effects. RAID configurations can help prevent data loss from drive failure and application load times can be minimized by offloading bandwidth-demanding tasks to SSDs.

Multi-OS Support

Add M.2 SSDs to your Windows/Linux computer using the QM2-2P-384A to boost overall IOPS performance. PCIe provides higher bandwidth to deliver faster computing speed and data access.

Supports Common RAID Levels

Configure RAID in the QM2-2P-344A to obtain data protection and/or performance acceleration with your computer’s built-in software RAID 0/1 functionality.

Windows users can set up software RAID groups in “Control Panel” > “Storage Spaces.”
Windows Server users can set up software RAID groups in “Server Manager.”
Ubuntu users must enter commands into “mdadm” to set up software RAID groups.

NAS Compatibility

2 Bays

TS-251D, TS-253B, TS-253Be, TS-264

4 Bays

TS-431XeU, TS-431XU, TS-431XU-RP, TS-432PXU, TS-432PXU-RP, TS-453B, TS-453Be, TS-453BU, TS-453BU-RP, TS-463U, TS-463U-RP, TS-463XU, TS-463XU-RP, TS-464, TS-464U, TS-464U-RP, TS-473, TS-473A, TVS-463, TVS-472XT, TVS-473, TVS-473e, TVS-h474

6 Bays

TS-653B, TS-664, TS-673, TS-673A, TS-677, TS-h686, TVS-663, TVS-672XT, TVS-673, TVS-673e, TVS-675, TVS-682, TVS-682T, TVS-h674

8 Bays

TS-831XU, TS-831XU-RP, TS-832PX, TS-832PXU, TS-832PXU-RP, TS-853BU, TS-853BU-RP, TS-863U, TS-863U-RP, TS-863XU, TS-863XU-RP, TS-864eU, TS-864eU-RP, TS-873, TS-873A, TS-873AeU, TS-873AeU-RP, TS-873AU, TS-873AU-RP, TS-873U, TS-873U-RP, TS-877, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TS-EC880 Pro, TS-EC880U, TS-h886, TVS-863, TVS-863+, TVS-872XT, TVS-872XU, TVS-872XU-RP, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882ST2, TVS-882ST3, TVS-882T, TVS-h874

9 Bays

TS-932PX, TS-977XU, TS-977XU-RP, TS-983XU, TS-983XU-RP, TS-h977XU-RP, TS-h987XU-RP, TVS-972XU, TVS-972XU-RP

10 Bays

TS-EC1080 Pro, TS-h1090FU

12 Bays

TS-1231XU, TS-1231XU-RP, TS-1232PXU-RP, TS-1253BU, TS-1253BU-RP, TS-1263U, TS-1263U-RP, TS-1263XU, TS-1263XU-RP, TS-1264U-RP, TS-1273AU-RP, TS-1273U, TS-1273U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TS-EC1280U, TS-EC1280U R2, TS-h1277XU-RP, TS-h1283XU-RP, TS-h1290FX, TVS-1272XU-RP, TVS-1282, TVS-1282T3, TVS-EC1280U-SAS-RP, TVS-EC1280U-SAS-RP R2, TVS-h1288X

16 Bays

TDS-16489U, TDS-16489U R2, TDS-16489U R2(QTS), TS-1635, TS-1635AX, TS-1673AU-RP, TS-1673U, TS-1673U-RP, TS-1677XU-RP, TS-1683XU-RP, TS-1685, TS-EC1680U, TS-EC1680U R2, TS-h1677XU-RP, TS-h1683XU-RP, TVS-1672XU-RP, TVS-EC1680U-SAS-RP, TVS-EC1680U-SAS-RP R2, TVS-h1688X

18 Bays

TES-1885U, TS-1886XU-RP, TS-h1886XU-RP, TS-h1886XU-RP R2, TS-h1887XU-RP

22 Bays

TS-h2287XU-RP

24 Bays

TDS-h2489FU, TS-2477XU-RP, TS-2483XU-RP, TS-h2477XU-RP, TS-h2483XU-RP, TS-h2490FU, TVS-2472XU-RP

28 Bays

TS-2888X

30 Bays

TES-3085U, TS-h3087XU-RP, TS-h3088XU-RP

Networking

QGD-1600P, QGD-1602P

UPC: 885022025251

In the Box

QNAP Dual M.2 22110 / 2280 PCIe Gen3 x8 NVMe SSD Expansion Card
Low-Profile Flat Bracket
Full-Height Bracket
Limited 1-Year Manufacturer Warranty

QNAP QM2-2P-384A Specs

General

System Connection	PCI Express 3.0 x8
M.2	1 x M Key 2280, 22110 (PCIe 3.0 x4)
RAID	RAID 0, 1
OS Compatibility	Windows Linux *As of December, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	Full-Height, Low-Profile
Cooling	1 x Fan
Status Monitoring	LED Indicator
Dimensions	6.71 x 2.71 x 0.76″ / 17.04 x 6.88 x 1.93 cm

Packaging Info

Package Weight	0.63 lb
Box Dimensions (LxWxH)	11.2 x 5.4 x 2.2″
