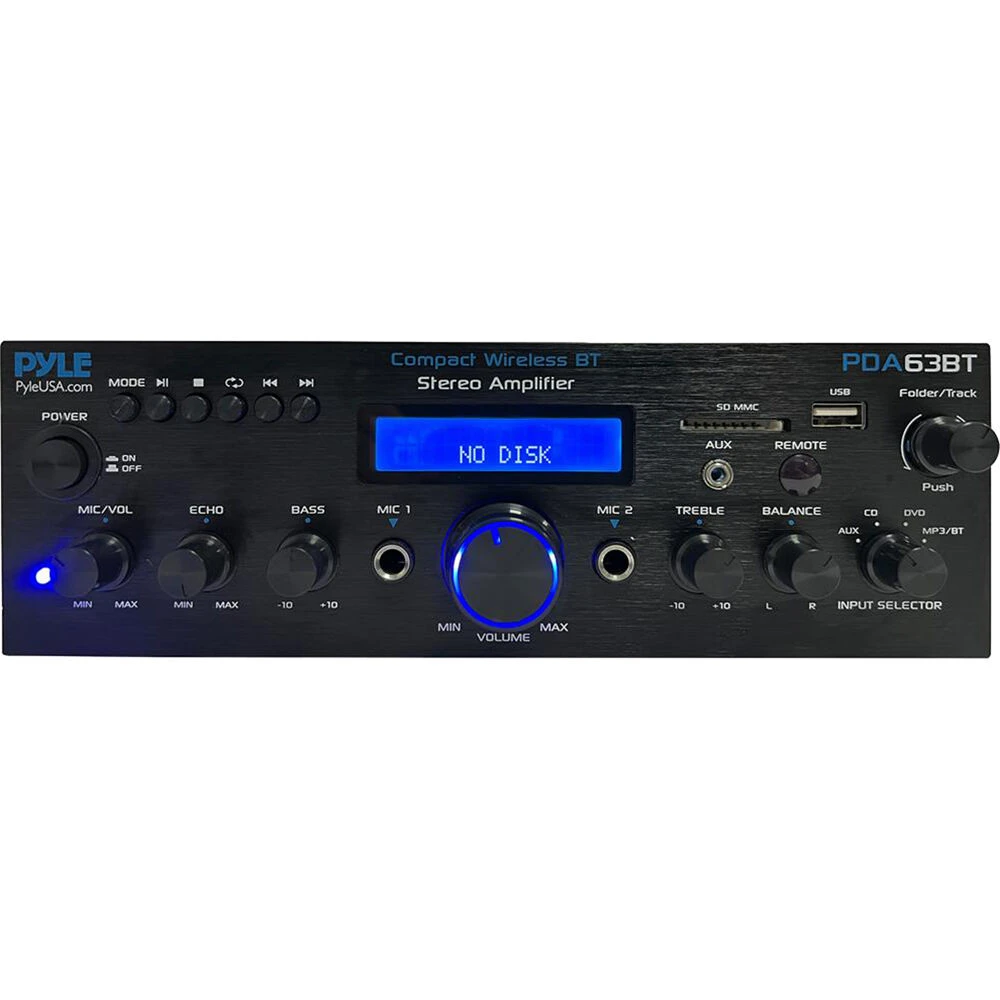

Pyle Pro PDA63BT Overview
Enjoy stereo sound with the compact PDA63BT 2-Channel Receiver with Bluetooth. Connect a pair of speakers and play music from the built-in FM tuner or stream audio wirelessly with a compatible Bluetooth device. Stereo RCA and 3.5mm inputs are available to connect external devices, like CD and MP3 players. There is also a USB-A and SD card reader to play your stored music. The PDA63BT also has two 1/4″ microphone inputs with adjustable echo effect for karaoke nights.
In the Box
- Pyle Pro PDA63BT 2-Channel Receiver with Bluetooth
- Power Cable
- Remote Control (2 x AAA Batteries Not Included)
- FM Antenna
- Limited 1-Year Manufacturer Warranty
User Manual
0.7 MB
Pyle Pro PDA63BT Specs
| Channels |
2.0 |
| Power Output per Channel |
2-Channel Driven: 20 W at 8 Ohms (RMS) |
| Rear A/V Inputs |
2x Stereo RCA Line |
| Front I/O |
2x 1/4″ / 6.35 mm Microphone Input 1x 1/8″ / 3.5 mm Aux Input 1x USB-A Input |
| Wi-Fi |
No |
| Bluetooth |
Yes |
| Channels |
2.0 |
| Power Output per Channel |
2-Channel Driven: 20 W at 8 Ohms (RMS) |
| Frequency Response |
20 Hz to 20 kHz |
| Tone Control |
Bass (100 Hz): ±12.0 dB Treble (10 kHz): ±12.0 dB |
| Supported File Formats |
MP3 via USB/SD Card |
| Rear A/V Inputs |
2x Stereo RCA Line |
| Rear A/V Outputs |
1x Stereo RCA Line-Out |
| Front I/O |
2x 1/4″ / 6.35 mm Microphone Input 1x 1/8″ / 3.5 mm Aux Input 1x USB-A Input |
| Other Rear I/O |
1x FM Coaxial F-Type Input |
| Speaker I/O |
2x Binding Post Pairs |
| Media Card Slot |
Unspecified SD |
| A/B Speaker Selection |
No |
| Bi-Amp Capability |
No |
| Signal to Noise Ratio |
> 71 dB |
| Total Harmonic Distortion (THD) |
< 1% |
| Wi-Fi |
No |
| Bluetooth |
Yes |
| Wireless Range |
40′ / 12.2 m (Bluetooth) |
| External Control Support |
No |
| Mobile App Compatible |
No |
| Tuner Type |
FM |
| Number of Tuner Presets |
FM: 60 Stations |
| Radio Frequencies |
FM: 87.5 to 108 MHz |
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz |
| Dimensions (W x H x D) |
9.8 x 3.9 x 9.8″ / 248.9 x 99.1 x 248.9 mm |
| Package Weight |
6.23 lb |
| Box Dimensions (LxWxH) |
12.7 x 11.5 x 4.8″ |
