Plugable TBT4-UDX1 Overview

For MacBook users, Microsoft Surface devices, and other Thunderbolt 4 equipped laptops, the Plugable Thunderbolt 4 Docking Station offers plug-and-play connection supporting up to two monitors. Using the included Thunderbolt 4 cable, connect this dock to your device while keeping your notebook charged thanks to the 96W of power delivery and included AC adapter and power cord. Thanks to the two Kensington locks, you can keep this dock in place or display it worry-free.

Thunderbolt 4

While providing transfer speeds up to 40 Gb/s, the three Thunderbolt 4 ports are capable of data, video, and high-res audio. For MacBooks with M1 Pro, M1 Max, and M1 Ultra chipsets or later, these Thunderbolt 4 ports support up to dual 6K monitors at 60 Hz. For other compatible devices this dock can output video to one 8K display at 30 Hz, two 4K displays at 60 Hz or a single 4K display at 120 Hz.

Other I/O

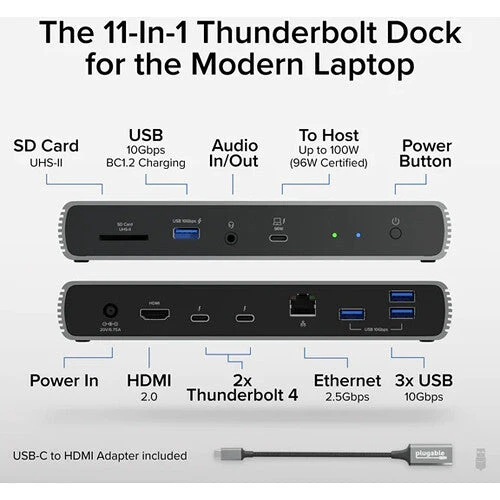

Four USB 3.2 Gen 2 ports with up to 10 Gb/s transfer speeds support peripherals like mice and keyboards as well as flash drives and other accessories. The UHS-II SD 4.0 card reader allows you to transfer files without needing an additional adapter for your SD card. Additionally, the HDMI 2.0 port allows for 4K video output at a 60 Hz refresh rate. A wired network connection that provides more reliable internet is achievable using the 2.5 Gb/s Ethernet port.

In the Box

Plugable Thunderbolt 4 Docking Station
Thunderbolt 4 Cable

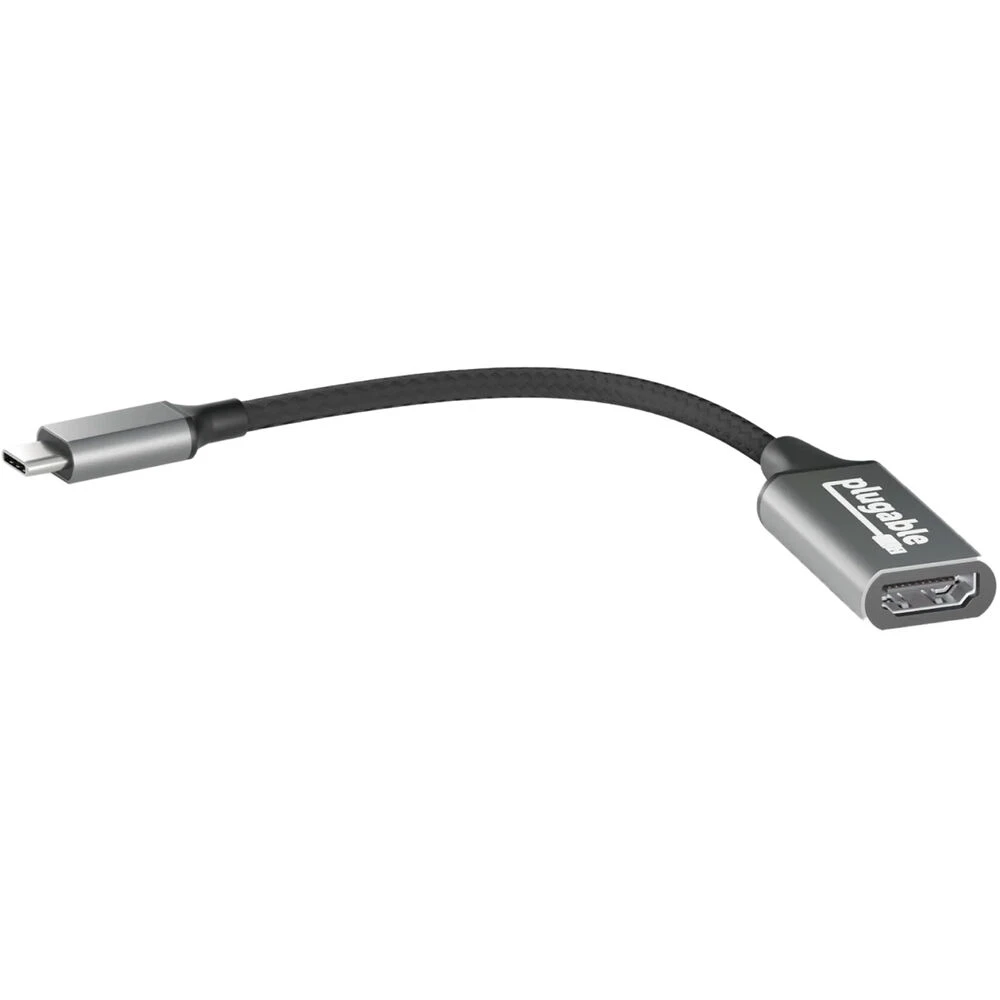

USB-C to HDMI Adapter
Power Cable with Adapter
Limited 2-Year Manufacturer Warranty

Plugable TBT4-UDX1 Specs

Key Specs

USB I/O	4x USB-A 3.1/3.2 Gen 2 / Supports 1.5 A Output 3x USB-C (Thunderbolt 4)
Network I/O	1x RJ45 (2.5 Gb/s)
Video I/O	1x HDMI 2.1 (Female)
Audio I/O	1x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack
Media Card Reader	1x SD (Unspecified Type) (UHS-II [312 MB/s])
System Connection	USB-C (Thunderbolt 4)

Ports

USB I/O	4x USB-A 3.1/3.2 Gen 2 / Supports 1.5 A Output 3x USB-C (Thunderbolt 4)
Network I/O	1x RJ45 (2.5 Gb/s)
Video I/O	1x HDMI 2.1 (Female)
Audio I/O	1x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack
Media Card Reader	1x SD (Unspecified Type) (UHS-II [312 MB/s])

Host Connections

System Connection	USB-C (Thunderbolt 4)
Connection Type	Detachable Cable
Powered Connection	96 W USB Power Delivery 3.0

General

Number of Displays Supported	4
Maximum Resolution Supported	6016 x 3384 at 60 Hz (Dual Display) 3840 x 2160 at 60 Hz (Quad Display) 3840 x 2160 at 60 Hz (Single Display)
OS Compatibility	Windows 10 or Later macOS 11 or Later
UASP Support	No

Power

Power Source	AC Adapter
Power I/O	Barrel Connector (Unspecified Diameter) (Input)
Maximum Power Consumption	180 W (AC Adapter)
Total Current Output	9 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 2.5 A
DC Input Power	20 VDC at 9 A

Environmental

Certifications	FCC, IC, CB, RoHS
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	55%
Storage Temperature	32 to 140°F / 0 to 60°C

Physical

Color	Cool Gray
LED Indicator	Power
Enclosure Material	Aluminum
Lock Slot	Yes, Kensington
Dimensions	7.67 x 2.95 x 1.18″ / 19.48 x 7.49 x 3 cm
Weight	0.95 lb / 431 g
