Plugable USB3-HUB7C Overview
- 1Description
- 2Ready to Connect
- 3Data Sync and USB Charging
- 4Modern Controller
- 5Installation and Compatibility

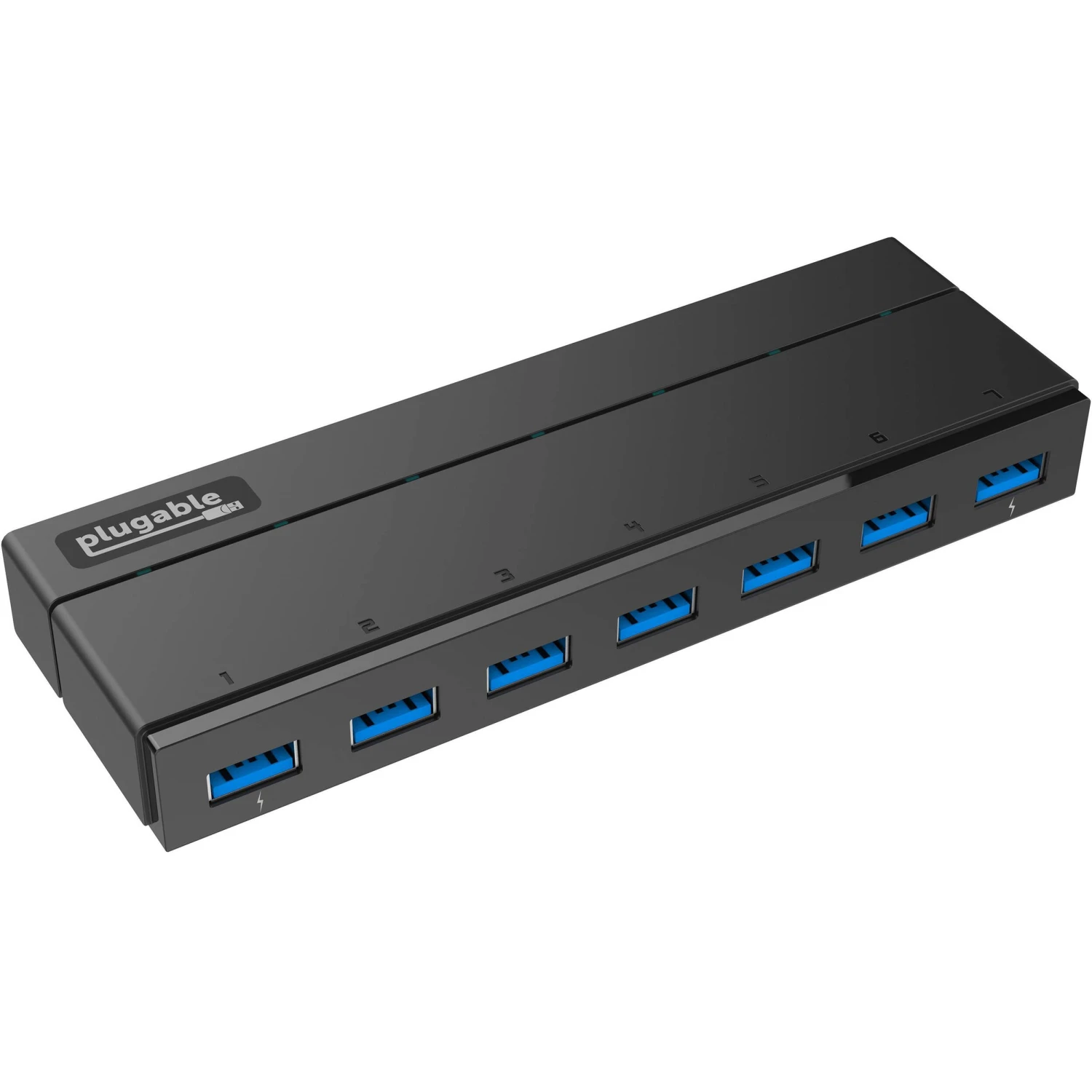

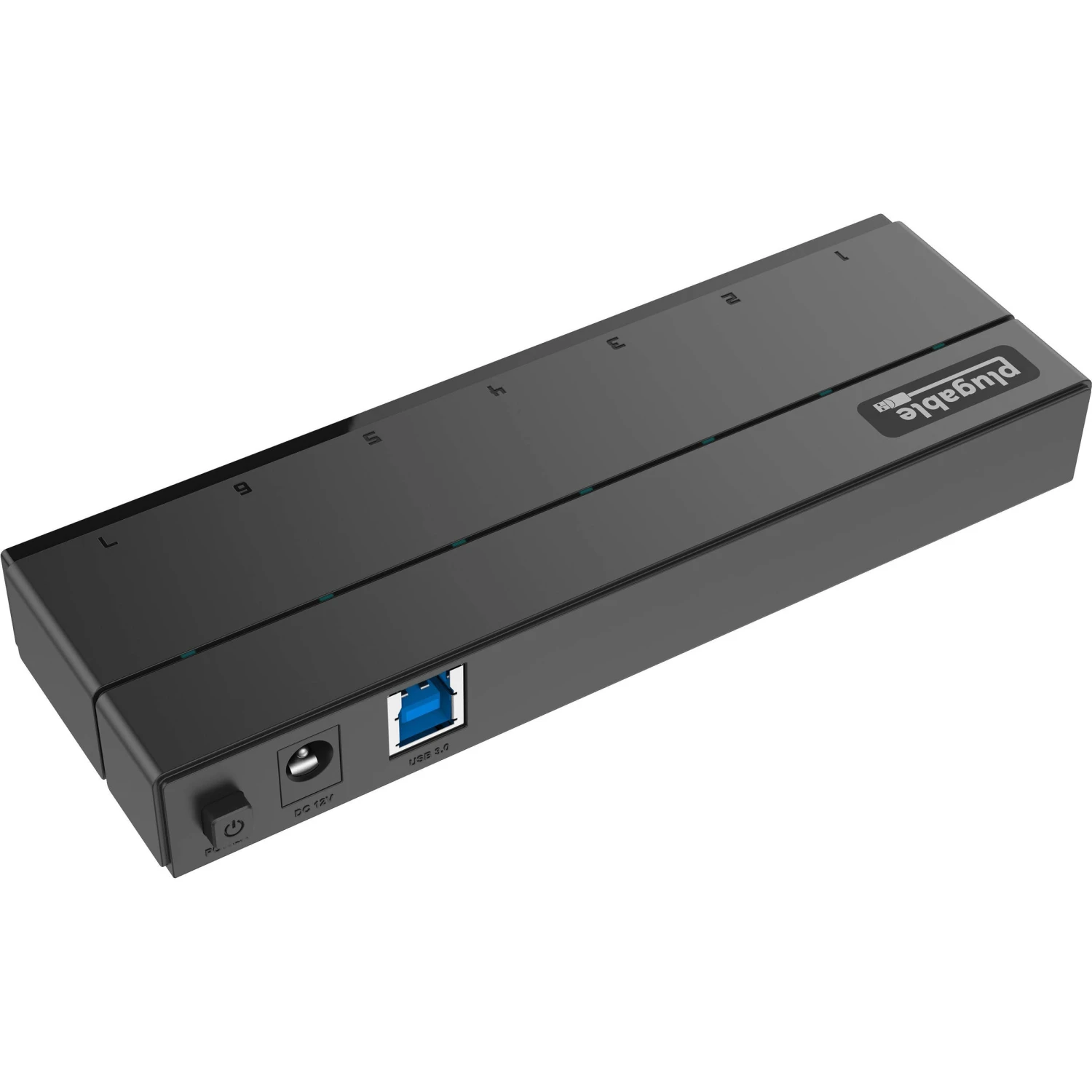

The Plugable 7-Port USB 3.0 Hub expands USB connectivity by enabling up to seven USB 3.0/3.1 Gen 1, 2.0 and 1.1 devices to be added to any USB-A 3.0/3.1 Gen 1 or 2.0 port on a desktop, laptop, or tablet computer. Supporting standard USB 3.0/3.1 Gen 1 transfer rates up to 5 Gb/s, this hub allows data to move quickly between devices, and is ideal for high-throughput accessories such as USB external hard drives, flash drives, and USB graphics adapters. A 36W AC adapter is included. The matte finish resists fingerprints, while a physical on/off switch allows for easy power control.

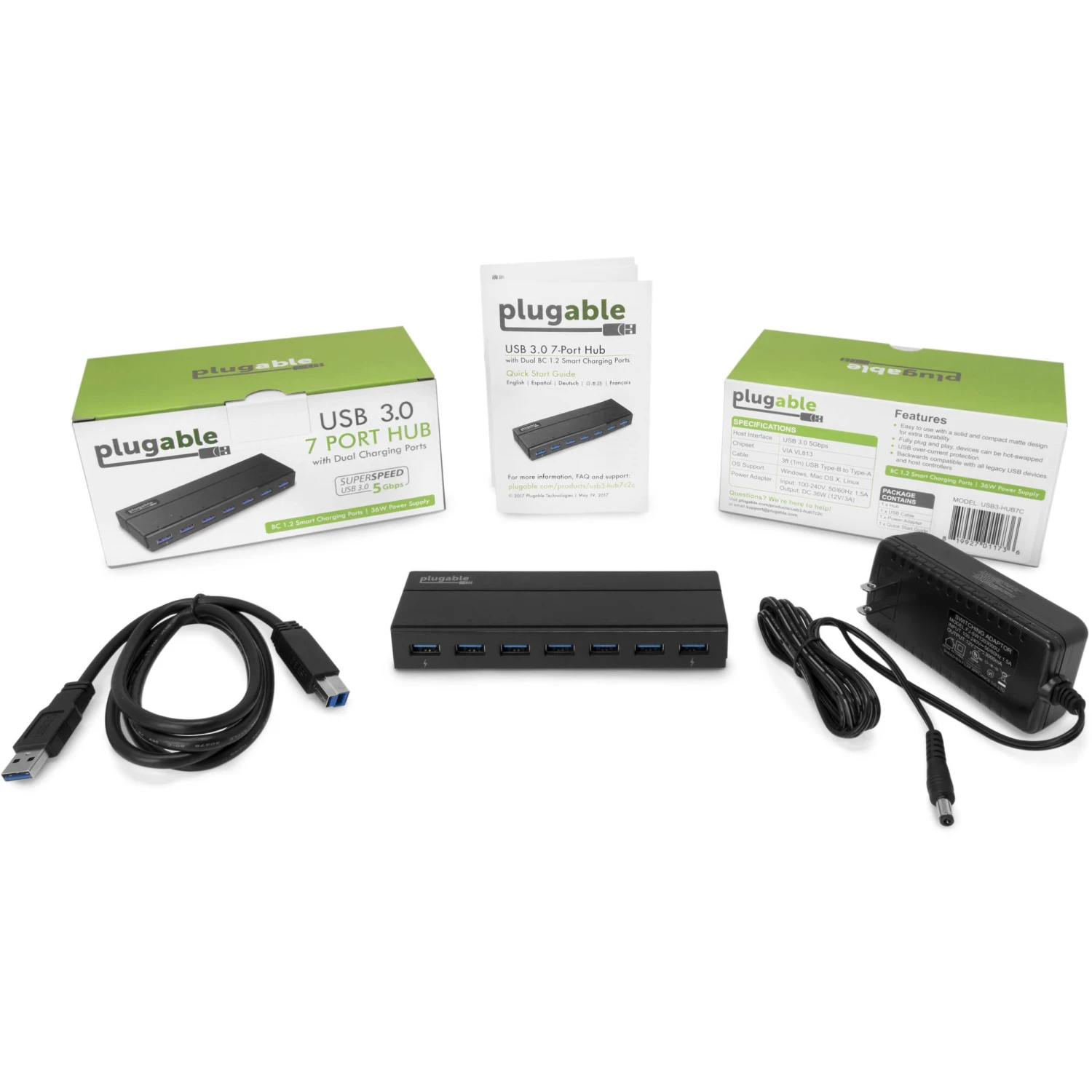

In the Box
- Plugable 7-Port USB 3.0 Hub
- 36W Power Adapter
- USB-A to B Cable
- Limited 2-Year Manufacturer Warranty
- Description
- Ready to Connect
- Data Sync and USB Charging
- Modern Controller
- Installation and Compatibility
Plugable USB3-HUB7C Specs
| USB | 5 x USB-A USB 3.0 / 3.1/3.2 Gen 1 (4.5 W) 2 x USB-A USB 3.0 / 3.1/3.2 Gen 1 (7.5 W) |
| Thunderbolt | None |
| Ethernet | None |
| Media Card Reader | None |
| Host Connection | USB-A 3.0 / 3.1/3.2 Gen 1 |
| Connection Type | Detachable Cable |
| Powered Connection | Yes |
| Chipset | VLI (VIA Labs) VL813 |
| Power Source | AC Adapter |
| Power I/O | Barrel Connector (Unspecified Diameter) (Input) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 3 A |
| Certifications | UL *as per Manufacturer |
| Cable Length | 3.3′ / 1 m |
| Color | Black |
| LED Indicator | Connection |
| Lock Slot | No |
| Package Weight | 0.855 lb |
| Box Dimensions (LxWxH) | 7.3 x 4.2 x 3.4″ |
