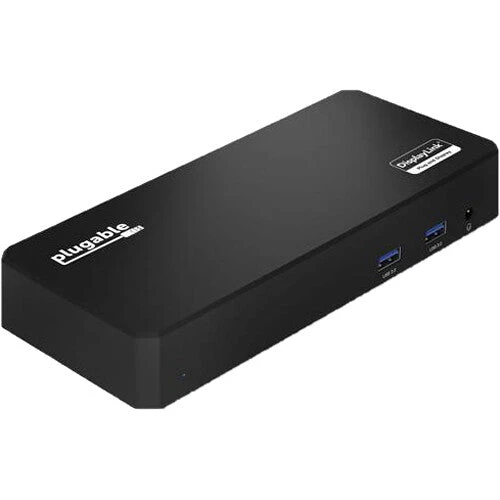

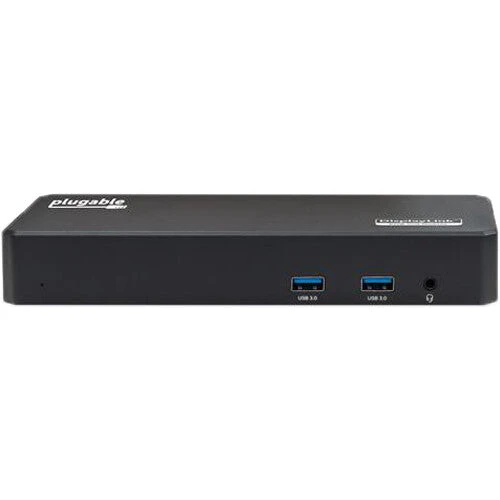

Plugable UD-3900PDZ Overview
Connect this 12-in-1 USB Type-C Docking Station from Plugable to your compatible device’s USB 3.1 Type-C port to expand its capabilities. This docking station supports up to three HDMI monitors, providing a wide viewing space for enhanced multitasking when editing videos, working on large projects, monitoring information, and more. The HDMI 1.4 port supports a 3840 x 2160 resolution 4K monitor at 30 Hz while the 2048 x 1152 resolution, 60 Hz screen can be connected to the two HDMI 1.3 ports in single mode. Please note that the HDMI 1.3 port resolution is limited to 1920 x 1080 when in multi-display mode using DisplayLink USB Graphics Technology, and they do not support HDCP digitally protected content.
Additionally, this docking station includes a Gigabit Ethernet port and six USB 3.1 Gen 1 Type-A ports to quickly connect supported peripherals such as keyboards, mice, and flash drives to transfer data at up to 5 Gb/s. You can keep compatible laptop and connected devices fully charged by using the included power adapter and cable with the USB Type-C charging port, which provides up to 60W power delivery. Plugging a separately purchased headset into the 3.5mm audio jack allows you to listen to media and chat with privacy. This USB type-C docking station is designed to work with Windows and Mac systems, but does not support Linux or Chrome OS.
USB 3.1 Gen 1
In the Box
- Plugable 12-in-1 USB Type-C Docking Station
- USB Type-C Cable
- Power Adapter
- Limited 2-Year Warranty

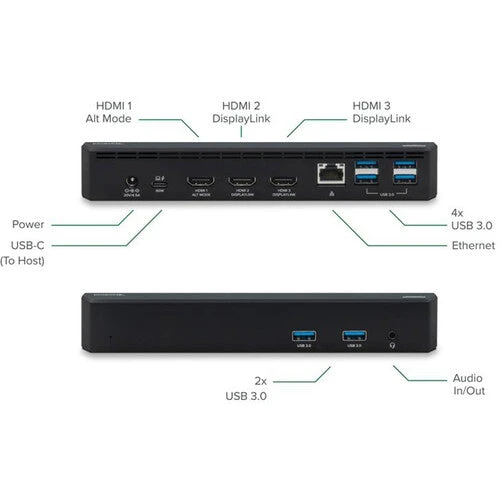

Plugable UD-3900PDZ Specs
| USB | 6 x USB 3.1 / USB 3.2 Gen 1 Type-A 1 x USB (Charging Only) Type-C (60 W) |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| FireWire | None |
| Display | 2 x HDMI 1.3 (Female) 1 x HDMI 1.4 (Female) |
| Audio | 1 x 1/8″ / 3.5 mm Headphone/Microphone Combo |
| Memory Card Slots | None |
| System Connection | 1 x USB 3.1 / USB 3.2 Gen 1 Type-C Female |
| Connection Type | Detachable Cable |
| Interface Max Data Rate | 5 Gb/s |
| Number of Displays Supported | 3 |
| Maximum Resolution Supported | 3840 x 2160 at 30 Hz 2048 x 1152 at 60 Hz (Single Display) 1920 x 1080 at 60 Hz (Dual Display) |
| Operating System Support | Windows, macOS/OS X |
| UASP Support | No |
| Monitor Stand Support | No |
| Power Source | AC Adapter, Bus Powered |
| Power Port | USB Type-C (Input) |
| Maximum Power Consumption | 90 W (AC Adapter) |
| Total Current Output | 3 A |
| DC Input Power | 20 VDC at 4.5 A |
| Lock Slot | No |
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 9.2 x 5.7 x 3.2″ |
