Planar Systems UltraRes X Series 75″ UHD 4K HDR Touchscreen Commercial Monitor(Planar Systems Ultrares X Series 75 Uhd 4k Hdr Touchscreen Commercial Monitor)
Original price was: $304.00.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Planar Systems URX75-ERO-T Overview
- 1Description
- 2Multi-Source Viewing
- 3Extended Ruggedness & Optics
- 4Planar Profile Mounting System
- 5Always-On Reliability
- 6Convenient Control
- 7On Your Schedule
- 8HDR Ready
- 9Made for America
- 10Crestron & Q-SYS Modules & Drivers
- 11Additional Features
The Planar UltraRes X Series 75″ UHD 4K HDR Touchscreen Commercial Monitor is Planar’s best-in-class 4K LCD display. The URX75-ERO-T is a 630 nits bright display, capable of 24/7 continuous operation. Featuring Planar ERO-LCD protective glass and infrared touch that supports up to 20 simultaneous touch points. With HDR color, built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URX75-ERO-T is ideal for high-impact digital signage, control rooms, media rooms, and more. It offers an OPS slot for additional connectivity, and a redundant power supply to prevent failure and aid in maintenance. Multi-input display capability allows for up to four sources to be viewed on screen at one time, with image adjustments available to optimize picture quality for each source separately. The URX75-ERO-T is TAA compliant with signed and encrypted firmware and no Wi-Fi or Android OS making it secure for government applications. Additionally, with the included optional Planar Profile Mounting System, it can achieve ADA compliance.

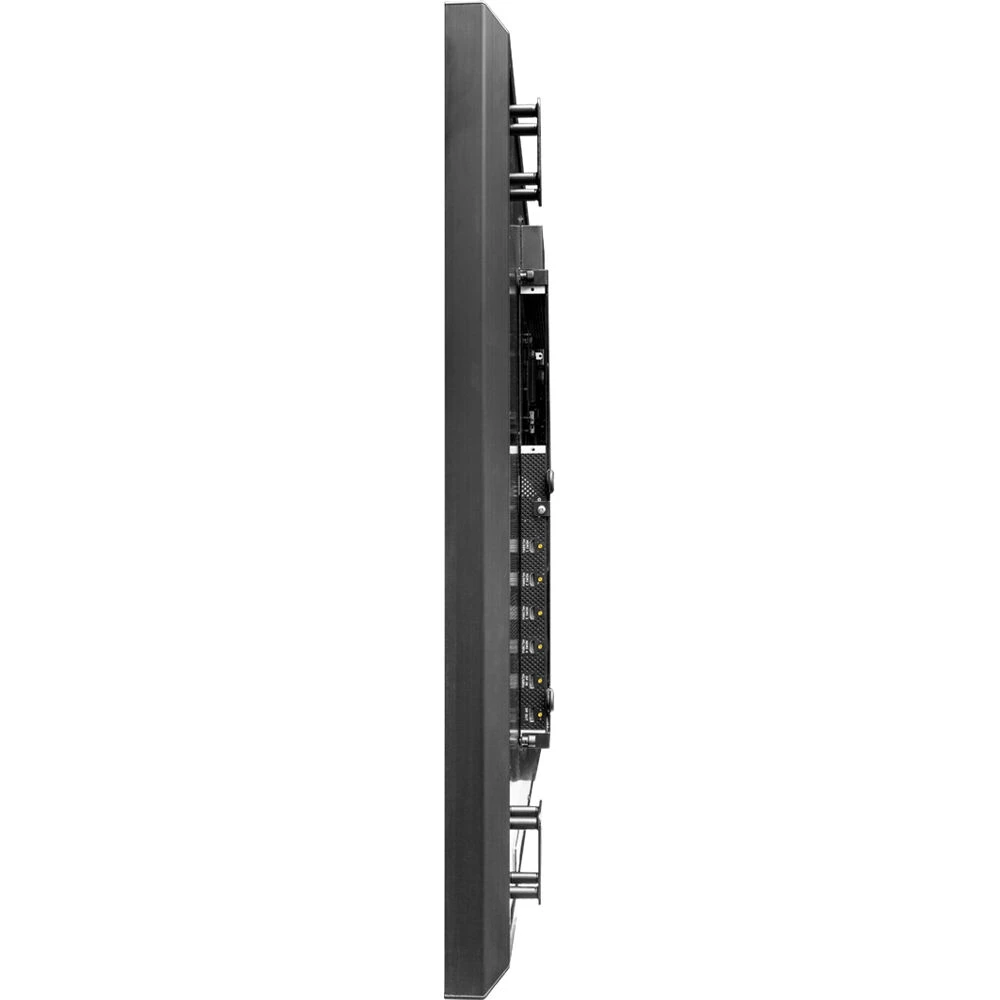

With the Planar Profile Mounting System, Planar UltraRes X Series displays are thin enough to meet rigorous Americans with Disabilities Act (ADA) accessibility guidelines in buildings and facilities, requiring mounted depth to be less than 4″ from the wall. The mounting system is also lockable for added security and is available in both landscape and portrait options.
- 2mm Corning Gorilla Glass with anti-glare coating
- 20-point IR touch
- IR remote included
- RS-232 control capable
- RJ45 LAN network connection
- HDMI-CEC
- Optical and 3.5mm audio outputs
- Built-in 10W stereo speakers
- Fanless design for quiet operation
In the Box
- Planar Systems UltraRes X Series 75″ UHD 4K HDR Touchscreen Commercial Monitor
- Remote Control
- 2 x AAA Batteries
- AC Power Cord
- IR Sensor
- HDMI Cable
- USB-A to USB-B Cable
- Carrying Strap for Lifting and Carrying the Display Using Three People
- Planar TouchMark Single License Key Card
- 2 x Profile Mount Wall Mount Brackets
- 2 x Service Bracket Wall Mount Brackets
- Profile Mount Install Template
- Limited 3-Year Manufacturer Warranty (Planar Advance Exchange)
User Manual
4.6 MB
- Description
- Multi-Source Viewing
- Extended Ruggedness & Optics
- Planar Profile Mounting System
- Always-On Reliability
- Convenient Control
- On Your Schedule
- HDR Ready
- Made for America
- Crestron & Q-SYS Modules & Drivers
- Additional Features
Planar Systems URX75-ERO-T Specs
| Display Size |
75″ |
| Resolution |
3840 x 2160 |
| Maximum Brightness |
630 nits / cd/m2 |
| Touchscreen Technology |
Infrared (IR) |
| Inputs |
2x HDMI 2.0 2x HDMI 1.4 1x DisplayPort 1.2 |
| Outputs |
1x DisplayPort 1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Wireless |
No |
| USB I/O |
1x USB-B Unspecified Version (Touchscreen Control) 1x USB-A Unspecified Version (Service) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x 2.5 mm IR Input 1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 10 W |
| Media Card Reader |
No |
| Display Size |
75″ |
| Panel Type |
VA LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape, Portrait |
| Resolution |
3840 x 2160 |
| Maximum Brightness |
630 nits / cd/m2 |
| Lighting System |
Direct LED |
| HDR Compatibility |
HDR10 |
| Contrast Ratio |
5000:1 |
| Dynamic Contrast Ratio |
20,000:1 |
| Response Time |
6.5 ms |
| Refresh Rate |
60 Hz |
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
| Color Gamut |
88% NTSC |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
65.0 x 36.5″ / 1650.2 x 928.3 mm |
| Dot Pitch |
0.4298 x 0.4298 mm |
| Pixels Per Inch (ppi) |
59 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
Infrared (IR) |
| Multi-Touch Points |
20 |
| TV Tuner |
No |
| Inputs |
2x HDMI 2.0 2x HDMI 1.4 1x DisplayPort 1.2 |
| Outputs |
1x DisplayPort 1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2 |
| Wireless |
No |
| NFC |
No |
| USB I/O |
1x USB-B Unspecified Version (Touchscreen Control) 1x USB-A Unspecified Version (Service) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet) |
| Other I/O |
1x 2.5 mm IR Input 1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1 |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Built-In Speakers |
Yes, 2x 10 W |
| Speaker Configuration |
2-Channel |
| OS Compatibility |
Windows 10 to 11 macOS Linux |
| Mobile App Compatible |
Yes: Android Only App Name: Planar UltraRes Functionality: Adjust Settings, Remote Control, Setup |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
