Planar Systems UC Complete 153" 0.9mm Pixel Pitch 21:9 LED Video Wall Display(Planar Systems Uc Complete 153 0 9mm Pixel Pitch 21 9 Led Video Wall Display)

Planar Systems UC Complete 153″ 0.9mm Pixel Pitch 21:9 LED Video Wall Display(Planar Systems Uc Complete 153 0 9mm Pixel Pitch 21 9 Led Video Wall Display)

Original price was: $306.00.Current price is: $95.99.

SKU: DGFUB 6995605028949 Categories: Audio Visual Presentation, Commercial Monitors & Displays, Computer & Presentation Tags: All Commercial Monitors, Audio Visual Presentation, Commercial Monitors & Displays, Planar Systems UC Complete

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Planar Systems UC Complete Overview

1Description
2HDR Ready
3Powerful Video Control
4Always-On Reliability
5Accessibility Matters
6TAA Compliant
7Planar EverCare

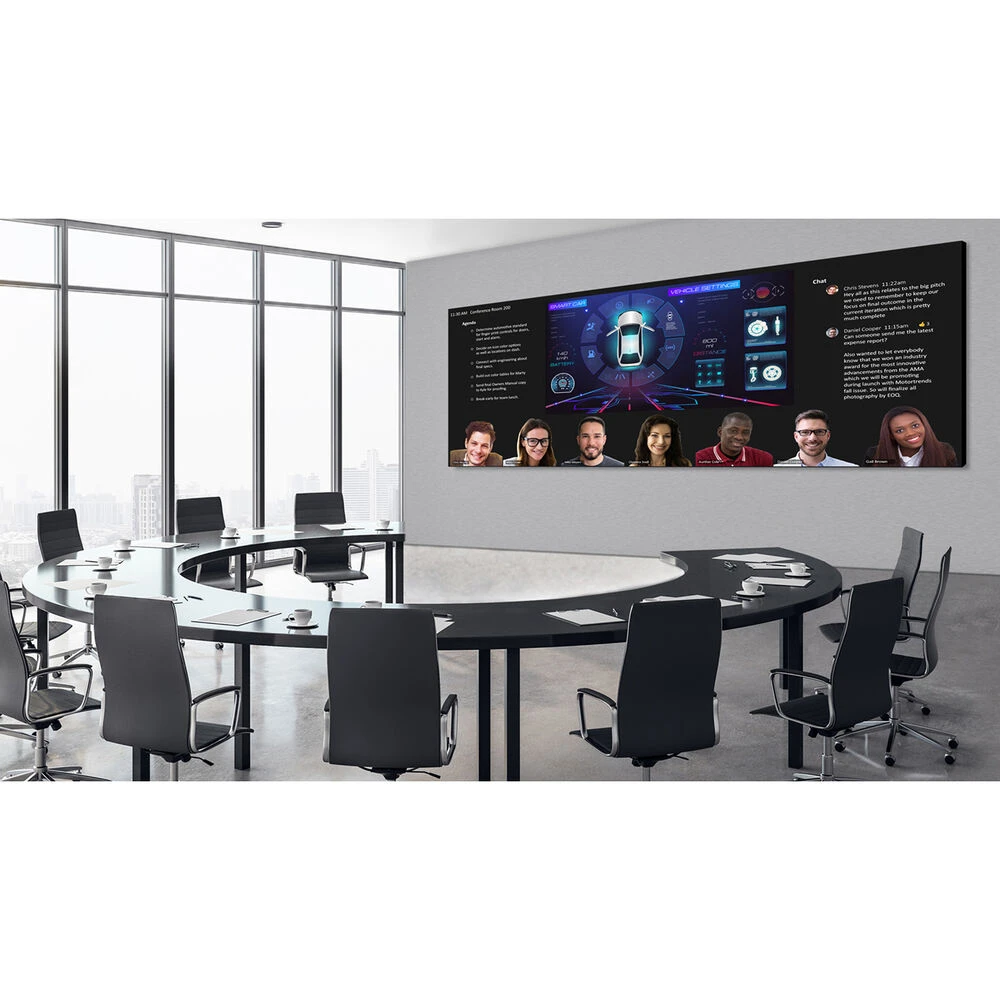

The Planar UC Complete 153″ 0.9mm Pixel Pitch 21:9 LED Video Wall Display is an all-in-one package LED video wall solution. Included with this model are the LED display cabinets, video wall controller, trim, wall mounts, cables, remote control, and spare modules to create a 153″ diagonal ultra-wide LED video wall display. The Planar UC Complete are seamless LED displays ideally suited to the most popular unified communications and video collaboration platforms such as Microsoft Teams with its front row layout, and it can support comfortable viewing from as close as 5′.

HDR Ready

Displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors.

Powerful Video Control

The compact and scalable Planar WallDirector Video Controller drives the video wall at native resolution while its corresponding web-based management software simplifies set-up, configuration, operation, and monitoring. The 1U rack mount video controller captures multiple 4K inputs and can be stacked with additional controllers for more video inputs.

Always-On Reliability

Displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.

Accessibility Matters

With an installed profile depth of less than 4″, the display solution meets the requirements of the Americans with Disabilities Act (ADA) Standards for Accessible Design.

TAA Compliant

Organizations that prefer to use products manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.

Planar EverCare

Planar EverCare Lifetime Limited Warranty is designed to deliver total assurance for our customers while reducing their lifetime cost of ownership. It demonstrates Planar’s profound confidence in their products and Service Organization’s ability to deliver. Planar EverCare is comprehensive, covering the product as long as the end customer continues to own and use it in a fixed location. It covers the entire product from controller to sub-pixel, including every component in between. To take advantage of Planar EverCare, the product must be registered with Planar within 60 days of purchase and owned and deployed in North America.

In the Box

Planar Systems UC Complete 153″ 0.9mm Pixel Pitch 21:9 LED Video Wall Display
Display Cabinets
Video Controller
Remote Control
Wall Mounts
Trim
Cables
Spare Modules
Limited 2-Year Manufacturer Warranty

Table of Contents

Description
HDR Ready
Powerful Video Control
Always-On Reliability
Accessibility Matters
TAA Compliant
Planar EverCare

Planar Systems UC Complete Specs

Key Specs

Display Size	153″
Resolution	3840 x 1440
Maximum Brightness	600 nits / cd/m²
Inputs	4x HDMI 2.0
Wireless	No
USB I/O	1x USB-A Unspecified Version 1x USB-B Unspecified Version
Ethernet I/O	2x RJ45 (Unspecified Ethernet)
Other I/O	1x RJ45 Serial (RS-232C) Control
Built-In Speakers	No
Media Card Reader	No

Display

Display Size	153″
Panel Type	Direct View LED
Aspect Ratio	21:9
Display Orientation	Landscape
Resolution	3840 x 1440
Maximum Brightness	600 nits / cd/m²
Lighting System	Direct LED
Contrast Ratio	7000:1
Refresh Rate	60 Hz
Bit Depth / Color Support	Not Specified by Manufacturer
Viewing Angle (H x V)	160 x 140°
Screen Area	142.92 x 53.88″ / 363.02 x 136.86 cm
Dot Pitch	0.9 x 0.9 mm
Pixels Per Inch (ppi)	27 ppi

Video

TV Tuner

Connectivity

Inputs	4x HDMI 2.0
HDCP Support	Yes
Wireless	No
NFC	No
USB I/O	1x USB-A Unspecified Version 1x USB-B Unspecified Version
Ethernet I/O	2x RJ45 (Unspecified Ethernet)
Other I/O	1x RJ45 Serial (RS-232C) Control

Speaker

Built-In Speakers

Hardware

Mobile App Compatible	No
Media Card Reader	No
Built-In Mic	No

Environmental

Operating Temperature	14 to 104°F / -10 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 80%
Storage Humidity	10 to 85% (Non-Condensing)

Electrical

Power Consumption	Maximum: 3770.0 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

General

Mounting-Hole Pattern	No
Lighting Lifespan	100000 Hours
IK Rating	No
Duty Cycle	24 Hours / 7 Days
Dimensions	11.9 x 4.5 x 0.4′ / 362.7 x 137.2 x 12.2 cm
Weight	401.85 lb / 182.28 kg
